Armacell SAE fittings for refrigerant lines 1/4" + 3/8" + 1/2" for copper pipe, without flaring
Armacell SAE fittings for refrigerant lines 1/4" + 3/8" + 1/2" for copper pipe, without flaring
Price incl. VAT.
Delivery time on request
In stock
Product informations
"Armacell SAE fittings for refrigerant lines 1/4" + 3/8" + 1/2" for copper pipe, without flaring"
Armacell SAE fittings for refrigerant lines 1/4" + 3/8" + 1/2" for copper pipe, without flaring

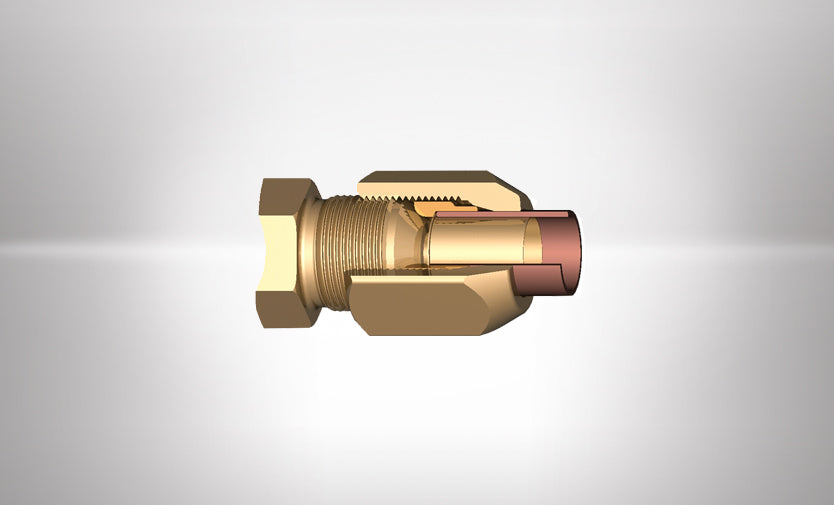

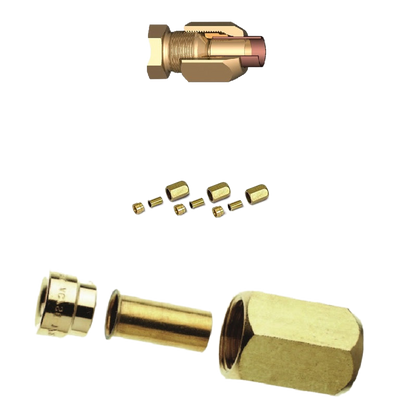

The Armacell SAE Flare Fitting System is a technically advanced, screwable brass connection system for refrigeration systems and heat pumps. The set consists of a union nut, a support sleeve, and a clamp ring.
The screw connection complies with the current standards and recommendations of the refrigeration industry (EN 378/1, EN 378/2).
Features & Benefits
Tight connection
- - no risk of leakage
- - high safety standards
Easy and quick installation
- - Soldering work and the associated safety measures are eliminated
- - No need to flare the pipes
- - no damage to the insulation by soldering flame
- - Marking of the union nut and the clamping ring
- - no environmental pollution by escaping coolant
- - Connection system does not need to be replaced after repairs or maintenance work
- - Even after repeated assembly and disassembly, the connection remains tight, no additional sealing ring is required
Technical changes and errors excepted! Subject to prior sale! Illustration similar!
Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.
