Armacell SAE fittings for refrigerant lines, set 1/4" + 1/2" for copper pipe
Armacell SAE fittings for refrigerant lines, set 1/4" + 1/2" for copper pipe
Price incl. VAT.
Delivery time on request
In stock
Product informations
"Armacell SAE fittings for refrigerant lines, set 1/4" + 1/2" for copper pipe"
Armacell SAE fittings for refrigerant lines 1/4 + 1/2 copper pipe, without flaring
You will receive 1x 1/4 + 1x 1/2"

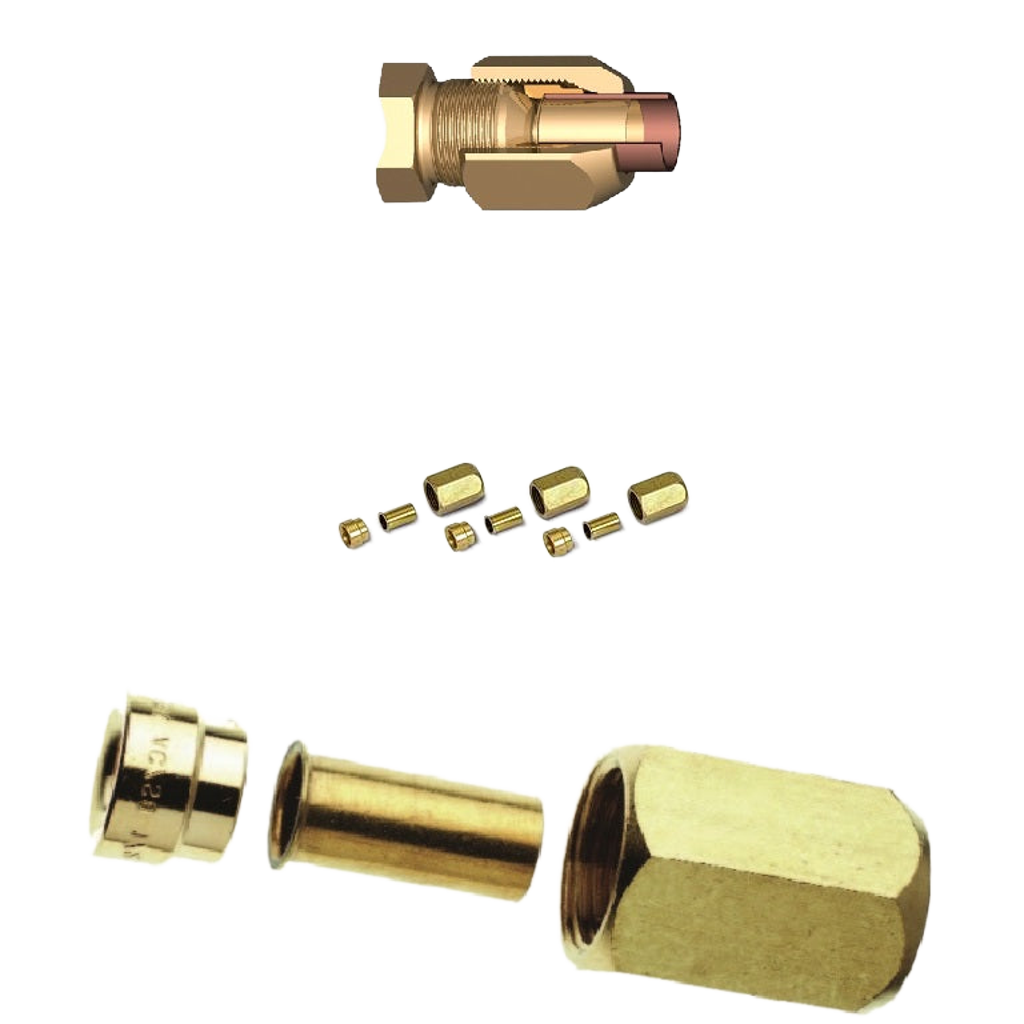

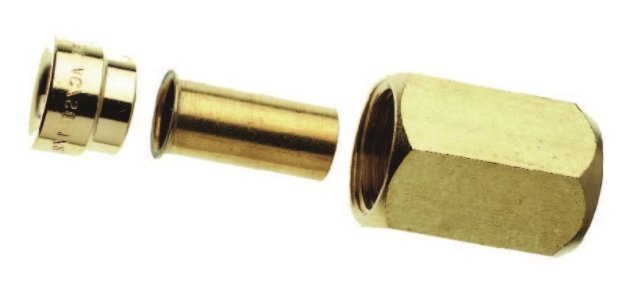

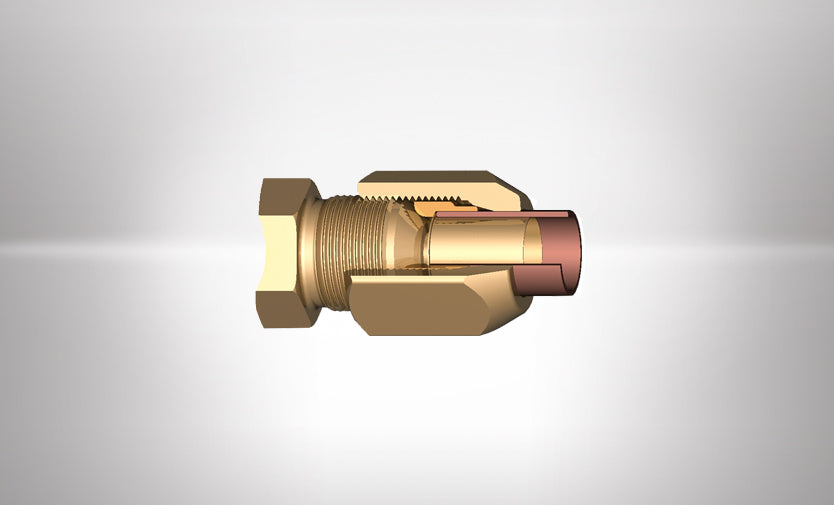

The Armacell SAE-Flare Fitting System is a technically advanced, screw-type brass connection system for refrigeration systems and heat pumps. One set consists of a union nut, a support sleeve, and a clamping ring.
The screw connection complies with the current standards and recommendations of the refrigeration industry (EN 378/1, EN 378/2).
Features & Benefits
Fixed connection
- no risk of leakage
- high safety standard
Easy and quick installation
Soldering work and the associated safety measures are eliminated.
- No need to flare the pipes - no damage to the insulation from the soldering flame
No confusion possible
- Marking of the union nut and the clamping ring
Environment
- No environmental pollution from escaping coolant
Long-lasting product quality
- The connection system does not need to be replaced after repairs or maintenance work.
- Even after repeated assembly and disassembly, the connection remains tight; no additional sealing ring is required.
Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.
