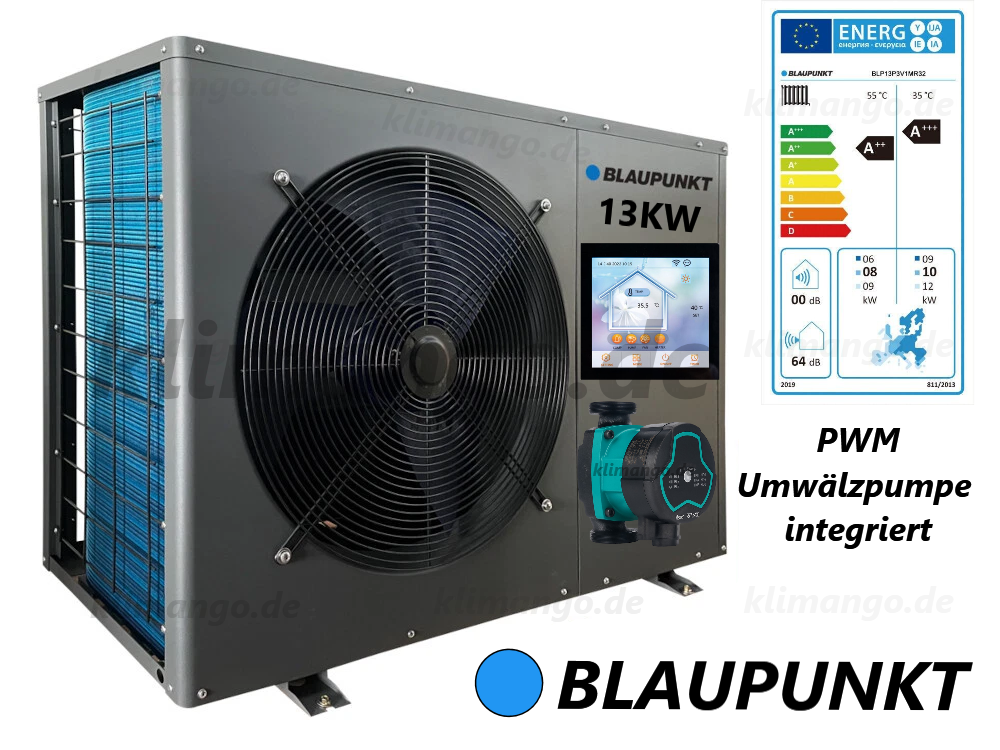

Blaupunkt Monoblock Heat Pump Air/Water 13 kW BLP13P3V1MR32 Wifi BAFA Heating / Cooling A+++

BLP13P3V1MR32 Blaupunkt monoblock heat pump with a power output of 13 kW .

Integrated circulation pump and Wi-Fi.

Blaupunkt heat pumps are designed to meet the highest customer demands. Blaupunkt air source heat pumps use high-quality components from leading suppliers and are characterized above all by modern design, a well-thought-out color selection, and precise workmanship.

Low-temperature split system with energy efficiency class A+++/A++

The Blaupunkt heat pump range was developed to meet energy-saving requirements. It is a multifunctional unit for domestic hot water heating and building heating.

Blaupunkt heat pumps operate at a low noise level. They are equipped with Wi-Fi, allowing you to benefit from intelligent control. Thanks to the integrated Wi-Fi module, the heat pump can be controlled from anywhere using your smartphone, tablet, laptop, or desktop PC.

BLAUPUNKT air source heat pumps use high-quality components from leading suppliers.

Components:

– PANASONIC rotary compressor

– CAREL expansion valve

– WOLONG inverter fan

– Pressure transmitter CAREL

– Driver CAREL

CAREL solutions are typically concealed within larger devices. These include valves just a few centimeters in size, sensors, controllers, thermostats, and monitoring systems that form the control system for air conditioning, cooling, and heating systems. These components perform a fundamental function within the system. Their monitoring and control of such systems contributes to increased overall performance and significant energy savings.

They achieve high performance with low power consumption.

Advantages of heat pumps:

Higher energy efficiency

Thanks to their ERP energy class A+++, they save over 30% more energy.

Quiet operation

New measures for noise reduction are being used in the heat pumps: a rotary compressor from Panasonic and brushless fans.

Intelligent control

The CAREL control unit with an RS485/WiFi app is designed to establish the control between the heat pump unit and the end application.

Wide voltage range

The heat pump operates stably in the voltage ranges 150V – 260V (1 phase) or 330V – 450V (3 phases) to reduce the effects of mains voltage disturbances on the device.

Intelligent defrosting

The intelligent technology used makes optimal decisions about defrosting in order to minimize energy consumption and increase user satisfaction.

Appropriately selected components and their high quality result in high efficiency for Blaupunkt heat pumps. These units are characterized by high energy ratings. As a result of tests carried out by TÜV SÜD, they were classified (depending on the temperature of the heating system with which they operated) into the following classes:

for a CO supply temperature of 35 °C – Energy class A+++

for a CO supply temperature of 55 °C – Energy class A++

This demonstrates the very high cost efficiency of Blaupunkt brand devices, which leads to low operating costs, enabling a rapid return on investment.

Technical data:

Monoblock air source heat pump with inverter technology

Power supply V/HZ: 380-420 / 50 3F
Phases: 3-phase
Refrigerant: R32
A7/W35 Rated power: 13 kW
A7/W35 Power factor: 4.63
A7/W35 Heating output range: 4.4/13.00KW
A7/W35 Power consumption: 950/3100W
A7/W35 Min./Max. Power factor: 4.63/4.17

A7/W55 Rated power: 12.0 kW
A7/W55 Power factor: 2.92
A7/W55 Heating output range: 4.10/12.00 kW
A7/W55 Power consumption: 1250/4100W
A7/W55 Min./Max. Power factor: 3.25/2.92

-A7/W35 Rated power: 9.2KW
-A7/W35 Power factor: 2.92
-A7/W35 Heating output range: 3.20/9.20KW
-A7/W35 Power consumption: 960/3200W
-A7/W35 Min./Max. Power factor: 3.29/2.92

-A7/W55 Rated power: 8.5KW
-A7/W55 Power factor: 2.30
-A7/W55 Heating output range: 2.90/8.50KW
-A7/W55 Power consumption: 1270/4200W
-A7/W55 Min./Max. Power factor: 2.30/2.04
Maximum power consumption: 4.65 kW
Maximum current draw: 8.80A
Compressor: Twin Rotary Inverter
Fan: Quantity: 1
Air flow rate: 3500 m³/h
Rated power: 150W

Heat exchanger: Type: Plate type
Pressure loss: 30 kPa
Hydraulic connection: G1"

Water flow rate: Min./Max.: 0.25/0.62 L/s
Noise level: 55 dB(A)

Dimensions of the outdoor unit: 1110x475x970 (mm)
Dimensions of the outdoor unit including packaging: 1200x540x970 (mm)
Net weight of the outdoor unit: 113 kg
Gross weight of the outdoor unit: 115kg

Manufacturer's warranty: 2 years

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.

Important NOTE! Installation and commissioning of the devices must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certified contractors and special qualifications) must be provided. Failure to provide such proof will void any warranty and guarantee. Note: The air conditioner may only be installed by a company certified under Regulation (EU) No. 517/2014 of the European Parliament and of the Council of April 16, 2014, on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it has been professionally installed by certified specialists.
