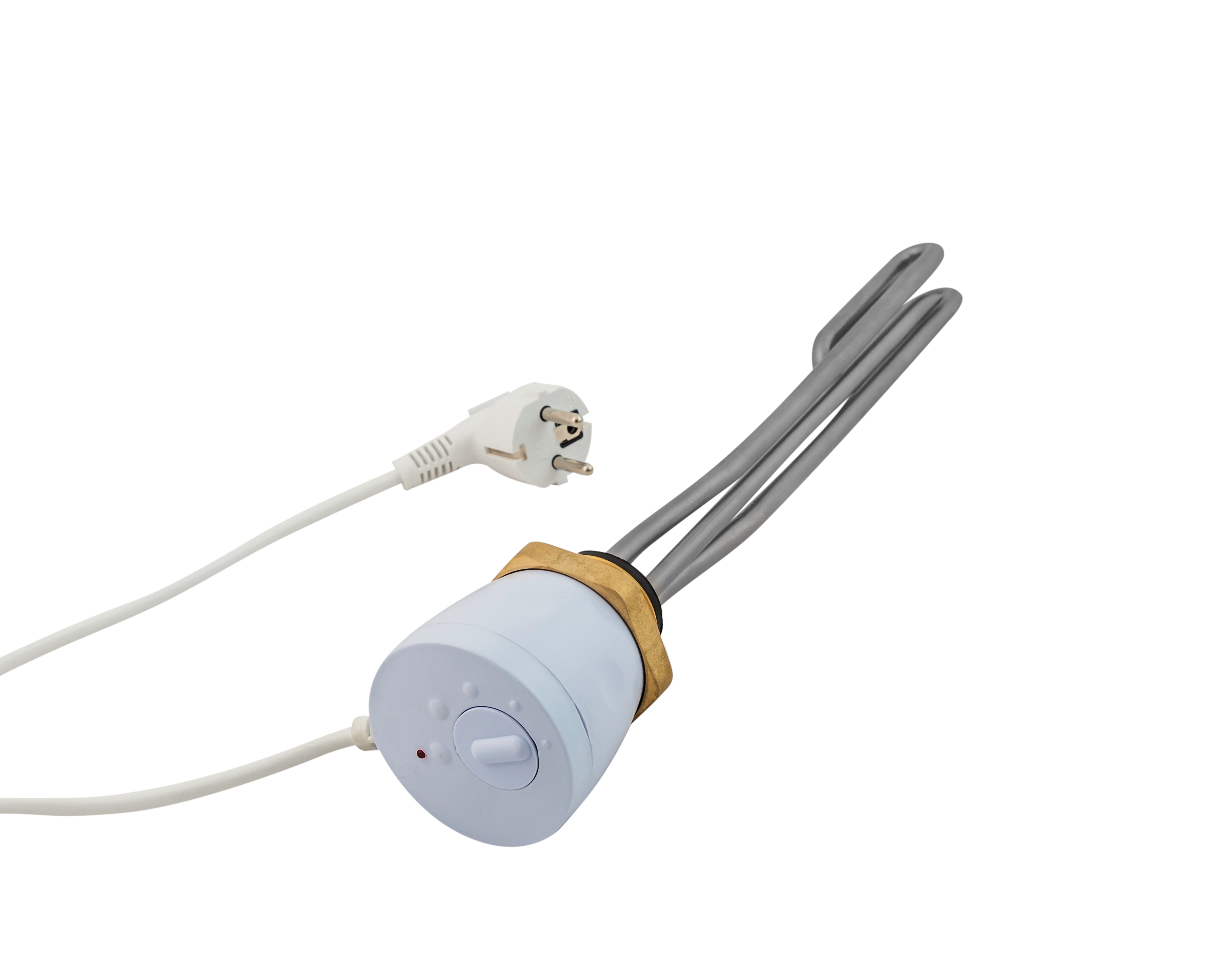

Electric Immersion Heater 2 / 3 kW GZ 6/4" 230V Stainless Steel, Heating Cartridge with Thermostat for Buffer & Water Tanks

Electric Immersion Heater 2 and 3 kW GZ 6/4" 230V Stainless Steel, Heating Element with Thermostat for Buffer & Hot Water Tanks

Insulated electric immersion heater also suitable for solar storage tanks

Suitable for stainless steel tanks

Two variants are available:

• Heating element 2 kW 230V
• Heating element 3 kW 230V

The electric heating element has been manufactured so that the heating elements are insulated from the heater head.
A temperature limiting fuse of 85 ± 7 ºC has been used to protect the electric heating element.
Can also be used in stainless steel tanks. The device is equipped with thermostat temperature control functions.
Electric immersion heater with thermostat for heating water in buffer tanks and hot water tanks

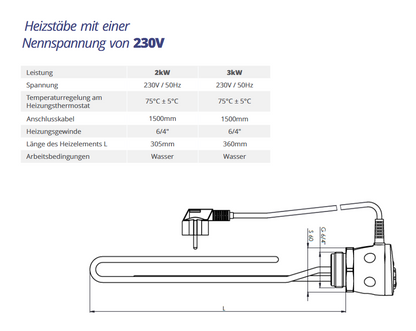

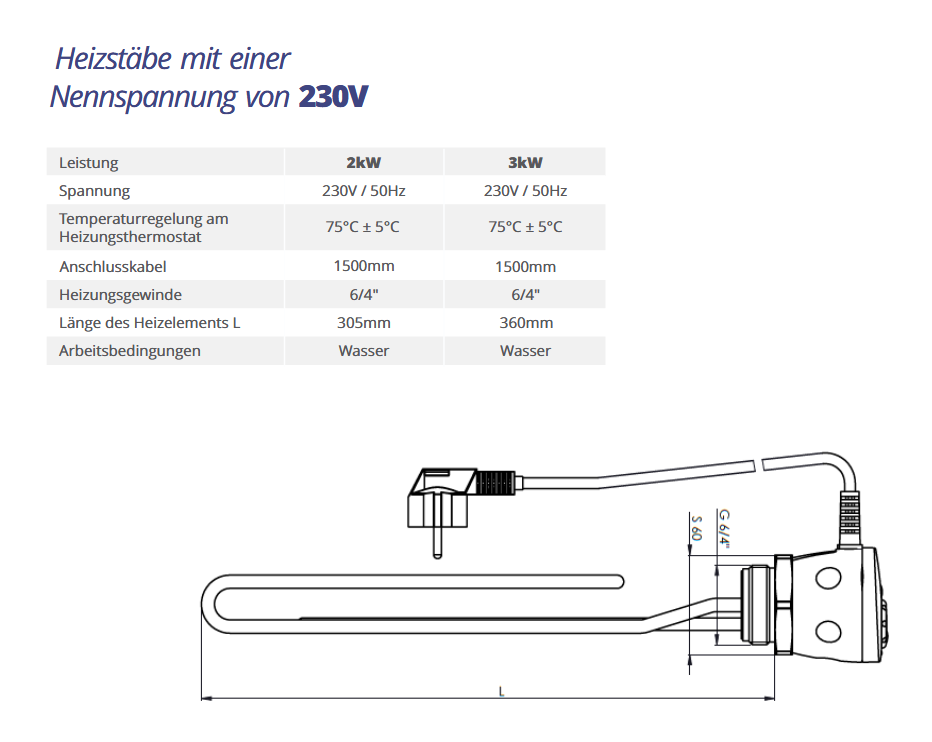

Technical parameters:

• Voltage 230V / 50Hz
• For small and medium-sized water heaters
• High flange for easy installation
• Stepless temperature adjustment on the heating thermostat 75°C ± 5°C
• The heating element is equipped with an independent thermal switch 85 ± 7 ºC
• Indicator light
• Connection cable 1500mm
• Heater thread 6/4"

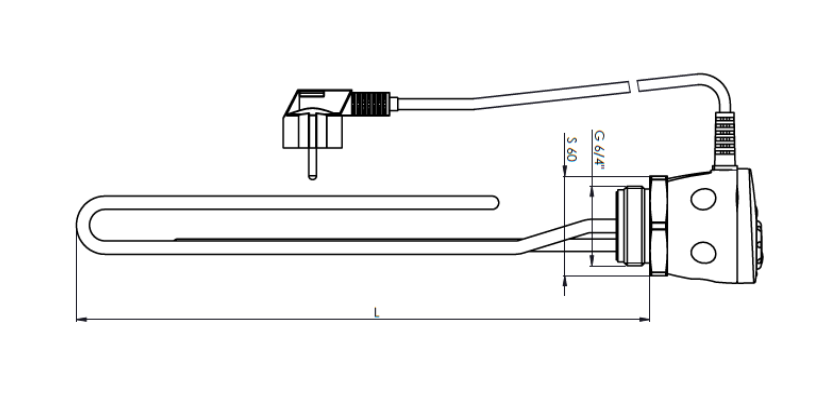

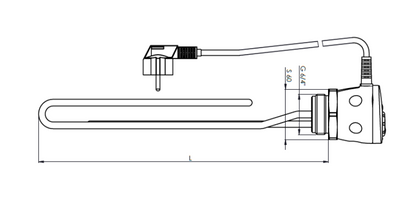

• Length of heating element L 305mm (2kW) - 360mm (3kW)
• Complies with EU standards

Application

The heater for a boiler with thermoregulator is used exclusively for heating domestic water in water exchangers: boilers, thermal systems, radiators or other devices. A practical application of the heater is to support water heating during the heating season, for example in boilers with a coil, or to heat water independently out of season.

Subject to technical changes and errors! Subject to prior sale! Illustration similar!
