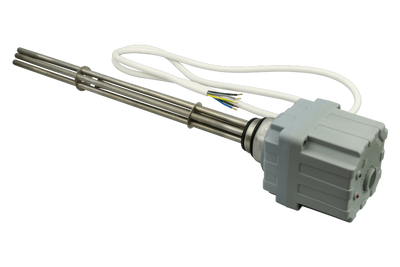

Electric Heating Element 3 / 4.5 / 6 / 7.5 / 9 / 12 kW GZ 6/4" 3*230V Stainless Steel, Immersion Heater with Thermostat for Buffer & Water Storage Tanks

Electric Immersion Heater 3 / 4.5 / 6 / 7.5 / 9 and 12 kW GZ 6/4" 3*230V Stainless Steel, Heating Element with Thermostat for Buffer & Water Tanks

Insulated Electric Immersion Heater for Solar Heaters

Suitable for stainless steel tanks

Immersion heater with 3x230V nominal voltage

6 variants are available:

• Immersion heater 3 kW 3x230V
• Immersion heater 4.5 kW 3x230V
• Immersion heater 6 kW 3x230V
• Immersion heater 7.5 kW 3x230V
• Immersion heater 9 kW 3x230V
• Immersion heater 12 kW 3x230V

The electric immersion heater is designed so that the heating elements are insulated from the heater head. Before connecting the immersion heater to the mains, it must be checked that the tank in which the immersion heater is installed is completely filled with water and that the entire immersion heater is submerged in it.
Immersion heaters for hot water preparation with a 6/4" thread in solar heaters and other hot water tanks. The immersion heaters are equipped with a thermostat that allows the target temperature to be set between 30°C and 75°C. The device has an additional overheating protection of 98°C.
The immersion heaters have protection class IP 44.

Technical Parameters:

• Voltage 3*230V
• For medium and large water heaters

• Temperature setting between 30°C and 75°C
• The heating element is equipped with additional overheating protection of 98°C

• Indicator lights for heating operation and power connection
• Protection class IP 44
• Connection cable 5×2.5mm2
• Cable length 1700mm
• Heater thread 6/4"

• Immersion length L 3kW: 270±10mm
• Immersion length L 4.5kW: 350±10mm
• Immersion length L 6kW: 460±10mm
• Immersion length L 7.5kW: 580±10mm
• Immersion length L 9kW: 680±15mm
• Immersion length L 12kW: 750±15mm

1. Housing cover
2. Housing body
3. Gland
4. Power cable
5. Heating element unit
6. Gasket for insulation
of the heating element from the head
7. Indicator lights for heating operation
and power connection
8. Reset cap of the temperature limiter
9. Thermoregulator knob

Application

The heater for a boiler with thermoregulator is used exclusively for heating domestic water in water exchangers: boilers, thermal systems, radiators, or other devices. A practical application of the heater is to support water heating during the heating season, for example in boilers with a coil, or to heat water independently out of season.

Technical changes and errors reserved! Subject to prior sale! Illustration similar!
