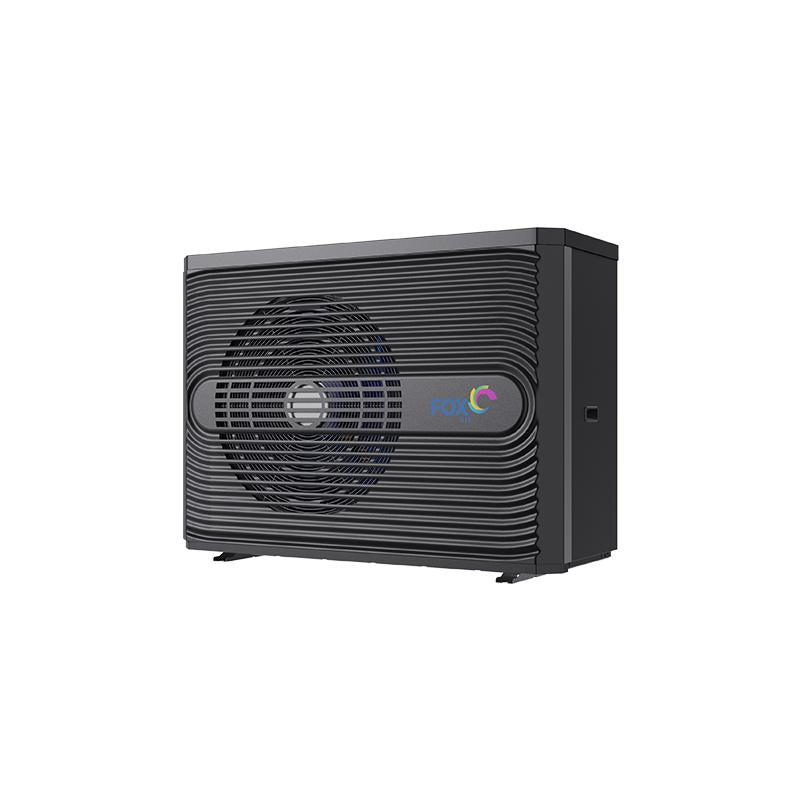

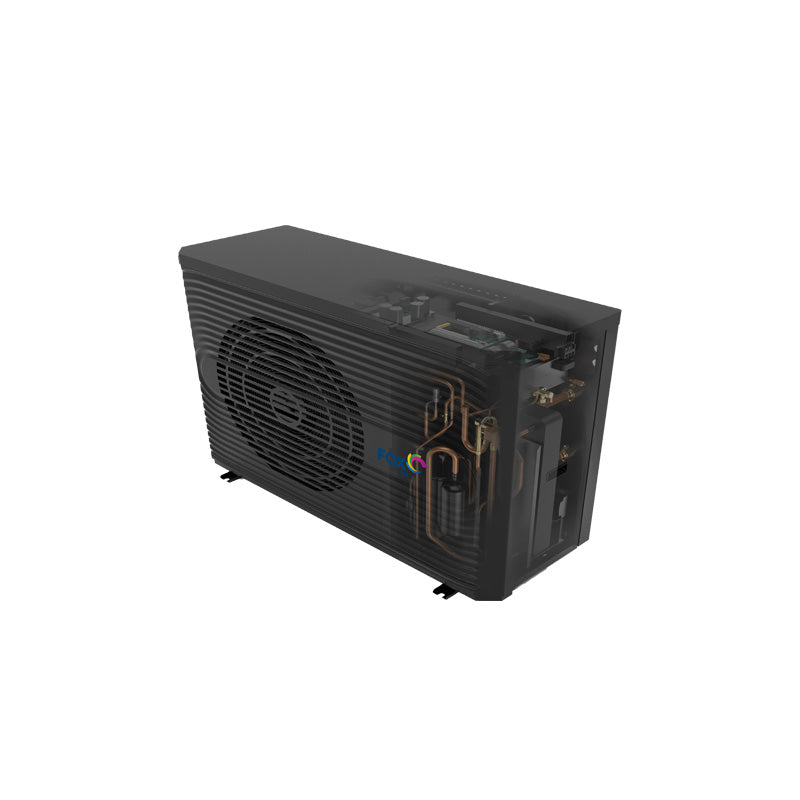

FoxAir Green Line 15 kW Monoblock Heat Pump R290 3PH GL-15-3 | Heating & Cooling | New

The FoxAir Green Line 15 kW R290 3PH GL-15-3 Monoblock Heat Pump (GL-15-3) impresses with state-of-the-art technology and the natural refrigerant R290 (propane) – ideal for environmentally conscious heating and cooling.

The next generation of heat pumps – efficient, sustainable, and powerful!

The 3-phase air-to-water heat pump from the Green Line series with a nominal output of 15 kW comes from the renowned manufacturer FoxAIR. This modern and energy-efficient heat source enables comfortable heating, hot water preparation, and can also be used for cooling in summer. It is noteworthy that the pump operates with the environmentally friendly refrigerant high-purity propane R290, which has very low CO2 emissions. The device can be operated with underfloor heating and integrated into conventional radiators.

Energy Efficiency of the FoxAIR Green Line GL-15-3 15 kW

The 3-phase FoxAIR Green Line 15 kW heat pump uses DC inverter technology, which enables the highest efficiency in energy class A+++. The intelligent defrosting function further increases efficiency. The housing is made of galvanized sheet metal and ASA, ensuring durability and weather resistance. The operating temperature ranges from -25 to +43 °C. The device dimensions are 1287 x 458 x 928 mm. The manufacturer uses the environmentally friendly refrigerant propane R290 in these air-to-water heat pumps.

The FoxAIR 15 kW Green Line Monoblock air-to-water heat pump is an excellent choice for anyone looking for an efficient and environmentally friendly heating solution. It is equipped with a HIGHLY compressor and a SHIMGE circulation pump, which ensure high efficiency and minimal energy consumption. In addition, the device has a DC motor fan with a speed of 220 to 600 revolutions per minute. The sound pressure at one meter is only 44 dB(A).

The Monoblock heat pump FoxAIR Green Line 15 kW GL-15-3 is a highly efficient and energy-saving device. It is particularly recommended for owners of single-family homes, smaller residential buildings, and small commercial and service businesses. The pump can be used for heating, hot water preparation, and also for cooling.

Technical data

• Power supply 380~415V/3N~/50Hz
• Protection class IPX4
• Heating mode (7/6 °C, 30/35 °C)
• Heating capacity (kW) 5.28-14.95
• Power consumption (kW) 0.98-3.85
• COP (A7W35) 3.88-5.39
• Heating mode (2 °C, 30/35 °C)
• Heating capacity (kW) 4.61-11.60
• Power consumption (kW) 0.95-3.60
• COP (A2W35) 3.22-4.85
• Cooling mode (35/24 °C, 12/7 °C)
• Cooling capacity (kW) 3.60~10.50
• Power consumption (kW) 1.12~4.47
• Current consumption (A) 2.0~7.9
• Efficiency
• SCOP +35 °C 5.15
• SCOP +55 °C 3.96
• Performance data
• Max. electrical power (kW) 5.3
• Max. current consumption (A) 10.5
• Water data
• Flow rate (m³/h) 1.7
• Internal pressure loss (max.) 20 kPa
• Circulation pump head 85 kPa
• Refrigerant / Quantity R290 / 0.85 kg
• CO₂ equivalent (t) 0.0026
• Noise level
• Sound pressure (1 m) dB(A) 44
• Sound power (EN 12102) dB 58
• Mechanical data
• Net weight 160 kg
• Dimensions (L×W×H mm) 1287 × 458 × 928
• Shipping dimensions (mm) 1420 × 540 × 1080
• Compressor HIGHLY
• Circulation pump SHIMGE
• Operating temperature range −25 °C – +43 °C
• Fan 1 × DC motor (55 – 105 W, 220 – 600 rpm)
• Water connection 1″
• Fuse C16A
• Housing material Galvanized steel sheet + ASA

🔧 Technical Highlights

• ✅ Power: 15 kW
• ✅ Design: Monoblock (no split system necessary)
• ✅ Power connection: 3-phase (380~415V)
• ✅ Refrigerant: R290 (natural & particularly efficient)
• ✅ Function: Heating + Cooling + Hot Water
• ✅ Inverter technology for maximum efficiency
• ✅ Quiet operation
• ✅ High flow temperatures possible

🌱 Advantages at a Glance

✔ Natural refrigerant (R290) – particularly environmentally friendly
✔ Very high efficiency & low operating costs
✔ Future-proof heating solution (eligible for subsidies)
✔ Ideal for single-family homes & modernization
✔ Compatible with underfloor heating & radiators

📦 Scope of Delivery

• FoxAir Green Line 15 kW Heat Pump (GL-15-3)
• Operating instructions
• (Optional: Add accessories)

📊 Condition

🆕 New goods – originally packaged

🚚 Shipping

• Freight forwarding throughout Europe
• Collection possible by arrangement

Important note!

The installation and commissioning of the devices must be carried out exclusively by qualified personnel. In the event of a complaint, professional installation/installation by qualified specialist companies (certificate of specialist contractor and special qualification) must be demonstrated. If no proof is provided, all warranty and guarantee claims will expire.

Technical changes and errors excepted! Subject to prior sale! Illustration similar!

Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher GWP. A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming, proportional to the refrigerant's GWP value, than 1 kg of CO2, over a period of one hundred years. Do not attempt any work on the refrigeration circuit or disassemble the unit – always consult qualified personnel.
