FoxAir Green Line 9 kW Monobloc Heat Pump R290 1PH GL-9-1 | Heating & Cooling | New

The next generation of heat pumps – efficient, sustainable, and powerful!
The FoxAir Green Line 9 kW R290 1PH GL-9-1 Monobloc Heat Pump (GL-9-1) impresses with state-of-the-art technology and the natural refrigerant R290 (propane) – ideal for environmentally conscious heating and cooling.

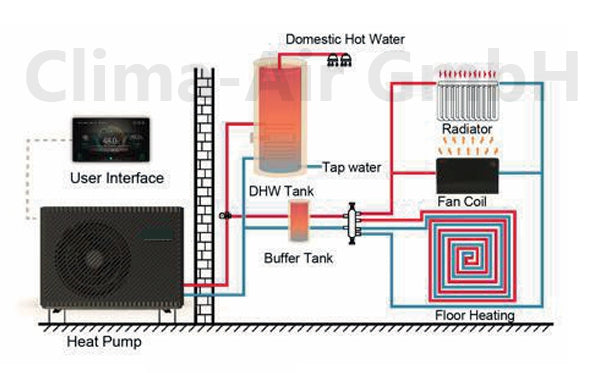

The single-phase air-to-water heat pump from the Green Line series with a nominal output of 9 kW comes from the renowned manufacturer FoxAIR. This modern and energy-efficient heat source enables comfortable heating, hot water preparation, and can also be used for cooling in summer. Notably, the pump operates with the environmentally friendly, high-purity propane R290 refrigerant, which has very low CO2 emissions. The unit can be operated with underfloor heating systems and integrated into traditional radiators.

The FoxAIR Green Line 9 kW 1-phase heat pump uses DC inverter technology, enabling maximum efficiency in energy class A+++. The intelligent defrosting function further increases efficiency. The casing is made of galvanized sheet metal and ASA, ensuring durability and weather resistance. The operating temperature range is between -25 and +43 °C. The unit dimensions are 1167 x 407 x 795 mm. The manufacturer uses the environmentally friendly R290 propane refrigerant in these air-to-water heat pumps.

The FoxAIR 9 kW Green Line Monobloc air-to-water heat pump is an excellent choice for anyone looking for an efficient and environmentally friendly heating solution. It is equipped with a HIGHLY compressor and a SHIMGE circulation pump, which ensure high efficiency and minimal energy consumption. In addition, the unit has a DC motor fan with a speed of 300 to 600 revolutions per minute. The sound pressure at one meter is only 42 dB(A).

The FoxAIR Green Line 9 kW 1F GL-9-1 monobloc heat pump is a highly efficient and energy-saving device. It is particularly recommended for owners of single-family homes, smaller residential buildings, as well as small commercial and service businesses. The pump can be used for heating, hot water preparation, and also for cooling. The power supply is 230 V at 50 Hz.

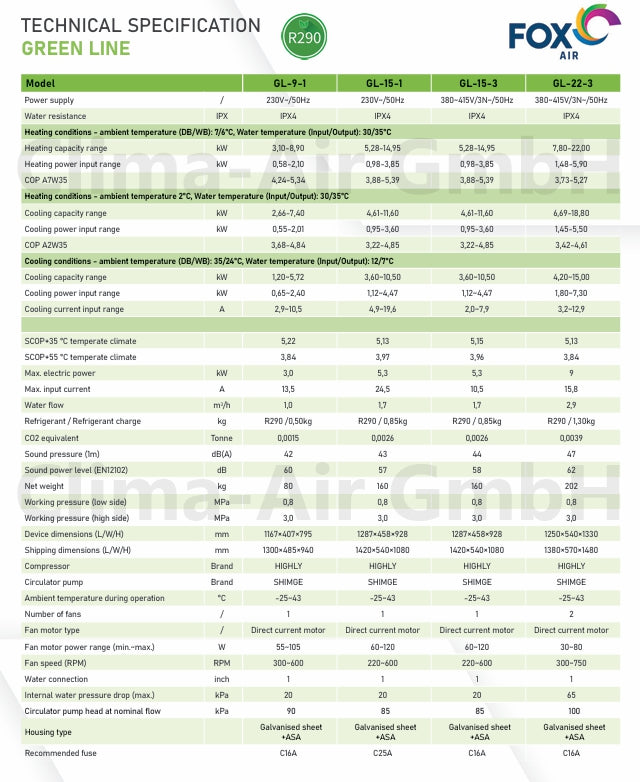

Technical Data

• Power supply 230 V ~/ 50 Hz
• Protection class IPX4
• Heating mode (7/6 °C, 30/35 °C)
• Heating capacity (kW) 3.10 – 8.90
• Power consumption (kW) 0.58 – 2.10
• COP (A7W35) 4.24 – 5.34
• Heating mode (2 °C, 30/35 °C)
• Heating capacity (kW) 2.66 – 7.40
• Power consumption (kW) 0.55 – 2.01
• COP (A2W35) 3.68 – 4.84
• Cooling mode (35/24 °C, 12/7 °C)
• Cooling capacity (kW) 1.20 – 5.72
• Power consumption (kW) 0.65 – 2.40
• Current consumption (A) 2.9 – 10.5
• Efficiency
• SCOP +35 °C 5.22
• SCOP +55 °C 3.84
• Performance data
• Max. electrical power (kW) 3.0
• Max. current consumption (A) 13.5
• Water data
• Flow rate (m³/h) 1.0
• Internal pressure drop (max.) 20 kPa
• Circulation pump head 90 kPa
• Refrigerant / Fill quantity R290 / 0.50 kg
• CO₂ equivalent (t) 0.0015
• Noise level
• Sound pressure (1 m) dB(A) 42
• Sound power (EN 12102) dB 60
• Mechanical data
• Net weight 80 kg
• Dimensions (L×W×H mm) 1167 × 407 × 795
• Shipping dimensions (mm) 1300 × 485 × 940
• Compressor HIGHLY
• Circulation pump SHIMGE
• Operating temperature range −25 °C – +43 °C
• Fan 1 × DC motor (55 – 105 W, 300 – 600 rpm)
• Water connection 1″
• Fuse C16A
• Casing material Galvanized steel sheet + ASA

🔧 Technical Highlights

• ✅ Power: 9 kW
• ✅ Type: Monobloc (no split system required)
• ✅ Power Connection: 1-phase (230V)
• ✅ Refrigerant: R290 (natural & particularly efficient)
• ✅ Function: Heating + Cooling + Hot Water
• ✅ Inverter technology for maximum efficiency
• ✅ Quiet operation
• ✅ High flow temperatures possible

🌱 Advantages at a Glance

✔ Natural refrigerant (R290) – particularly environmentally friendly
✔ Very high efficiency & low operating costs
✔ Future-proof heating solution (eligible for subsidies)
✔ Ideal for single-family homes & modernization
✔ Compatible with underfloor heating & radiators

📦 Scope of Delivery

• FoxAir Green Line 9 kW Heat Pump (GL-9-1)
• Operating Manual
• (Optional: Add accessories)

📊 Condition

🆕 New goods – original packaging

🚚 Shipping

• Freight forwarding throughout Europe
• Collection possible by arrangement

Important note!

The installation and commissioning of the devices must be carried out exclusively by specialist personnel. In the event of a complaint, professional installation by qualified specialist companies (specialist contractor certificate and special qualification) must be demonstrated. If no proof is provided, all warranty and guarantee claims will be void.

Technical changes and errors reserved! Subject to prior sale! Illustration similar!

Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher GWP. A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming, proportional to the refrigerant's GWP value, than 1 kg of CO2, over a period of one hundred years. Do not attempt any work on the refrigeration circuit or disassemble the unit – always consult qualified personnel.

FoxAIR ul. Stanisława Konarskiego 18C 44-100 Gliwice tel: +48 727 012 921 email: info@fox-air.pro www.fox-air.pro
