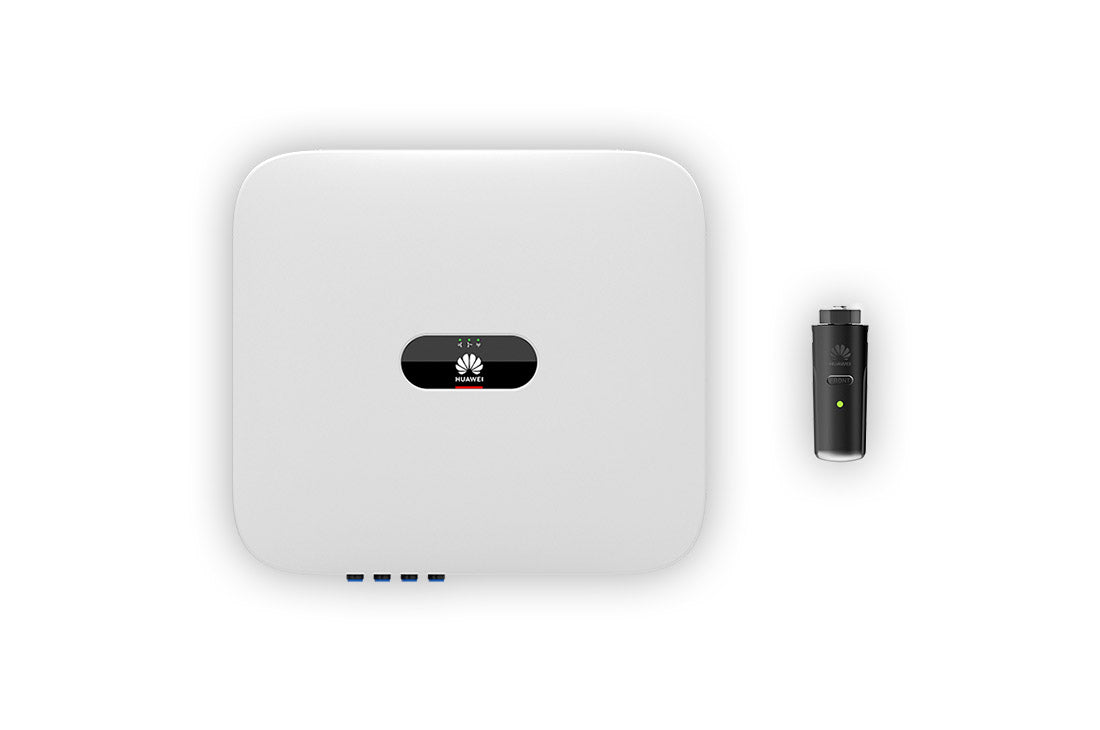

Huawei SUN2000-10KTL-M1 10kW High Current Hybrid Inverter - Latest Generation

Three-phase hybrid inverter with 10 kW nominal output power and a 10-year warranty.

Mains connection: Three-phase.
Output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+ Rated
AC mains frequency: 50 Hz / 60 Hz Adjustable
Power factor: 0.8 leading ... 0.8 lagging Max
Total harmonic distortion: ? 3
Backup power output: Yes (via Backup Box-5000)
Operating temperature range: -25 ~ +60 °C
Operating humidity: 0% RH?100
RHO operating altitude: 0 – 4,000 m (Derating above 3,000 m)

Cooling: Natural convection Display
LED indicators; integrated Wi-Fi + FusionSolar APPC communication
RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (optional)
Protection class: IP65DC
MBUS compatible optimizer: SUN2000-450W-P
SUN2000-10KTL-M1
DC
Power output 15.0 kW
Maximum power output: 15.0 kW
Current 22.0 A
Maximum current: 22.0 A
Voltage 600.0 V
Maximum voltage: 1,100.0 V
MPPT 2
String inputs 2
AC
Power output 10.0 kW
Maximum power output: 11.0 kW
Current 16.9 A
Maximum current: 16.9 A
Efficiency
Efficiency EU 98.1%

Dimensions
Length 166 mm
Width 525 mm
Height 470 mm
Weight 17 kg
Manufacturer's warranty
Product warranty 10 years

Huawei

Huawei is one of the most innovative PV companies in the world.
In line with its motto, the company is a leader in the digitalization of energy supply for a smart and sustainable world. Huawei's network energy product line focuses on ICT technologies and offers intelligent network energy products, solutions, and services.
Huawei's PV business has evolved from digital PV to internet-based PV and now to AI-powered PV.
The company's technology is very advanced and is supported by the increasing use of its IT and telecommunications expertise to provide intelligent PV solutions.
The company's brand is known worldwide for quality and offers excellent value for money.
The company provides scalable solutions for the various market segments, from solar systems for private households to systems for commercial and industrial use - and for each of these segments, the company offers its customers competitive levelized cost of electricity (LCOE).
