Refrigerant line 1-50m 1/4"+3/8" copper pipe insulated EN12735 for air conditioning & heat pump

Very high-quality refrigerant line in the best quality with 99.9% copper content.

The refrigerant line has been cleaned inside and out.

Our refrigerant line meets all requirements according to EN 12735:2016, as well as ASTM B280 and AS1571.

Phosphorus-deoxidized soft copper tube DHP99.9 (C12200)

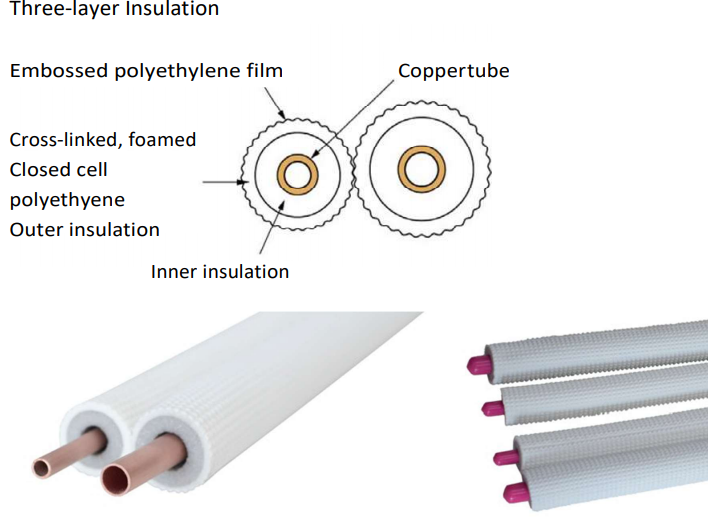

Insulation properties: Extruded and closed-cell soft polyethylene with a white outer UV-resistant polyolefin copolymer protective film.

Resistant to external chemical influences and ultraviolet radiation.

Suitable for refrigerants: R32, R410A, R134A, R404A, R407C, R407H, R507

Fire protection certification: M1, DIN B2 ULHF-1

Pipe diameter: 1/4" and 3/8"

Insulation thickness = 9mm

Length: 1-50 meters

Operating temperature: -40°C to 105°C

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.
