Refrigerant Line Installation Set 1 - 50m 1/4"+3/8" Insulated Copper Pipe + Electrical Cable + Hose

Refrigerant Line Installation Set for Air Conditioner 1/4"+3/8" Insulated Copper Pipe + Electrical Cable + Condensate Hose

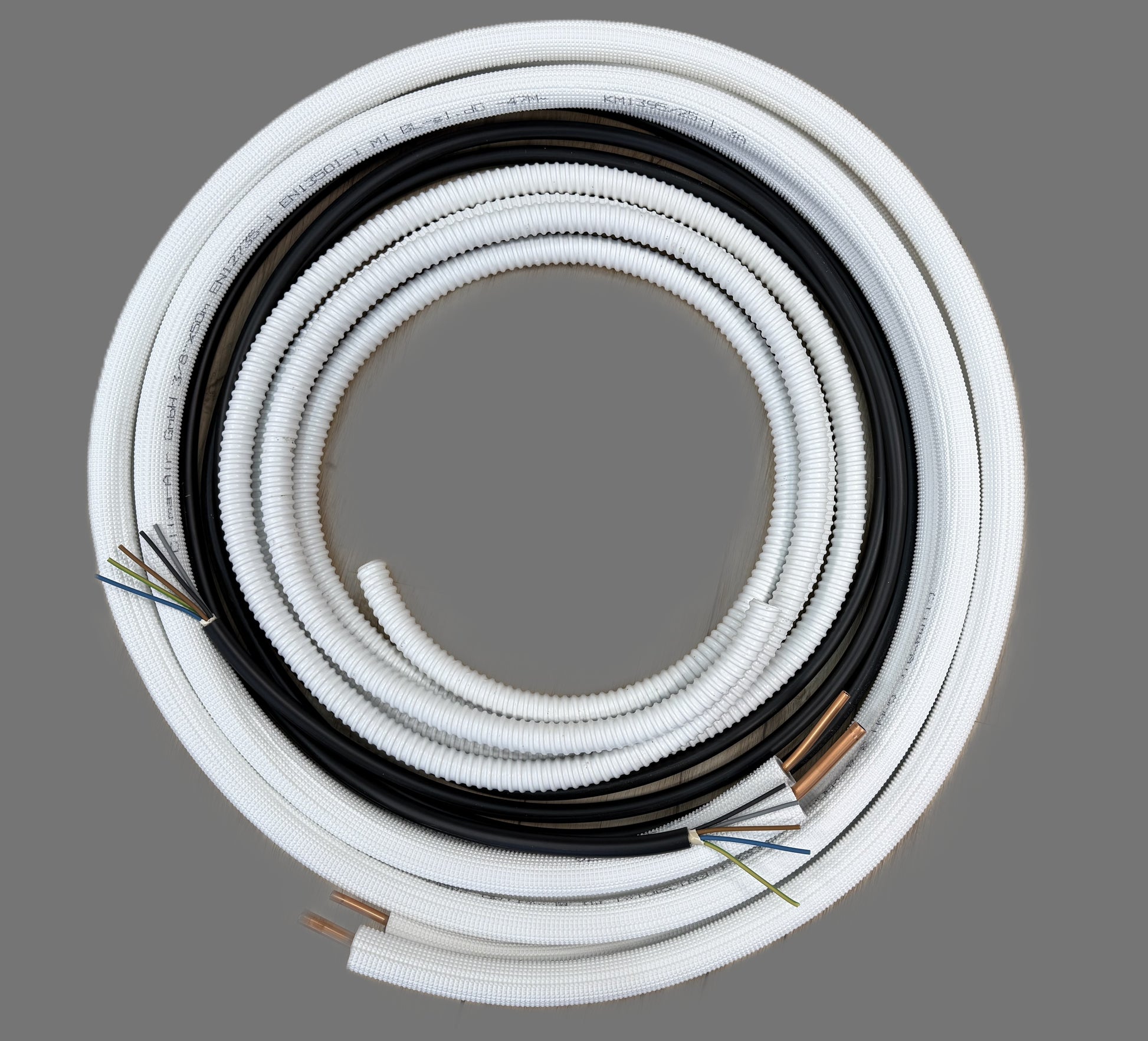

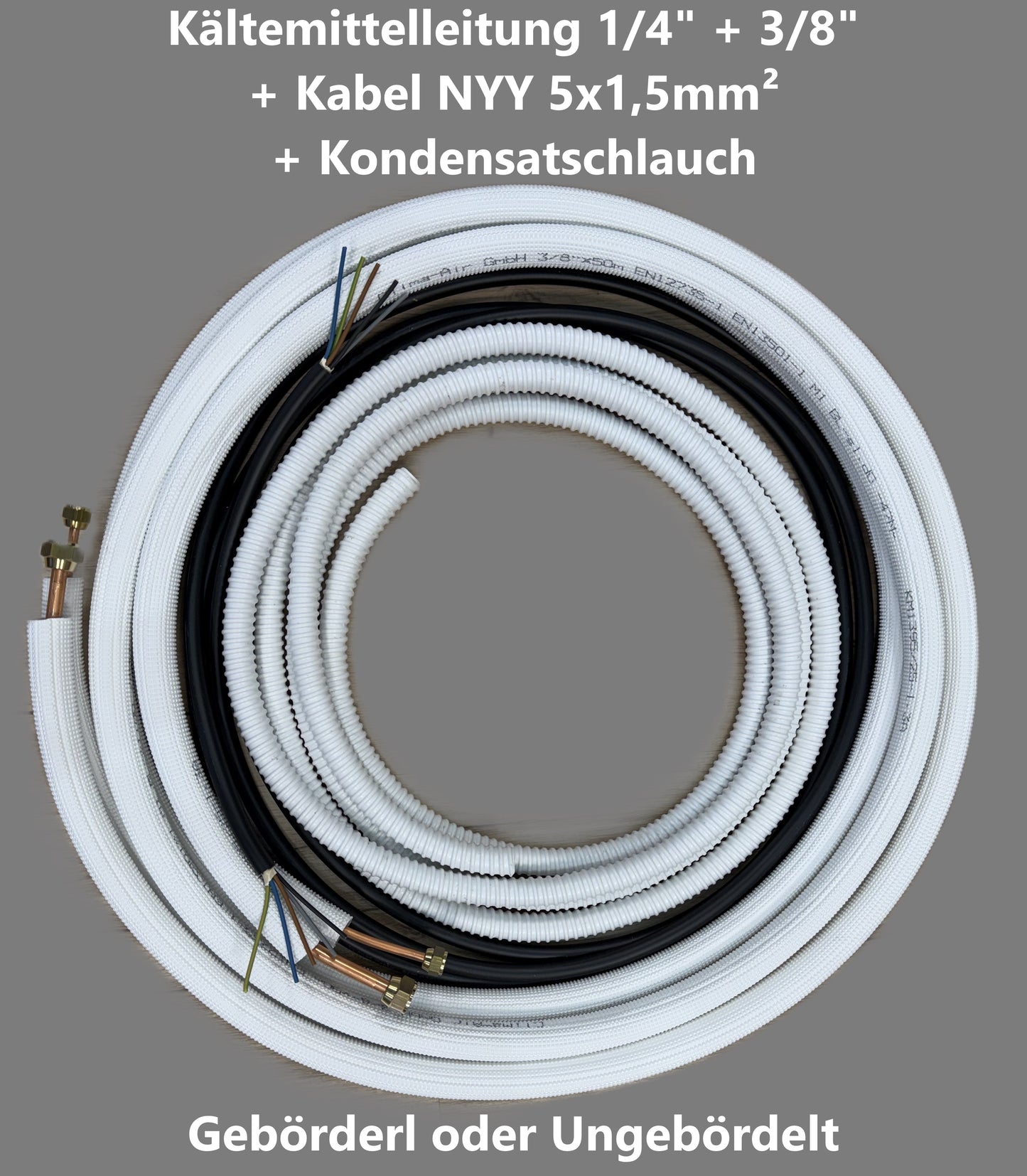

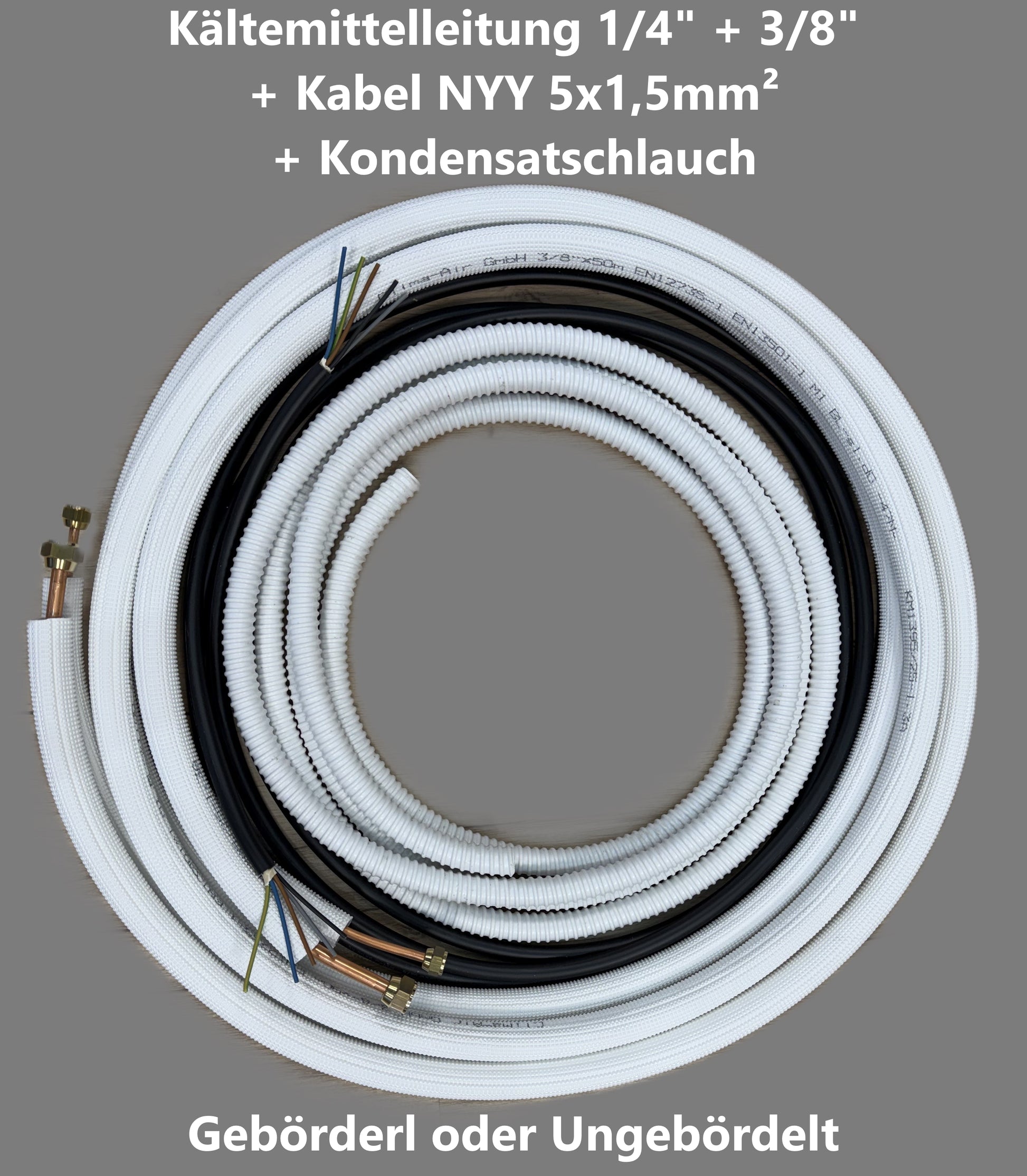

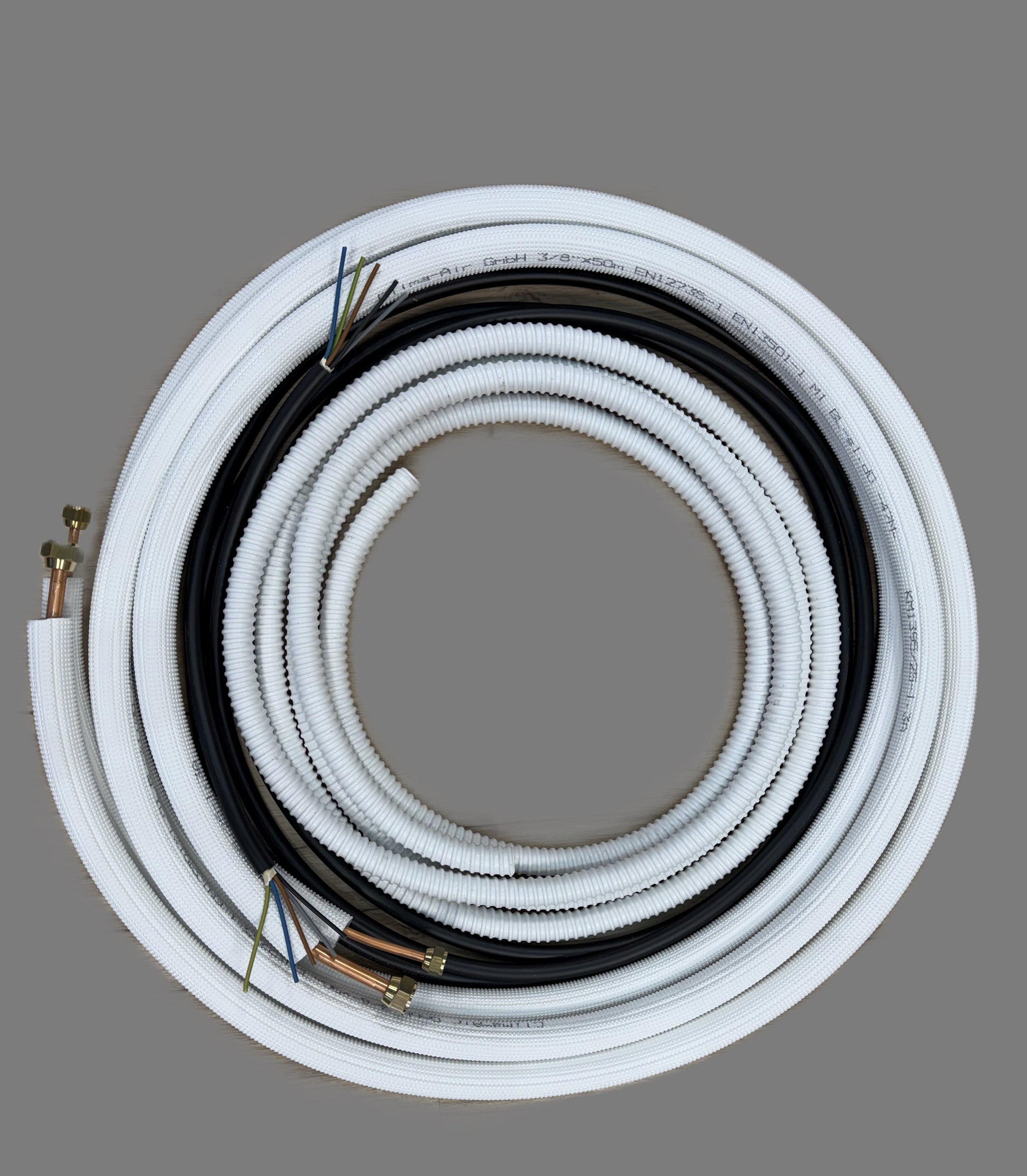

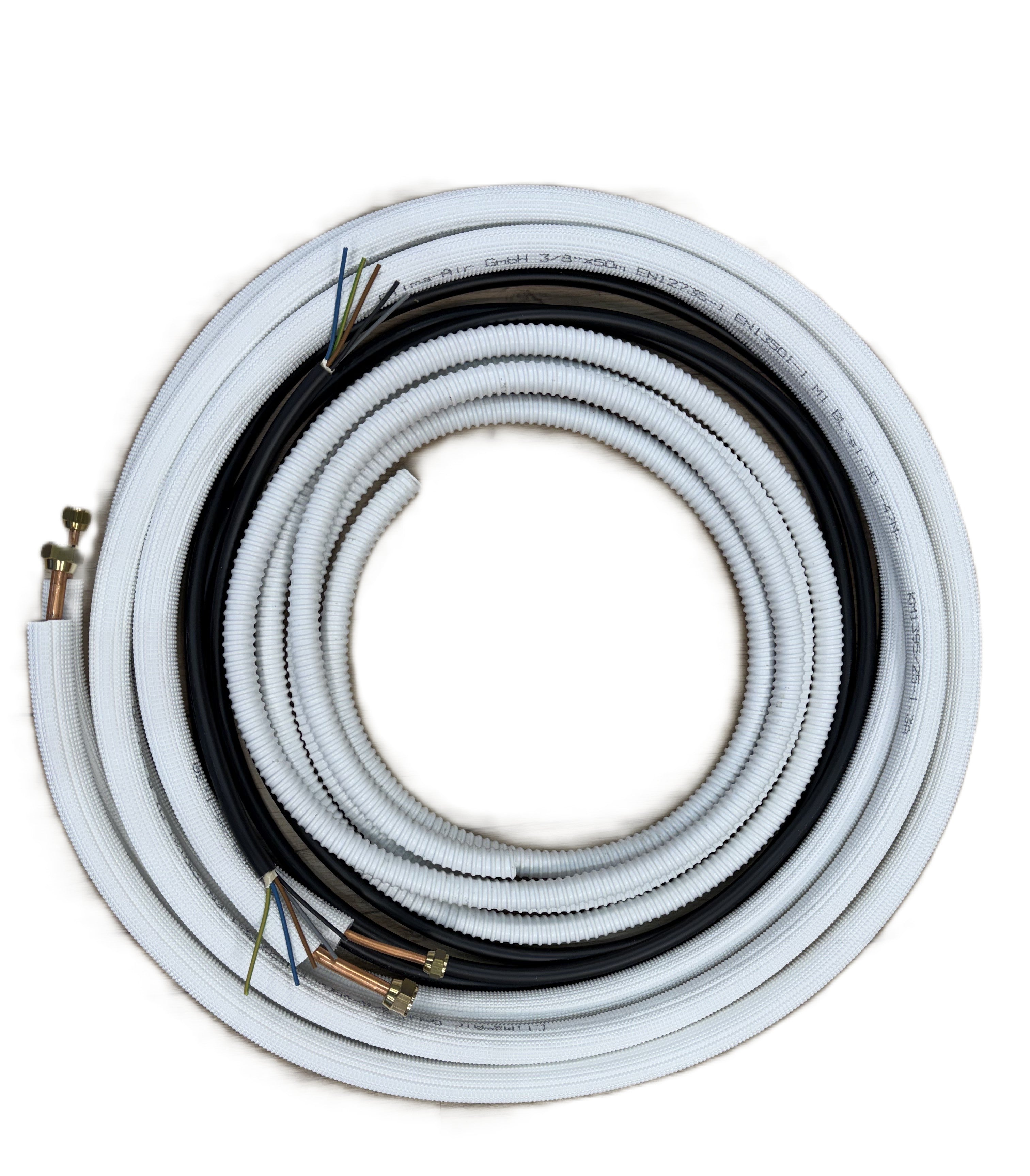

The set includes the chosen length of 1-50m in one piece:

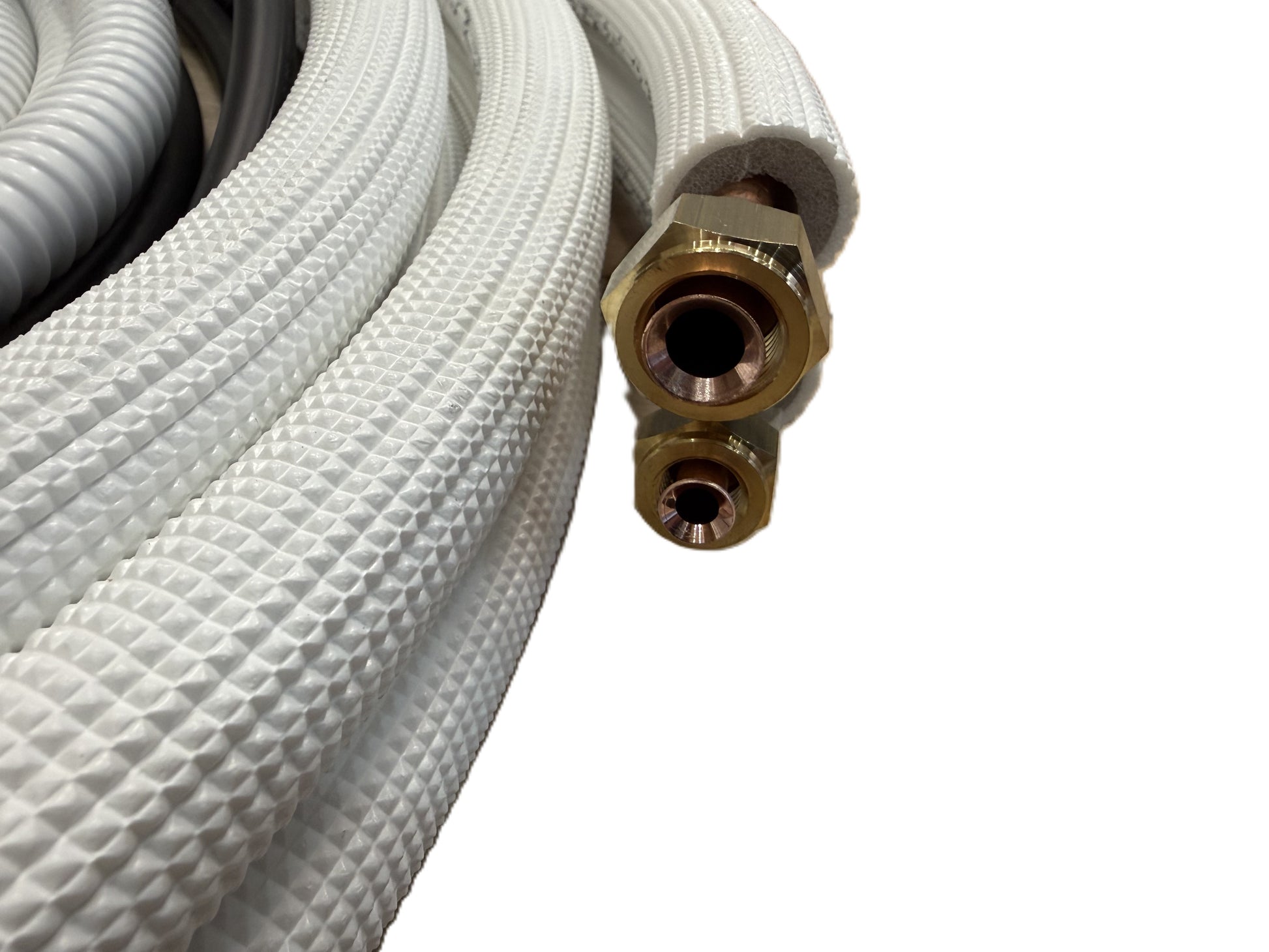

• high-quality refrigerant line copper pipe EN12735: 1/4"+3/8"
• electrical cable, sheathed cable: NYY-J 5x 1.5mm2
• condensate hose, spiral hose made of robust PVC in white with a smooth inner surface. Pressure resistant - suitable for concealed installation

Very High Quality Refrigerant Line with 99.9% Copper Content.

The refrigerant line is cleaned inside and out.

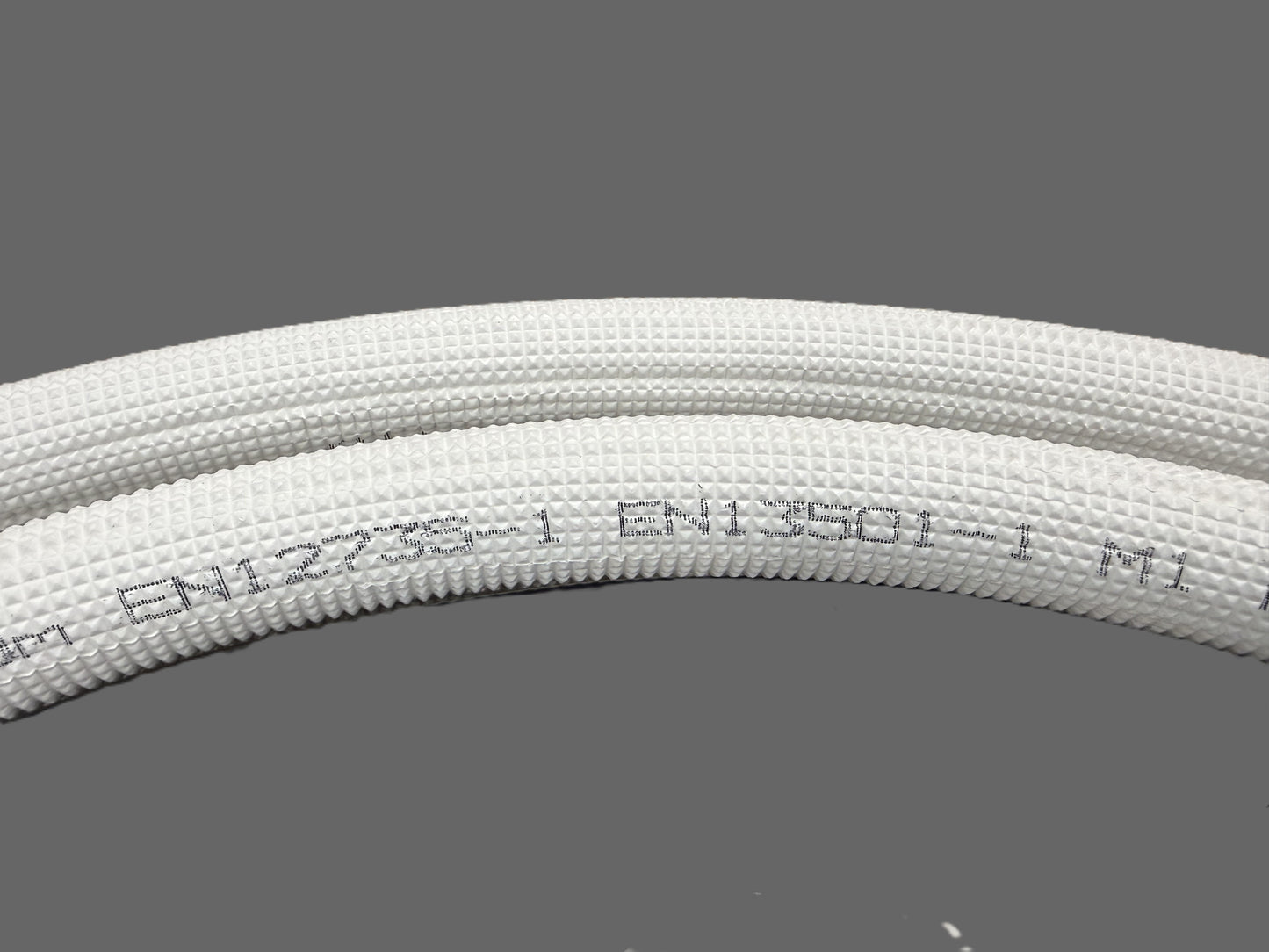

Our refrigerant lines meet all requirements according to EN 12735:2016, as well as ASTM B280 and AS1571.

Phosphorus-deoxidized soft copper tube DHP99.9 (C12200)

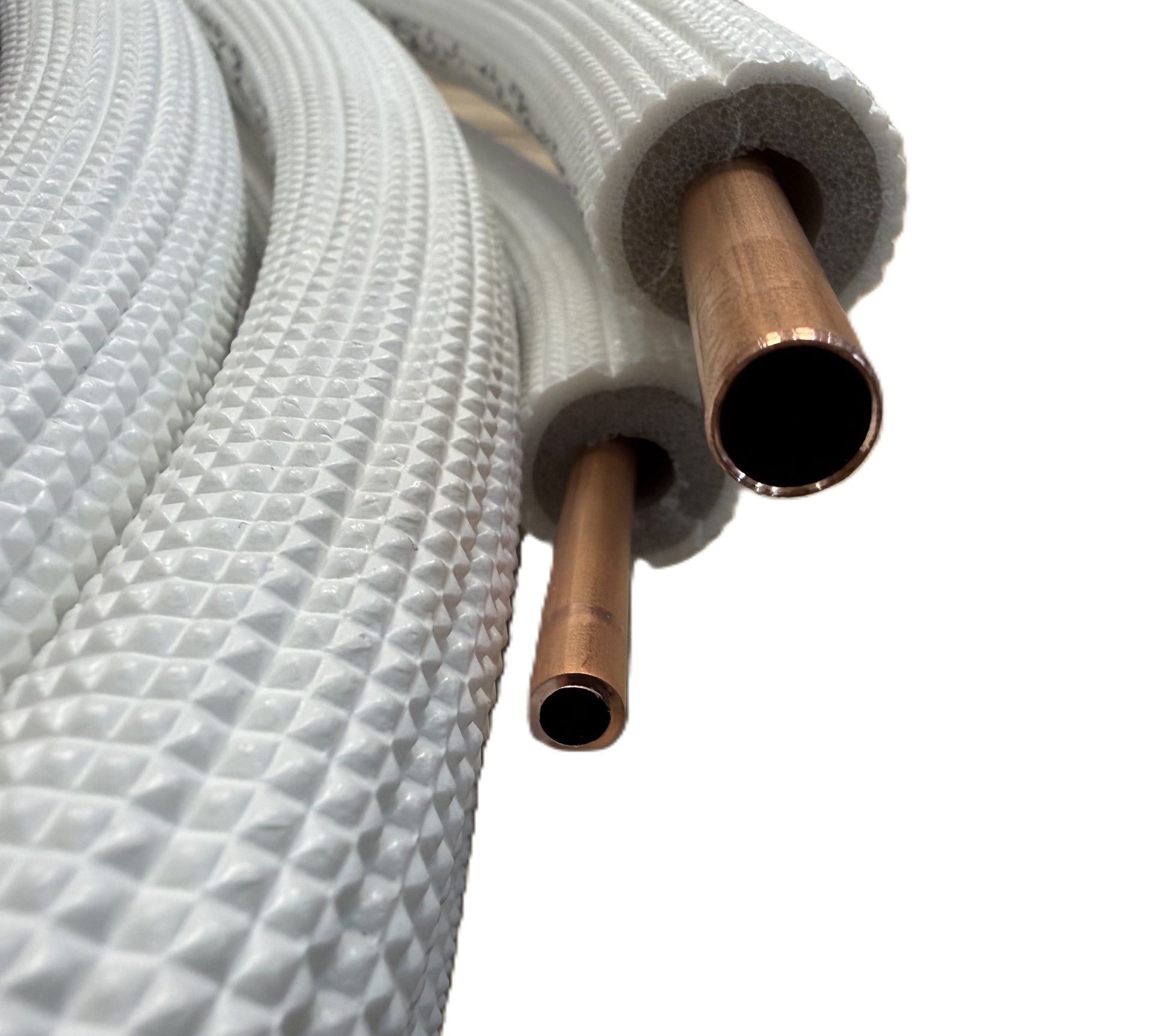

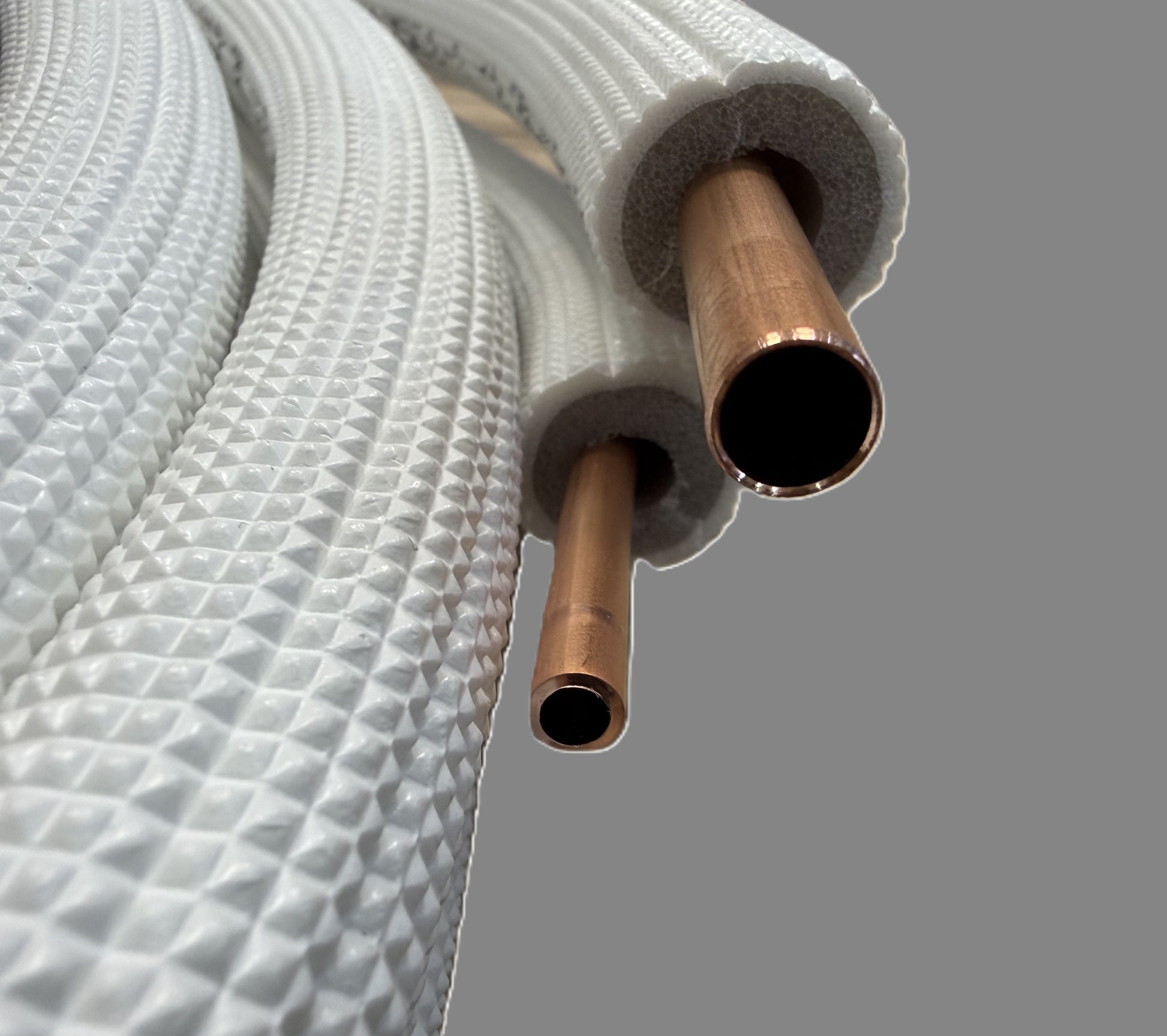

Insulation properties: Extruded and closed-cell soft polyethylene with a white outer UV-resistant polyolefin-copolymer protective film.

Resistant to external chemical influences and ultraviolet radiation.

suitable for refrigerants: R32, R410A, R134A, R404A, R407C, R407H, R507

Fire protection certification: M1, DIN B2 ULHF-1

Pipe thickness: 1/4" and 3/8" =0.8mm

Insulation thickness = 9mm

Length: 1-50 meters

Operating temperature: -40°C to 105°C
