Midea BreezelessE 2.8 kW MSCB1BU-09HRFN8-ME Single Split Wall Unit with WiFi Air Conditioner
Midea BreezelessE 2.8 kW MSCB1BU-09HRFN8-ME Single Split Wall Unit with WiFi Air Conditioner
Price incl. VAT.
Delivery time on request
Out of stock
Product informations
"Midea BreezelessE 2.8 kW MSCB1BU-09HRFN8-ME Single Split Wall Unit with WiFi Air Conditioner "
| Data sheet | Download PDF |
|---|---|
| Installation instructions | Download PDF |
| Investment book | Download PDF |

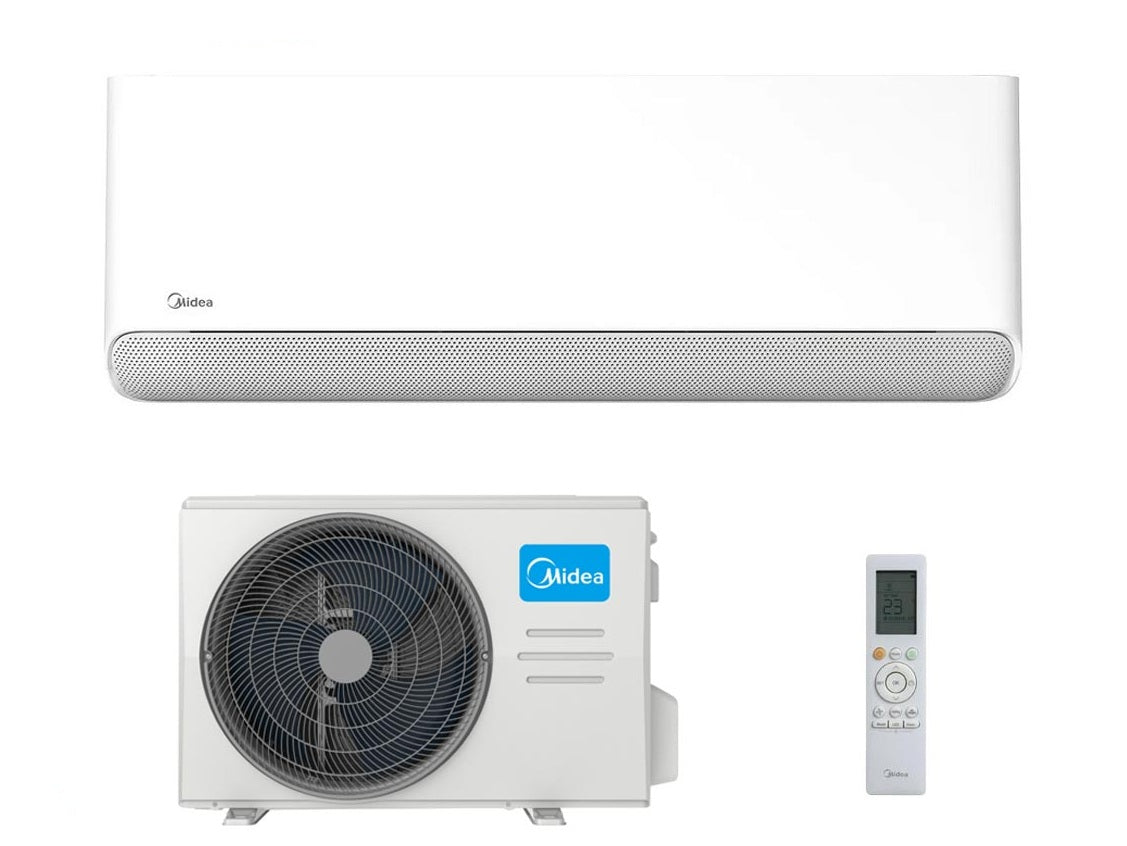

Midea BreezelessE Single-Split Wall-Mounted Air Conditioner SET 2.79 kW MSCB1BU-09HRFN8-ME-Set R32 A++/A+
Equipped with the latest intelligent learning algorithm, the Midea BreezelessE can proactively calculate various ways to achieve better climate control and operate with exceptional energy efficiency. It offers a comprehensive, comfortable experience through Breezeless cooling, a powerful heating function, Air Magic+ sterilization, and over-the-air updates.
Intelligent energy-saving technology
The latest intelligent algorithm can proactively detect changing environmental factors every 30 seconds and adjust the temperature for additional energy savings of up to 20%.
Breezeless cooling comfort

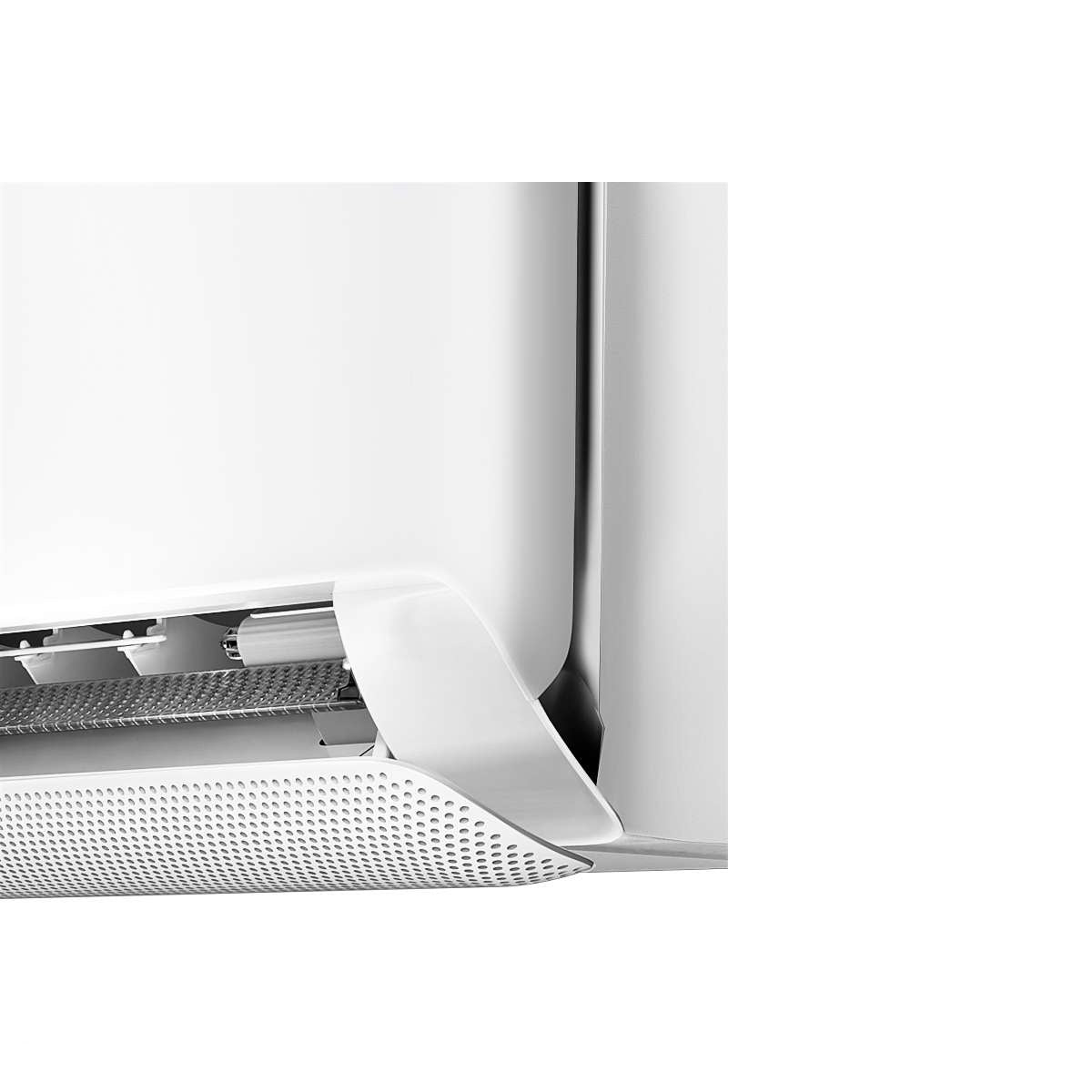

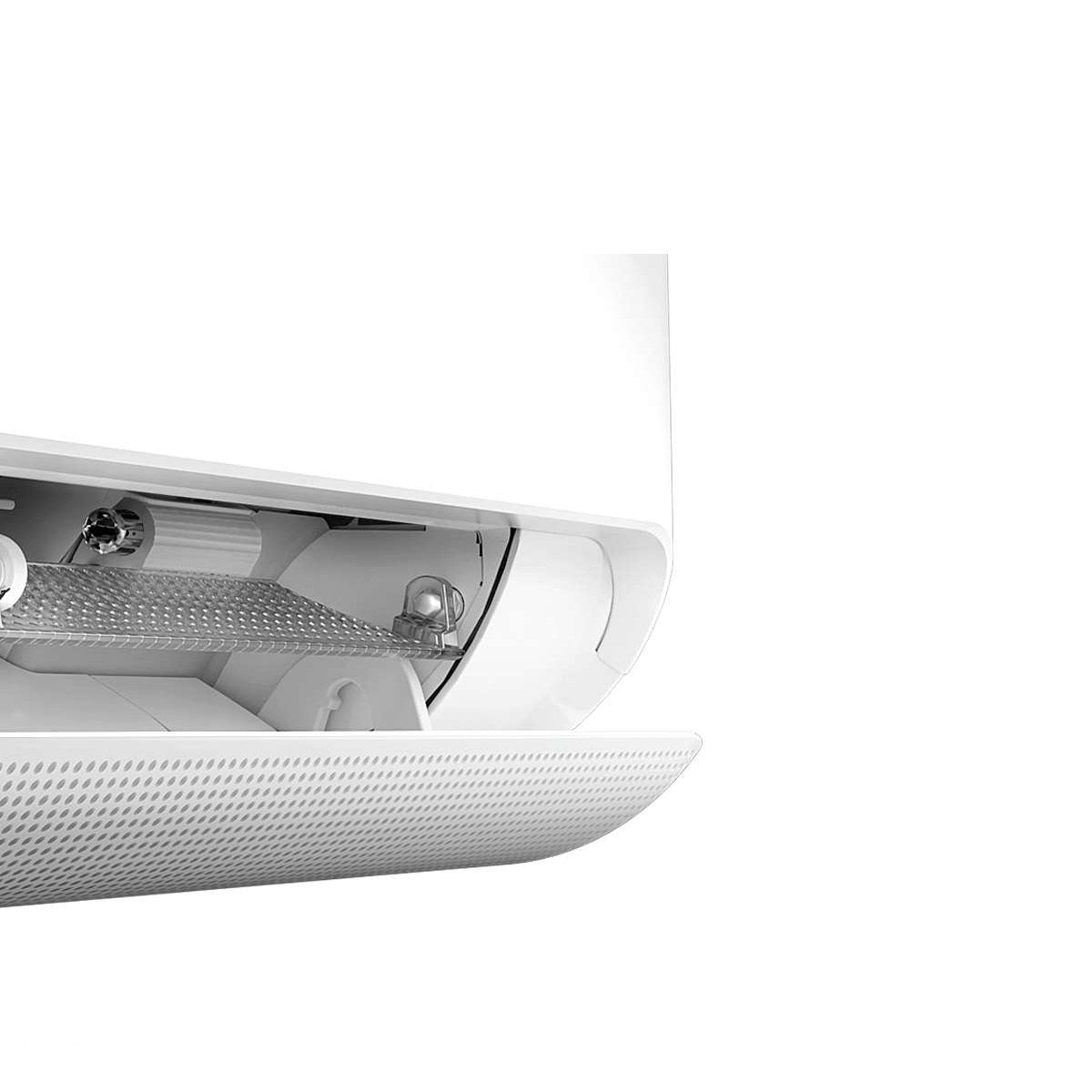

5,013 miniature holes with an hourglass pattern ensure gentle cooling of the air. 6.3°C within 10 minutes.¹
Fast heating via heat pump
Instantly warms in cool weather down to -2°C. Heats the air to 10.4°C within 10 minutes.²
Excellent performance from Midea:
Fresh air quality with Midea filter technology
Technical data:
Manufacturer: Midea

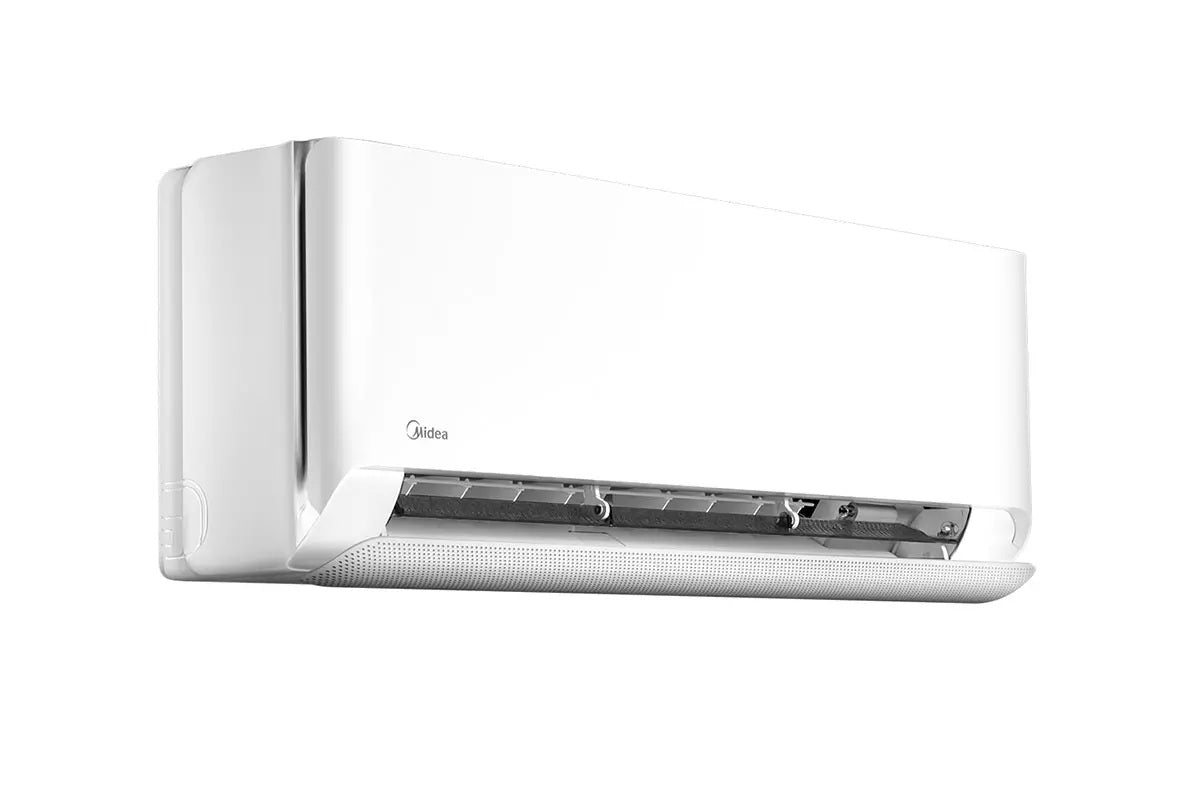

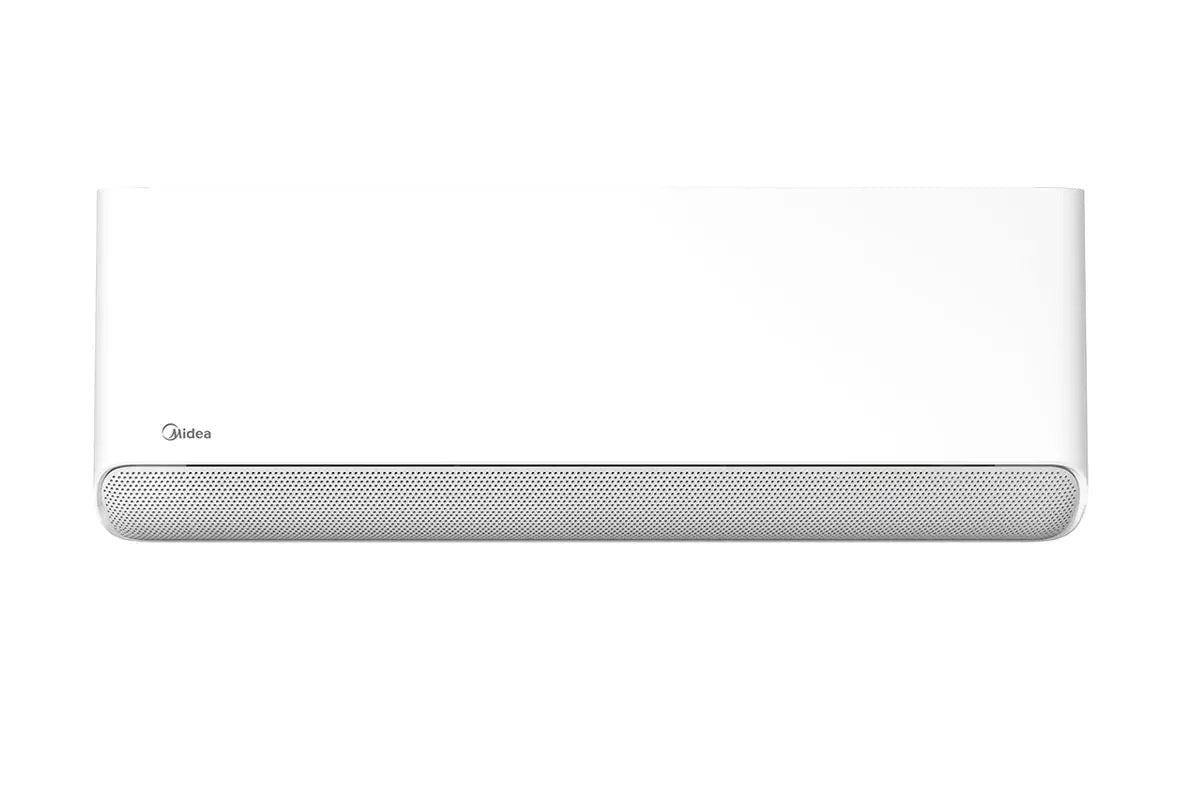

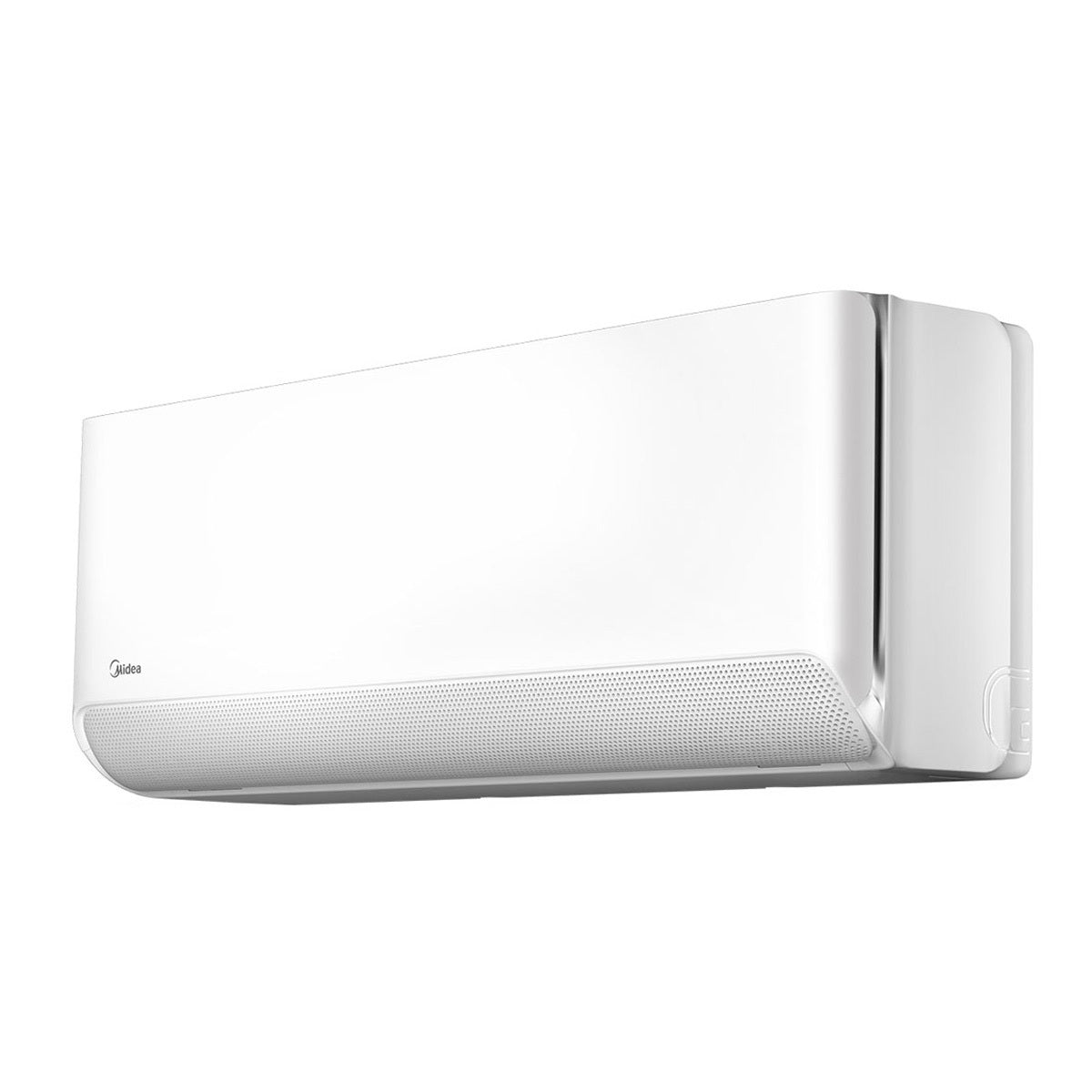

Indoor unit model name: MSCB1BU-09HRFN8-ME

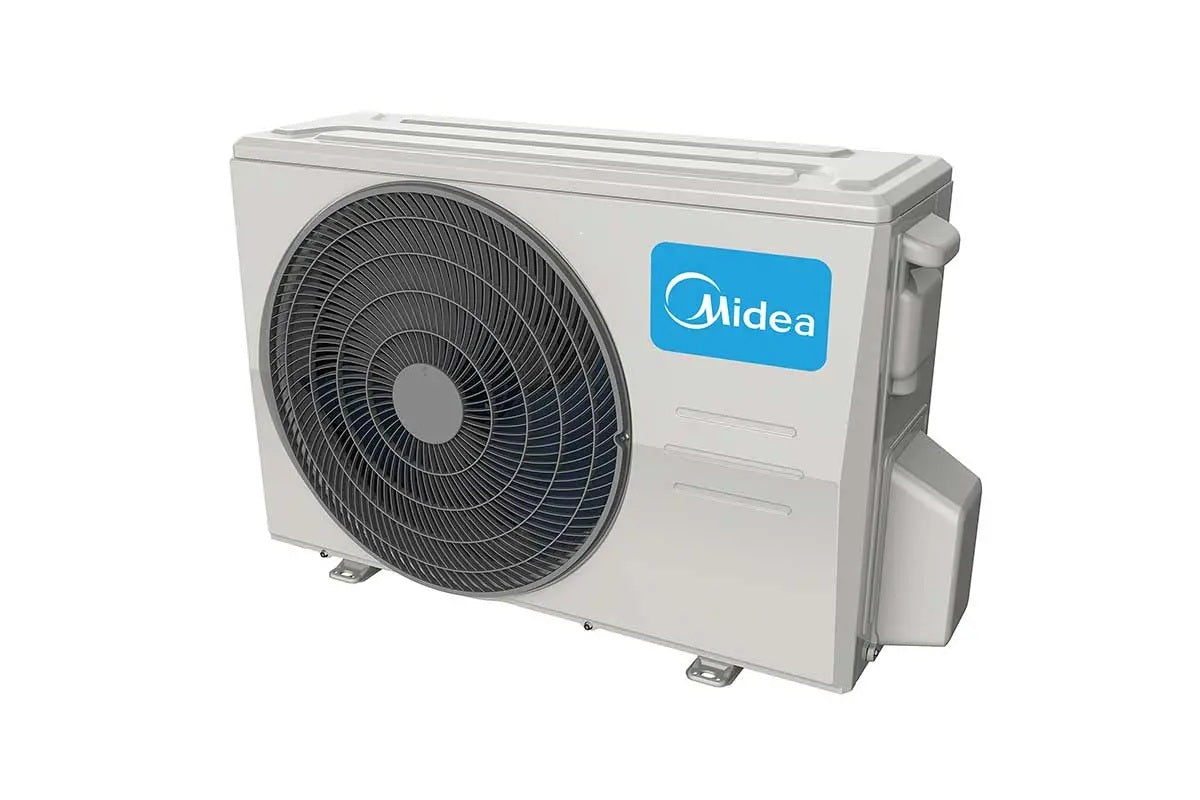

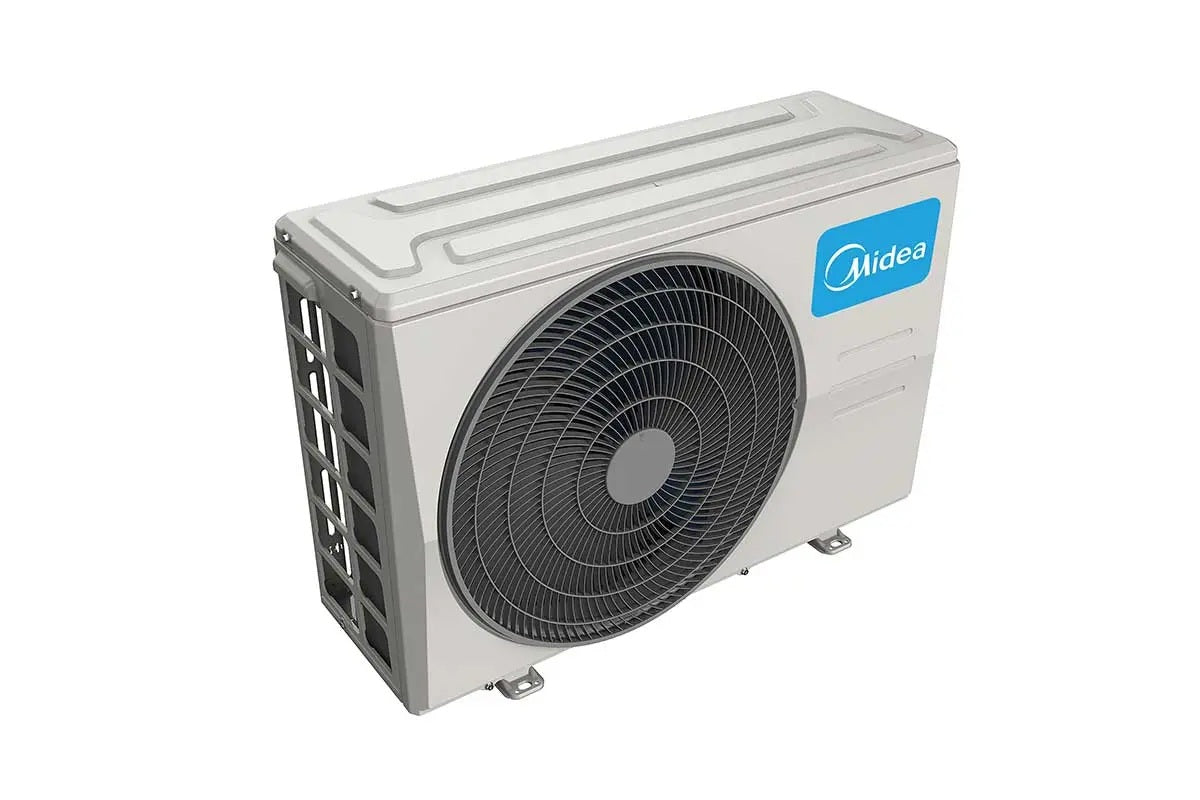

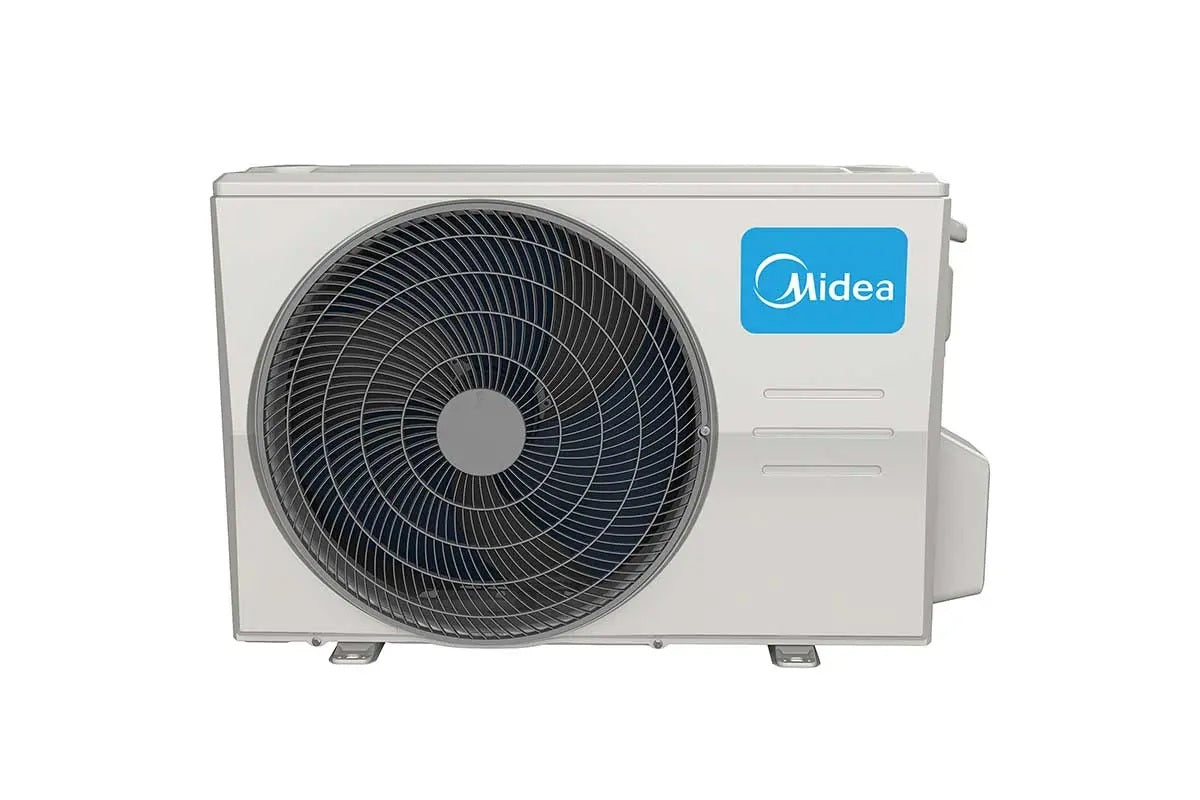

Model name outdoor unit: MOX103-09HFN8-ME
WiFi: Yes
Cooling capacity: 2.79 kW
Heating output: 2.93 kW
Cooling capacity (min. - max.): 1.02 kW - 3.52 kW
Heating output (min. - max.): 1.02 kW - 3.81 kW
BTU: 9000
Energy efficiency class cooling/heating: A++/A+
SEER: 7.6
SCOP: 4.1
Indoor unit noise level (min/max, in dB(A)): 20.5 , 20.5 | 37
Outdoor unit volume (max, in dB(A)): 55.5, 55
Power consumption cooling: 776 W (80~1300)
Power consumption heating: 696 W (100~1250)
Operating range cooling/heating in °C: -15 to +50°C / -20 to +24°C
Weight (indoor unit / outdoor unit): 9.1 | 22.7, 9.1
Maximum pipe length (male/female) – female: 25 m
Maximum height difference IG – AG: 10 m
Refrigerant: R32
Refrigerant pre-charge (m): 5 m
Refrigerant line diameter liquid / gas: 1/4" / 3/8" inch (6.35 / 9.52 mm)
Indoor unit dimensions in mm (WxHxD): 812x299x199
Outdoor unit dimensions in mm (WxHxD): 720x495x270
Power supply (V/Hz/Ph): 220-240 , 220-240 | 50 | 1
Current – 50 Hz Max. amperage for fuse: 16 A
Recommended cable cross-section | Supply cable to outdoor unit: 3x2.5 mm²
Recommended cable cross-section | Indoor unit to outdoor unit: 5x1.5 mm²
Supply cable to outdoor unit: 3x2.5 mm²
Indoor unit to outdoor unit: 5x1.5 mm²
Number of rooms: 1 room
Device type: Cooling, Cooling | Heating | Ventilation | Dehumidifying
Device type: Wall-mounted unit set
Total area: 1 m² - 30 m², 31 m² - 40 m²
Cooling capacity range: 2.5 kW – 3.4 kW
Heating output range: 2.5 kW – 3.4 kW
Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.
Note: The air conditioner may only be installed by a company certified under Regulation (EU) No. 517/2014 of the European Parliament and of the Council of April 16, 2014, on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it has been professionally installed by certified specialists. Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.
Midea Europe GmbH Ludwig-Erhard-Straße 14, Eschborn, 65760, Hesse, DE info-meg@midea.com 0619690200
