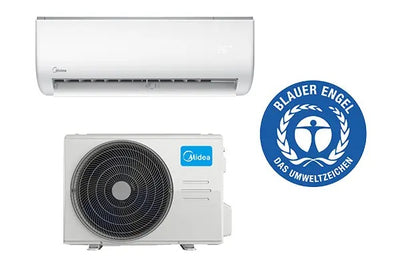

Midea Xtreme Save Blue Single-Split Air Conditioner SET 3.5 kW R290 MSAGBU-12HRFN7-QRD6GW-SET WiFI

Midea Xtreme Save Blue - Blue Angel

The Midea Xtreme Save Blue model series combines energy-efficient cooling technologies with reliable performance. With its compact, elegant design, it is suitable for office or living areas where economy and reliability are required. The high-quality workmanship ensures quiet operation and a long service life, while intelligent functions optimize energy consumption.

The Xtreme Save Blue sets new standards in sustainability through the natural refrigerant R290. It is the only split air conditioner in Europe to have received the Blue Angel environmental label. With Proactive Pure technology and the intelligent Alpha-Energy chip, it offers advanced technology for hygienic and efficient room air conditioning.

Product Family and Positioning

Part of the Midea nXtreme Save series, which aims for maximum energy efficiency combined with reliable performance.
Specifically designed for household kitchens and cozy living areas where economical and quiet operation are important.

Energy Saving Technology

Advanced compressor technology and optimized refrigerant circuits ensure lower energy consumption during operation.
Intelligent control systems dynamically adapt performance and temperatures to usage patterns, thereby reducing power consumption.
Environmentally friendly coolant options and reduced transactional heat loss also contribute to efficiency.

Design and Workmanship

Slim, modern housing design, ideal for open kitchen concepts or living spaces.
Quiet operation due to low-noise components and sound-optimized construction, suitable for quiet evenings or sleeping hours.
High-quality materials and robust workmanship guarantee durability and easy maintenance.

Functional Features

Intelligent temperature control with precise sampling rate, ensuring constant cooling performance.
Multi-stage operating modes (e.g., Standard, Eco, Turbo) as needed for comfort and efficiency.
Capacity and performance options that can be flexibly adapted to various household sizes and usage profiles.
Self-diagnosis and warning systems help identify potential malfunctions early and facilitate maintenance.

User-Friendliness

Intuitive controls or touch interface with clear displays.
Ventilation and air circulation are designed for even cooling without affecting adjacent furniture.

Application Examples

Suitable for household or office spaces, apartments with minimalist furnishings that value energy efficiency, quiet operation, and reliability.

Advantages and Functions of the Indoor Unit

Natural Refrigerant R290:

Environmentally friendly propane gas, which has a significantly lower global warming potential than conventional refrigerants and has been awarded for its sustainability.

Proactive Pure Technology:

Integrated double filter effectively cleans the room air of viruses, bacteria, and unpleasant odors for a healthy home.

High-Frequency Racer Technology:

Immediately unleashes full performance upon activation and cools or heats the room in record time.

GearShift & iECO Mode:

Flexible power adjustment (50%, 75%, or 100%) with night energy management for maximum comfort with minimal power consumption.

Midea SmartHome App:

Location-independent control and monitoring of the air conditioner conveniently via smartphone or tablet.

3D Airflow & Position Memory:

Autoswing of horizontal and vertical louvers ensures optimal air distribution; the last louver position is automatically restored when switched on.

Self Cleaning & Gold Finn:

Self-cleaning function for heat exchanger and condensate tray, as well as Gold Finn coating protect against corrosion and mold formation.

Follow Me:

A temperature sensor in the remote control precisely regulates the room temperature wherever you are currently located.

Frost Protection (8 °C):

Keeps the room frost-free during long periods of absence in winter, with a set temperature of 8 °C.

Auto-Restart & Emergency Operation:

After a power outage, the system automatically restarts; in case of sensor defect, the unit continues to operate safely in emergency mode.

Anti-Cold Air:

Prevents cold air supply in heating mode by increasing the fan speed only when the heat exchanger has reached sufficient warmth.

Outdoor Unit

The outdoor unit impresses with its robust construction in a distinctive diamond design. Specifically developed for outdoor installation, it delivers reliable performance even under extreme conditions.

Diamond Design:

The corrosion-protected casing combines aesthetics with high stability and durability thanks to its special construction.

Winter Control:

Efficient cooling down to -15 °C outdoor temperature and heating operation down to -15 °C.

Dust Away Function:

The heat exchanger automatically cleans itself of dust and dirt through a short change of fan direction.

Energy-Saving Standby:

In idle mode, the power consumption of the entire system drops to below 1 watt.

Technical Data:

Dimensions outdoor unit | mm | H x W x D    554 x 805 x 330
Dimensions indoor unit | mm | H x W x D    295 x 835 x 208
Fusing    16 A
Number of indoor units    1
Indoor unit design    Wall-mounted unit
Max. operating current | Cooling | A    4.24 [0.6~7.2)
Heating operating range    -15 to +24 (°C)
Cooling operating range    -15 to +50 (°C)
Recommended room size    35
Generate energy label    0
Remote control included    Yes
Remote control type    Infrared remote control
Device type    Cooling | Heating | Dehumidifying | Air purification
Weight outdoor unit in kg    32.5
Weight indoor unit in kg    8.4
Heating capacity (min.~max.) in KW    3.8 (1.07~4.38)
Indoor unit for application    Mono-split
Cable feed min.    3 x 2.5 mm²
Cable connection between indoor unit and outdoor unit    5 x 1.5 mm²
Refrigerant height difference outdoor unit-indoor unit max. in meters    10
Refrigerant type    R290
Refrigerant line length between indoor-outdoor unit max. in meters    25
Refrigerant quantity (pre-filled) in Kg    0.38
Additional refrigerant refill quantity per additional meter in grams    10
Refrigerant pre-fill for line length in meters    5
Refrigerant connection liquid line    1 x 1/4" (6.35 mm)
Refrigerant connection suction gas line    1 x 3/8" (9.52 mm)
Condensate line diameter in mm    16
Cooling/heating capacity OU    from 3.5 to 4.4 kW
Cooling/heating capacity IU    from 3.5 to 4.4 kW
Cooling capacity (min.~max.) in KW    3.5 (1.37~4.31)
Air volume flow indoor unit | m³/h    520 | 370 | 310
Nominal power heating | kW    1.172 [0.160~1.560)
Nominal power cooling | kW    0.977 (0.130~1.650)
Sound pressure level outdoor unit cooling/heating dB(A)    52.5
Sound pressure level indoor unit | dB(A)    20.6 | 34.5 | 39.0
Min. sound pressure level    20
Sound power level outdoor unit cooling/heating dB(A)    59
Sound power level indoor unit cooling/heating (dB(A))    52.5
SCOP heating    4.6
SEER | cooling    8.5
show_stock    1
Voltage supply    at the outdoor unit
Voltage supply outdoor unit    220-240 V / 1Ph / 50Hz, N, PE
Voltage supply indoor unit    220-240 V / 1Ph / 50Hz, N, PE
WiFi/WLAN function    Yes

Note: The installation of the air conditioning unit may only be carried out by a company certified according to Regulation (EU) No. 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases. By purchasing a split air conditioning system, you confirm professional installation by certified personnel.

Technical changes and errors reserved! Prior sale reserved! Illustration similar!
