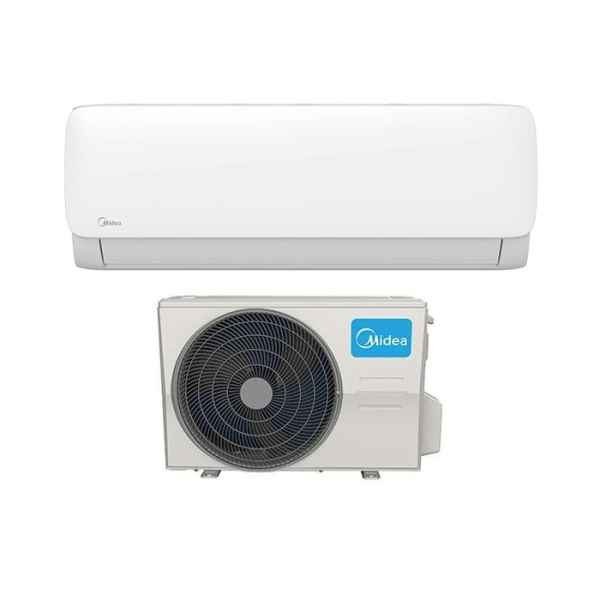

"Midea Xtreme Save Lite Single Split Air Conditioner 3.6 kW R32 MSAGBU-12HRFN8-L-Set"

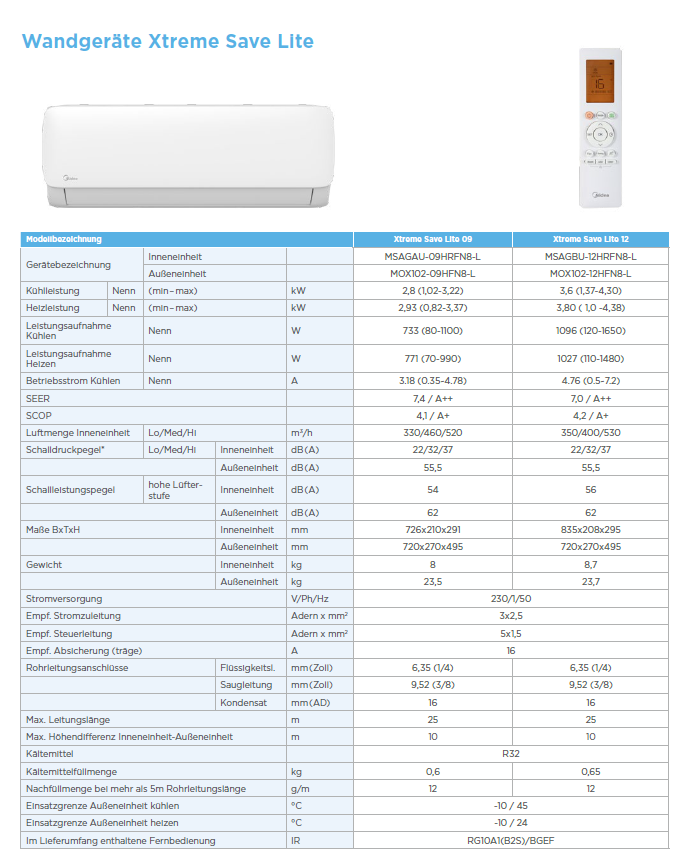

Data sheet | Download PDF |
---|---|
Installation instructions | Download PDF |
Air Conditioner Midea Xtreme Save Lite Single Split 3.6 kW R32 MSAGBU-12HRFN8-L-Set R32 A++/A+
Xtreme Save Lite is the affordable entry-level model, equipped with everything you need for energy-efficient heating and cooling.
Comfort function
• Follow Me
The room temperature is controlled via a temperature sensor in the remote control.
• Frost Protection
In heating mode, the room temperature can be set to 8°C so that the room remains frost-free during longer absences in winter.
• Automatic cooling-heating operation
Automatically selects cooling or heating mode to achieve the setpoint.
• Sleep Mode
The sleep function reduces the temperature after 2 hours and switches off completely after another 5 hours.
Health
• Air filter
Removes dust particles from the air, ensuring a constant supply of clean air.
Airflow
• Position memory
When switched on, the slats return to the same position as when switched off.
• 12 fan speeds
The fan speed of each fan level can be individually adjusted.
Additional functions
• Dust Away
Change the rotation direction of the outdoor unit fan to clean the heat exchanger.
• Mono & Multi compatible
The indoor units can be used as individual units and as free-match multi-units.
• Wireless Control (optional accessory)
Midea Remote Control – Setting and monitoring via app.
Order the MIDEA Wi-Fi Stick | CE-SK103X directly!
Scope of delivery:

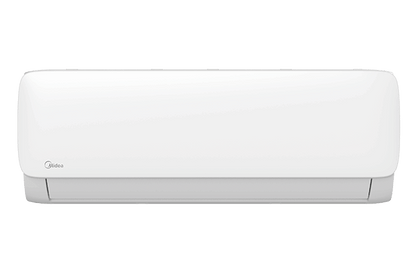

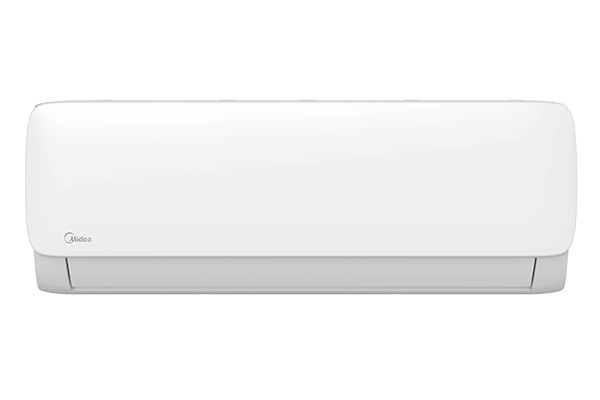

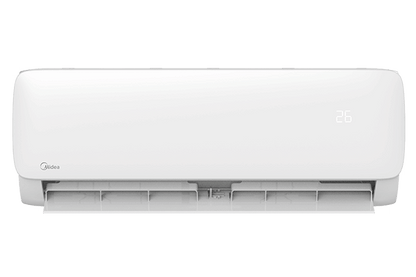

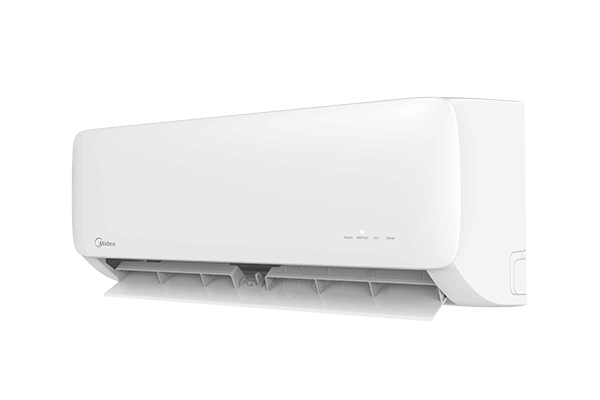

1× Wall-mounted unit XTREME SAVE LITE 12 (MSAGAU-12HRFN8-L)

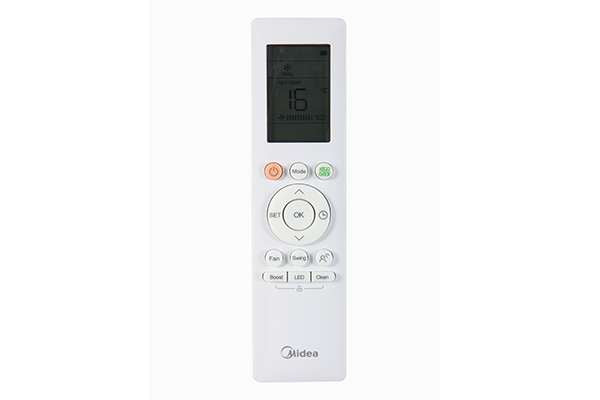

1× infrared remote control
1× monosplit inverter XTREME SAVE LITE 12 (MOX102-12HFN8-L)
Model Name MSAGBU-12HRFN8-L + MOX102-12HFN8-L
Weight in kg 32.4
Number of indoor units 1
Indoor unit type wall unit
BTU 12200
Cooling capacity (min. - max.) 3.60 kW (1.37 - 4.30)
SEER** 7.0
Heating output (min. - max.) 3.80 kW (1.00 - 4.38)
SCOP** 4.2

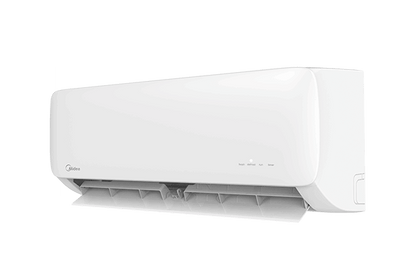

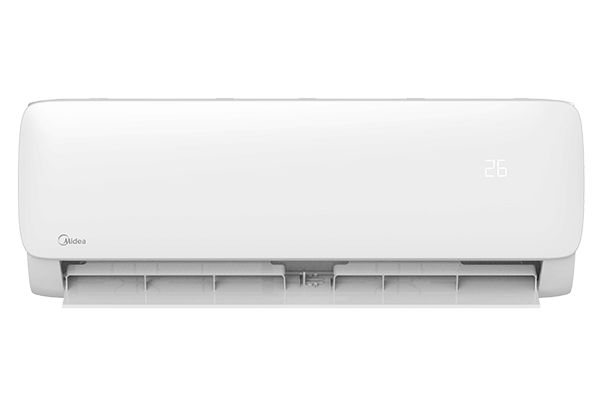

Indoor unit MSAGBU-12HRFN8-L
Width of indoor unit 835 mm
Height of indoor unit 295 mm
Depth of internal unit 208 mm
Weight of indoor unit 8.7 kg
Power supply 230 V / 1 Ph / 50 Hz
Nominal power consumption cooling/heating* 1096 / 1027 W
Rated operating current cooling/heating* 4.76 A
Air volume flow cooling/heating max. 530 m³/h
Sound pressure level min/max*** 22 / 37 dB(A)
Max. sound power level cooling 56 dB(A)
Condensate connection 16 mm OD
Remote control included Yes

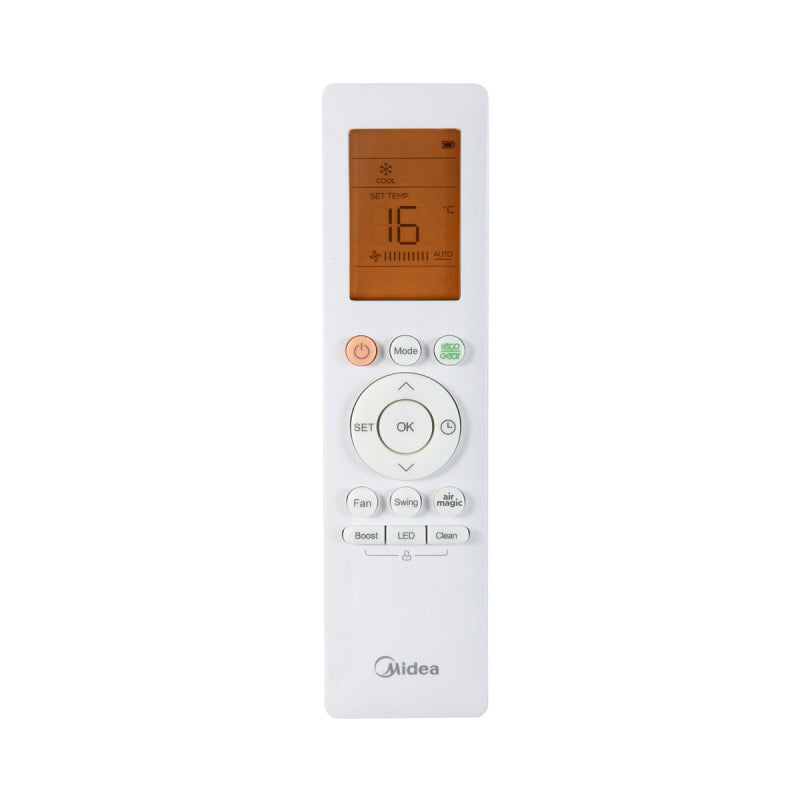

Remote control type Infrared remote control RG10A1(B2S)/BGEF

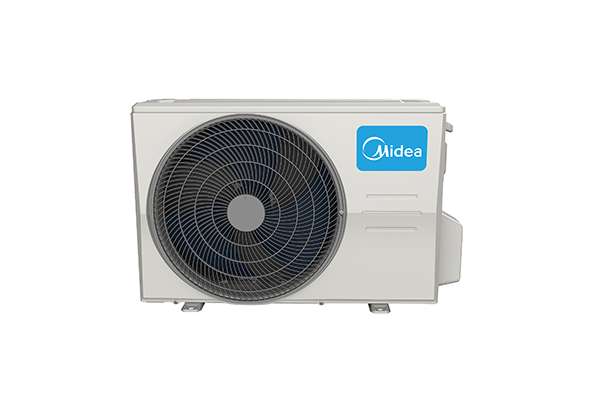

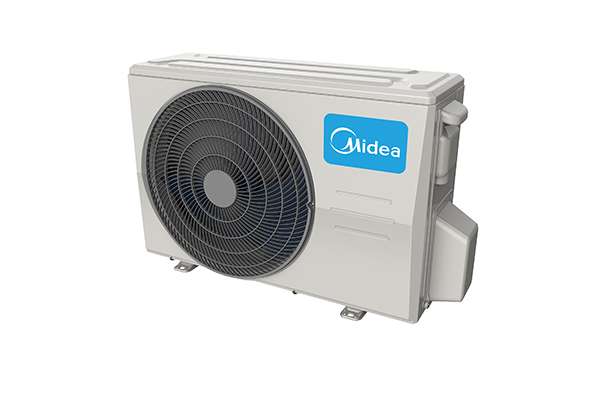

Outdoor unit MOX102-12HFN8-L
Width of outdoor unit 720 mm
Height of outdoor unit 495 mm
Depth of external unit 270 mm
Weight of outdoor unit 23.7 kg
Power supply 230 V / 1 Ph / 50 Hz
Power supply cable outside 3 × 2.5 mm²
Sound pressure level outdoor unit 55.5 dB(A)
Sound power level outdoor unit 62 dB(A)
Pipe size fl. side 1/4 inch / 6.00 mm
Pipe size gas side 3/8 inch / 10.00 mm
Maximum total cable length 25 m
Maximum height difference 10 m
Refrigerant / GWP R32 / 675
Refrigerant basic filling quantity / CO² equivalent 0.65 kg / 0.4388 t
Refill quantity 12 g/m (Applies from 6 meters, as outdoor unit is pre-filled up to 5 meters)
Cooling operating limit -10 °C to 45 °C
Heating operating limit -10 °C to 24 °C
Functions: Comfort Anti-Cold Air, Follow Me, Automatic Cooling-Heating Operation, Frost Protection, Auto-Restart, Sleep Mode
Features: Health Air Filter, Self Cleaning, Coated Heat Exchanger
Functions: Airflow position memory, 12 fan speeds
Functions: Wireless Control, Timer
optimal room size up to approx. 40 m²

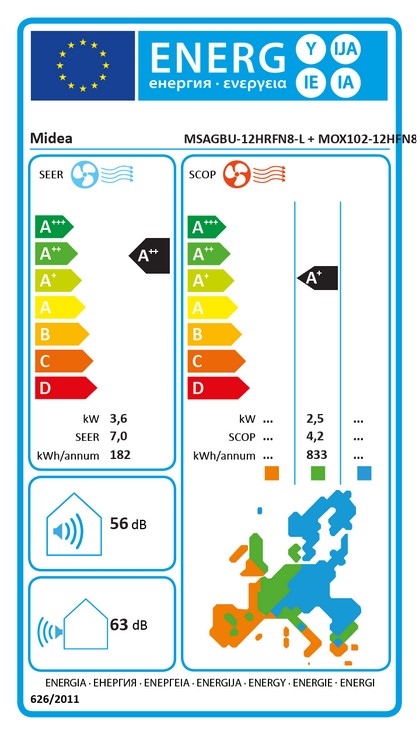

Energy Class - Cooling A++
Energy Class - Heating A+
Cooling capacity in kW 3.6
Cooling energy efficiency (at climate SEER) 7.0
Energy consumption (SEER / year) 182
Heating energy output G in kW 2.5
Energy efficiency heating G (SCOP) 4.2
Energy consumption heating G (SCOP / year) 833
Indoor volume in dB 56
Outside volume in dB 63
Energy efficiency class heating A+
Energy efficiency class cooling A++
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel. The air conditioner may only be installed by a company certified under Regulation (EU) No. 517/2014 of the European Parliament and of the Council of April 16, 2014, on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it has been professionally installed by certified specialists.
