Midea Xtreme Save Pro Single Split Wall Unit Air Conditioner SET 3.5 kW MSAGBU-12HRFN8-ME-Set R32 A+++/A++
Test winner according to Stiftung Warentest 6/2022
The versatile indoor unit from Midea's Xtreme Save Pro series is impressive. With an energy rating of A+++ for cooling and A++ for heating, this air conditioner boasts exceptional energy efficiency. Furthermore, it features numerous energy-saving functions, such as night mode and the GearShift function. This function allows you to easily and quickly adjust the operating power to 50%, 75%, and 100%. The discreet indoor unit blends seamlessly into any room and impresses with its simple yet modern design.
Excellent performance by Midea
The compressor features high-frequency racer technology. This allows it to reach its maximum frequency almost instantly upon startup, providing powerful cooling or heating immediately after the air conditioner is switched on. Enjoy a restful sleep in iECO mode. This mode controls energy consumption throughout the night using the "Alpha Energi" chip, equipped with a precise 4th-generation control algorithm. This enables accurate signal acquisition, data processing, and precise prediction of the required compressor speed. Of course, your air conditioner can also be easily controlled from anywhere using the MSmartHome app on your smartphone or tablet.
Fresh air quality with Midea filter technology
The new Midea Proactive Pure technology with double filter helps to reduce unpleasant odors, pollutants, viruses and harmful particles, ensuring clean and pure indoor air at home.
Easy control via smartphone
Wherever you are, the Midea MSmartHome app lets you make yourself comfortable at home. Start your air conditioner on your way home and enjoy fresh, cool air as soon as you walk through the door. Comfort and well-being without limits.
Brief overview
The outdoor unit is already pre-filled
Elegant, understated design
WiFi control
GeraShift function
Energy-saving functions
Energy efficiency class up to A+++
Low noise thanks to improved fan
Advanced inverter technology
Whisper-quiet compressor
Refrigerant R32
Race Tech technology
Wide operating range
Inverter technology
Stable temperature
3D airflow
Follow Me
Super Ionizer
Active Clean
Quiet operation
Photosensitive light sensor
New outdoor unit housing
PrimeGuard coating
Household voltage 220-240V

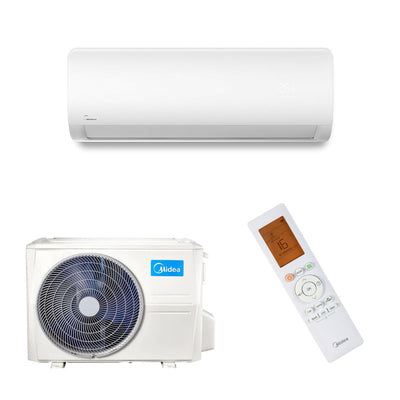

Scope of delivery:
1 x wall unit - MSAGBU-12HRFN8-ME
1 x Outdoor unit - MOX201-12HFN8-ME
1 x remote control
MSCB1BU-12HRFN8-ME set, MSCB1BU-12HRFN8-ME, MOX201-12HFN8-ME
Technical data:
Article number: MSAGBU-12HRFN8-ME
MOX201-12HFN8-ME
GTIN: 4062852626483
Brand: Midea
Energy efficiency class cooling/heating?: A+++/A++
Cooling capacity (kW)?: 3.5 kW
Heating output (kW)?: 3.8 kW
Indoor sound pressure level dB(A): 22 / 33 / 39
Outdoor sound pressure level dB(A): 55
Type?: Wall-mounted unit
Shipping weight?: 37.50 kg
Item weight?: 35.10 kg
SEER I SCOP?: 8.5 / 4.6
Annual energy consumption for cooling/heating: 157 / 797
Internal dimensions in mm (H x W x D): 295 x 835 x 208
External dimensions in mm (H x W x D): 555 x 765 x 303
Indoor/Outdoor Unit Weight (kg)?: 8.7 / 26.7
Liquid/suction gas line (inch) Ø?: 1/4 / 3/8
Max. total cable length (m)?: 25
Max. height difference (m)?: 10
Outdoor unit pre-filled for (m)?: 1 kg
Power supply (V)?: 220-240
Recommended coverage (A)?: 16
Connection cable (mm²)?: 4 x 1.5
Application range: Cooling / Heating?: –15~50 / –25~30
Note: The installation of the air conditioner must only be carried out by a company certified in accordance with Regulation (EU) No. 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it will be professionally installed by certified personnel.
Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.
