LG air/water heat pump THERMA V R290 Monoblock 14kW - HM143HF.UB60

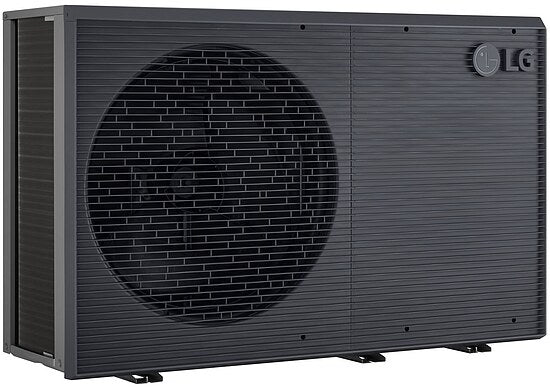

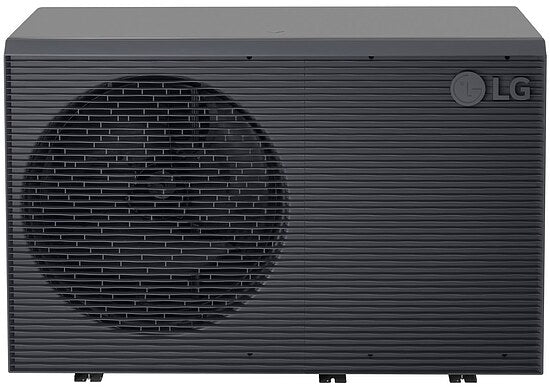

LG THERMA V R290 Monobloc 14 kW air/water heat pump outdoor unit HM143HF.UB60

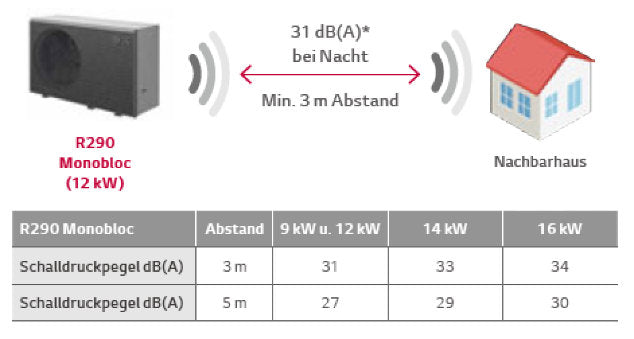

The THERMA V R290 Monobloc is a sustainable heating solution that works with the environmentally friendly refrigerant propane. Propane is a natural refrigerant that is not subject to the F-Gas Regulation or the PFAS ban and is therefore future-proof. Thanks to the new compressor, the R290 Monobloc achieves an outstanding energy efficiency class of A+++ (55 °C and 35 °C) and achieves a high flow temperature of 75 °C. This makes these models ideal for renovations and new buildings. The extremely low noise level also allows installation just 3 m away from neighboring buildings (model with 12 kW, sound pressure level 31 dB(A) at night).

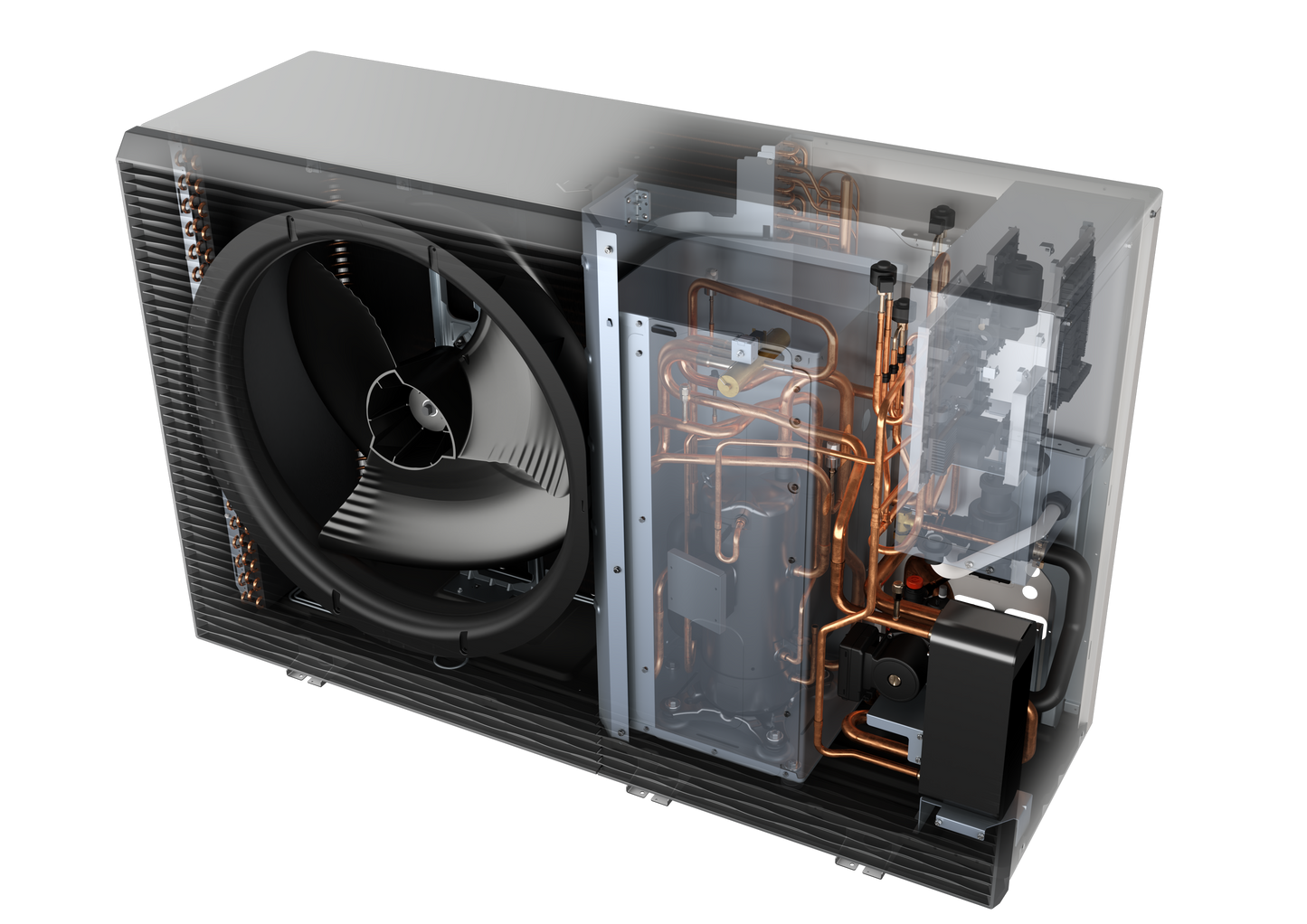

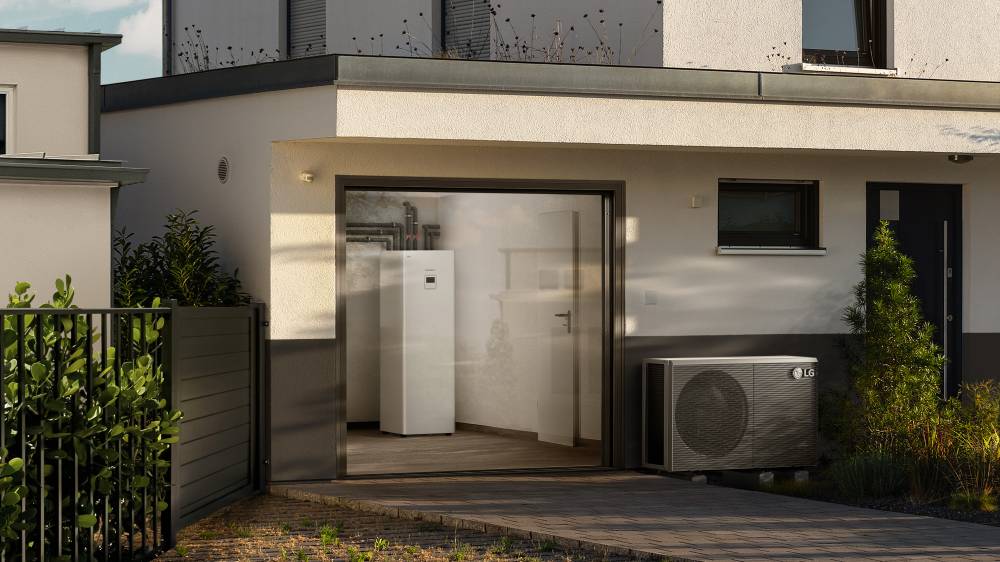

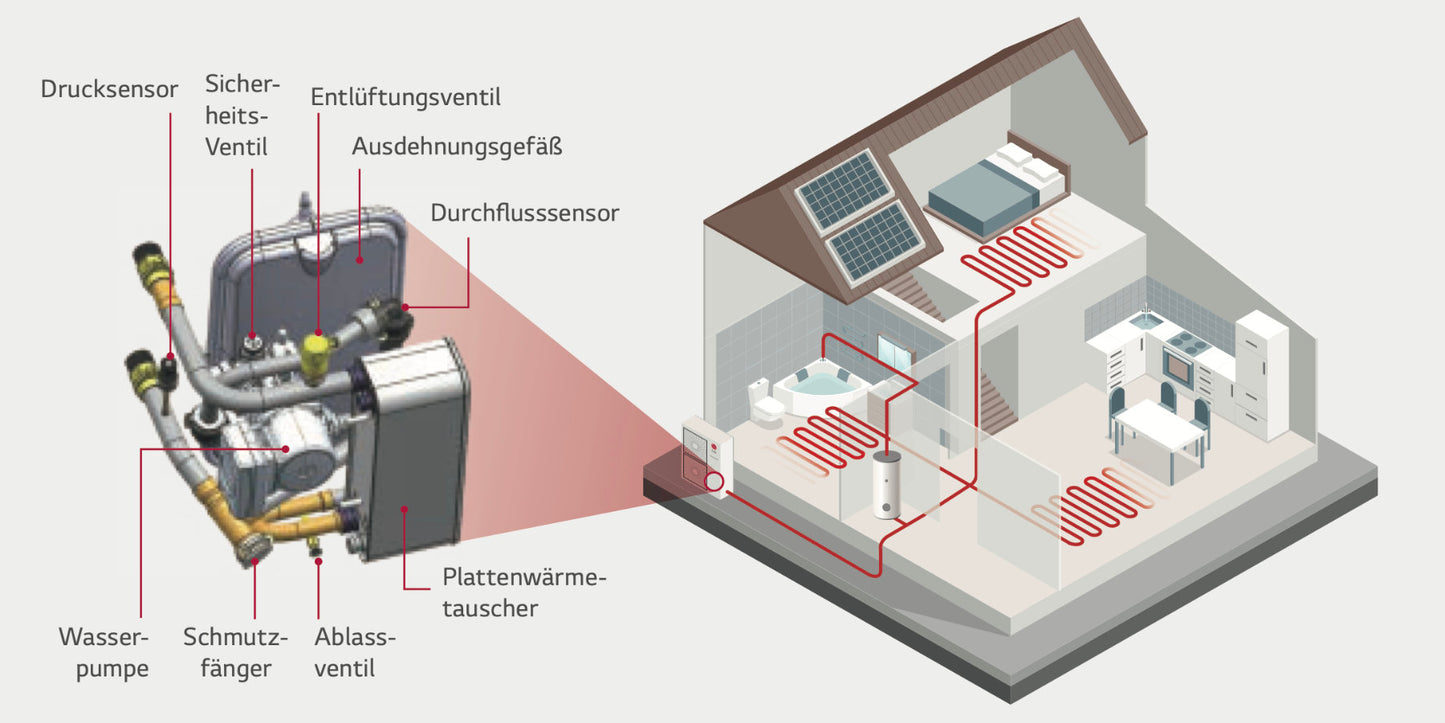

Because all hydronic components are integrated in the outdoor unit, installation and maintenance are easy. The THERMA V R290 only needs one fan, so the height could be reduced to around 1 m and does not obstruct the view. The three different indoor units offer the possibility of tailor-made, variable solutions.

Features and details:

• Power range with 4 sizes from 9 to 16 kW for renovation and new buildings
• Natural refrigerant R290
• Small amount of refrigerant (1.2 kg)

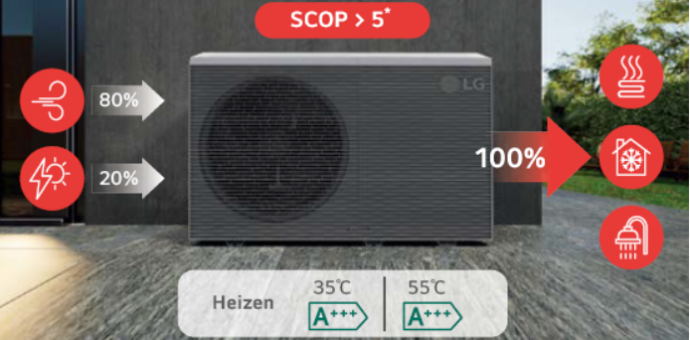

• High energy efficiency (SCOP >5 / A+++)
• Intelligent design for less maintenance and installation effort

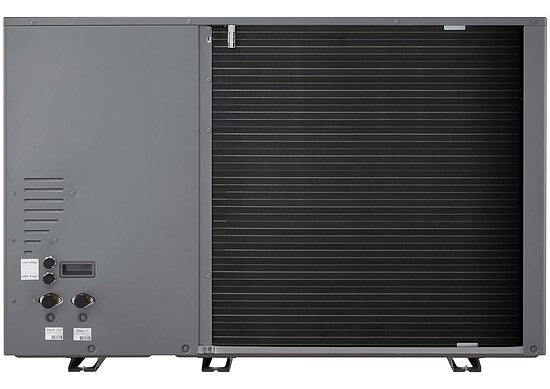

• Flexible connection options (pipe routing to the rear, optionally downwards)
• Optimized heating performance and efficiency through adaptive injection technology
• One of the quietest models on the market
• Maximum flow temperature up to 75 °C
• operating range down to –28 °C
• Optimized defrosting with different defrost modes
• Integrated communication interfaces (RS485 and Modbus)
• Control via ThinQ app and remote access by specialist company via LG BECON Cloud

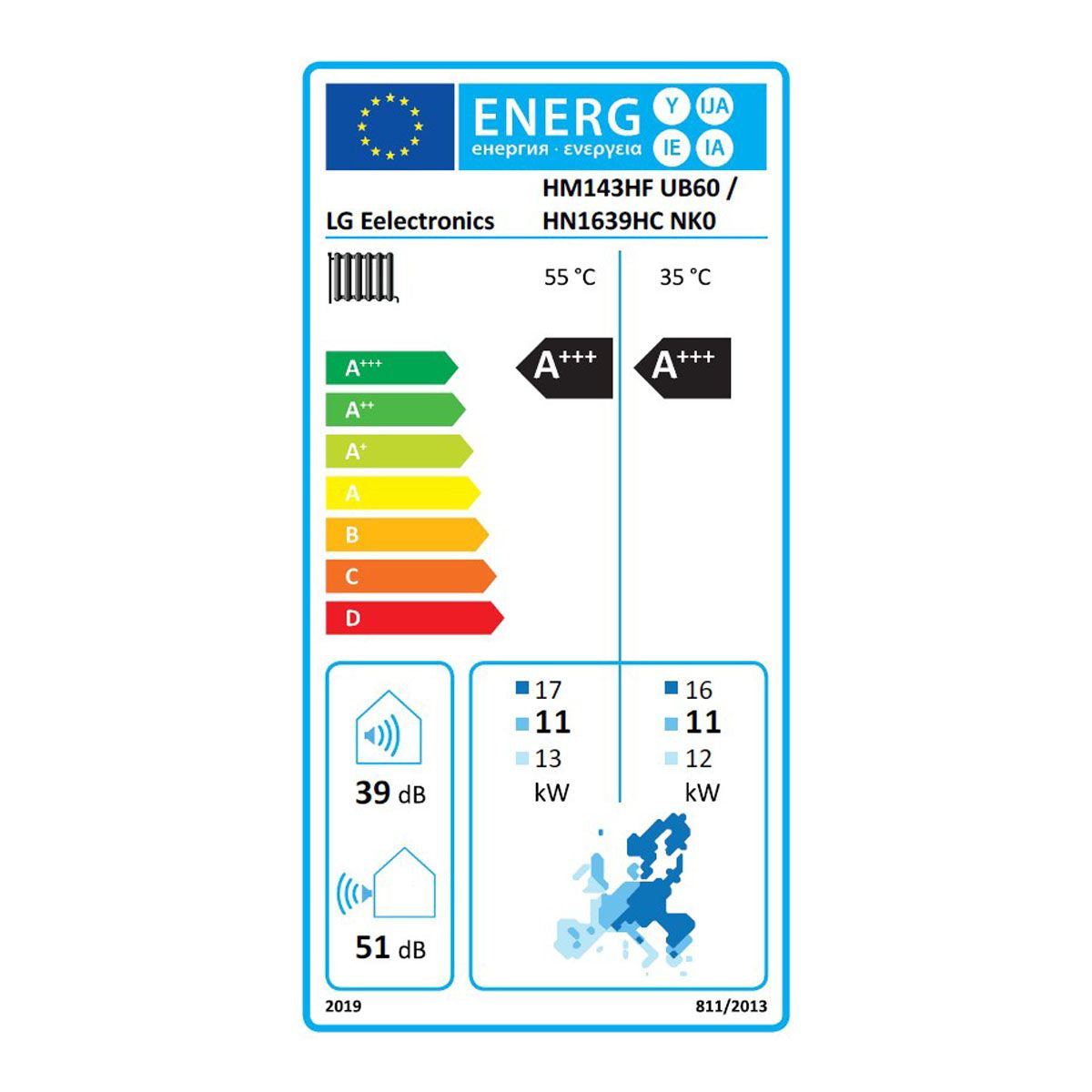

Technical data:

• flow temperature 35 °C
  • SCOP: 5.38
  • Seasonal space heating efficiency: 212%
  • Seasonal space heating efficiency Energy efficiency class (scale A+++ to D): A+++
• flow temperature 55 °C
  • SCOP: 3.96
  • Seasonal space heating efficiency: 155%
  • Seasonal space heating efficiency Energy efficiency class (scale A+++ to D): A+++
• Heating Rated Power / Rated Power Consumption / COP
  • Air 7 °C / Water 35 °C: 14.00 kW / 3.11 kW / 4.50
  • Air 7 °C / Water 55 °C: 11.00 kW / 3.38 kW / 3.25
  • Air 2 °C / Water 35 °C: 14.00 kW / 3.88 kW / 3.61
• Cooling Rated Power / Rated Power Consumption / EER
  • Air 35 °C / Water 18 °C: 12.00 kW / 3.24 kW / 3.70
  • Air 35 °C / Water 7 °C: 12.00 kW / 4.01 kW / 2.99
• operating range (flow temperature)
  • Heating: 15 - 75 °C
  • Cooling: 5 - 27 °C
  • Hot water: 25 - 65 °C
• operating range (outside temperature)
  • Heating: -28 - 35 °C
  • Cooling: 5 - 48 °C

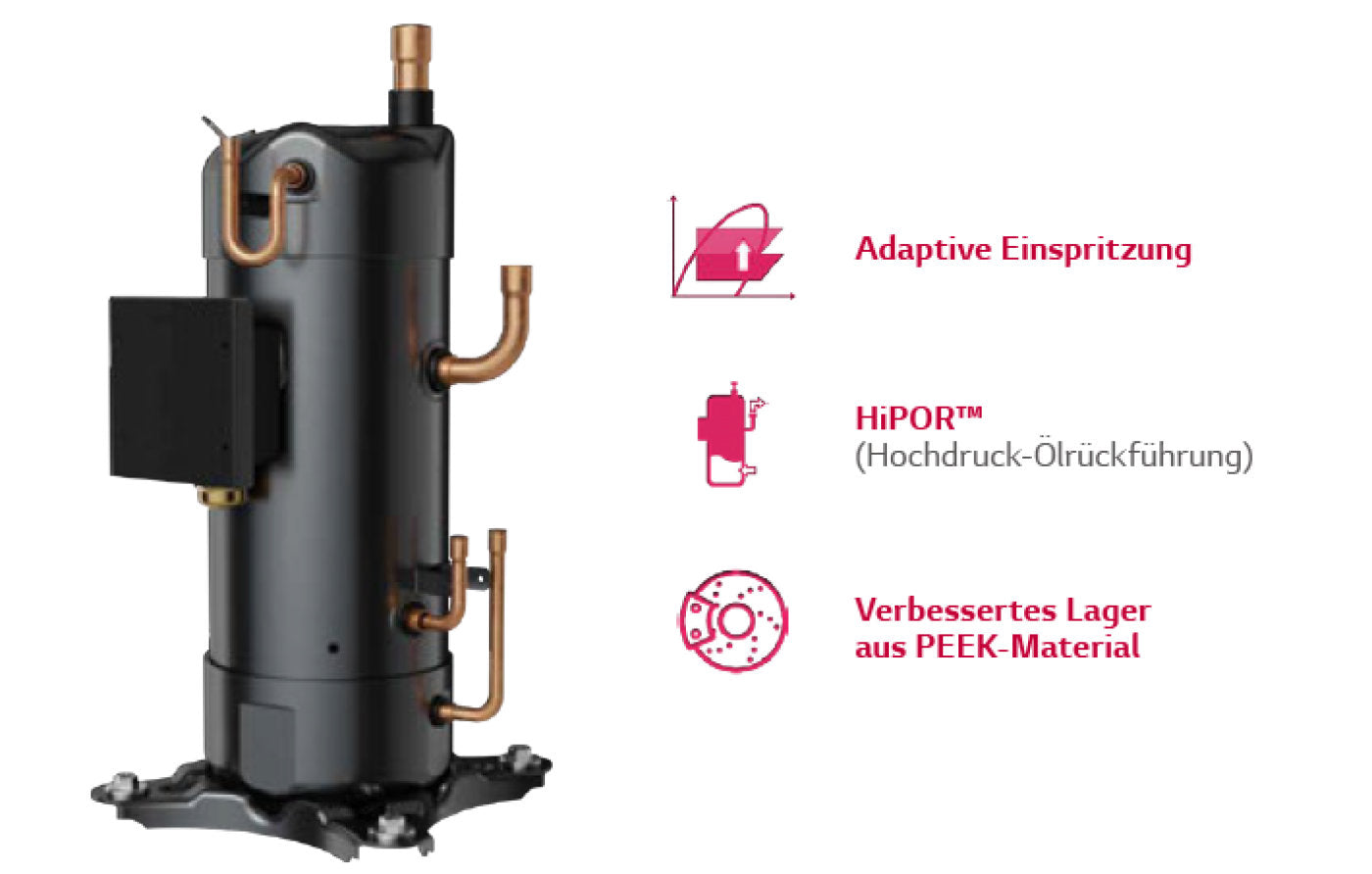

• compressor
  • Type: Hermetic scroll compressor
  • Quantity: 1 pc.
• refrigerant
  • Type: R290
  • GWP (global warming potential): 3
  • Pre-filled quantity: 1.2 kg
  • t CO2 eq.: 0.003
• temperature control
  • Classification: V
  • Contribution to efficiency: 3%
• sound power level heating
  • Nominal value: 51 dB(A)
  • Silent mode: 50 dB(A)
• Sound pressure level (at 5 m) Heating
  • Nominal value: 29 dB(A)
  • Silent mode: 28 dB(A)
• electrical connection
  • Voltage, phase, frequency: 400 V / 3 Ph. / 50 Hz
  • Nominal operating current (heating / cooling): 4.4 A / 4.5 A
  • Recommended circuit breaker: 16 A
• Water flow at 35 °C flow: 40.3 l/min
• Connections (supply/return): 1" external thread (according to ISO 7-1)
• Wiring Power cable (including ground, H07RN-F): 2.5 mm² x 5G
• Dimensions (W x H x D): 520 x 1019 x 1560 mm
• Weight: 181 kg

A notice:

• Requires indoor unit HN1639HC.NK0

- Manufacturer item number HM143HF.UB60

Important NOTE!

The installation and commissioning of the devices must only be carried out by qualified personnel. In the event of a complaint, proof must be provided that the device was installed correctly by qualified specialist companies (certificate of specialist company and special qualification). If no proof is provided, any guarantee or warranty will be void.

Technical changes and errors reserved! Subject to prior sale! Illustration similar!

The leak of refrigerant contributes to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a hundred years, in line with the GWP value of the refrigerant. Do not carry out any work on the refrigeration circuit or dismantle the device - always call in qualified personnel.

Der Austritt von Kältemittel trägt zum Klimawandel bei. Kältemittel mit geringerem Treibhauspotential (GWP) tragen im Fall eines Austretens weniger zur Erderwärmung bei als solche mit höherem Treibhauspotential (GWP). Ein Austreten von 1 kg dieses Kältemittels hätte somit eine dem GWP-Wert des Kältemittels entsprechend größere Auswirkungen auf die Erderwärmung als 1 kg CO2, bezogen auf hundert Jahre. Keine Arbeiten am Kältekreislauf vornehmen oder das Gerät zerlegen – stets Fachpersonal hinzuziehen.
