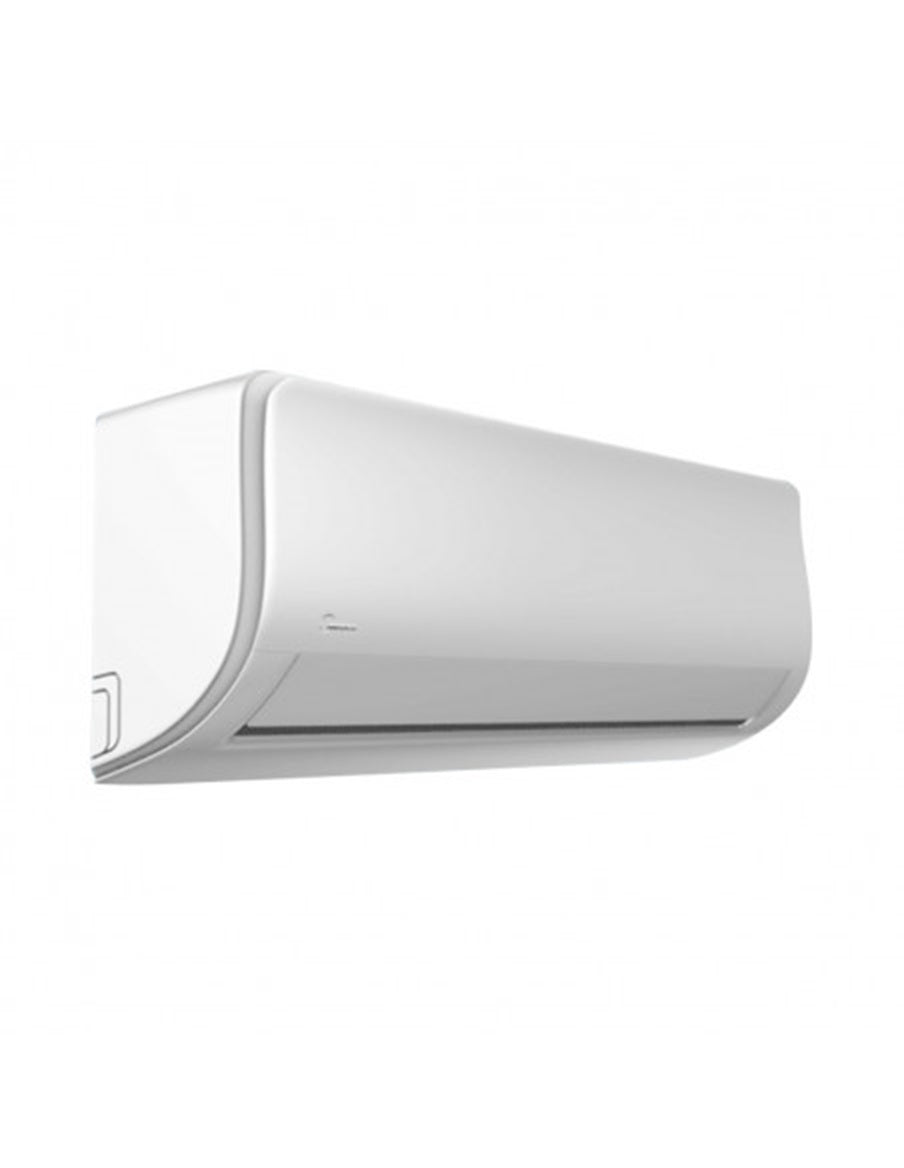

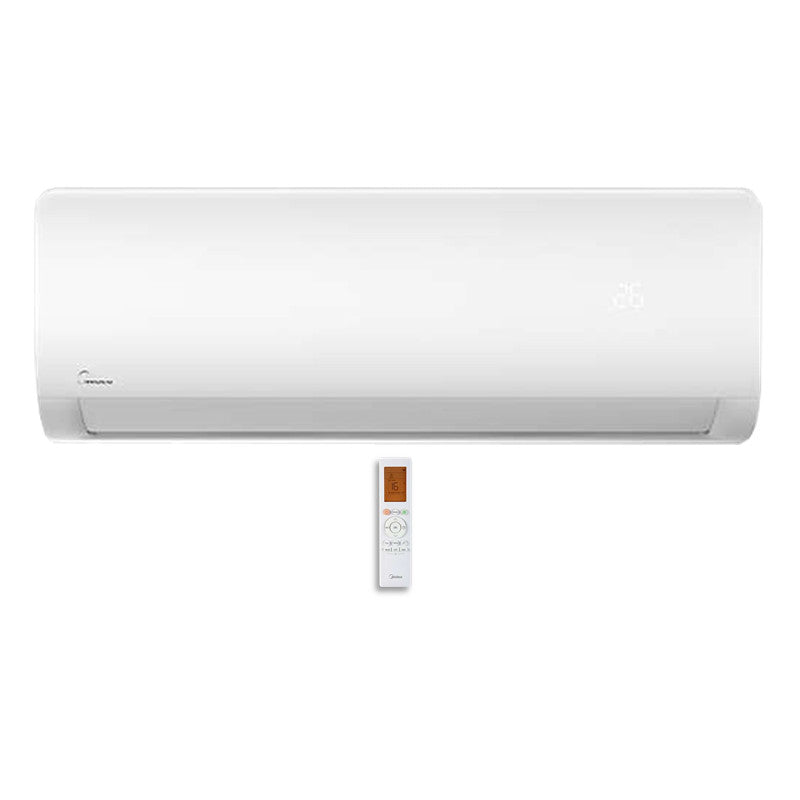

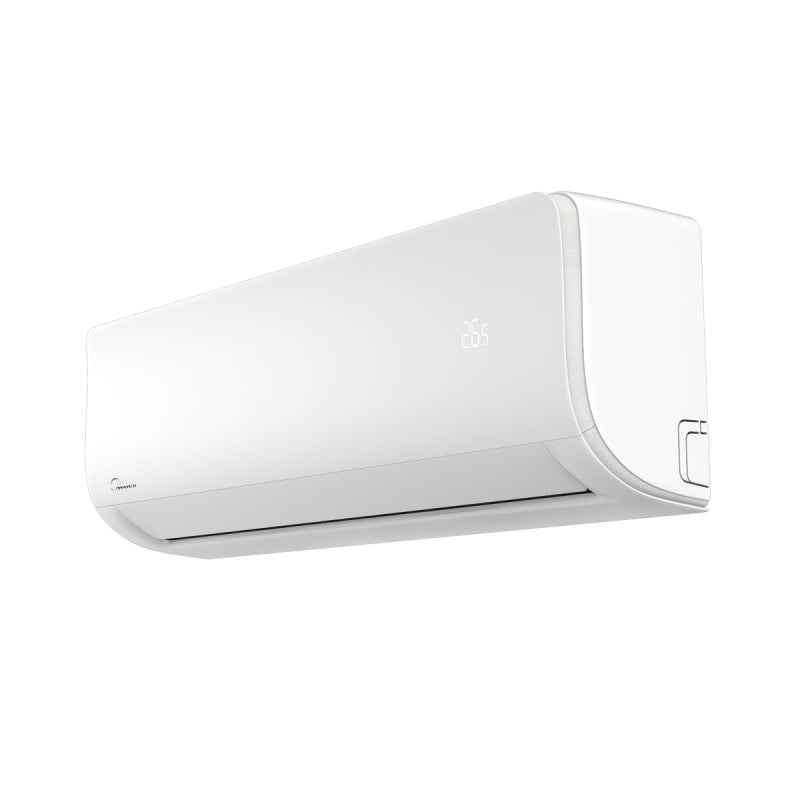

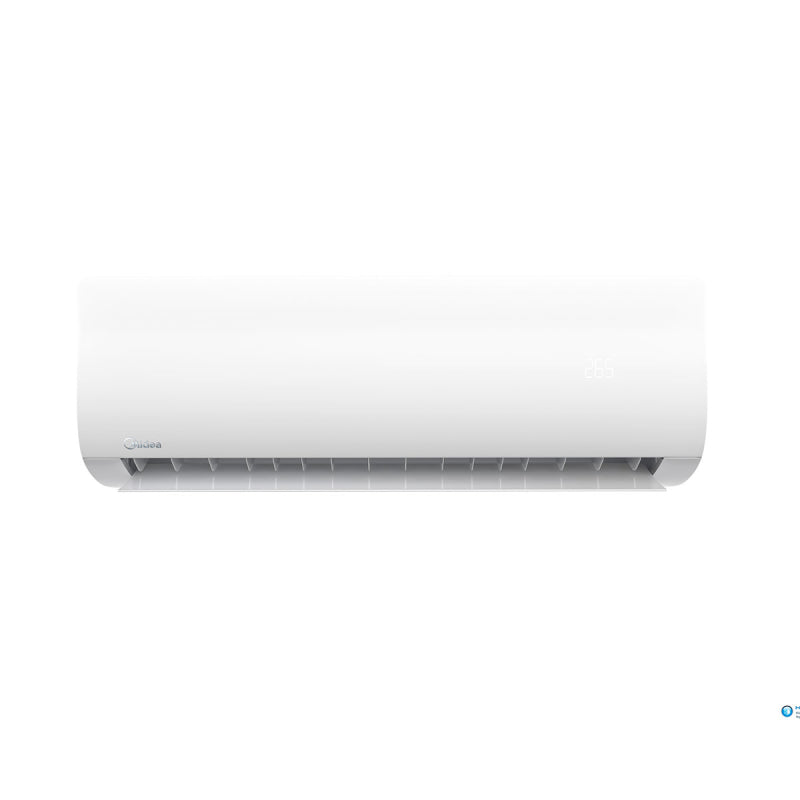

Midea Air Conditioner Wall Unit Xtreme Save Pro 2.6 kW MSAGAU-09HRFN8-ME WiFi
Midea wall-mounted unit MSAGAU-09HRFN8-ME Xtreme Save Pro WiFi - 2.6 kW - for room size 25 to 30 m² - R32
Quattro inverter technology
The Quattro Inverter technology consists of the use of linear control systems for the internal fan speed (selectable between 1% and 100%), the regulation of the temperature required in the room in units of 0.5 ° C and the stepless linear modulation of the compressor and the fan of the outdoor unit.
Eco function
This function allows you to limit the compressor speed to reduce the delivered power and significantly increase the specific efficiency of the product in cooling mode.
Refrigerant leak alarm
If the temperatures of the refrigerant circuit are irregular due to refrigerant leaks, this condition can be identified by a special error code (EC).
"Do not disturb" function
By pressing a button on the remote control, you can mute all audible warnings, turn off the indoor unit display, and reduce the indoor fan speed to a speed below the normally selectable idle speed.
GEAR function
The devices are equipped with the gear function, which allows you to limit the maximum speed of the compressor and the resulting power, thereby significantly improving the specific efficiency of the product.
Follow-Me function
The ambient temperature can be detected by a special sensor in the infrared control for more accurate detection.
Diamond Design outdoor unit
Midea's outdoor units feature an innovative diamond-cut design, with no sharp edges and no visible screws on the front panel. The air outlet grille, inspired by the Archimedes screw, incorporates a redesigned fan to minimize noise. The T-shaped rib on the top provides greater strength and stability.
PLEASE NOTE: The product complies with environmental certification ISO 14001
Technical data
Brand: MideaEAN: 4048164107308
WEEE Reg. No. DE: 55703080
Indoor unit dimensions | mm | H x W x D: 295 x 835 x 208
Indoor unit design: wall unit
Recommended room size: 25
Remote control included: Yes

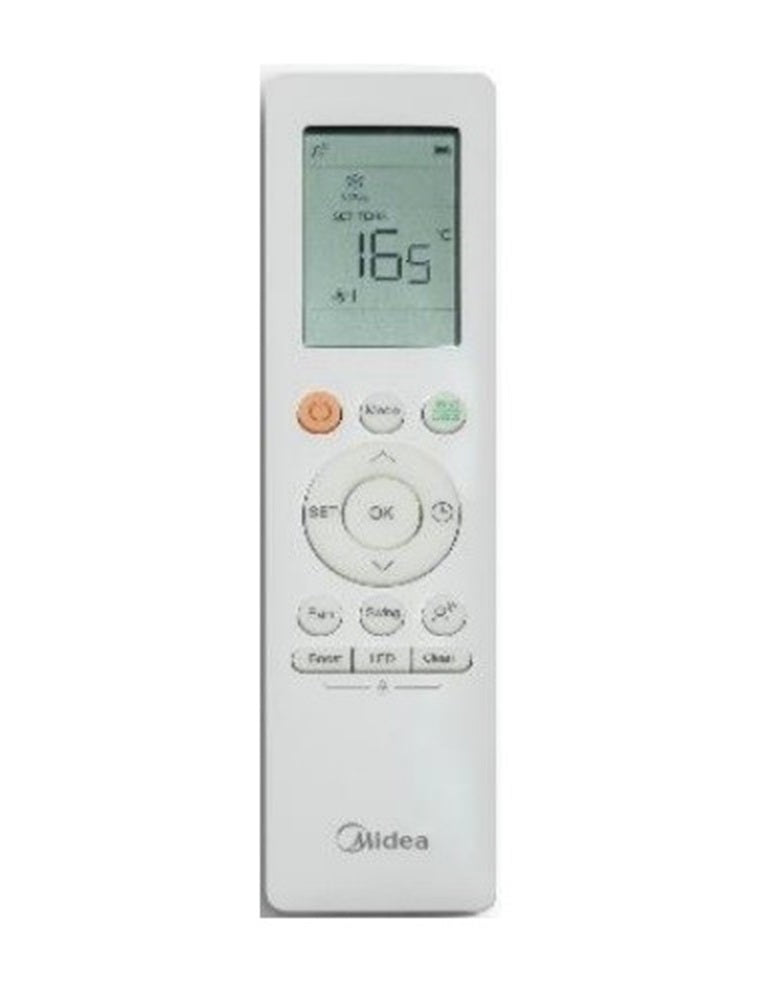

Remote control type: infrared remote control
Weight of indoor unit in kg: 8.7
BTU: 9000
Cooling capacity (min. - max.): 2.6 kW (1.02 - 3.22)
SEER 8.8
Heating output (min. - max.): 3.2 kW (0.82 - 3.37)
SCOP: 4.6
Indoor unit for application: Mono + Multi Split
Refrigerant type: R32
Refrigeration connection liquid line: 1 x 1/4" (6.35 mm)
Refrigeration connection suction gas line: 1 x 3/8" (9.52 mm)
Cooling capacity (KW): 2.6
Air filter: Long-life filter
Air volume flow per stage in m³/h: 300/360/560
Sound pressure level per stage in dB(A): 22/31/37
Sound power level indoor unit cooling/heating (dB(A)): 54
Condensate connection: 16 mm OD
Voltage supply: on the outdoor unit
Indoor unit power supply: 220-240 V / 1Ph / 50Hz, N, PE
WiFi/WLAN function: Yes
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
Note: The air conditioner may only be installed by a company certified under Regulation (EU) No. 517/2014 of the European Parliament and of the Council of April 16, 2014, on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it has been professionally installed by certified specialists. Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.
