Product informations
"Midea air conditioning Xtreme Save Pro Multisplit Set 2x 3.5 kW M2O-18HFN8-ME A++/A+ "
Data sheet | Download PDF |
---|---|
Installation instructions | Download PDF |
Investment book | Download PDF |

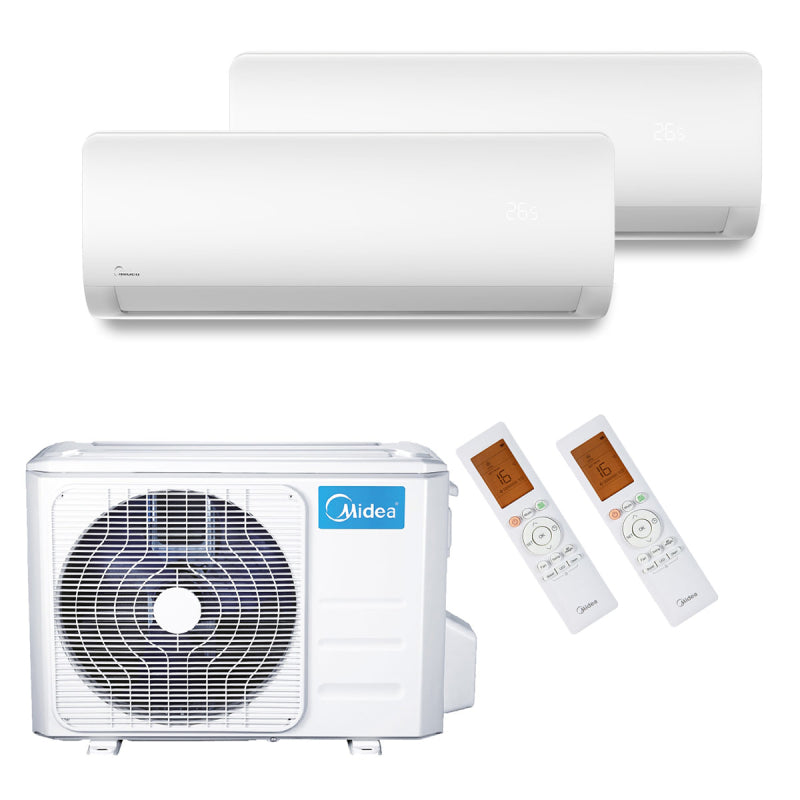

Air conditioner Midea Xtreme Save Pro Wifi, Multi Split Set with 2 indoor units 2X 3.5KW M2O-18HFN8-ME Multisplit R32 Class A++/A+
Excellent top class
Fresh & clean air with Midea Proactive Pure
1,2,3... Direct effect without delay
Deeply relaxed sleep with Midea iECO
Smart Control With MSmartHome App
GearShift function
Quattro inverter technology
Quattro Inverter technology consists of the use of linear control systems for the internal fan speed (selectable between 1% and 100%), the regulation of the temperature required in the room in units of 0.5 ° C and the stepless linear modulation of the compressor and the fan of the outdoor unit.
Eco function
This function allows you to limit the compressor speed to reduce the power delivered and significantly increase the specific efficiency of the product in cooling mode.
Refrigerant leak alarm
If the temperatures of the refrigerant circuit are irregular due to refrigerant leaks, this condition can be identified by a special error code (EC).
"Do not disturb" function
By pressing a button on the remote control, you can mute all audible warnings, turn off the indoor unit display, and reduce the indoor fan speed to a speed below the normally selectable idle speed.
GEAR function
The devices are equipped with the gear function, which allows you to limit the maximum speed of the compressor and the resulting power, thereby significantly improving the specific efficiency of the product.
Follow-Me function
The ambient temperature can be detected by a special sensor in the infrared control for more accurate detection.
Diamond Design outdoor unit
Midea's outdoor units feature an innovative diamond-cut design, with no sharp edges and no visible screws on the front panel. The air outlet grille, inspired by the Archimedes screw, incorporates a redesigned fan to minimize noise. The T-shaped rib on the top provides greater strength and stability.
PLEASE NOTE: This product complies with ISO 14001 environmental certification
Technical data:
Brand: Midea

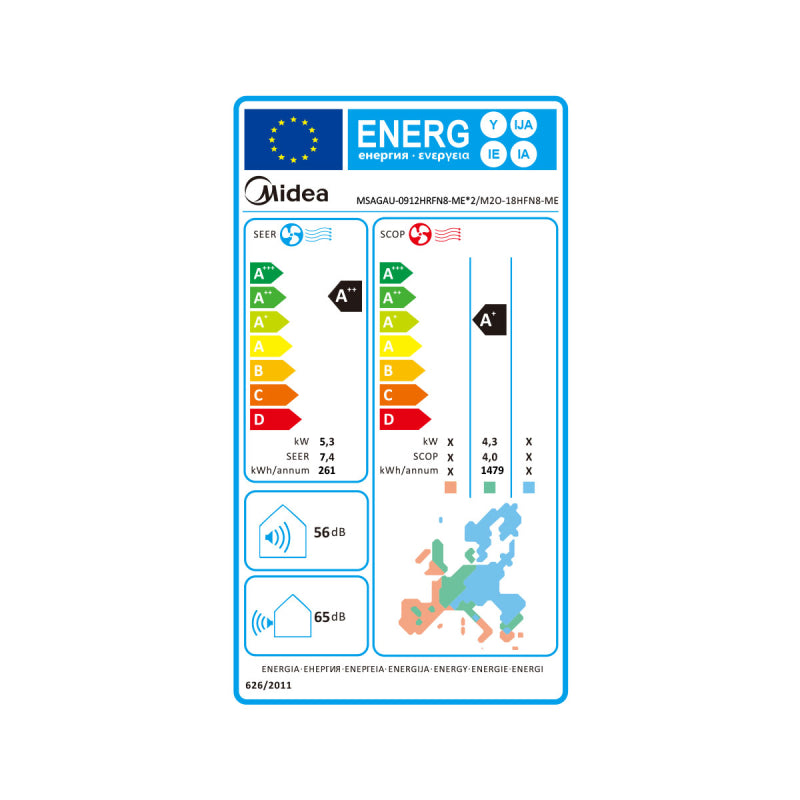

Energy efficiency class cooling/heating: A++/A+
Cooling capacity (kW): 5.3 kW
Heating output (kW): 4.3 kW
Sound pressure level inside dB(A): 22 / 31 / 37
Outdoor sound pressure level dB(A): 56
Type: Wall-mounted unit
Color: White
Number of indoor units: 2
Shipping weight: 58.00 kg
Item weight: 53.40 kg
SEER I SCOP: 7.4 / 4.0
Energy consumption per year cooling / heating: 261 / 1479
Internal dimensions in mm (H x W x D): 295 x 835 x 208
External dimensions in mm (H x W x D): 554 x 800 x 333
Indoor/outdoor unit weight (kg): 8.7 / 36
Liquid/suction gas line (inch) Ø: 1/4 / 3/8
Max. total cable length (m): 40
Max. height difference (m): 15
Outdoor unit pre-filled for (m): 1.3 kg
Power supply (V): 220-240
Recommended fuse (A): 16
Connecting cable (mm²): 5 x 1.5
Application range cooling / heating: –15~50 / –15~24
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
Note: The air conditioner may only be installed by a company certified under Regulation (EU) No. 517/2014 of the European Parliament and of the Council of April 16, 2014, on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it has been professionally installed by certified specialists. Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.
