Product informations
"Midea Air Conditioner Xtreme Save Pro Multisplit Set 3 x 2.6 kW MSAGAU-09HRFN8-ME A++/A+ "
| Data sheet | Download PDF |
|---|---|
| Installation instructions | Download PDF |
| Investment book | Download PDF |

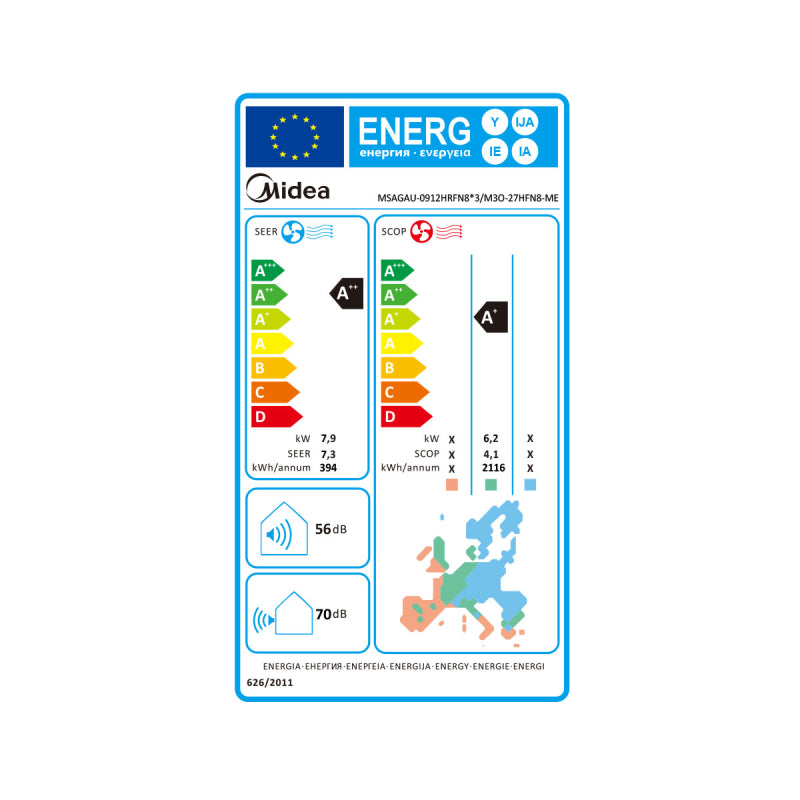

| Energy labels | Show Image |

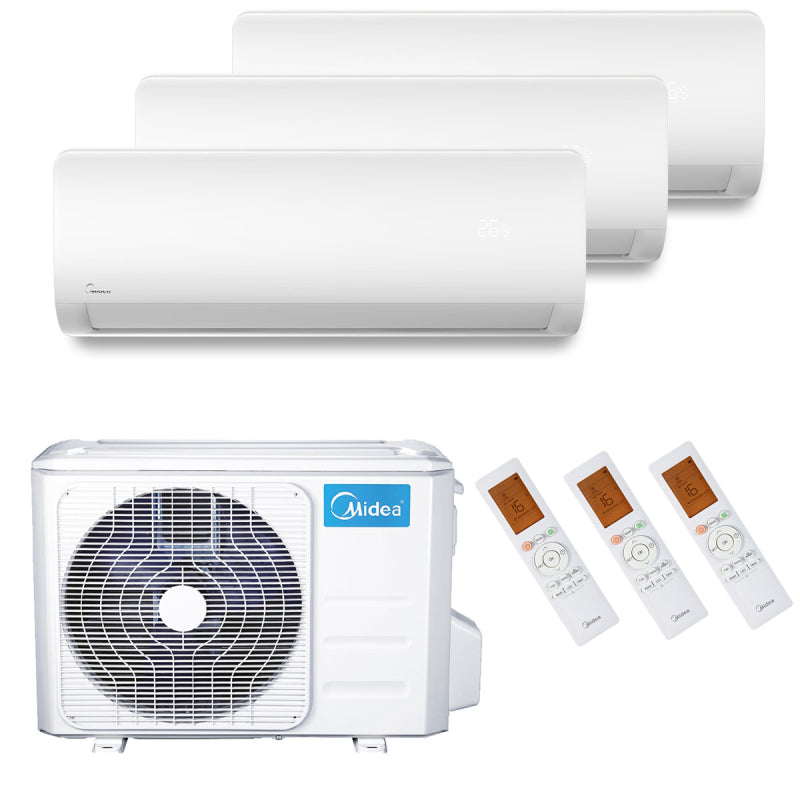

Midea Xtreme Save Pro Wifi Air Conditioner, Multi Split Set with 3 Indoor Units 3X 2.6KW MSAGAU-09HRFN8-ME Multisplit R32 Class A++/A+
Quattro Inverter Technology
Quattro Inverter technology consists of using linear control systems for the internal fan speed (selectable between 1% and 100%), regulating the required temperature in the room at 0.5 °C increments, and continuous linear modulation of the compressor and the outdoor unit fan.
Eco function
This function allows you to limit the compressor speed to reduce the delivered power and significantly increase the specific efficiency of the product in cooling mode.
Refrigerant Leak Alarm
If the refrigerant circuit temperatures are irregular due to refrigerant leaks, this condition can be identified by a special error code (EC).
"Do Not Disturb" Function
By pressing a button on the remote control, you can mute all audible warnings, turn off the indoor unit's display, and reduce the indoor fan speed to a level below the normally selectable idle speed.
GEAR Function
The units are equipped with the gear function, which allows you to limit the maximum speed of the compressor and the resulting power, thereby significantly improving the specific efficiency of the product.
Follow-Me Function
The ambient temperature can be detected by a special sensor in the infrared control for a more accurate reading.

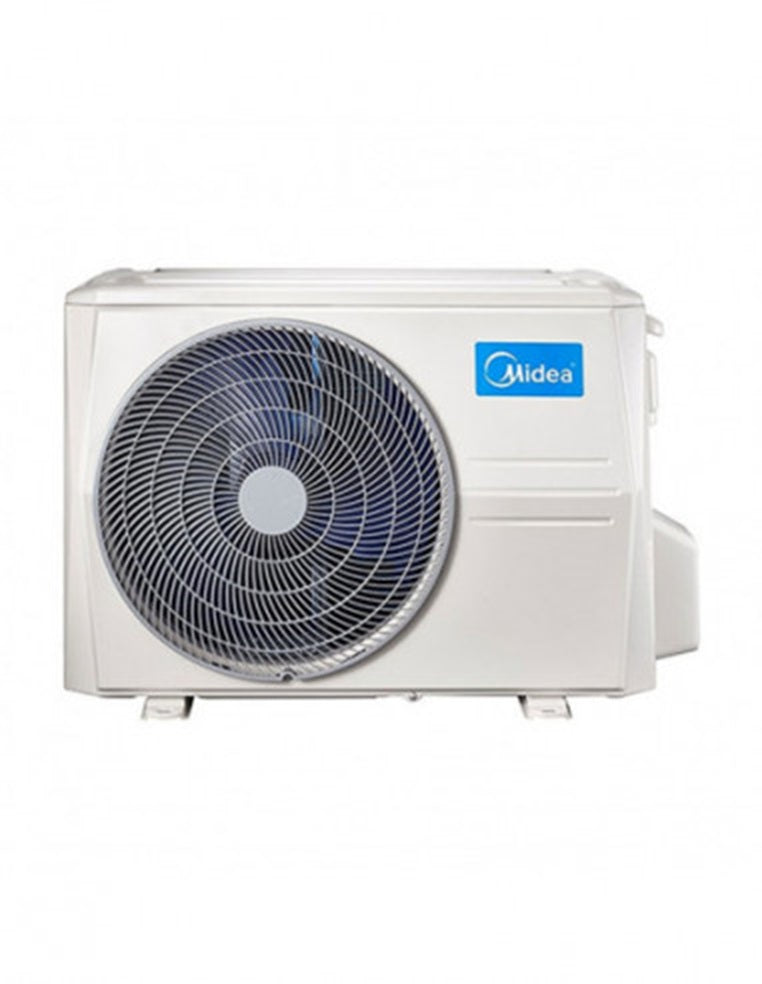

Diamond Design Outdoor Unit
Midea outdoor units are manufactured with the innovative diamond-cut shape, without sharp edges and no visible screws on the front panel. The air outlet grille, inspired by the Archimedean screw, contains a newly designed fan to minimize noise. The T-shaped fin on the top provides increased strength and stability.
PLEASE NOTE: The product complies with ISO 14001 environmental certification
Technical Data
Brand: MideaEnergy Efficiency Class Cooling/Heating: A++/A+
Cooling Capacity (kW): 7.9 kW
Heating Capacity (kW): 8.2 kW
Power Consumption Cooling / Heating kWh/year: 394 / 2116
Sound Pressure Level Indoor dB(A): 22 / 31 / 37
Sound Pressure Level Outdoor dB(A): 59
SEER I SCOP: 7.9 / 4.1
Dimensions Indoor in mm (H x W x D): 295 x 835 x 208
Dimensions Outdoor in mm (H x W x D): 702 x 845 x 363
Indoor -/ Outdoor unit Weight (kg): 8.7 / 53
Liquid -/ Suction gas line (inches): 3 x 1/4 / 3/8
Max. Total line length (m): 60
Max. Height difference (m): 15
Outdoor unit pre-filled for (m): 1.57 kg
Power Supply (V): 220-240
Recommended Fuse (A): 20
Connection Cable (mm²): 5 x 1.5
Operating Range Cooling I Heating (°C): –15~50 / –15~24
Item Weight: 79.1
Shipping Weight: 85
Technical changes and errors reserved! Prior sale reserved! Illustration similar!
Note: The air conditioner may only be installed by a company certified under Regulation (EU) No. 517/2014 of the European Parliament and of the Council of April 16, 2014, on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it has been professionally installed by certified specialists. Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.
Midea Europe GmbH Ludwig-Erhard-Straße 14, Eschborn, Hesse, 65760, DE info-meg@midea.com 0619690200
