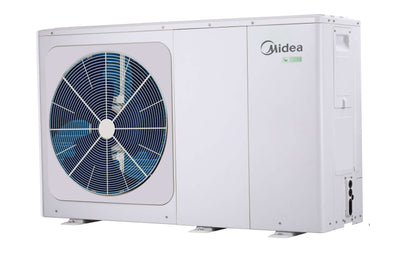

Midea MHC-V10W/D2N8-BER90 Air Water Monoblock Heat Pump 10 kW M-Thermal WiFi R32 A+++/A++

The M Thermal Monoblock R32 reduces carbon dioxide emissions and features an elegant design with an integrated hydraulic system, meaning only one water line needs to be installed on site. It not only supplies hot water for fan convectors, underfloor heating, or a domestic hot water tank, but is also compatible with solar thermal collectors, gas stoves, boilers, and other heat sources.

Anti-freeze

The anti-freeze function protects the hydraulic parts from freezing and thus from damage.

Highly efficient heating system

With an exceptionally high energy efficiency class of A+++, the Midea M-Thermal heat pumps offer an optimal solution for anyone who values ​​energy-efficient and therefore environmentally friendly operation.

HIGH-PERFORMANCE, HIGH-EFFICIENT HEATING

No loss of performance at -15 °C outside air temperature, operation down to -25 °C, a maximum flow temperature of +65 °C and an energy efficiency rating of A+++ speak for themselves!

Flexible operation and greater comfort

Weather-dependent operation with climate correlation ensures absolute comfort. Two zones provide maximum flexibility and a priority setting function, while a multi-mode selection allows for optimal fulfillment of every requirement. Special functions such as air purging, floor preheating, and floor drying are, of course, already included with the Midea M Thermal Split.

Improved fan blade design

Outdoor units with a nominal power of up to 16 kW have only a single fan, which, however, thanks to a revised design with reduced flow resistance, draws in enough air while keeping the noise level as low as possible.

Environmentally friendly refrigerant

The GWP (Global Warming Potential) of R32 is only 32% compared to conventional R410a, thus reducing the refrigerant charge and at least 75% of the CO2 equivalent (carbon dioxide equivalent).

High efficiency and large operating range

DC inverter technology ensures optimal operational reliability and efficiency. Thanks to its large heat exchanger and powerful compressor, it delivers 80% heating capacity down to -7°C ambient temperature. A built-in electric backup heater provides additional heating power in extremely cold conditions. The backup heater's output is freely adjustable and separately configurable. Heating, cooling, and hot water: a complete heating solution for your application. Wide operating ranges for ambient and water outlet temperatures make the Midea M Thermal Split the ideal solution for all installation environments.

WiFi control

With the integrated WiFi module and the MSmartLife app, you can control your Midea air-to-water heat pump from anywhere and configure desired setpoint parameters even before it arrives at home.

Additional heating element

An auxiliary heating element is included as standard in all Midea M-Thermal heat pumps. This ensures continuous water heating, even if the basic output of the inverter heat pump is insufficient for the required operation.

Inverter control

The key components of the heat pump are manufactured using advanced technologies and are equipped with innovative inverter technology, which ensures precise control of operation and high efficiency.

Heating curve function

Midea M-Thermal heat pumps allow you to choose a heating curve from 32 pre-made curves or to individually set a user-defined curve.

Smart Grid

Midea M-Thermal heat pumps are factory-prepared for operation with a smart grid, which is why each one bears the SG-Ready label. This allows the electricity consumed by the system to be automatically regulated according to tariffs, thereby significantly reducing energy consumption. The smart grid function can also be used with photovoltaic systems.

USB INTERFACE

Transfer of settings between wired remote controls.

Program updates via the interface to save time during installation.

Important NOTE!

The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.

Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.
