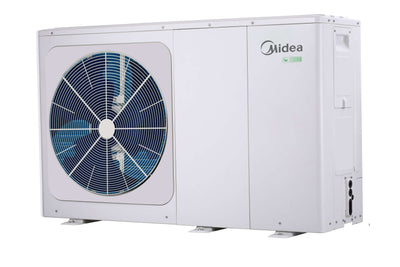

Midea MHC-V12W/D2RN8-BER90 air water monoblock heat pump 12.1 kW M-Thermal WiFi R32 A+++/A++

The M Thermal Monoblock R32 reduces carbon dioxide emissions and has an elegant design with an integrated hydraulic kit, which means that only one water pipe needs to be installed on site. Not only does it supply domestic water for fan convectors, underfloor heating or a domestic hot water tank, but it is also compatible with solar panels, gas stoves, boilers and other heat sources.

Anti-Freeze

The anti-freeze function protects the hydraulic parts from freezing and thus from damage.

Highly efficient heating system

With an exceptionally high energy efficiency class of A+++, the Midea M-Thermal heat pumps offer an optimal solution for anyone who values ​​energy-efficient and therefore environmentally friendly operation.

POWERFUL HEATING WITH HIGH EFFICIENCY

No loss of performance at -15 °C outside air temperature, a ensures use down to -25 °C, a maximum flow temperature of +65 °C and an energy efficiency rating of A+++ speak for themselves!

Flexible operation and more comfort

Weather-dependent operation with climate correlation for absolute comfort. Two zones ensure maximum flexibility and priority setting function, as well as a multi-mode selection ensure that every wish is optimally realized. Special functions such as air flushing, floor preheating and floor drying are of course already included in the Midea M Thermal Split.

Improved fan blade design

Outdoor units with a nominal output of up to 16 kW have only a single fan, which, thanks to a revised design with reduced flow resistance, draws in enough air while keeping the noise level as low as possible.

Environmentally friendly refrigerant

The GWP (global warming potential) of R32 is only 32% compared to conventional R410a, reducing the refrigerant charge and at least 75% of the CO2 equivalent (carbon dioxide equivalent).

High efficiency and wide operating range

DC inverter technology for optimum operational reliability and efficiency. Offers a heating capacity of 80% down to -7°C outside temperature thanks to the large heat exchanger and the large compressor. A built-in electric backup heater for additional heating capacity in extremely cold temperatures. The power of the electric backup heater is freely adjustable and the output power can be configured separately. Heating, cooling and hot water: a complete heating solution for your application. Large operating ranges for ambient temperature and water outlet temperature make the Midea M Thermal Split the optimal solution for all installation environments.

WiFi control

With the integrated WiFi module and the MSmartLife app, you can control your Midea air-water heat pump from anywhere and configure the desired target parameters before you even get home.

additional heating element

An additional heating element is included as standard in all Midea M-Thermal heat pumps. This ensures continuous water heating, even if the basic output of the inverter heat pump is not sufficient for the required operation.

inverter control

The key components of the heat pump are manufactured using advanced technologies and are equipped with innovative inverter technology, which ensures precise control of operation and high efficiency.

heating curve function

Midea M-Thermal heat pumps allow you to choose a heating curve from 32 predefined curves or to individually set a user-defined curve.

smart grid

Midea M-Thermal heat pumps are factory-prepared to work with a smart grid, which is why each one carries the SG-Ready label. This means that the electricity consumed by the system can be automatically regulated according to tariffs, which can significantly reduce energy consumption. The Smart Grid function can also be used with photovoltaic systems.

USB INTERFACE

BACKUP-HEATER

built-in electric backup heater with 9 kW

Important NOTE!

The installation and commissioning of the devices must only be carried out by qualified personnel. In the event of a complaint, proof must be provided that the device was installed correctly by qualified specialist companies (certificate of specialist company and special qualification). If no proof is provided, any guarantee or warranty will be void.

Technical changes and errors reserved! Subject to prior sale! Illustration similar!
The leak of refrigerant contributes to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a hundred years, in line with the GWP value of the refrigerant. Do not carry out any work on the refrigeration circuit or dismantle the device - always call in qualified personnel.

Der Austritt von Kältemittel trägt zum Klimawandel bei. Kältemittel mit geringerem Treibhauspotential (GWP) tragen im Fall eines Austretens weniger zur Erderwärmung bei als solche mit höherem Treibhauspotential (GWP). Ein Austreten von 1 kg dieses Kältemittels hätte somit eine dem GWP-Wert des Kältemittels entsprechend größere Auswirkungen auf die Erderwärmung als 1 kg CO2, bezogen auf hundert Jahre. Keine Arbeiten am Kältekreislauf vornehmen oder das Gerät zerlegen – stets Fachpersonal hinzuziehen.
