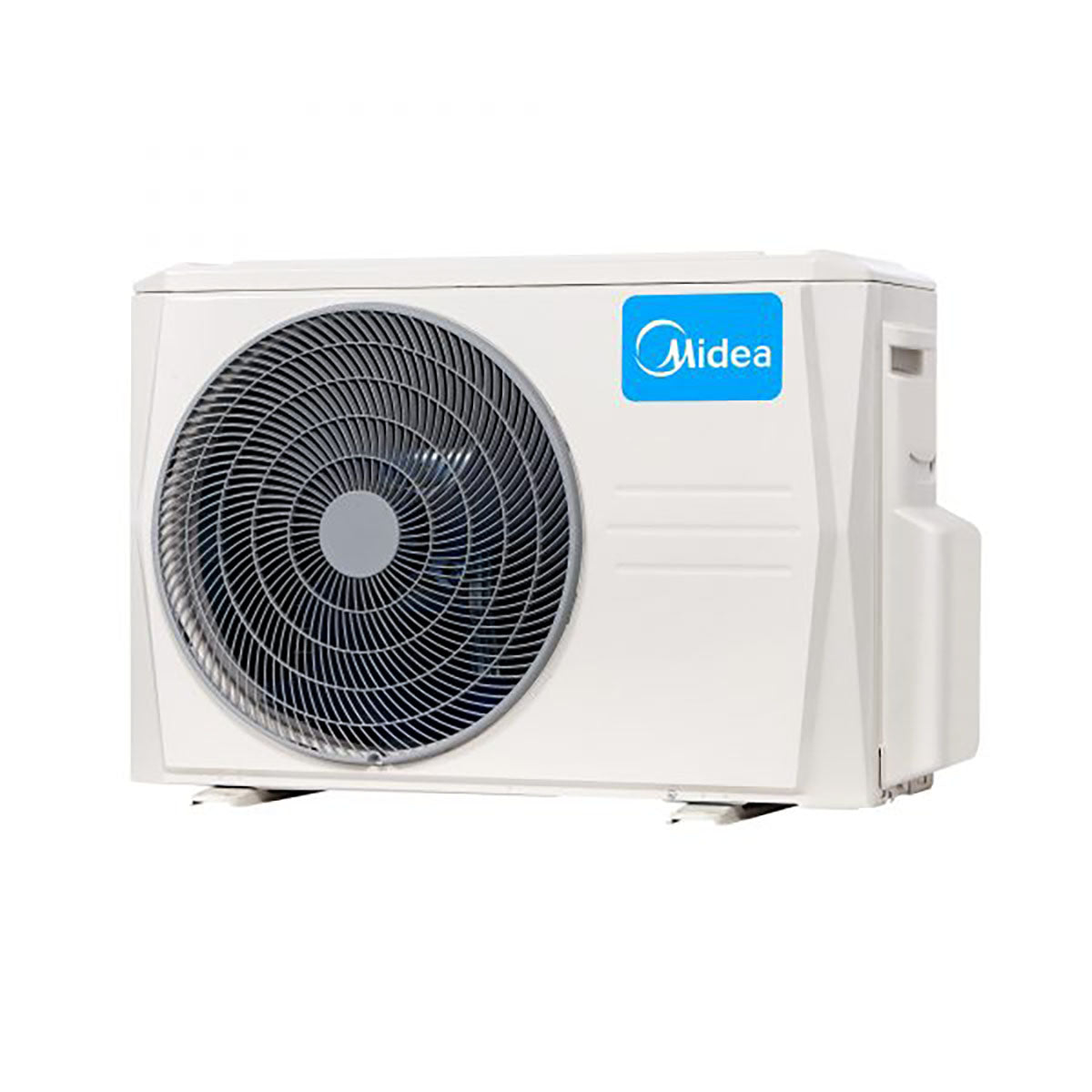

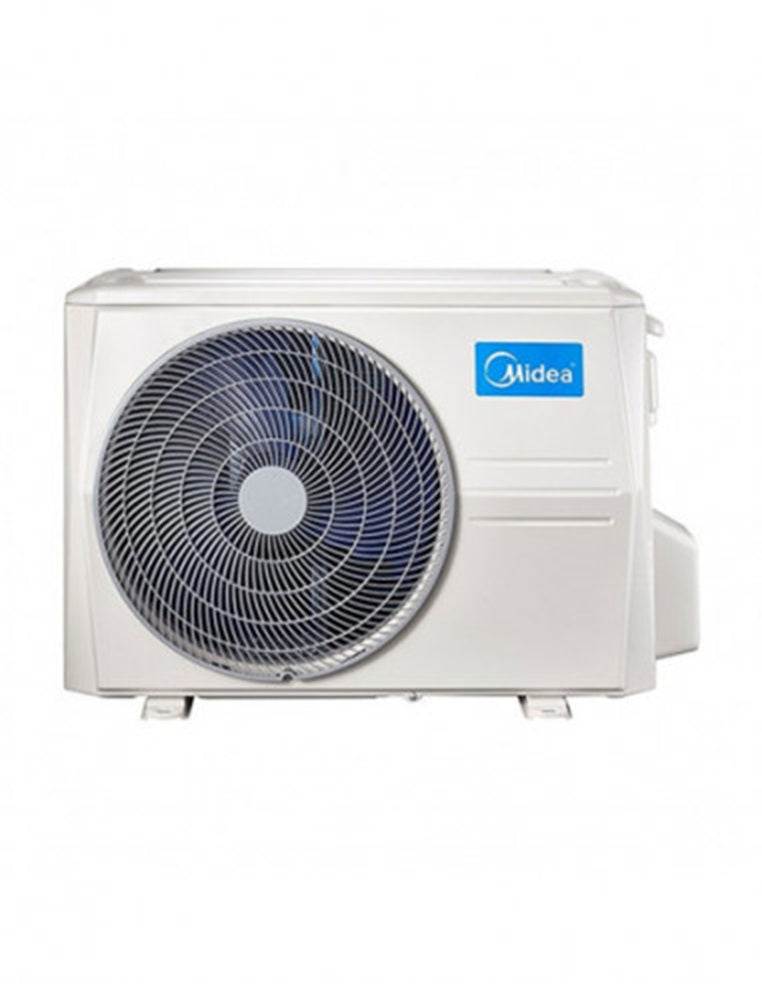

Midea Multisplit Inverter Outdoor Unit M2O-18HFN8-ME 5.2 kW for 1-2 Indoor Units
Midea Multisplit Inverter Outdoor Unit M2O-18HFN8-ME 5.2 kW for 1-2 Indoor Units
Price incl. VAT.
Delivery time on request
In stock
Product informations
"Midea Multisplit Inverter Outdoor Unit M2O-18HFN8-ME 5.2 kW for 1-2 Indoor Units"
| Data sheet | Download PDF |
|---|---|
| Installation instructions | Download PDF |
| Investment book | Download PDF |
Midea Multisplit Inverter Outdoor Unit M2O-18HFN8-ME 5.2 kW for 1-2 Indoor Units / Wall Units
MIDEA multi-split inverter with 5.2 kW rated power
The MIDEA multi-split system allows the operation of multiple indoor units with a single outdoor unit. The exterior casing features an elegant, diamond-cut design that offers both stability and an attractive appearance, ensuring safe operation and a long service life. The "Archimedean" screw-shaped air outlet and the bionic fan impeller minimize noise.
The stepless frequency adjustment of the compressor and motor ensures a constant room temperature and avoids energy-intensive stop-and-go operation, which both reduces costs and extends the service life of the air conditioner.
Individual air conditioning solutions for 1 or 2 indoor units
This unit offers versatile climate solutions. With its heat pump function and operating range down to -15°C outside temperature, energy-efficient heating is also possible. You can connect up to two individually controllable indoor units to create an optimal comfortable climate in different rooms. You can choose from various indoor units: wall-mounted units, ceiling cassette units, floor-standing units, and ducted units.
Scope of delivery
- 1 × multi-split outdoor unit M2O-18HFN8-ME
- Mounting accessories
Technical data:
Manufacturer: Midea
Outdoor unit model name: M2O-18HFN8-ME
Cooling capacity: 5.27 kW
Heating output: 5.57 kW
Cooling capacity (min. - max.): 2.05 kW - 5.28 kW
Heating output (min. - max.): 2.34 kW - 5.57 kW
BTU: 18000
Outdoor unit volume (max, in dB(A)): 56
Cooling power consumption: 1800 W (690-2000)
Heating power consumption: 1550 W (600-1670)
Cooling/heating operating range in °C: -15°C to -50°C / -15 to +24
Weight: 36 kg
Connectable indoor units (number): 1-2
Max. total cable length system: 40 m
Pipe length AG – IG Max.: 25 m
Height difference IG – AG Max.: 15 m
Refrigerant: R32
Refrigerant pre-charge (m): 5 m
Refrigeration line diameter liquid / gas: 2x 1/4" (6.35 mm) - 2x 3/8" (9.52 mm)
Outdoor unit dimensions in mm (WxHxD): 800x554x333
Power supply (V/Hz/Ph): 220-240 | 50 | 1, 220-240
Current – 50 Hz Max. fuse amperage: 16 A
Number of rooms: 2 rooms
Device type: Cooling and heating
Device type: outdoor unit
Building type: House, Practices, House | Apartment, Practices | Office | Law Firm | Agencies
Total area: 51 m² - 60 m²
Cooling capacity range: 4.5 kW – 5.4 kW
Heating power range: 5.5 kW – 6.4 kW
Subject to technical changes and errors! Subject to prior sale! Illustration similar!
Note: The air conditioner may only be installed by a company certified under Regulation (EU) No. 517/2014 of the European Parliament and of the Council of April 16, 2014, on fluorinated greenhouse gases. By purchasing a split air conditioner, you confirm that it has been professionally installed by certified specialists. Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.
