Monoblock heat pump WEBER HT 12kW for domestic hot water and heating R32 WiFi BAFA A+++
Monoblock heat pump WEBER HT 12kW for domestic hot water and heating R32 WiFi BAFA A+++
Price incl. VAT.
Delivery time on request
In stock
Product informations
"Monoblock heat pump WEBER HT 12kW for domestic hot water and heating R32 WiFi BAFA A+++ "
| Data sheet | Download PDF |
|---|---|
| Installation instructions | Download PDF |
Monoblock heat pump WEBER HT 12kW for domestic hot water and heating R32 WiFi A+++/A++
The device is listed by BAFA and is eligible for funding.
The WEBER HT 12 kW, 3-phase monoblock air-to-water heat pump from Sunex is manufactured with the innovative and advanced EVI INVERTER technology and offers customers the benefits of highly efficient building heating, both with underfloor heating and with radiators.
The WEBER HT monobloc heat pump for central heating and hot water preparation is efficient and extremely user-friendly. A further advantage is its cooling function, which, when used correctly, eliminates the need for conventional air conditioning systems.
The unit was specifically designed for the respective climate and is suitable even for the coldest regions of the country. The heat pump can operate even at outside temperatures as low as -25°C. By matching the Weber pump to the building's energy consumption, the use of additional heat sources is either completely avoided or only required occasionally.
The 3-phase Weber heat pump is manufactured according to the strictest quality control systems and with high-quality components such as a Panasonic compressor and a Carel controller. The unit's refrigeration system is equipped with EVI inverter technology (additional vapor injection) (automatic adjustment of heating output to heat demand). This results in a long service life and a high energy efficiency rating of A+++.
The WLAN service module is also important, as it enables a quick service response without an on-site visit.
Operating principle of the monobloc heat pump

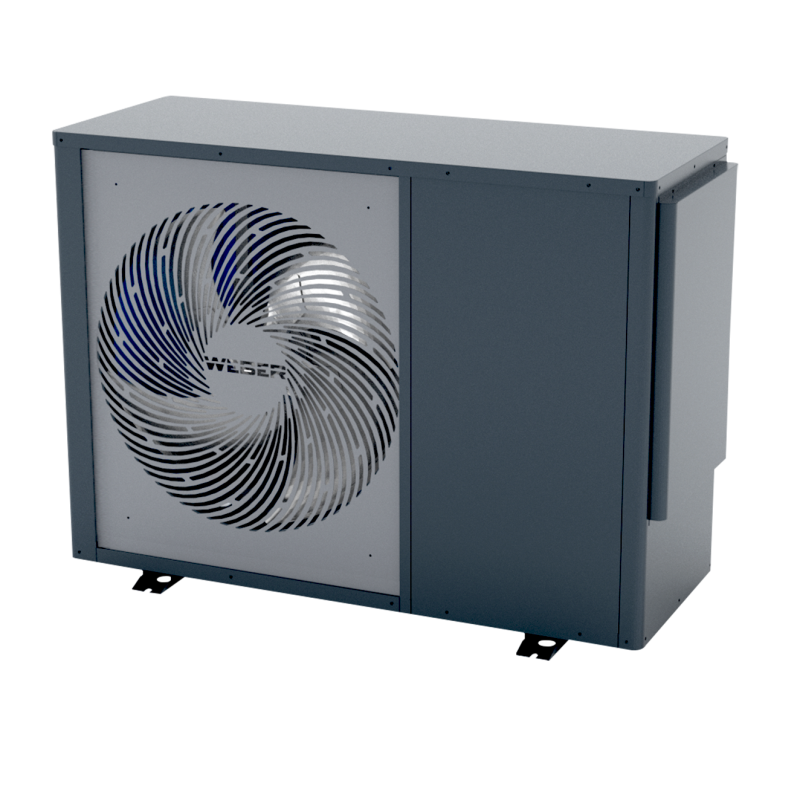

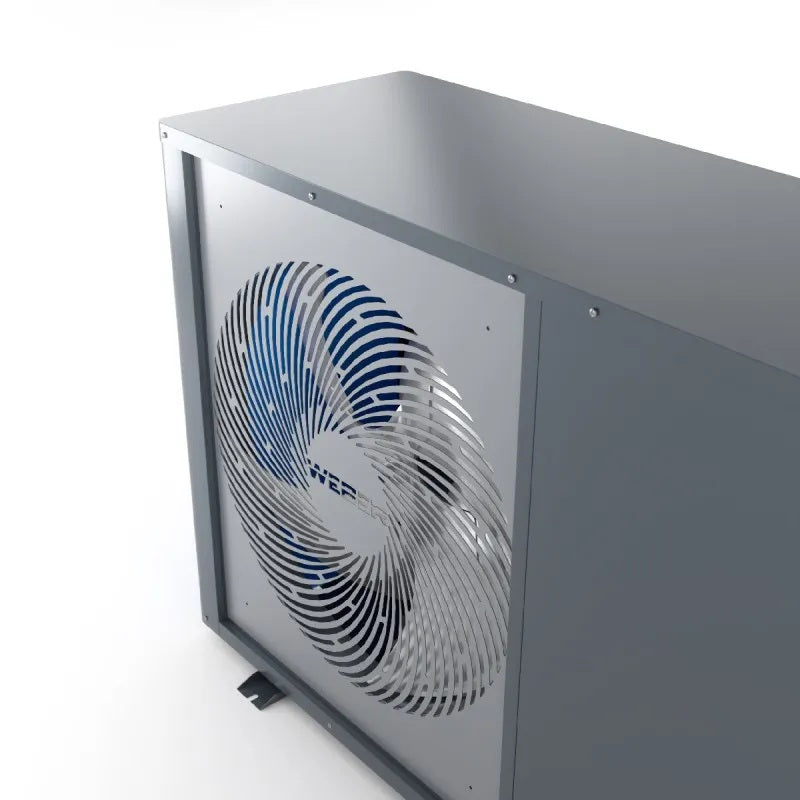

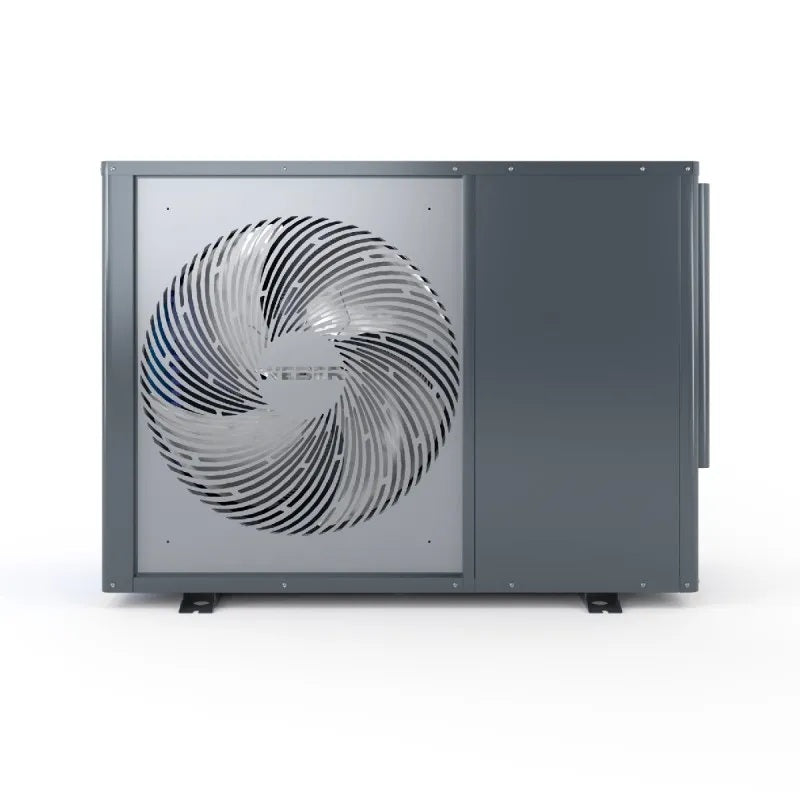

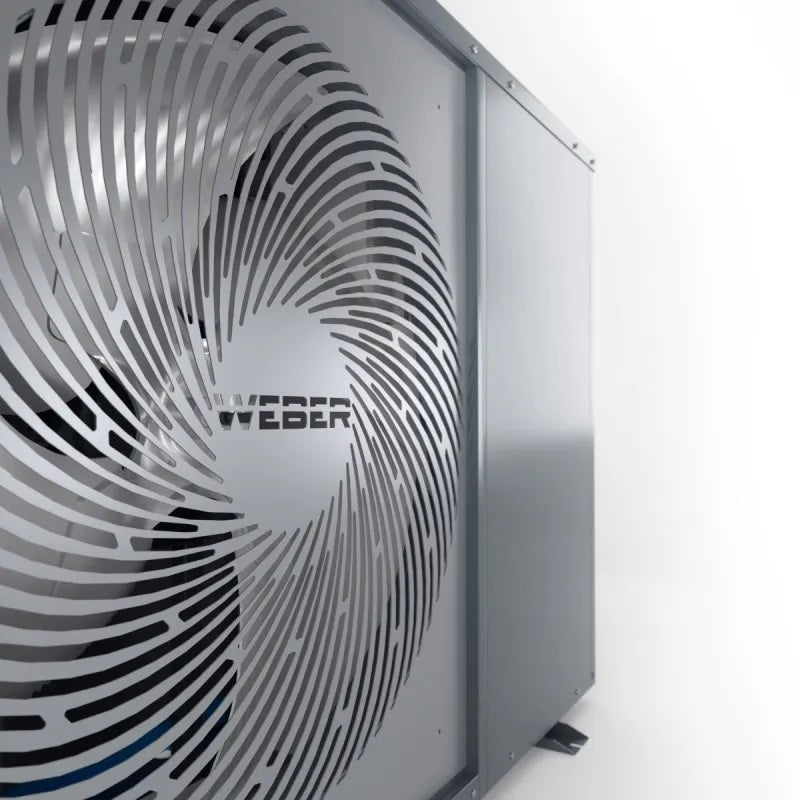

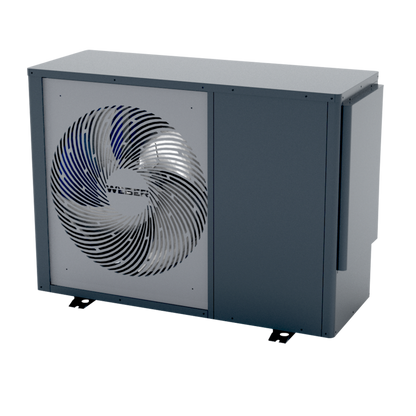

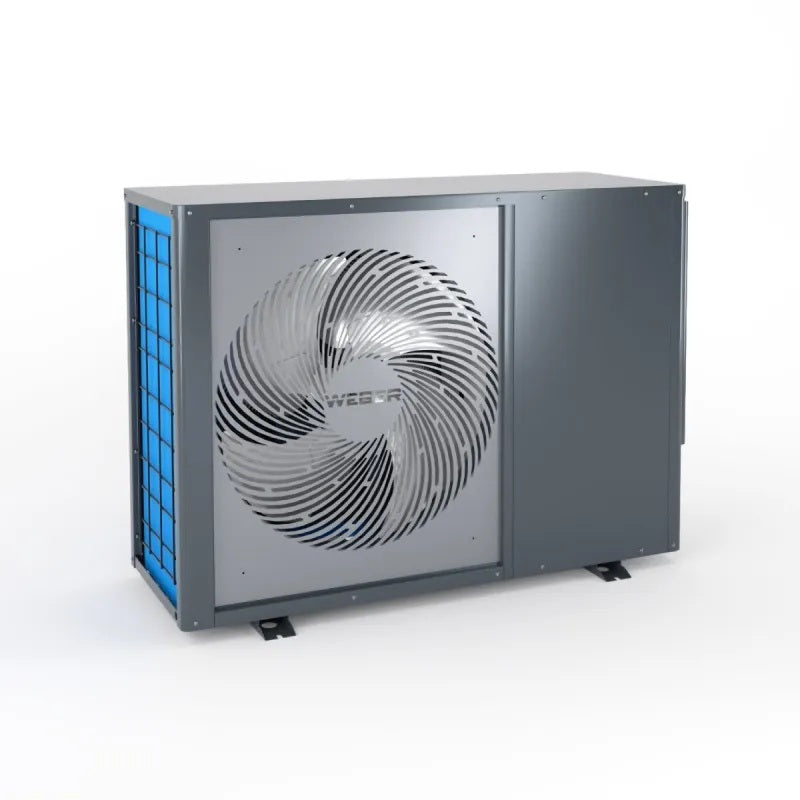

The WEBER heat pump is designed as a monobloc unit. This means that all components except the control panel are housed in a single, compact unit that is mounted outdoors. This makes it suitable for use even in buildings with small boiler rooms. The operating principle is similar to that of other refrigeration systems: Heat from the outside air is transferred to the pump's evaporator via a fan. In the evaporator, a gaseous refrigerant absorbs the heat and is then compressed to a high temperature by a compressor. At this point, the heat is transferred to the circulating water via a plate heat exchanger, the so-called condenser. The water is then piped into the interior.
ADVANTAGES
- Inverter technology
- PANASONIC compressor
- Operation down to -25 °C
- EVI technology – Increased plant efficiency
- Energy efficiency class A+++
- CAREL PGN1HT0F00 controller
- Wi-Fi module
MAIN FEATURES OF THE WEBER EVI INVERTER 12 kW HEAT PUMP
- Energy efficiency class A+++
- Precise temperature control
- Effective operation at sub-zero temperatures down to -25 °C
- Convenient monoblock solution: All components are housed in a single outer casing.
- Easy installation – connection of three-phase power, signal cables and two water pipes (inlet and outlet)
- Long pump lifespan
- CAREL brand control components
- Soft start via inverter
- Panasonic brand compressor
Scope of delivery:
- Weber HT heat pump

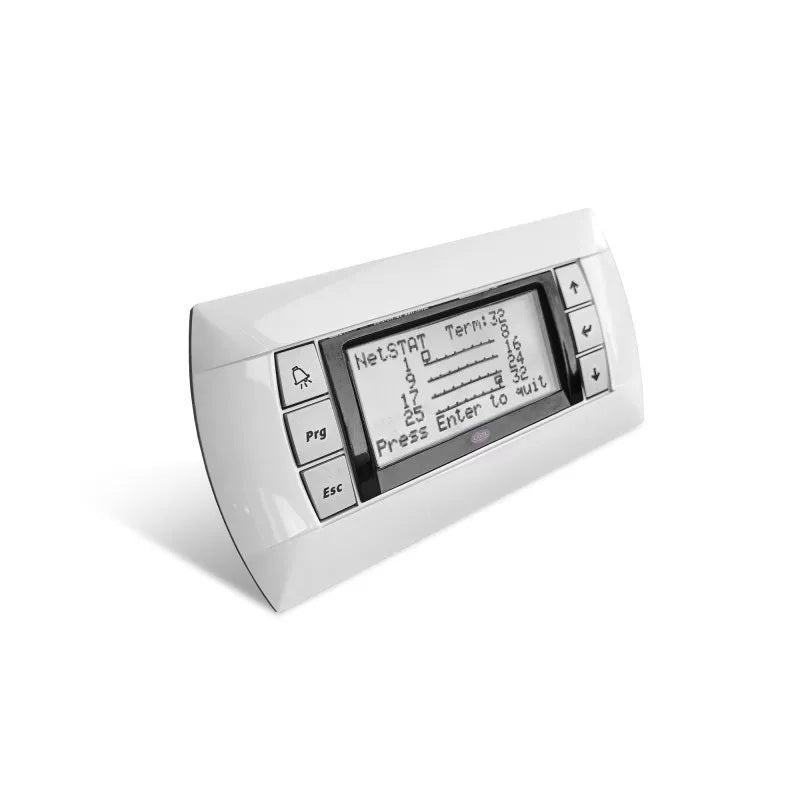

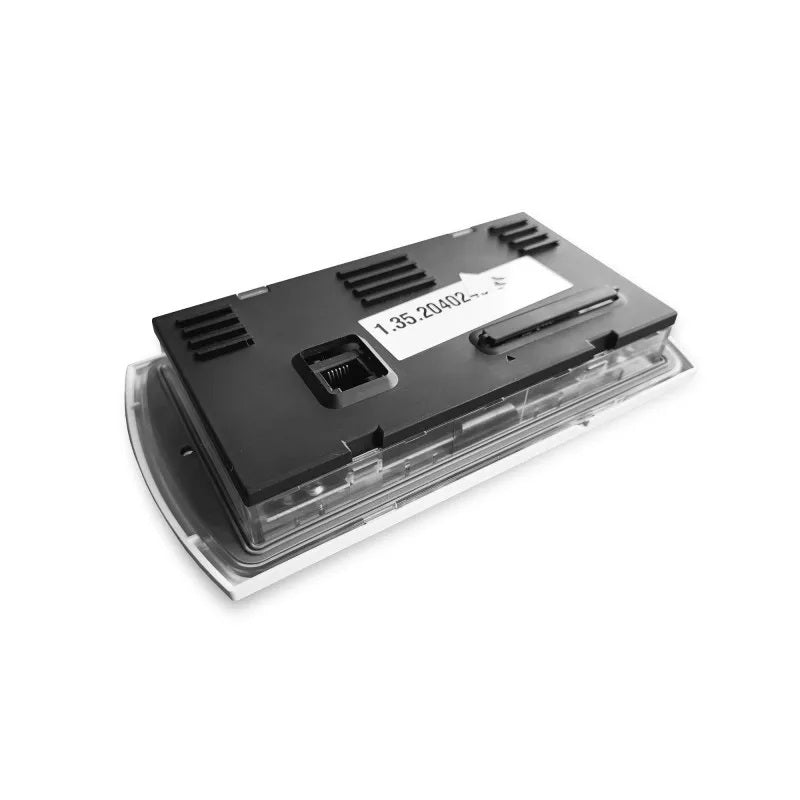

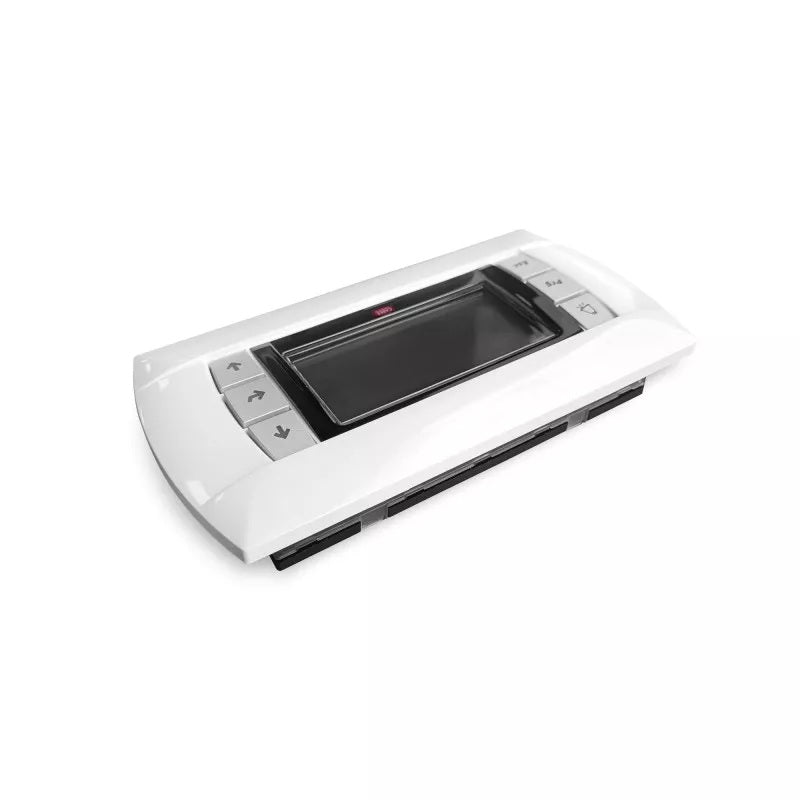

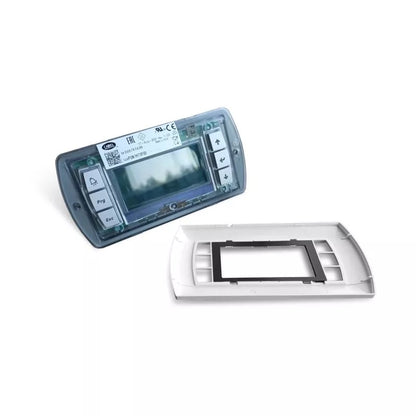

- Control panel as shown (installation required)
- User manual
Technical data:
- Power: 12 kW
- Maximum power consumption: 3.9 kW
- Sound power level: 59 dB(A)
- COP (A7W35) Min/Max: 4.45W / 5.56W
- Refrigerant / Quantity: R32 / 1500 g
- EER (A35(24)W18) Min/Max: 2.95W / 4.14W
- Temperate climate / Low temperature W35 / SCOP Energy class: A+++ / 4.61
- Temperate climate / Low temperature W55 / SCOP Energy class: A++ / 3.41
- Maximum current: 8.25 A
- Power consumption (A35(24)W18) Min./Max.: 1215 W / 3704 W
- Power consumption (A7W35) Min./Max.: 992 W / 2697 W
- Water flow rate (min. / average / max.): 0.36 / 0.57 / 0.96 l/s
- Capacitor (terminals): G1”
- Condenser (pressure loss): 20 kPa
- Condenser (Type): Type: Plate heat exchanger
- Compressor (Type/Manufacturer): Twin rotary compressor / Panasonic
- Control: Yes, Carel
- WEBER - HEAT PUMP (MONOBLOCK): Three-phase current
- Fan - Quantity / Airflow: 1 unit / 3000 m³/h
- Wi-Fi: Yes
- Cooling capacity (A35(24)W18) Min./Max.: 5.03 kW / 10.94 kW
- Heating output (A7W35) Min./Max.: 5.52 kW / 12 kW
- Dimensions (L x D x H): 1220 x 540 x 970 mm
- Net dimensions (L x D x H): 1110 x 475 x 810 mm
- Air temperature range: Min./Max.: -25/+40 °C
- Power supply: V / Hz / P: 380–420 / 50 / 3
- Rated current: 5.7 A
- Manufacturer's warranty: 2 years
- Net weight: 88 kg
- Gross weight: 116 kg
Important NOTE!
The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.
Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.
Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher GWP. A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming, proportional to the refrigerant's GWP value, than 1 kg of CO2, over a period of one hundred years. Do not attempt any work on the refrigeration circuit or disassemble the unit – always consult qualified personnel.
