Pump group for central heating - with three-way mixing valve with servo motor - Wilo GPO S DN 25
Pump group for central heating - with three-way mixing valve with servo motor - Wilo GPO S DN 25
Price incl. VAT.
Delivery time on request
In stock
Product informations
"Pump group for central heating - with three-way mixing valve with servo motor - Wilo GPO S DN 25"
| Data sheet | Download PDF |
|---|

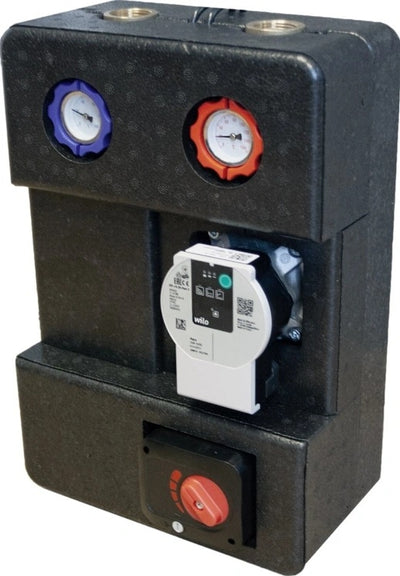

Wilo GPO S DN 25 pump group - pump group for central heating - with three-way mixing valve with servo motor - Wilo circulation pump
The pump assembly with a three-way mixing valve is used to force the circulation of the working fluid in the central heating, process heat, and cooling system. The circulation pump allows operation in: Δp-c, Δp-v, and constant speed modes.
Equipment of the pump group
- two ball valves with integrated thermometers and a check valve on the supply line
- Wilo Para SC circulation pump with 130 mm spacing
- Three-way mixing valve with servo motor
- Thermal insulation.
Characteristics:
- Removable housing insulation
- Wilo Para SC 25/6 high-efficiency pump (constant speed in 3 stages) 130mm installation length
- 3-way mixer with actuator
- Red supply line: Thermometer (0-160°C) with ball valve and check valve
- Return line (blue): Thermometer (0-100°C) with ball valve and check valve
- Connections at the top: DN20 = 2x IG 3/4" / DN25 = 2x IG 1"
- Connections at the bottom: DN20 = 2x AG 1" / DN25 = 2x AG 1 1/2"
- Distance between flow and return pipes: 125 mm
- Pressure: max. 6 bar
- Temperature: max. 90°C
- Dimensions: 390 x 275 x 140 mm (H x W x D)
- Weight: DN20 = 6.5 kg / DN25 = 6.9 kg
- 230V/ 50 Hz
Important NOTE!
The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.
Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.
Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher GWP. A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming, proportional to the refrigerant's GWP value, than 1 kg of CO2, over a period of one hundred years. Do not attempt any work on the refrigeration circuit or disassemble the unit – always consult qualified personnel.
