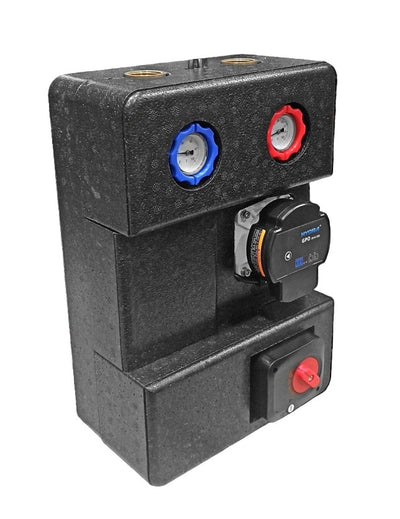

Pump group for central heating - with three-way mixing valve with servo motor - Hydra GPO S DN 20

Hydra GPO S DN 20 pump group - pump group for central heating - with three-way mixing valve with servo motor

The pump unit with a three-way mixing valve is used to force the circulation of the working fluid in central heating, process heating, and cooling systems. Motor cover made of BMC. The circulation pump allows operation in: Δp-c, Δp-v, constant speed, and AUTO adjustment mode.

Equipment of the pump group:

• two ball valves with integrated thermometers and a check valve on the supply line
• Hydra circulation pump with 130 mm spacing
• Three-way mixing valve with servo motor
• Thermal insulation

COMPACT HEATING CIRCUIT STATION DN20

SUNEX Hydra GPO S DN20 pump group with Hydra circulation pump (130 mm)
Intended use: compact heating circuit solutions in central heating systems, cooling systems or process heat applications

WITH 3-WAY MIXING VALVE & ACTUATOR

Mixing valve with servo motor (6 Nm, opening time 120 s)
Flow rate KVS 5.3
Suitable for low-temperature systems or underfloor heating.

EASY TO INSTALL

Upper connections IG ¾″, lower connections AG 1″
Ball valves with integrated check valve
Thermometer (blue return, red supply)

EFFICIENT CIRCULATION PUMP

Hydra GPO 20-6-130
AUTOADAPT, Δp-c, Δp-v and constant speed
Power consumption up to 65 W, EEI ≤ 0.20
Energy-saving, quiet operation

TECHNICAL DETAILS

Max. pressure: 6 bar, Max. temperature: 90 °C
Dimensions: 390 × 275 × 140 mm
Weight: 6.5 kg
Connection spacing: 125 mm
Areas of application: Single-family homes, renovations, space-saving technical centers

Important NOTE!

The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.
