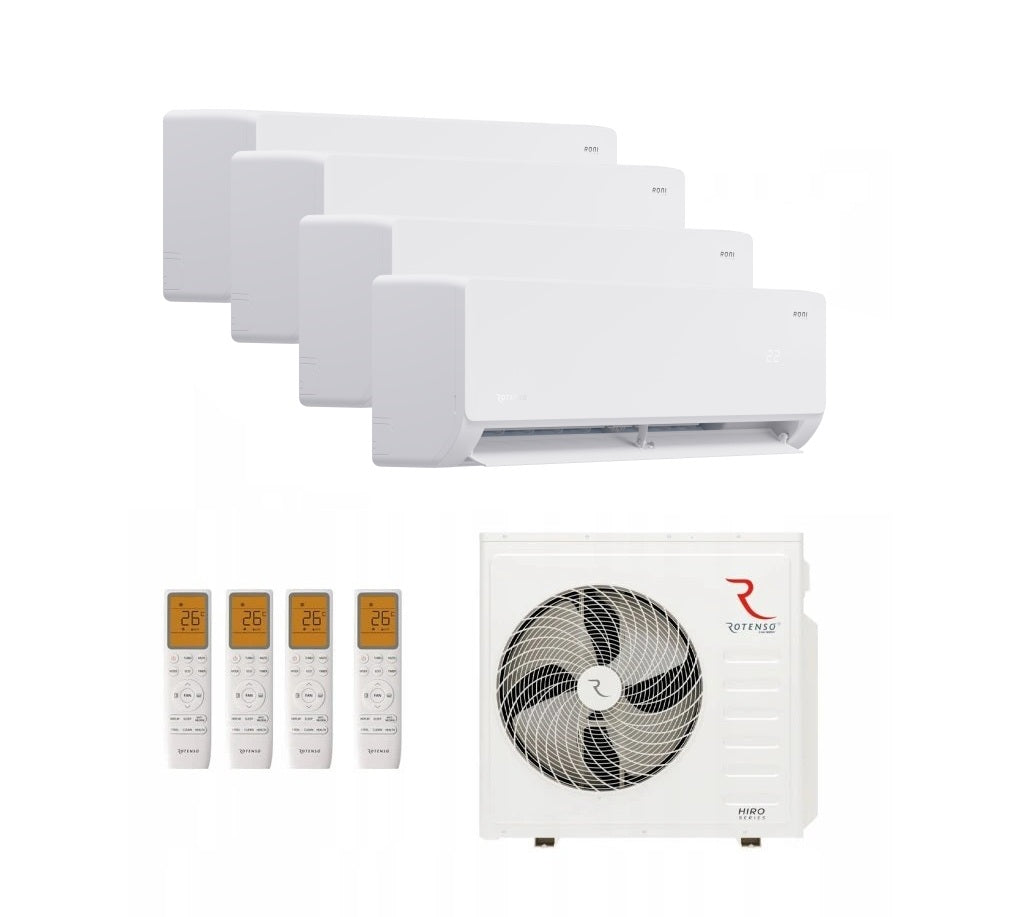

Rotenso Roni air conditioner 4x 2.6kW 9000BTU - Multisplit wall unit set Digital Inverter WiFi A++

Rotenso Roni 4x 2.6kW 9000BTU Air Conditioner - Multi-Split Wall-Mounted Unit Set Digital Inverter WiFi A++

Set includes:

• 4x R26Xi R18 - 9000 BTU 2.6 kW
• 1x HN90Xm4 R15 - 9.4 kW

This air conditioner offers everything you need for a comfortable stay in an air-conditioned indoor space. It is a classic and bestseller in Rotenso's product range. A significant advantage is its small size, which allows for discreet installation – especially where space is limited.

Special Features:

• Optimal parameters and a package of necessary functions make the Roni air conditioner an excellent choice.
• Automatic iAIR cleaning function prevents the proliferation of bacteria and the formation of unpleasant odors.
• The electrostatic HD iAIR filter cleans the indoor air, significantly improving breathing comfort.
• In summary, the Roni offers all essential components for efficient, comfortable, and hygienic air conditioning in a compact format.

Compact design despite extensive features, easy installation, reliable all-around performance, hygienic air quality thanks to advanced filtration systems, and seamless integration into smart home or office environments.

Features and Benefits

• Energy Efficiency: A++ rating ensures low power consumption with high performance
• Automatic 4D Louvers: Flexible shading and airflow in four directions for uniform cooling
• HD iAIR Electrostatic Filter: Deeply clean air through electrostatic filtration
• 3-in-1 Filter (Catechin + Silver Ion + Vitamin C): Combines antimicrobial properties, odor control, and air care substances
• 3-in-1 Filter (Photocatalytic + Activated Carbon + Cold Nano): Effective odor and pollutant reduction, UV-like purification effects, and additional adsorption
• iAIR Automatic Cleaning: Integrated cleaning programs that maintain hygienic indoor living
• iClean Automatic Cleaning: Additional automatic cleaning functions for system maintenance
• Sleep Function: Quiet operating profile for relaxed nights
• Super Quiet eMOTO Mode: Very quiet operation, ideal for rest periods
• Smart Follow Mode: Automatic adjustment to movement and presence in the room
• Turbo Mode eMOTO: Maximum cooling power at the touch of a button
• Timer: Flexible time control for on and off, including weekly programs
• Smart Wi-Fi: Connectivity for remote control, status inquiries, and automations via app
• Heating at low outdoor temperatures, even at -20°C: Operating guarantee or functionality even at very cold temperatures.

• Width from 70 cm: Suitable for larger wall areas and wider installations

Digital Inverter

SKYR DC Inverter Control
Depending on demand, the unit management system can choose from 30 compressor frequency ranges to combine maximum unit performance with minimum energy consumption.

Energy Efficient

BLDC SKYR MOTORS
Thanks to the energy-efficient BLDC motor, the indoor and outdoor units use multiple fan speeds, which positively affects energy consumption and shortens the time required to reach the desired temperature. The 12 speed levels of the brushless DC motor allow its performance to be perfectly adapted to the conditions in the room. The use of modern elements makes it possible to reduce the noise level while maintaining high efficiency and low energy consumption.

Compact Dimensions

It works perfectly wherever space is limited. Despite its compact design, the unit maintains high capacity.

Antibacterial Gold-Plated Fins

The unique gold coating of the outdoor and indoor unit has self-cleaning properties, effectively protecting the unit from corrosion and preventing bacterial growth.

SMART Wi-Fi Function

Thanks to the SMART Wi-Fi function and the Wi-Fi modem, you can control the device both inside and outside the house via tablet or smartphone.

10 Stages of PureR Stage Cleaning

The Healthy Air system consists of up to 10 air purification and filtration stages to remove most harmful bacteria, viruses, dust mites, and fungi from your environment so you can breathe clean and healthy air.

Automatic 4D Louvers

Integrated actuators allow control of the vertical and horizontal louvers via a remote control or a wall-mounted controller. Guarantees maximum operating comfort and ensures efficient air distribution in the room.

Heating at -20°C Outdoor Temperature

The technology used allows for efficient operation of the air conditioner even in extreme weather conditions. Even at low outdoor temperatures, the air conditioner effectively heats the room.

Rotenso HIRO N Air Conditioner Outdoor Unit:

Compact unit, up to 5 N-Line indoor units (wall-mounted or console) can be connected. Outdoor units in 5 variants (4.1–11.8 kW). Built-in drip tray heater enables efficient operation even as the sole heat source. N-series combined with up to 5 indoor units (Teta, Roni, Elis, Aneru AN); cools well, heats down to -20°C, drip tray heater included.

• High performance
• Supports up to 5 indoor units
• 5 variants of outdoor units
• Dozens of possible unit combinations
• Drip tray heater
• Quiet operation
• Compact dimensions
• Energy efficiency class for cooling: A++
• Energy efficiency class for heating: A+
• Heating down to -20°C


Technical Data:

Cooling Capacity
Power (w) nom. (min. - max.) 9378 (1443-10439)
Power Consumption (w) nom. (min. - max.) 2765 (410-3500)
Operating Current (a) nom. (min. - max.) 12.0 (1.8-15.2)
Cooling Load (kw) 9.3
SEER (w/w) 6.1
Energy Efficiency Class - Cooling A++
Annual Energy Consumption (kwh/a) - Cooling 534

Heating Capacity
Power (w) nom. (min. - max.) 9378 (2318-11290)
Power Consumption (w) nom. (min. - max.) 2547 (510-3500)
Operating Current (a) nom. (min. - max.) 11.1 (2.2-15.2)
Heat Load (tbiv -7°c) (kw) 7.3
SCOP (w/w) 4.0
Energy Efficiency Class - Heating A+
Annual Energy Consumption (kwh/a) - Heating 2555

Further Parameters
Maximum Power Consumption (w) 3500
Maximum Operating Current (a) 15.2

Outdoor Unit
Fan Speed (rpm) H / M / L 850 / 750 / 700
Maximum Airflow (m³/h) 4000
Sound Pressure Level - dB(A) 60
Sound Power Level - dB(A) 70
Net Dimensions (mm) W × D × H 1010 × 380 × 910
Gross Dimensions (mm) W × D × H 1030 × 430 × 950
Net Weight / Gross Weight (kg) 68 / 80
Mounting Distance (W × D) 600 × 375
Compressor Type: DC Rotary Compressor

Refrigerant
Refrigerant Type: R32
GWP: 675
Factory Refrigerant Charge: 2.2 kg (up to 20 m²)
Factory Refrigerant Charge: CO₂ Equivalent: 1.49 g/m²
Additional Refrigerant: 15 g/m² (over 20 m²)
Pipe Connections (mm/inch): Liquid / Gas 4 × φ6.35 / φ9.52
(4 × 1/4" / 3/8")

Installation - Parameters
Maximum Pipe Length for all Indoor Units (m) 60
Maximum Pipe Length for 1 Indoor Unit (m) 15
Maximum Number of Connected Indoor Units (pcs) 4
Maximum Height Difference Between Indoor and Outdoor Unit (m) Outdoor Unit Higher than Indoor Unit 10
Max. Height Difference Between Indoor and Outdoor Unit (m) Outdoor Unit Lower than Indoor Unit 10

Power Supply – Parameters
Power Supply Type Outdoor Unit (V-Hz, Ø) 220–240 ~ 50, 1-Phase
Circuit Breaker (A) B20
Power Cable: Outdoor Unit (Number × mm²) 3 × 2.5
Control and Power Cable: Outdoor Unit – Indoor Unit (Number × mm²) 4 × 1.0

Operating Range
Operating Range Indoor Unit (°C) Cooling 16–32
Operating Range Indoor Unit (°C) Heating 0–30
Operating Range Outdoor Unit (°C) Cooling -15–50
Operating Range Outdoor Unit (°C) Heating -20~24

Important note!

Installation and commissioning of the devices must be carried out exclusively by specialist personnel. In the event of a complaint, professional installation by qualified specialist companies (specialist contractor certificate and special qualification) must be demonstrated. If no evidence is provided, all warranty and guarantee claims will be void.

Technical changes and errors reserved! Subject to prior sale! Illustration similar!

The installation of the air conditioning unit may only be carried out by a company certified in accordance with Regulation (EU) No. 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases. By purchasing a split air conditioning unit, you confirm that it will be professionally installed by certified specialists. Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher GWP. A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming, proportional to the refrigerant's GWP value, than 1 kg of CO2, over a period of one hundred years. Do not attempt any work on the refrigeration circuit or disassemble the unit – always consult qualified personnel.
