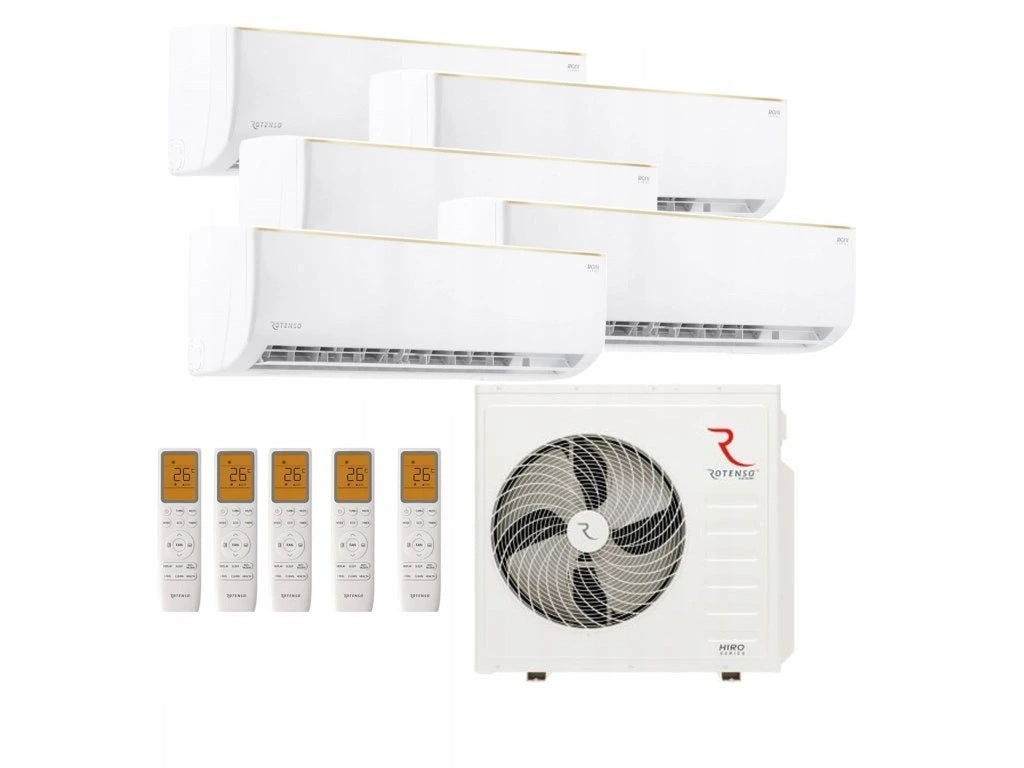

Rotenso Roni 5x 2.6kW 9000BTU Air Conditioner - Multisplit Wall Unit Set Digital Inverter WiFi A++

Rotenso Roni 5x 2.6kW 9000BTU Air Conditioner - Multisplit Wall Unit Set Digital Inverter WiFi A++

Set includes:

• 5x R26Xi R16 - 9000 BTU 2.6 kW
• 1x HN120Xm5 R15 - 11.8 kW

This air conditioner offers everything you need for a comfortable stay in a climate-controlled indoor space. It's a classic and a bestseller in the Rotenso range. A key advantage is its compact size, which allows for discreet installation – especially where space is limited.

Special features:

• Optimal parameters and a package of necessary functions make the Roni air conditioner an excellent choice.
• The iAIR automatic cleaning function prevents the growth of bacteria and the formation of unpleasant odors.
• The electrostatic HD iAIR filter cleans the air in the room, thus significantly improving breathing comfort.
• In summary, the Roni offers all the essential components for efficient, comfortable and hygienic air conditioning in a compact format.

Compact design despite extensive features, easy installation, reliable all-round performance, hygienic air quality thanks to advanced filtration systems, and seamless integration into smart home or office environments.

Features and benefits

• Energy efficiency: A++ rating ensures low power consumption with high performance
• Automatic 4D blinds: Flexible shading and airflow in four directions for even cooling
• HD iAIR electrostatic filter: Deeply purified air through electrostatic filtration
• 3-in-1 filter (catechin + silver ion + vitamin C): Combines antimicrobial properties, odor control, and air purification substances.
• 3-in-1 filter (photocatalytic + activated carbon + cold nano): Effective odor and pollutant removal, UV-like cleaning effects and additional adsorption
• iAIR automatic cleaning: Integrated cleaning programs that keep the interior hygienic.
• iClean automatic cleaning: Additional automatic cleaning functions for system maintenance
• Sleep function: Quiet operating profile for restful nights
• Super quiet eMOTO mode: Very quiet operation, ideal for quiet periods
• Smart Follow Mode: Automatically adapts to movements and presence in the room
• eMOTO Turbo mode: Maximum cooling performance at the touch of a button
• Timer: Flexible timer for switching on and off, including weekly programs
• Smart Wi-Fi: Networking capability for remote control, status queries and automation via app
• Heating at low outside temperatures, even at -20°C: Guaranteed operation and functionality even at very cold temperatures.

• Width from 70 cm: Suitable for larger wall surfaces and wider installations

Digital Inverter

SKYR DC Inverter Controller
Depending on demand, the unit management system can select from 30 compressor frequency ranges to combine maximum unit performance with minimum energy consumption.

Energy efficient

BLDC SKYR ENGINES
Thanks to the energy-efficient BLDC motor, the indoor and outdoor units utilize multiple fan speeds, which positively impacts energy consumption and reduces the time required to reach the desired temperature. The 12 speed settings of the brushless DC motor allow its performance to be perfectly adapted to the room conditions. The use of modern components reduces noise levels while maintaining high efficiency and low energy consumption.

Compact dimensions

It works perfectly wherever space is limited. Despite its
Despite its compact design, it retains its high capacity.

Antibacterial gold-plated slats

The unique gold coating of the outdoor and indoor units has self-cleaning properties, effectively protecting the unit from corrosion and preventing the growth of bacteria.

SMART Wi-Fi function

Thanks to the SMART Wi-Fi function and the Wi-Fi modem, you can control the device both inside and outside the house via tablet or smartphone.

10 stages of PureR Stage cleaning

The Healthy Air system consists of up to 10 air purification and filtration stages to remove most harmful bacteria, viruses, dust mites and fungi from your environment so that you can breathe clean and healthy air.

Automatic 4D blinds

Integrated actuators allow for control of the vertical and horizontal louvers via remote control or a wall-mounted controller. This guarantees maximum ease of use and ensures efficient air distribution in the room.

Heating at -20°C outside temperature

The technology used enables efficient operation of the air conditioner even in extreme weather conditions. Even at low outside temperatures, the air conditioner heats the room effectively.

Rotenso HIRO N outdoor air conditioning unit:

Compact unit, connectable to up to 5 N-Line indoor units (wall-mounted or console-mounted). Outdoor units available in 5 variants (4.1–11.8 kW). Integrated drip tray heater enables efficient operation even as the sole heat source. N-Series combined with up to 5 indoor units (Teta, Roni, Elis, Aneru AN); cools well, heats down to -20°C, drip tray heater included.

• High performance
• Supports up to 5 indoor units
• 5 variants of outdoor units
• Dozens of possible unit combinations
• drip tray heater
• Quiet operation
• Compact dimensions
• Energy efficiency class for cooling: A++
• Energy efficiency class for heating: A+
• Heating down to -20°C


Technical data:

Cooling capacity
Power (W) nom. (min. - max.) 9378 (1443-10439)
Power consumption (W) nominal (min. - max.) 2765 (410-3500)
Operating current (a) nom. (min. - max.) 12.0 (1.8-15.2)
Cooling load (kW) 9.3
Seer (w/w) 6.1
Energy efficiency class - cooling a++
Annual energy consumption (kWh/a) - Cooling 534

Heating output
Power (W) nominal (min. - max.) 9378 (2318-11290)
Power consumption (W) nominal (min. - max.) 2547 (510-3500)
Operating current (a) nom. (min. - max.) 11.1 (2.2-15.2)
Heat load (tbiv -7°C) (kW) 7.3
Scop (w/w) 4.0
Energy efficiency class - heating a+
Annual energy consumption (kWh/a) - heating 2555

Other parameters
Maximum energy consumption (W) 3500
Maximum operating current (a) 15.2

outdoor unit
Fan speed (rpm) h / m / l 850 / 750 / 700
Maximum air volume (m³/h) 4000
Sound pressure level - dB(A) 60
Sound power level - dB(A) 70
Net dimensions (mm) w × d × h 1010 × 380 × 910
Gross dimensions (mm) w × t × h 1030 × 430 × 950
Net weight / Gross weight (kg) 68 / 80
Mounting distance (w × t) 600 × 375
Compressor type: DC rotary compressor

Refrigerant
Refrigerant type: R32
Gwp: 675
Factory-installed coolant quantity: 2.2 kg (up to 20 m²)
Factory-set coolant quantity: CO₂ equivalent: 1.49 g/m²
Additional coolant: 15 g/m² (over 20 m²)
Pipe connections (mm/inch): Liquid / Gas 4 × φ6.35 / φ9.52
(4 × 1/4" / 3/8")

Installation - Parameter
Maximum pipe length for all indoor units (m) 60
Maximum pipe length for 1 indoor unit (m) 15
Maximum number of connected indoor units (pieces): 4
Maximum height difference between indoor and outdoor unit (m): Outdoor unit higher than indoor unit 10
Max. height difference between indoor and outdoor unit (m) Outdoor unit lower than indoor unit 10

Power supply – parameters
Power supply type outdoor unit (V-Hz, ø) 220–240 ~ 50, 1-phase
Circuit breaker (a) b20
Power cable: outdoor unit (number × mm²) 3 × 2.5
Control and power cables: Outdoor unit – Indoor unit (number × mm²) 4 × 1.0

Operating area
Operating range indoor unit (°C) Cooling 16–32
Operating range indoor unit (°C) heating 0–30
Operating range of outdoor unit (°C) cooling -15–50
Operating range of outdoor unit (°C) heating -20~24

Important NOTE!

The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.

The installation of the air conditioning unit may only be carried out by a company certified in accordance with Regulation (EU) No. 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases. By purchasing a split air conditioning unit, you confirm that it will be professionally installed by certified specialists. Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher GWP. A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming, proportional to the refrigerant's GWP value, than 1 kg of CO2, over a period of one hundred years. Do not attempt any work on the refrigeration circuit or disassemble the unit – always consult qualified personnel.
