Rotenso Windmi monoblock air-to-water heat pump WIM80X1 8KW BAFA WiFi A+++, heating/cooling

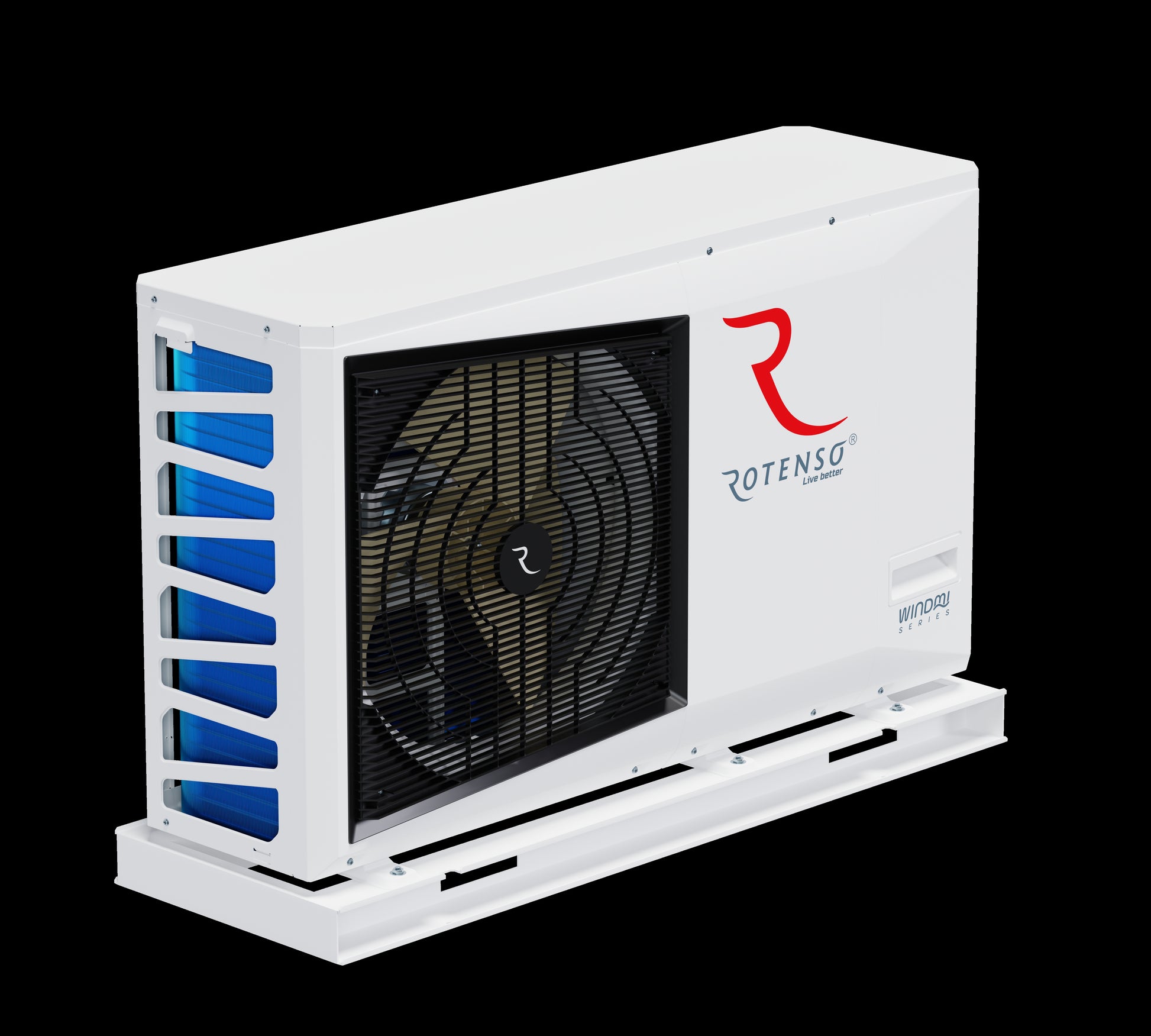

ROTENSO WINDMI WIM80X1 R14 8 KW SINGLE PHASE MONOBLOCK AIR HEAT PUMP

WHY VOTE FOR WINDMI?

• Complete monoblock: All the technology is contained in the outdoor unit – easier and faster to install.

• Highest energy class: A+++ at 35 °C, A++ at 55 °C – ready for the future

• Max. flow temperature 62°C – suitable for underfloor heating and radiators

• Quiet and powerful: from only 45 dB(A) in quiet mode

• Wide operating range: Heating down to -25 °C and cooling down to 43 °C outside temperature

• Smart Grid Ready: optimally combinable with solar modules

• Integrated Wi-Fi: Easily control your heat pump via smartphone (TUYA app)

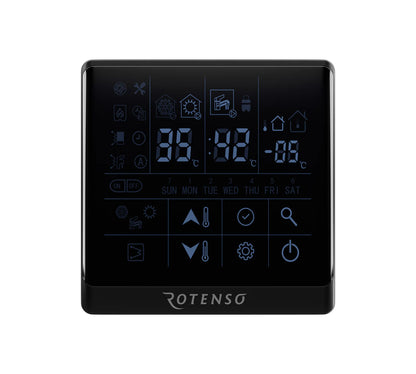

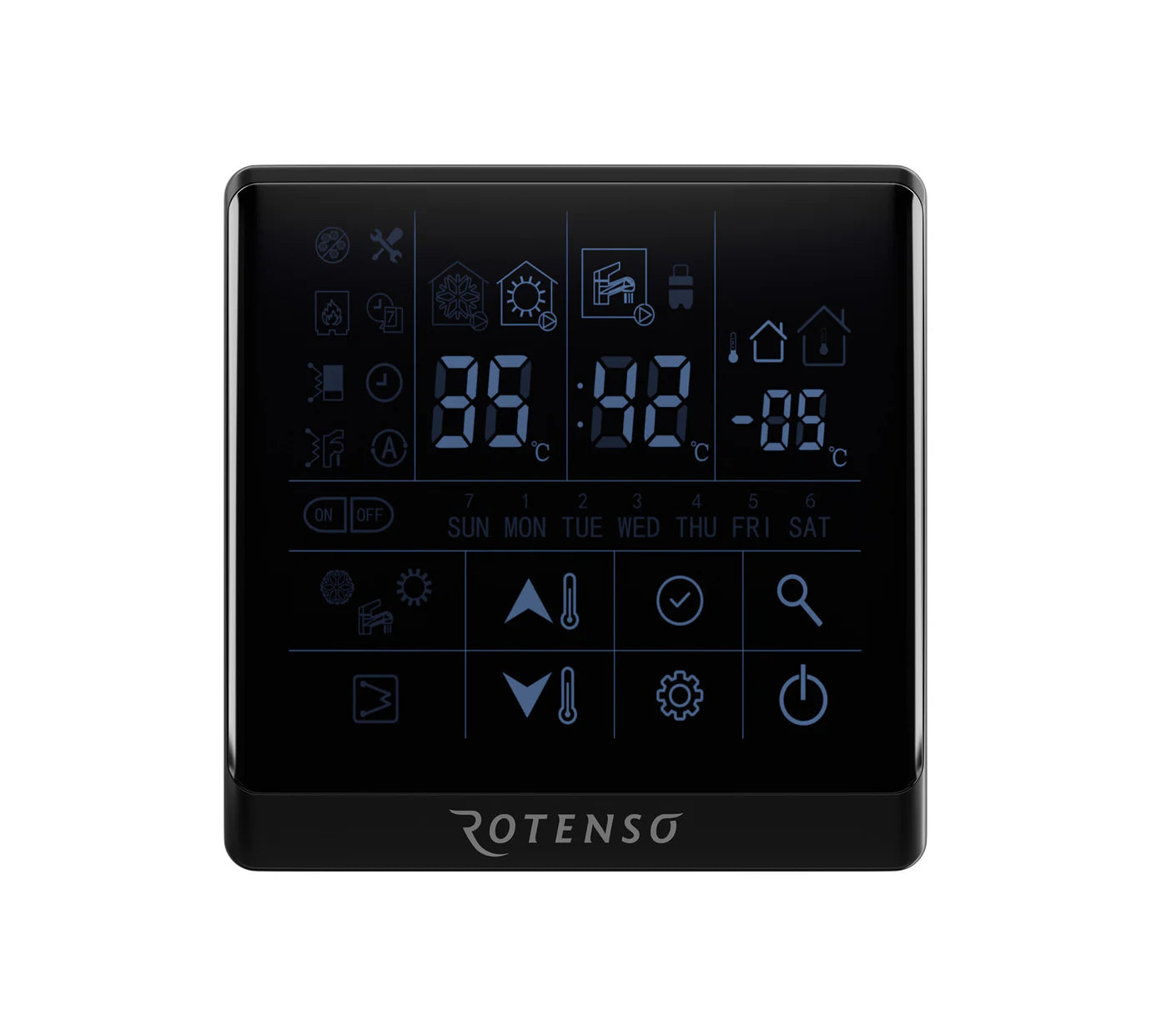

• Includes touchscreen controller with color display, clock functions and energy counter.

• Modbus communication for home automation and intelligent control

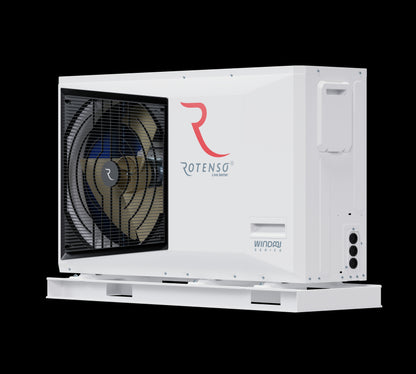

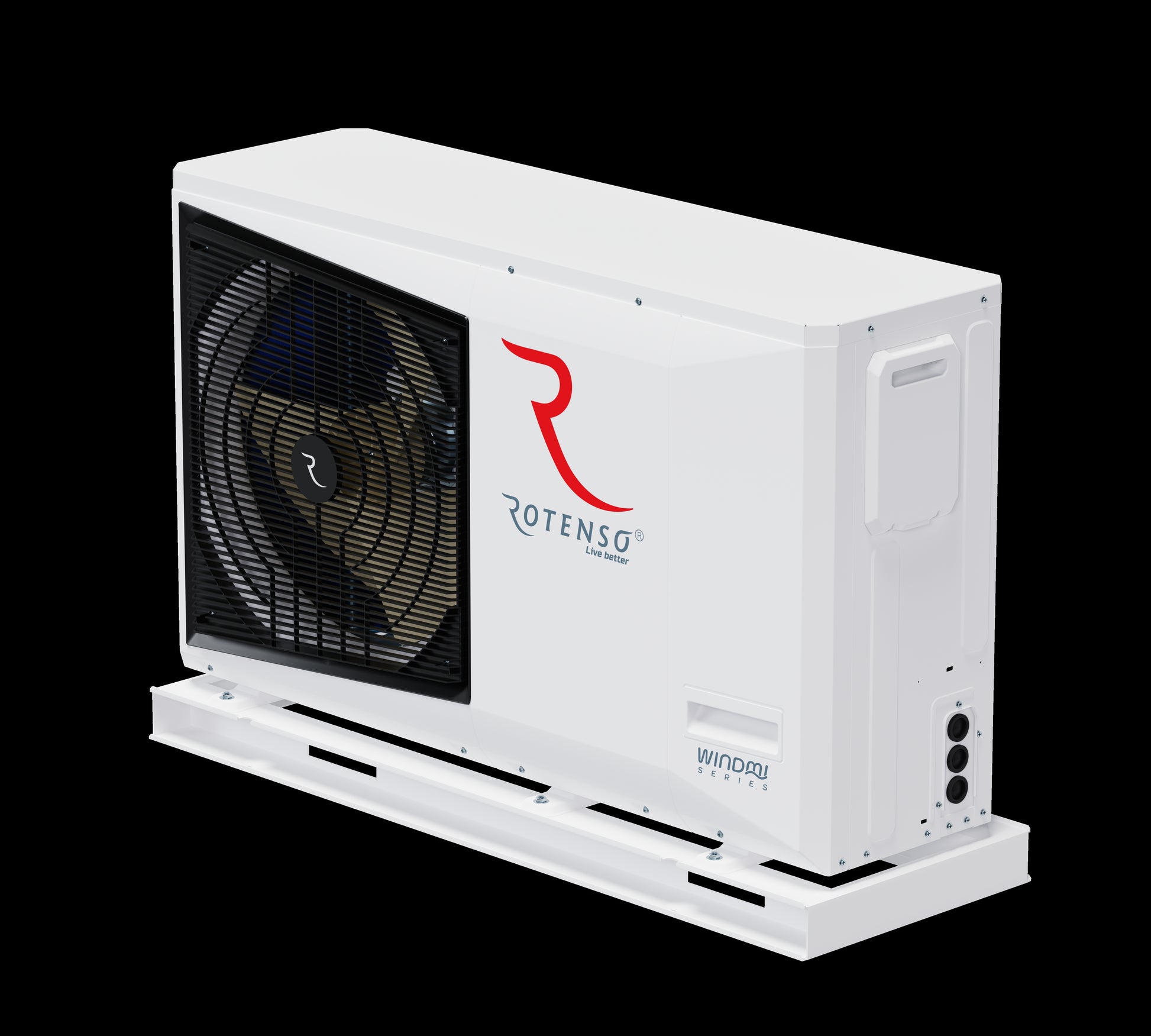

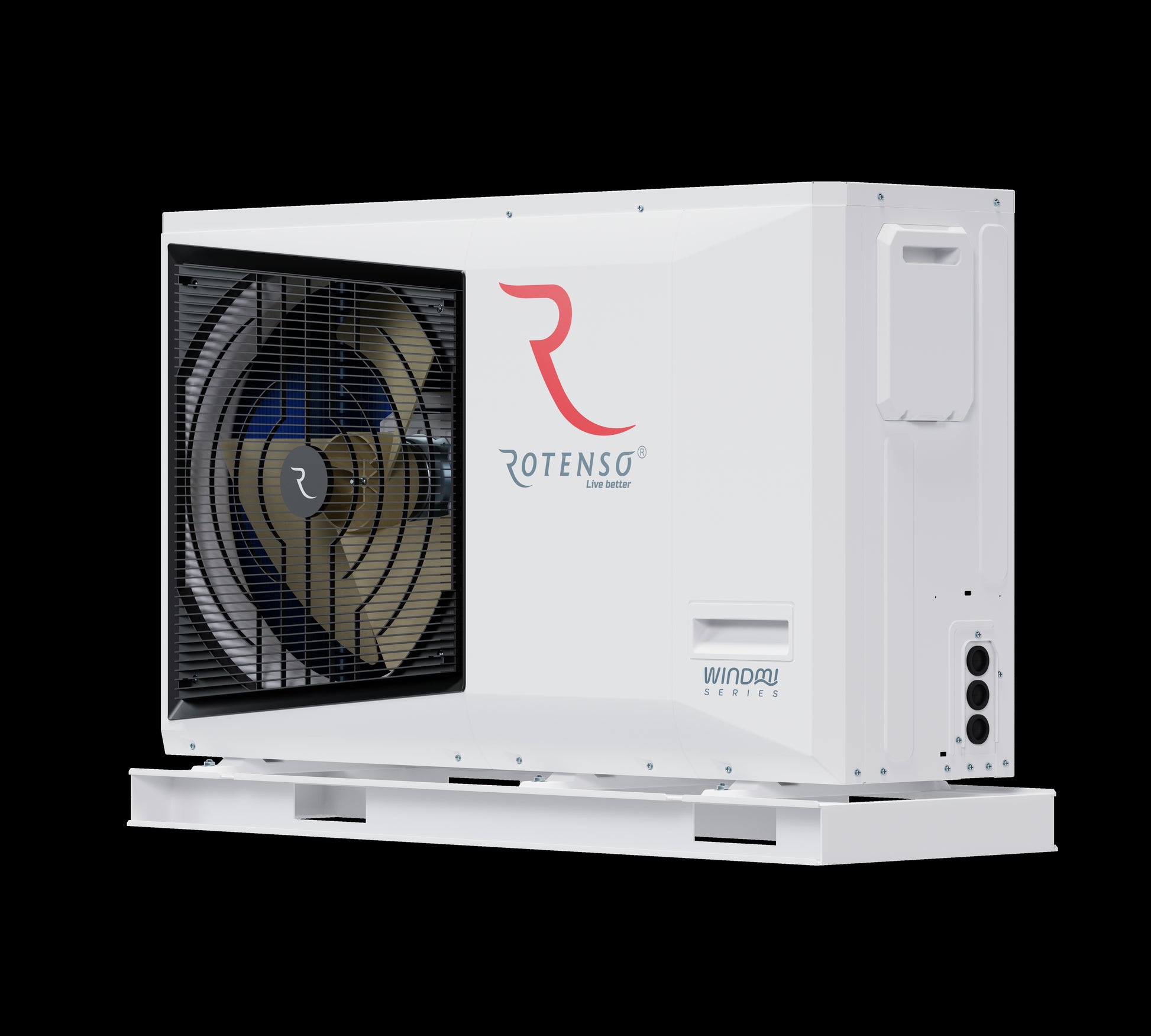

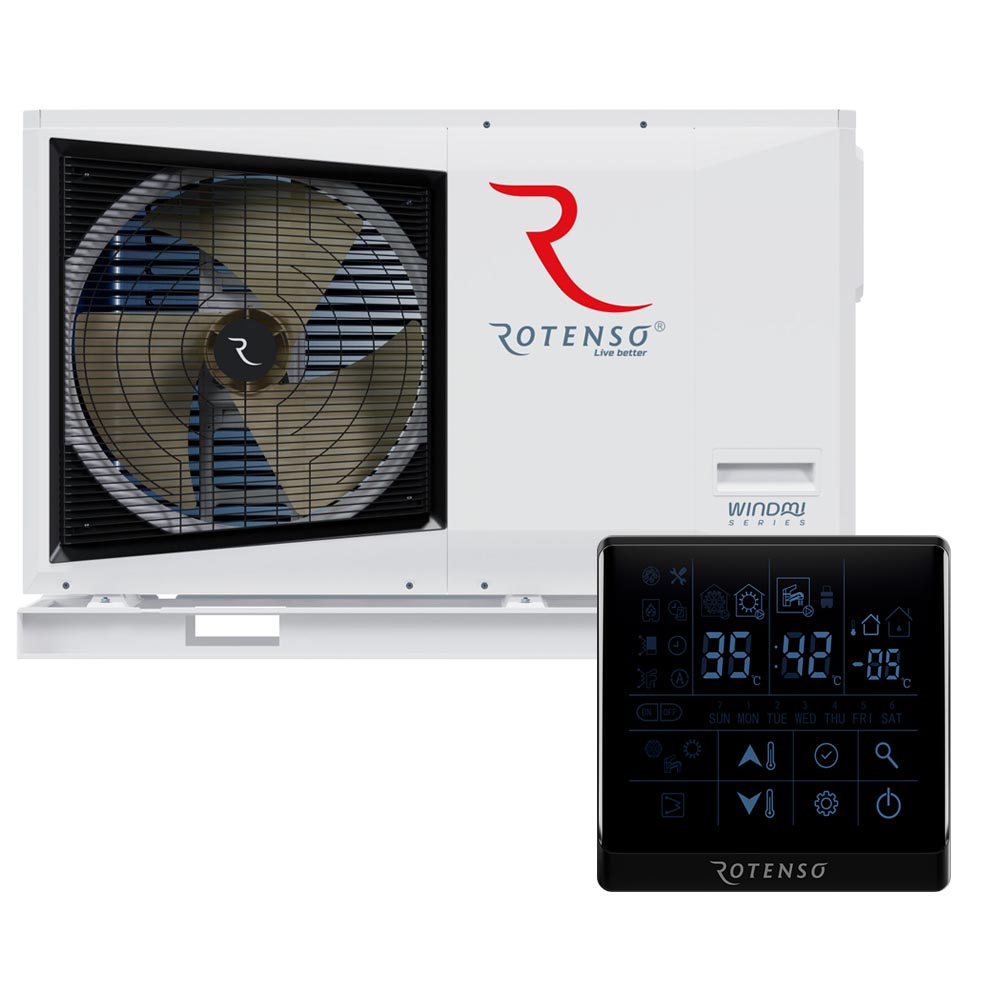

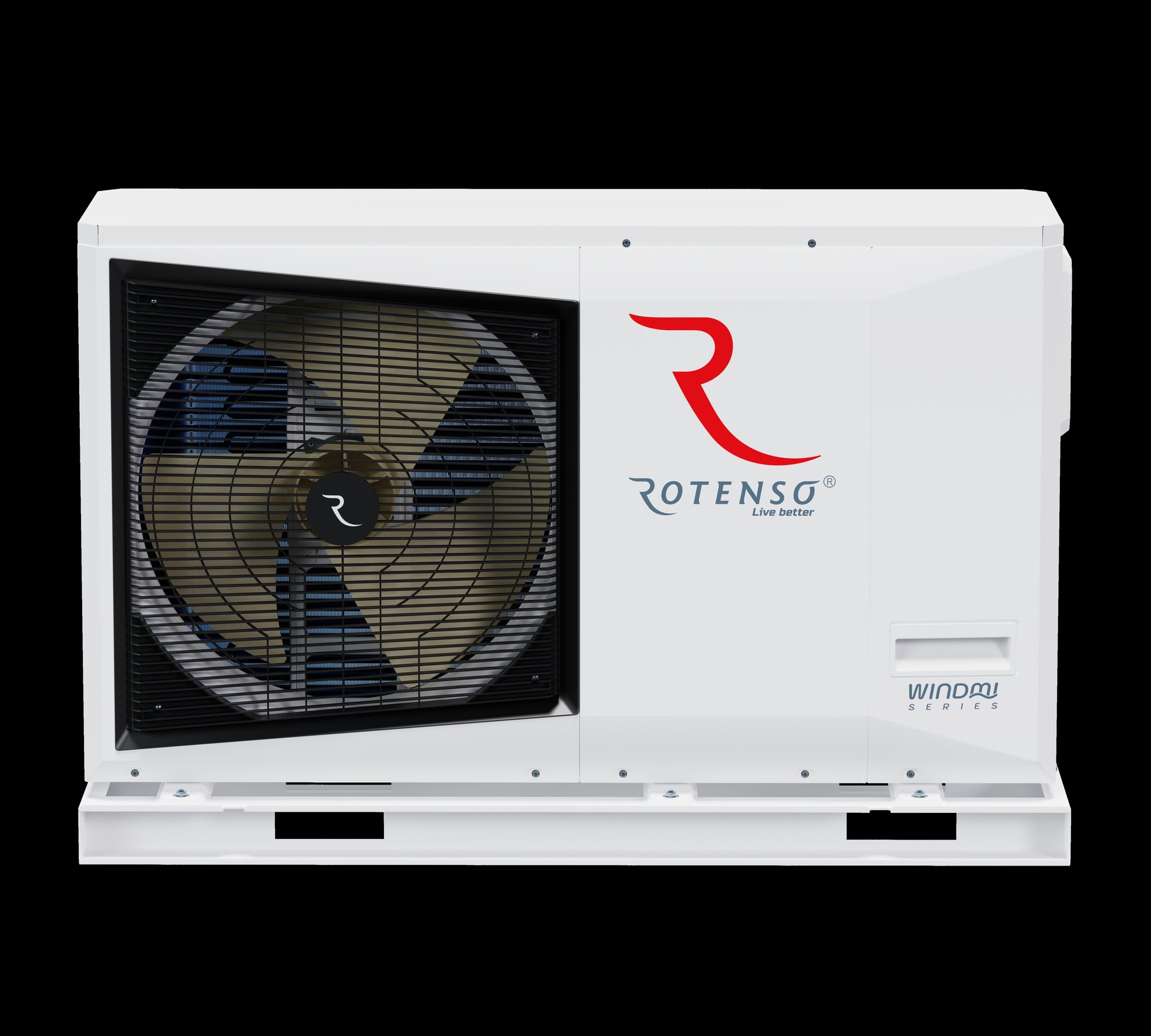

The Rotenso WINDMI WIM80X1 is a single-phase monobloc heat pump with a heating capacity of 8.0 kW (A7/W35). It is a highly efficient unit with energy efficiency class A+++ (for 35°C flow temperature) and A++ (for 55°C flow temperature), with a SCOP of 4.90 (for 35°C flow temperature).

The water outlet temperature is between 20°C and 62°C in heating mode and between 40°C and 62°C in hot water mode.

ADAPTATION TO EXTREME CONDITIONS

The heat pump is designed for operation in harsh weather conditions, even at outdoor temperatures as low as -25°C. To ensure reliable operation at sub-zero temperatures, the unit is equipped with a drip tray heater that prevents condensate from freezing and the outdoor unit from icing up. This eliminates the risk of damage to the fan and heat exchanger.

CRANKCASE HEATING OF THE COMPRESSOR

The Rotenso WINDMI WIM80X1 heat pump is equipped with a compressor crankcase heater that warms the compressor oil at temperatures below 0°C, thus ensuring trouble-free start-up even in adverse weather conditions. Thanks to this feature, the heat pump operates flawlessly and the compressor's service life is extended.

ADDITIONAL HEATER

The heat pump is equipped with a 3 kW auxiliary heater, which is useful in emergency situations or at very low temperatures. The heaters support the economical operation of the unit while simultaneously ensuring the longevity and reliability of the heat pump.

EASY INSTALLATION AND OPERATION

The Rotenso WINDMI is easy to install, maintain, and use. Thanks to its two-door housing design, all pump components are easily and quickly accessible. The pump's quiet operation is achieved through the use of a single-fan design and a dual-rotor DC compressor.

REMOTE CONTROL

The Rotenso WINDMI heat pump can be controlled via a mobile app or a modern wired controller to make it easier to use.

WARRANTY AND SERVICE

The device comes with a 2-year warranty, and buyers can rely on professional customer service. The manufacturer offers free commissioning of the pump by an authorized service center and access to a nationwide service network to ensure rapid response times.

The Rotenso WINDMI WIM80X1 includes:

• outdoor unit,

• Wired control,

• control cable

• Hot water storage tank sensor,

• Plate heat exchangers,

• Flow sensor

• Diaphragmatic vessel,

• water pump

• Safety valve

• Vent valve,

• Y-type water filter.

TECHNICAL DATA

• Model: Rotenso Windmi Monoblock 8 kW

• Type: All-electric monoblock (outdoor unit)

• Heating output: 8.3 kW (at +7°C)

• Cooling capacity: 7.5 kW

• COP: 5.2

• Power supply: 230V

• Noise level: 50 dB(A)

• Refrigerant: R32 (0.85 kg)

• Operating temperature: -25°C to +43°C

• Dimensions: approx. 1400 x 950 x 450 mm

• Weight: ± 75 kg

Important NOTE!

The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.

Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher global warming potential (GWP). A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming than 1 kg of CO2 over a 100-year period, proportional to the refrigerant's GWP value. Do not perform any work on the refrigerant circuit or disassemble the unit – always consult qualified personnel.
