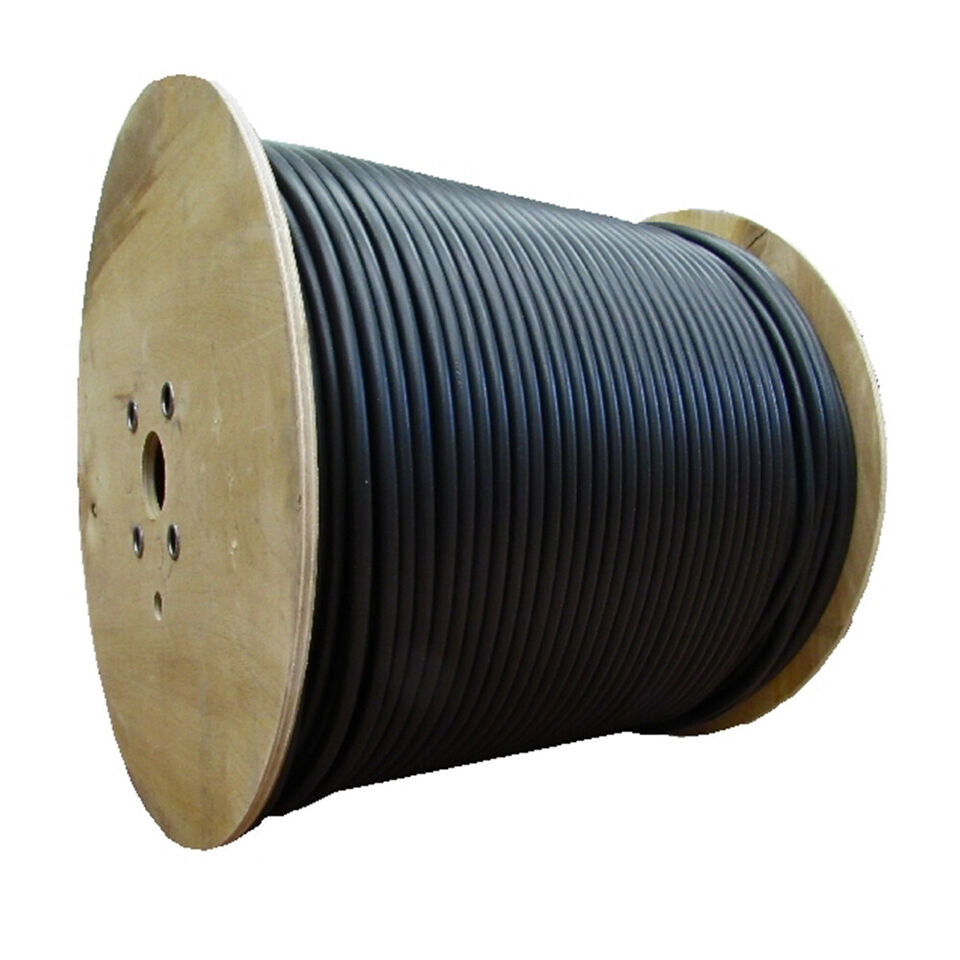

Solar cable H1Z2Z2-K 6mm² 500m WH/BK DB+ cable reel black, photovoltaic / solar cable

Solar cable 6 mm² black DB+ H1Z2Z2-K photovoltaic solar cable 500 m
500m solar cable, solar line H1Z2Z2-K PV 6mm² pure copper cable photovoltaic

The high-quality H1Z2Z2-K solar cable - the ideal solution for your photovoltaic system
The H1Z2Z2-K solar cable was specifically designed to ensure the highest performance and reliability in solar applications.
The cable consists of high-quality copper conductors, ensuring efficient power transmission. Thanks to its robust construction and UV-resistant outer sheath, it offers excellent protection against harsh environmental conditions such as sunlight, moisture, and temperature fluctuations. The H1Z2Z2-K solar cable is not only high-performance but also environmentally friendly. It is halogen-free and flame-retardant, providing added safety and sustainability.

Cable type: H1Z2Z2-K
Conductor: Copper
Length: 500m Color: Black
Package contents: 1 x 500m H1Z2Z2-K solar cable 6mm

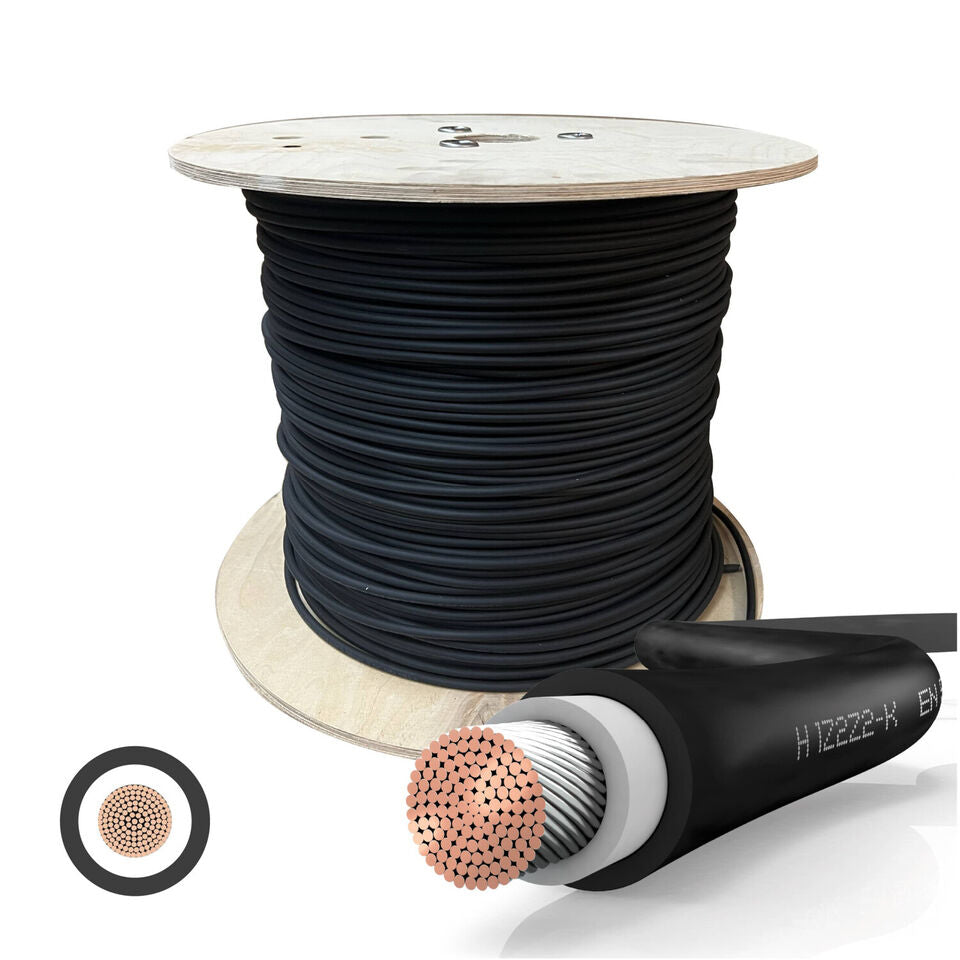

Ladder construction:

1. Conductor: Fine-stranded wire made of tinned copper wires, according to IEC 60228, Class 5
2. Conductor insulation: Electron beam crosslinked polyolefin copolymer
3. Outer sheath Electron beam crosslinked polyolefin copolymer Outer sheath color: black or black with a red or blue stripe
Electrical properties

Nominal voltage: U0 /U according to IEC AC 600/1000 V DC 900/1500 V
Maximum permissible system voltage: 1.8 kV DC (conductor/conductor, ungrounded system) according to TÜV 2 PfG 1169/08.2007. Test voltage AC 6.5 kV.

Thermal properties:

Temperature range for fixed installations: -40°C to +120°C max. conductor temperature (according to EN 60216-2)
Temperature range according to fixed installation: -40 °C to +90 °C ambient temperature TÜV 2 PfG 1169/08.2007
Flexible installation temperature: max. -25 °C
Thermal pressure resistance according to EN 60811-3-1
Humid heat test according to EN 60068-2-78 at 85% relative humidity
Mechanical properties

Minimum bending radius (occasionally moved): 15 x cable diameter
permanently installed: 5 x cable diameter
Dynamic penetration according to DKE requirement profile PV1-F AK 411.2.3 Annex F
Tear resistance according to DKE requirement profile PV1-F AK 411.2.3 Annex G
Testing of tensile strength and elongation according to EN 60811
Chemical properties

Weather/UV resistance according to HD 605/A1
Ozone resistance according to EN 50396
Halogen-free according to EN 50267
Flame-retardant fire behavior according to IEC 60332-1-2
Acid and alkali resistance according to EN 60811-2-1 (oxalic acid and sodium hydroxide)

*Note: Value Added Tax Act
Note regarding Section 12 Paragraph 3 of the Value Added Tax Act: concerning VAT exemption:

By placing an order, the buyer confirms that the requirements according to the German Value Added Tax Act (UStG) §12 para. 3 are met and that he is accordingly entitled.
The tax rate is 0% VAT, assuming the conditions of Section 12 Paragraph 3 of the German VAT Act (UStG) are met. The total price shown above remains unchanged.
In accordance with this assumption, a VAT rate of 0% will also be shown on the invoice.
The buyer can object to this acceptance or confirmation at the time of purchase and also immediately after purchase by simply sending us a message (e.g. via eBay message or email).
The buyer is liable to us for any VAT payable to the tax authorities for his incorrect information, insofar as we incur damage as a result of his incorrect information.

For buyers who do not meet the requirements of Section 12 Paragraph 3 of the German Value Added Tax Act (UStG), the stated price is subject to 19% VAT. The total price shown above will therefore change. In this case, the invoice will show a VAT rate of 19% and the corresponding VAT amount.

"Excerpt from §12 UStG – here paragraph 3:"

(3) The tax shall be reduced to 0 percent for the following transactions:

1. the supply of solar modules to the operator of a photovoltaic system, including the components essential for the operation of a photovoltaic system and the storage units used to store the electricity generated by solar modules, if the photovoltaic system is installed on or near private residences, apartments, public buildings, and other buildings used for public welfare activities. The requirements of sentence 1 are deemed to be met if the installed gross capacity of the photovoltaic system, according to the market data register, does not exceed or will not exceed 30 kilowatts (peak);
2. the intra-Community acquisition of goods referred to in point 1 which satisfy the conditions laid down in that point;
3. the import of the items referred to in point 1 which meet the conditions laid down in point 1;

4. the installation of photovoltaic systems and the storage systems used to store the electricity generated by solar modules, provided that the supply of the installed components meets the requirements of point 1."
