Sunex DROPS ECO Heat Pump for Hot Water, Domestic Hot Water, Drinking Water, Heating
Highly effective and compact domestic hot water heat pump DROPS ECO

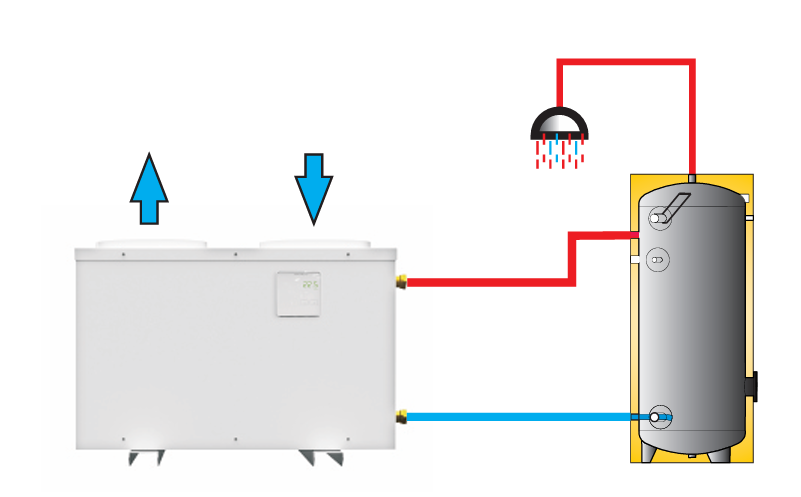

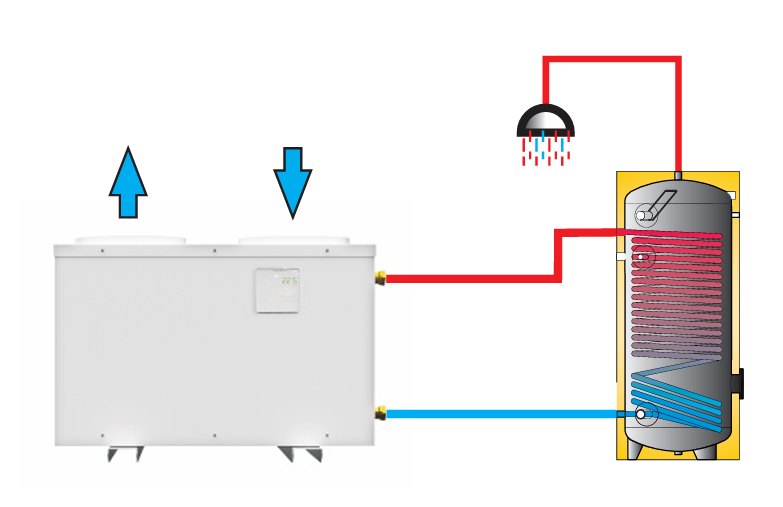

- designed for hot water preparation in a storage tank
Area of application:
- Outside temperature: min +5/ max 43ºC
- Hot water temperature with heat pump: max 60ºC
- Minimum space requirement: 1 m2
- Heat transfer fluid: Water or a mixture of glycol and water
Main components:
- High-efficiency rotary compressor optimized for use in heat pumps for domestic hot water heating
- Energy-saving radial fan
- Evaporator with a special hydrophilic surface, which has a positive effect on the defrosting process to reduce fin fouling.
- WILO circulation pump
- Intuitive controller
- Condenser - SWEP plate heat exchanger
- Metal casing
- Can be mounted on the floor or wall.
Basic functions
- Simple and quick installation
- Installation: indoors
- High energy efficiency
- High operational safety due to pressure and temperature protection of the refrigeration system
- PZH certificate (Polish State Institute of Hygiene) for heat pump components that come into contact with domestic water
Device features
- Protection of the cooling system against excessive pressure and temperature
- Energy-efficient radial fan
- Built-in circulation pump with PZH certificate
- Control of the heat pump via an intuitive controller
- Plate heat exchanger for direct heating of domestic water
- Lightweight and removable casing to reduce noise from the cooling system
Technical data
- Dimensions (diameter / height): 655 / 445 / 635mm
- Air duct diameter: 250mm
- Connections: IG ¾”
- Refrigerant: R134a / 0.70kg
- Heat transfer fluid: Water or a mixture of water and glycol (up to 50%)
- Maximum pressure on the water side: 6bar
- Operating temperature: +5 to +43°C
- Max. domestic water temperature: 55°C
- Sound power: 59dB
- Power supply: 1/N/PE ~220-240V/50Hz
- COP: *for A15/W10-55: 3.42
for A20/W10-55: 4.5 - Nominal heating output: for A15/W10-55: 3.06kW / for A20/W10-55: 3.7
- Energy class: A+
- Water consumption profile: XL
- Weight: 57kg
Important note!
Installation and commissioning of the devices must be carried out exclusively by specialist personnel. In the event of a complaint, professional installation/fitting by qualified specialist companies (specialist contractor certificate and special qualification) must be proven. If no proof is provided, any guarantee and warranty will expire.
Technical changes and errors reserved! Subject to prior sale! Illustration similar!
Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher GWP. A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming, proportional to the refrigerant's GWP value, than 1 kg of CO2, over a period of one hundred years. Do not attempt any work on the refrigeration circuit or disassemble the unit – always consult qualified personnel.
