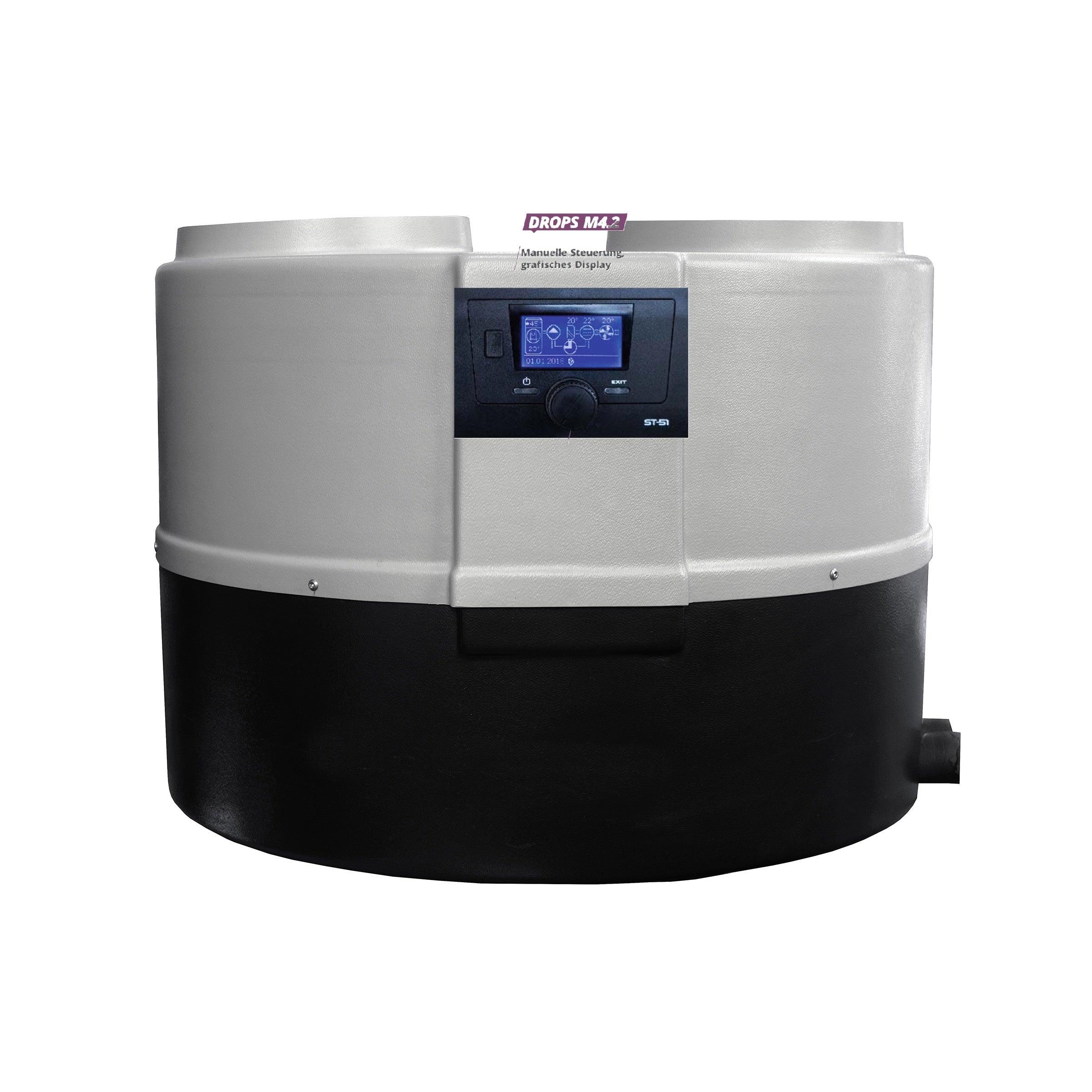

Sunex DROPS M 4.2 Heat Pump for Hot Water, Domestic Hot Water, Drinking Water, Heating
Highly effective and compact domestic hot water heat pump DROPS 4.2

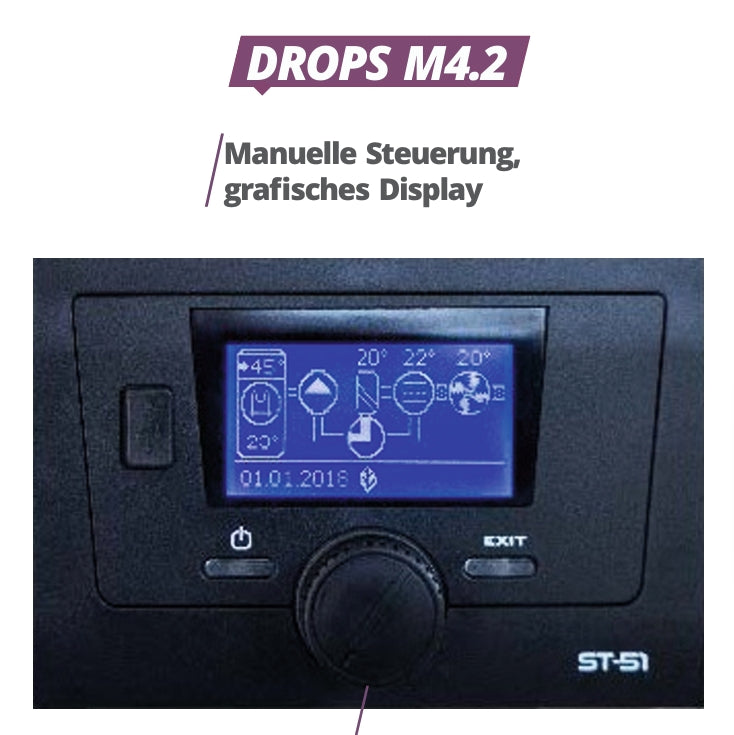

Variant M: Manual control with graphic display
- designed for hot water preparation in a storage tank
Equipment of the device
- Highly efficient rotary compressor
- Additional expansion valve for effective and fast evaporator defrosting
- Energy-efficient radial fan
- Evaporator with hydrophilic surface (evaporator is less prone to icing, defrosts effectively, and is better protected against contamination)
- Built-in circulation pump with PZH certificate
- Heat pump control
- M - manual control with graphic display
- D - control with color touch panel
- Plate heat exchanger for direct heating of domestic hot water
- Lightweight and removable plastic housing to reduce noise from the cooling system
- Adjustable feet for mounting on a flat surface
Basic functions
- Simple and quick installation
- Installation: indoors
- High energy efficiency
- High safety due to pressure and temperature protection of the refrigeration system
- Defrosting the evaporator with hot gas by reversing the refrigeration cycle
- Automatic frost protection of the water system
- Weekly schedule for the desired water temperature
- Possibility of cooperation with a photovoltaic system via an additional potential-free contact or a time program
- Control function for an external electric heater installed in the storage tank
- Control function for the domestic hot water circulation pump according to a time program
- PZH certificate (Polish National Institute of Hygiene) for heat pump components that come into contact with domestic hot water
- The function of hot water in the central heating buffer tank in version D 4.2 (C)
Technical data
- Dimensions (diameter / height): 670 / 500mm
- Diameter of air ducts: 250mm
- Connections: IG ¾”
- Refrigerant: R134a / 0.80kg
- Heat transfer medium: Water or a mixture of water and glycol (up to 50%)
- Maximum pressure on the water side: 6bar
- Operating temperature: -7 to +43°C
- Max. domestic hot water temperature: 55°C
- Sound power: 57dB
- Power supply: 1/N/PE ~220-240V/50Hz
- COP: *for A15/W10-55: 3.0
for A20/W10-55: 3.42 - Rated heating capacity: for A15/W10-55: 2.85kW
- Energy class: A+
- Water consumption profile: XL
- Mass: 53kg
This is what your boiler room can look like
1. Domestic hot water heat pumps DROPS 4.1/4.2 M/D
2. Hot water storage tank FISH S16 / FISH S15
3. Hydraulic separator
4. Distributor
5. Pump groups
6. Three-way valves with actuators
Important note!
The installation and commissioning of the devices must be carried out exclusively by specialist personnel. In the event of a complaint, professional installation/fitting by qualified specialist companies (certificate of specialist contractor and special qualification) must be proven. If no proof can be provided, all guarantees and warranties will expire.
Technical changes and errors reserved! Subject to prior sale! Illustration similar!
Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher GWP. A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming, proportional to the refrigerant's GWP value, than 1 kg of CO2, over a period of one hundred years. Do not attempt any work on the refrigeration circuit or disassemble the unit – always consult qualified personnel.
