SUNEX FISH S24 210/60 X Combination Storage Tank - 210l Hot Water Storage Tank and 60l Buffer Tank with Heat Exchanger

Hot water storage tank and buffer tank in one product - FISH S24 210/60 X

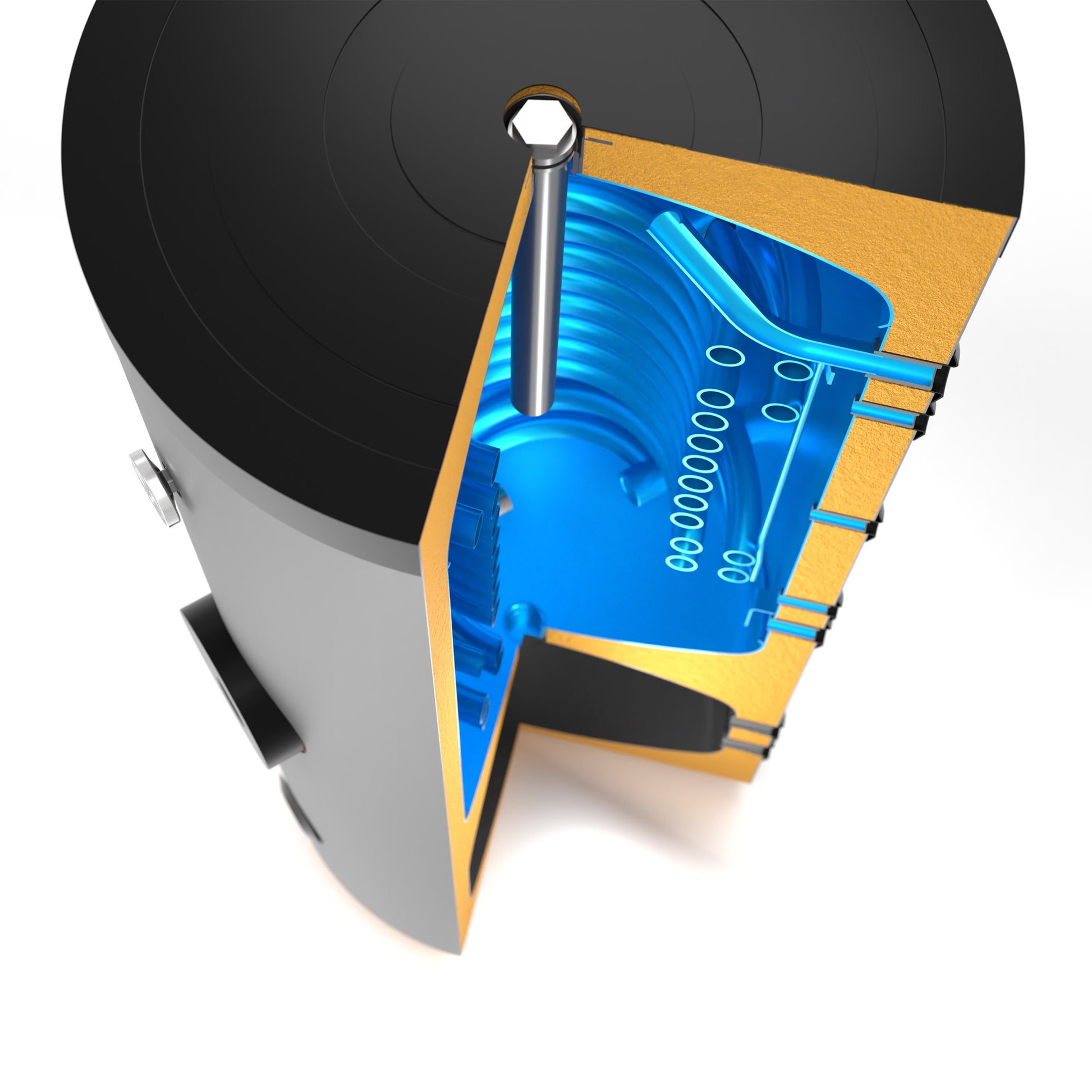

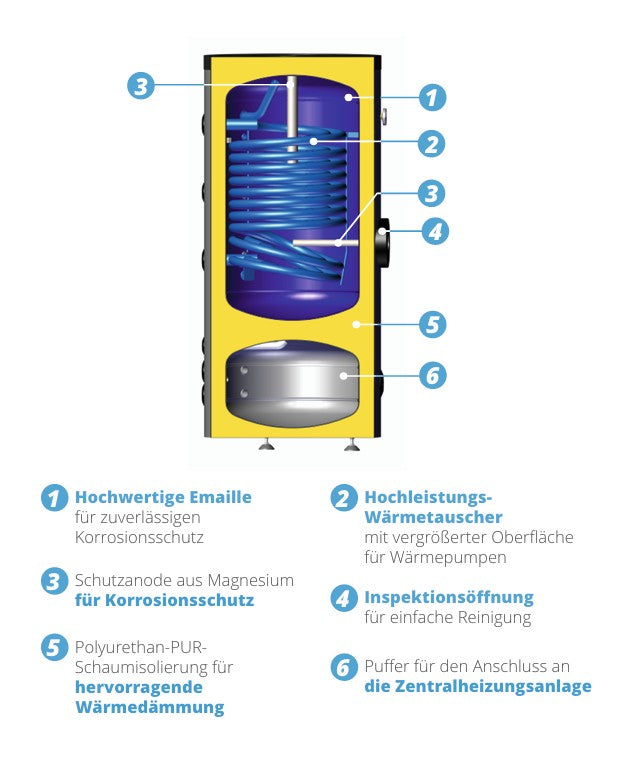

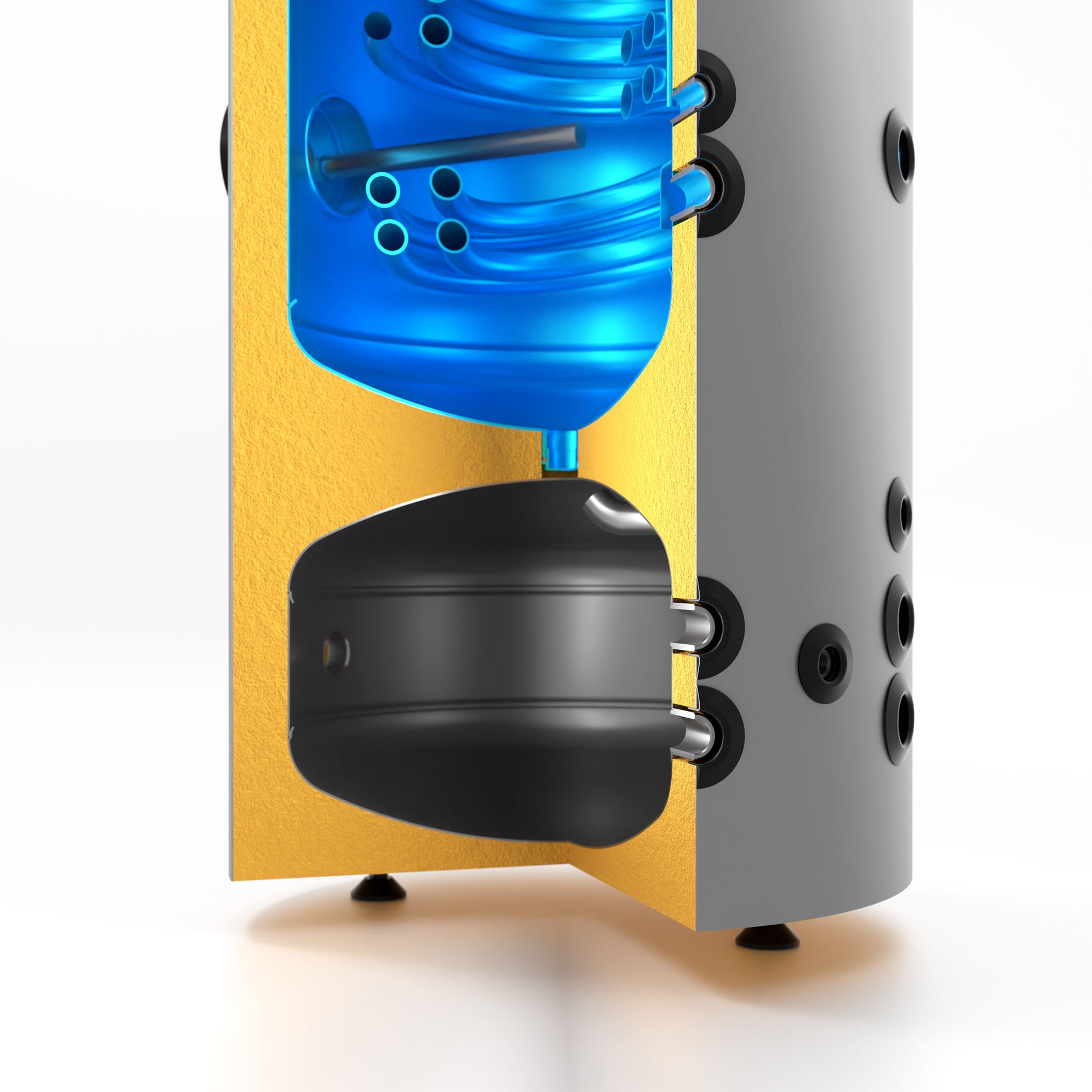

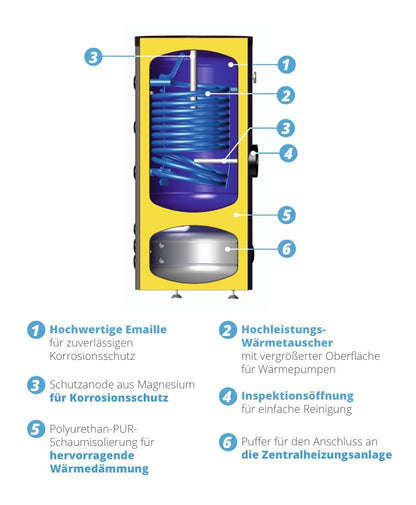

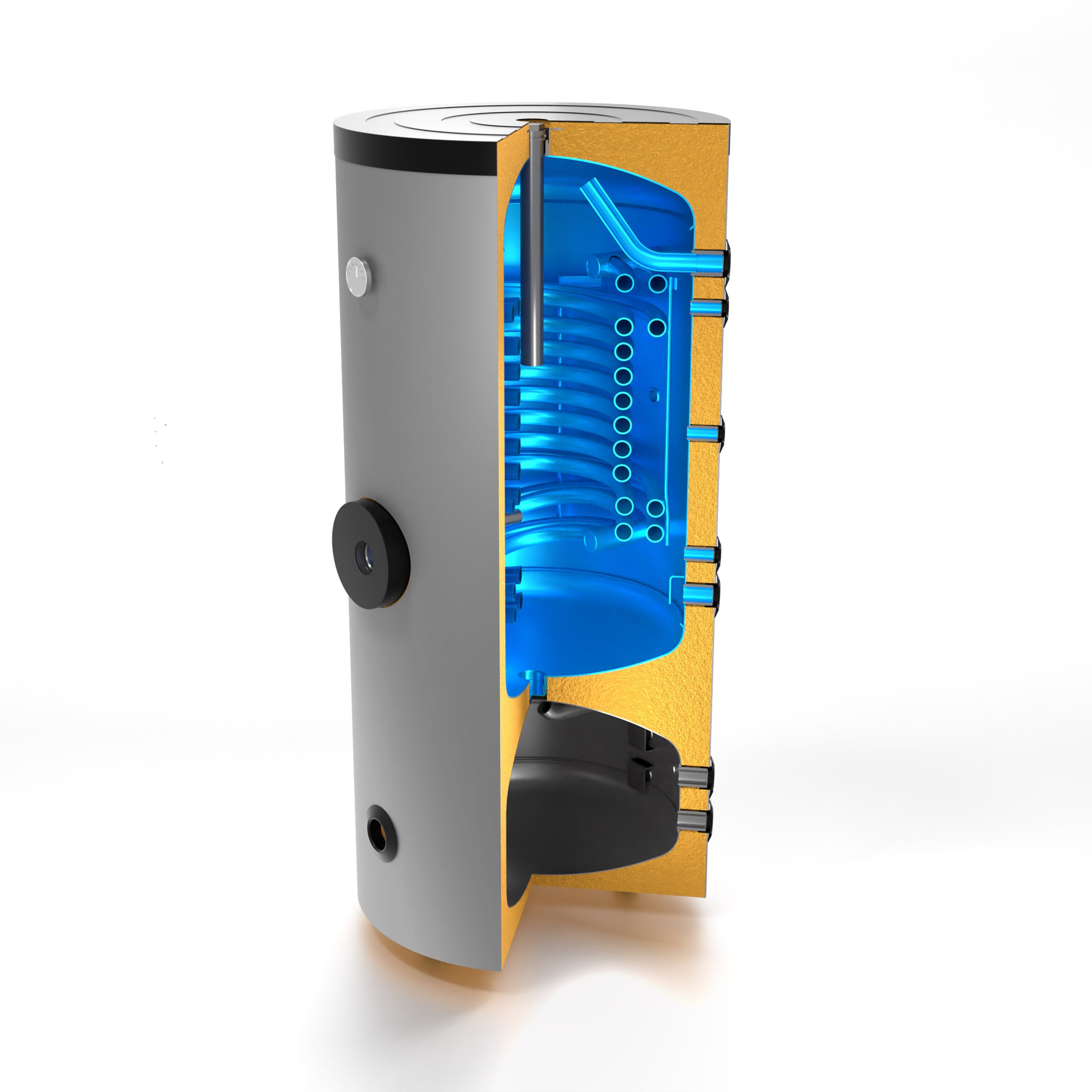

Multi-purpose storage tank in a vertical design. The unit combines two storage units in a single housing: a domestic hot water storage tank with an integrated heat exchanger for heating domestic hot water and a buffer tank for central heating. Thanks to the large-surface heat exchanger, the tank is ideally suited for heating systems with a heat pump. The vertical design allows for installation even in small spaces.

One product, two functions, numerous advantages

The FISH S24 combines a hot water storage tank and buffer tank in a single unit, ensuring efficient hot water preparation and stable heating operation thanks to a highly efficient heat exchanger coil. It's the ideal solution where functionality and space saving are paramount.

All the advantages at a glance:

• Space-saving
• Compact design
• Aesthetics in the boiler room
• Easy installation
• Fewer components in the system
• Time savings during assembly
• High energy efficiency
• Ideal collaboration with heat pumps
• Hot water storage tank 210 liters
• Buffer tank 60 liters

Thermal insulation

The thermal insulation of the storage tanks consists of a firmly bonded, CFC-free rigid polyurethane foam layer and a replaceable PVC film covering.

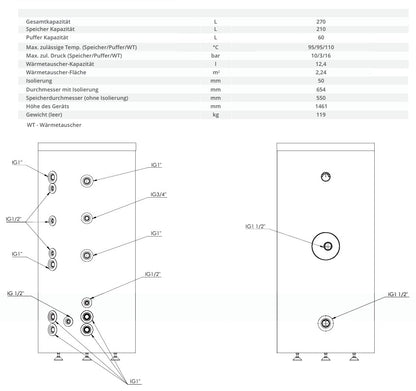

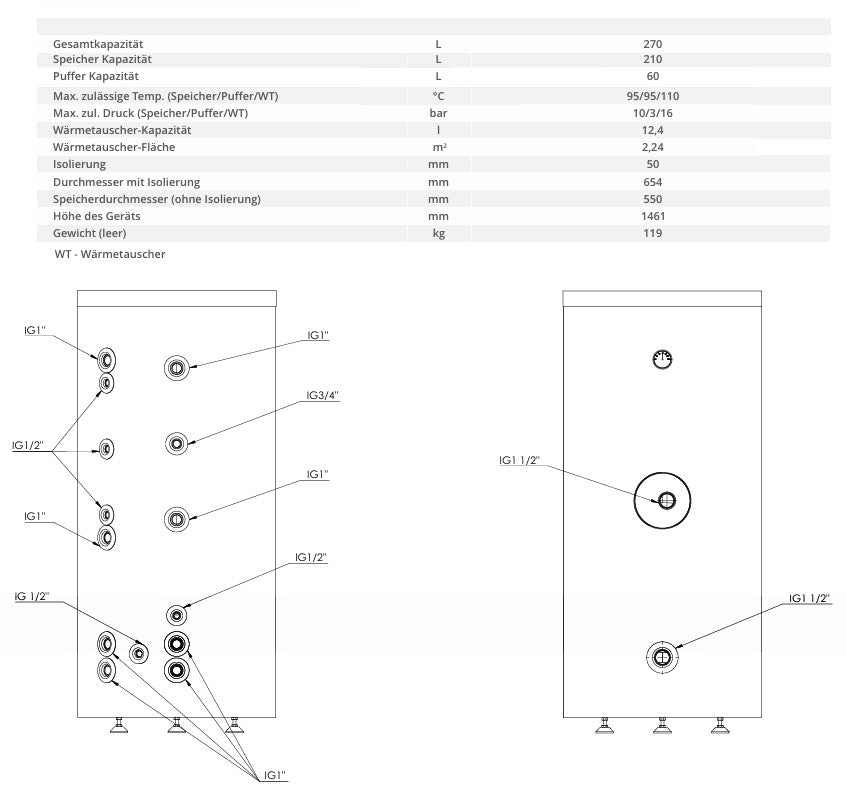

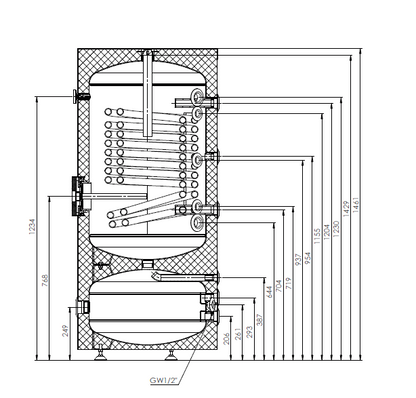

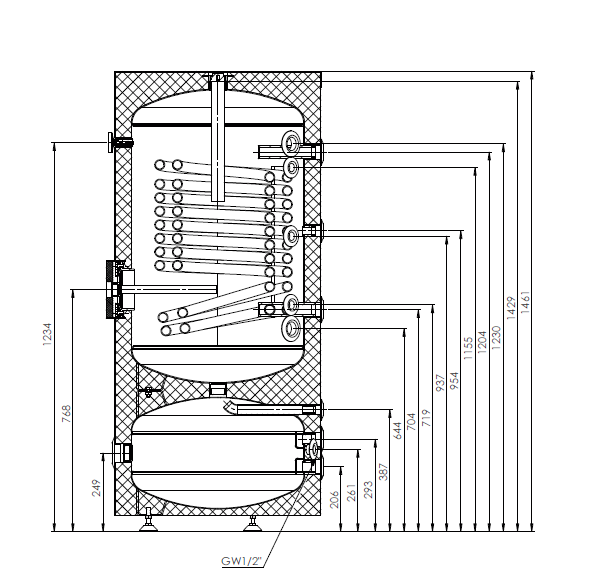

Technical data:

Material: S235JR
Welding: automatic welding
Protection: high-quality enamel coating and
2 magnesium anodes (water heater)
Maximum operating pressure of storage tank/buffer tank: 10/3 bar
Maximum test pressure for storage tank/buffer tank: 15/4.5 bar
Maximum operating temperature: 95ºC
Insulation: 50 mm thick polyurethane foam
Outer shell: Color grey
Heat exchanger: Steel tube P235GH
Inspection opening: Ø122mm / Ø179mm

Important NOTE!

The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.

Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.
