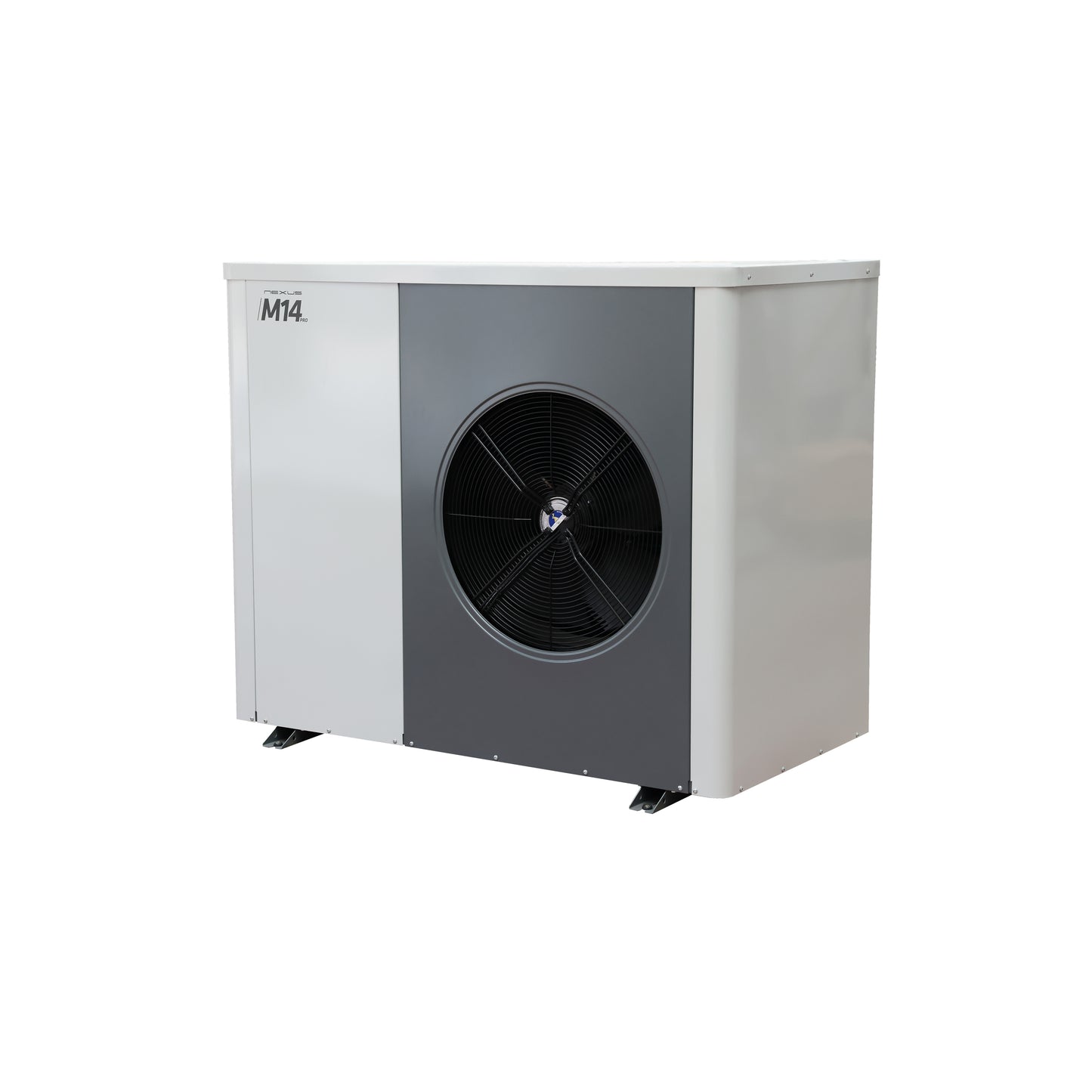

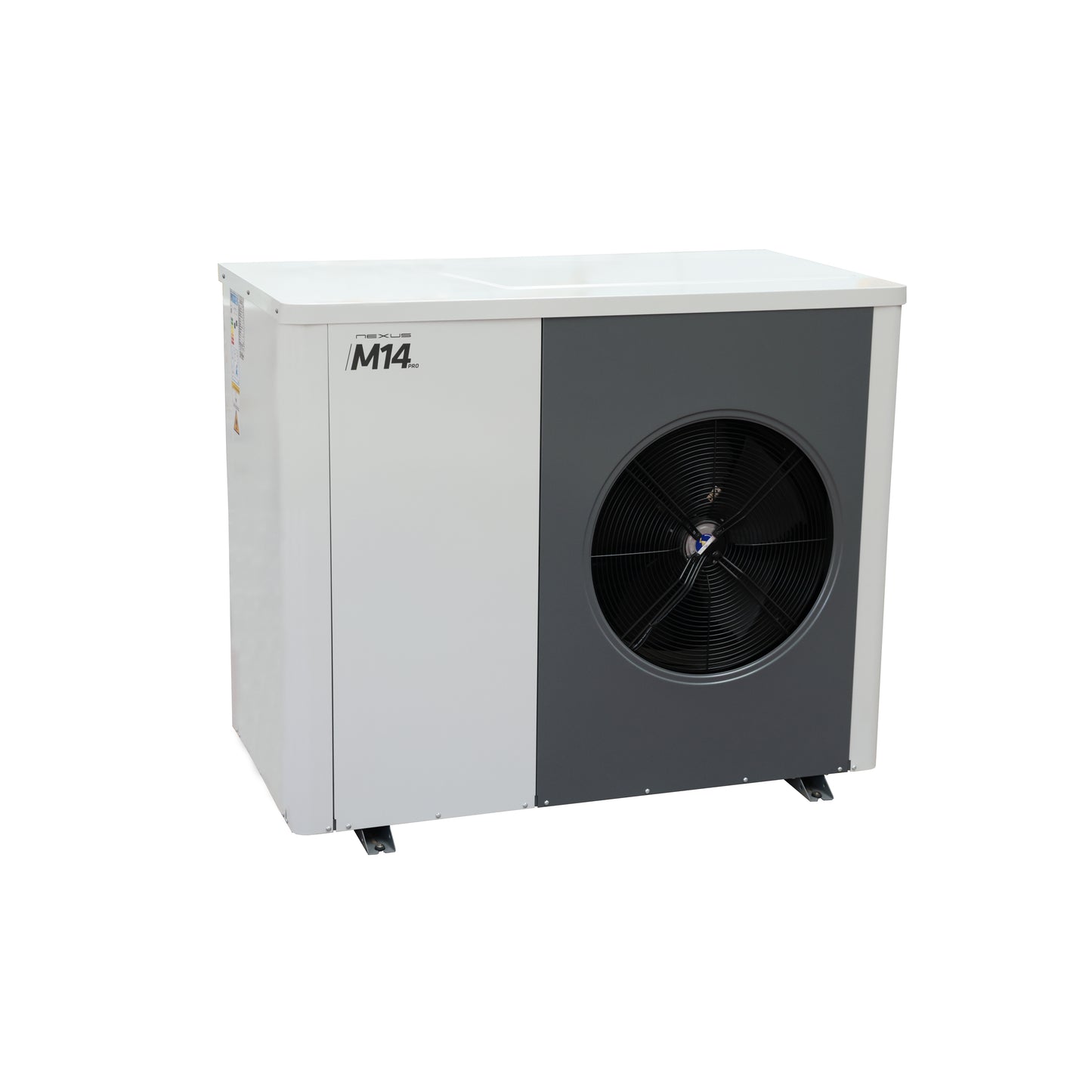

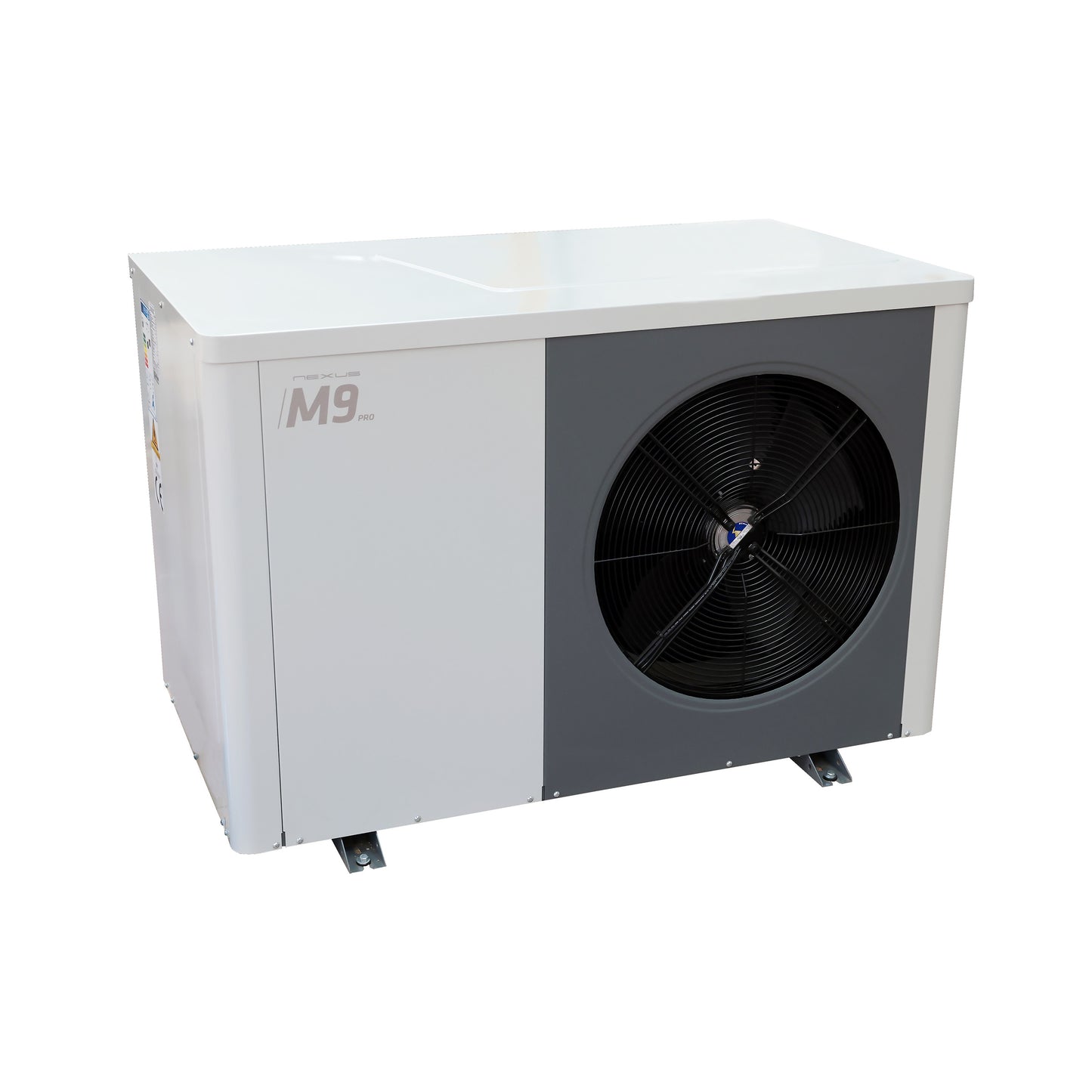

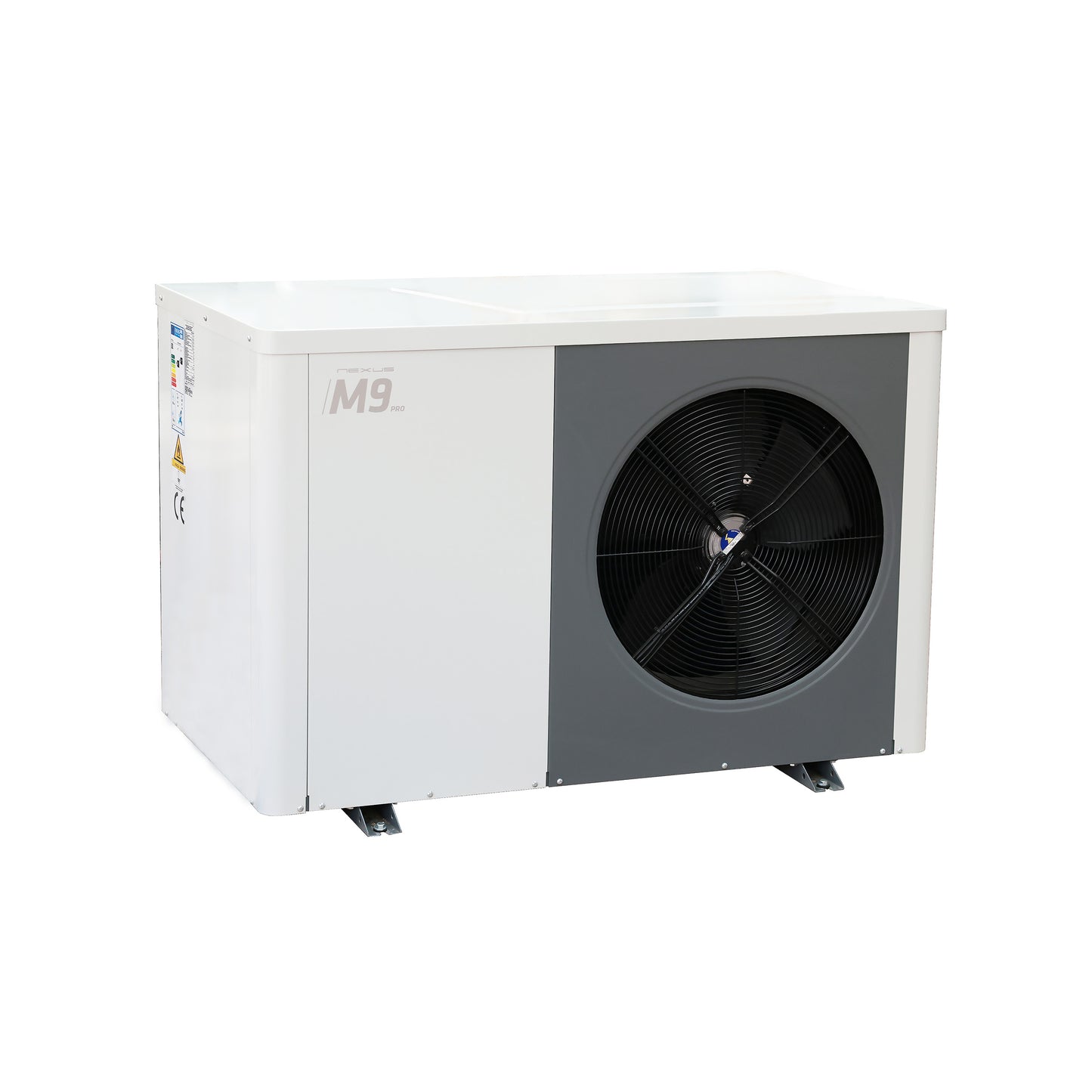

Key features:

• The automation ensures stepless power control of the compressor, fan and circulation pump.
• The standard control system regulates the operation of the heat pump and the heating circuits for central heating and domestic hot water.
• The heat pump can be operated in cooling mode. However, it is recommended to use this mode in a system with underfloor heating.

• The device is equipped with automatic defrosting using hot gas (by reversing the cycle).

• The device features integrated temperature and pressure protection for the refrigerant circuit.

• By controlling the heat pump components, the control system aims to keep the parameters of the refrigeration system within the permissible operating range during operation.

• Active frost protection of the water circuit even during cooling operation (electrical supply required)

• Passive frost protection for the water circuit, without electrical supply (if the water circuit is equipped with a thermostatic frost protection valve)

• Option to operate the heat pump via the weather control function

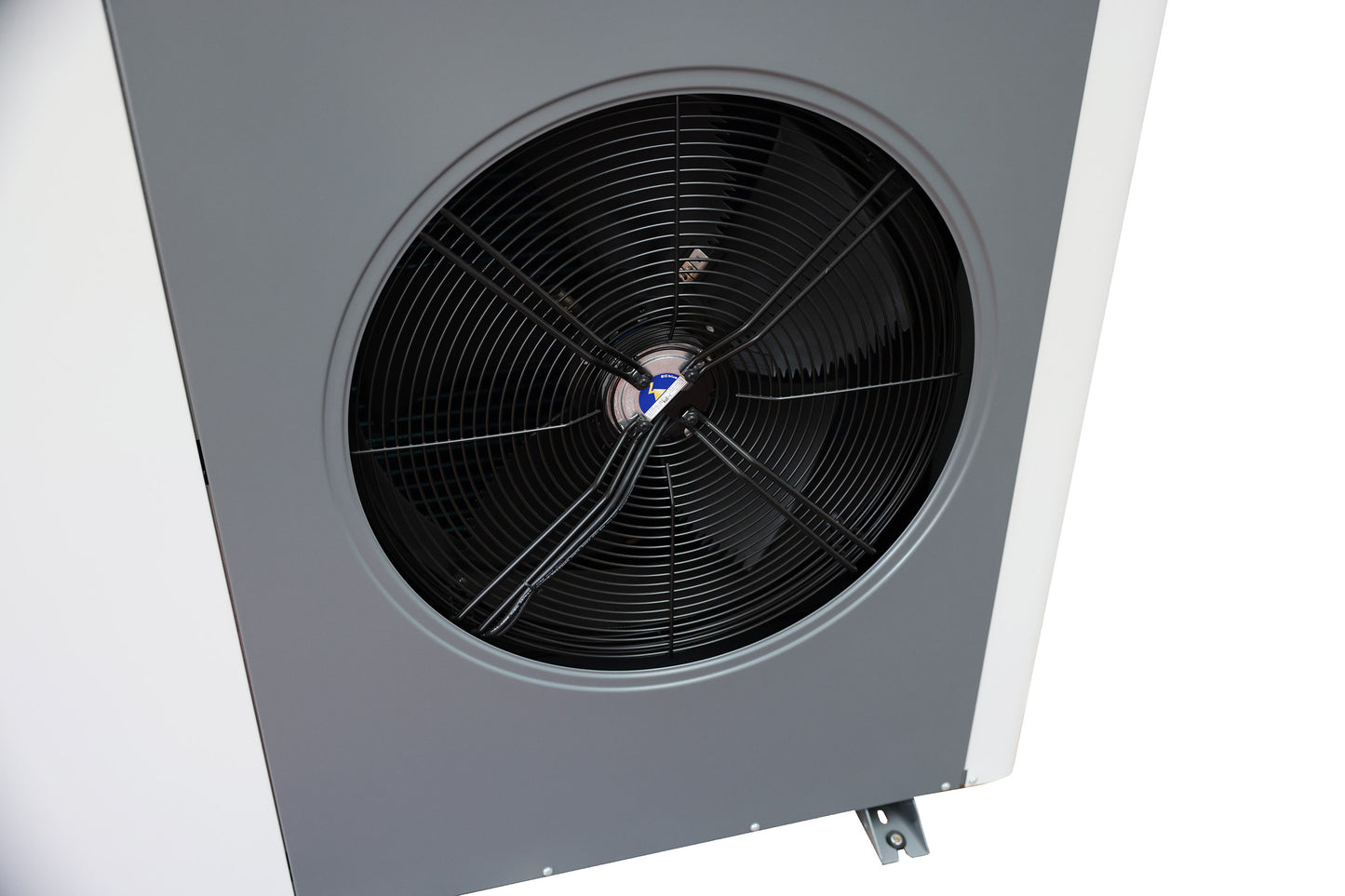

• Fan with energy-efficient electronically commutated brushless motor (EC)

• Flow water temperature up to 67°C

• Hydrophile coated evaporator

• The heat pump can be operated in a radiant heating and radiator system.

• High efficiency in every installation thanks to the Mitsubishi scroll compressor
  Compact, weatherproof design

• Energy efficiency class A+++, temperate climate, applications at low temperatures (EN 14825)

• The user-friendly Carel control system ensures optimal control and correct operation of the system. Remote control is possible using a special internet module.

• Quiet operation. Complies with the requirements of Commission Regulation (EU) No 813/2013.

• Environmentally friendly refrigerant R290

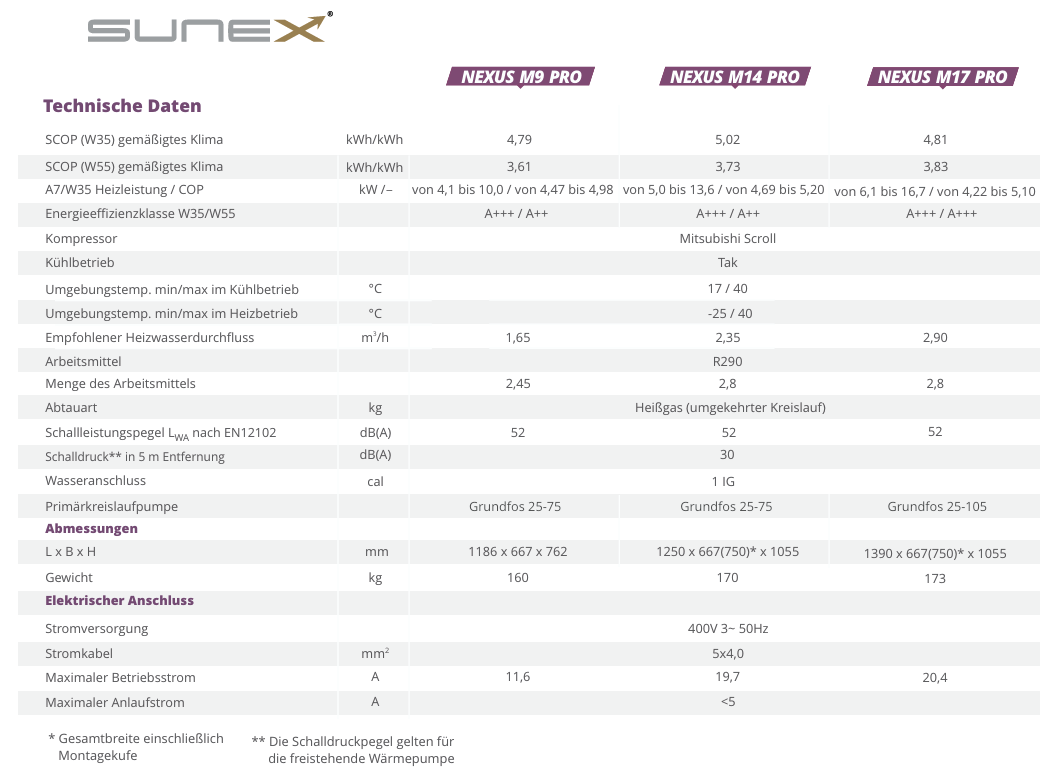

Technical data:

• A7/W35 Heating capacity / COP (kW /-): from 6.1 to 16.7 / from 4.22 to 5.10

• Energy efficiency class W35/W55: A+++ A+++
• SCOP “A” W35/W55 (-): 4.79 / 3.61
• Compressor: Mitsubishi Scroll
• Circulation pump: Grundfos UPM3L 25-75 (K)
• Control unit: Carel (heat pump and heating circuits)
• Cooling operation: Yes
• Ambient temperature min/max during cooling operation (°C): 17 / 40
• Ambient temperature min/max during heating operation (°C): -25 / 40
• Recommended heating water flow rate (m³/h): 2.35
• Work equipment: R290
• Defrosting method: Hot gas (reverse cycle)
• Quantity of the working material (kg): 2.8
• Maximum pressure on the water side (bar): 3
• Sound power LWA (dB): 57.9

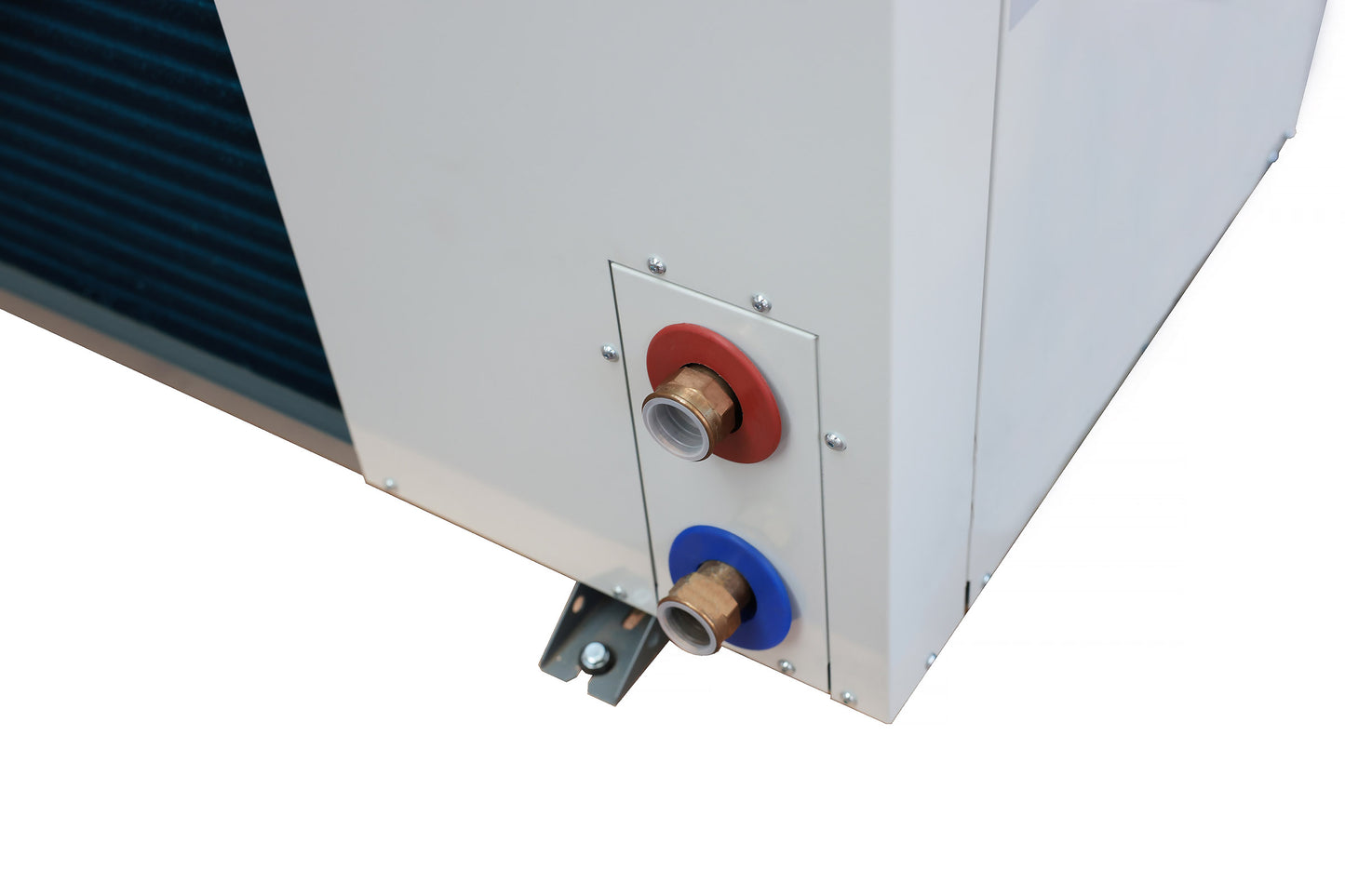

  Water connection (cal): 1 IG
• Pressure loss at recommended flow rate (kPa): 3.6
• L x W x H (mm): 1390 x 667(750)* x 1055
• Weight (kg): 173

Electrical connection

• Power supply: 400V 3~ 50H
• Power cable (mm²): 5x4.0
• Maximum operating current (A): 4

*Total width including mounting skid

INSYG ALFA

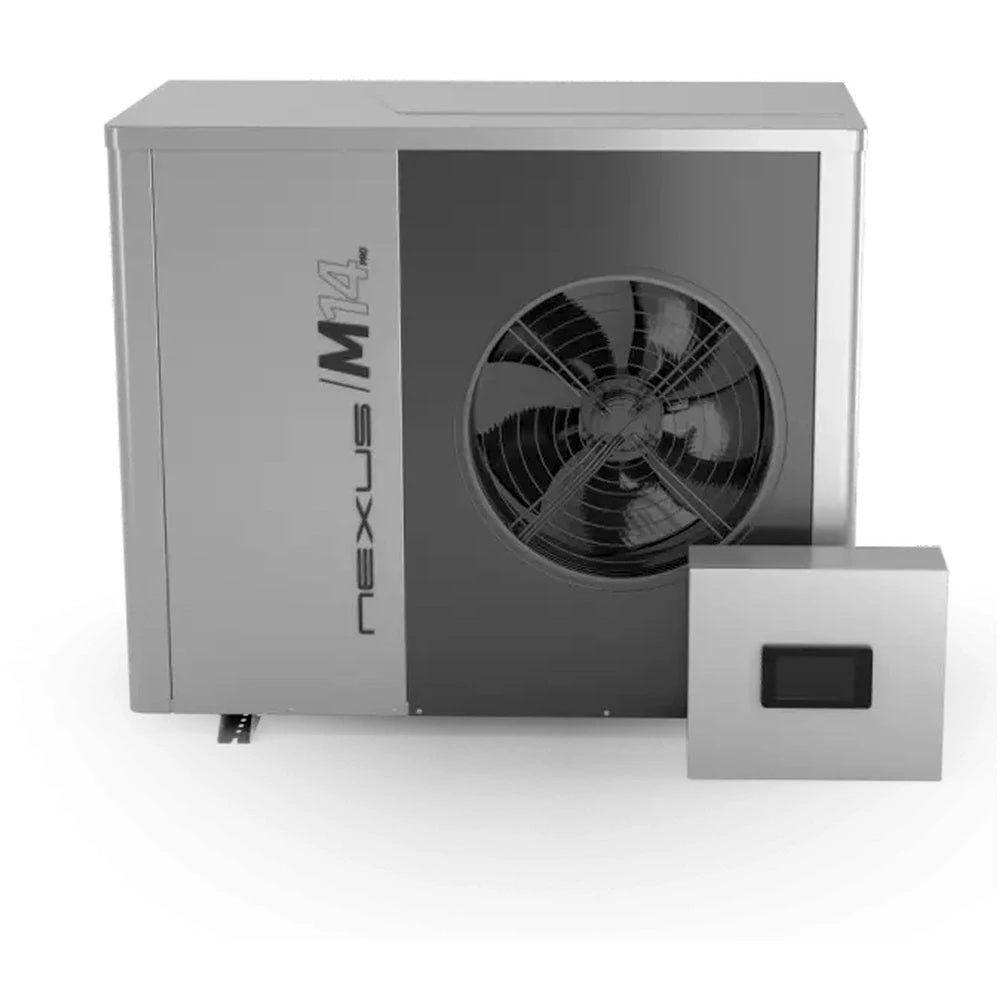

Control module with operating panel for Nexus M Pro heat pumps.

Key features INSYG ALFA

• Control of 2 heating circuits with mixing valves according to the heating curve
• Switching between central heating and domestic hot water as needed
• Switching on the electric heating element as an auxiliary heater, emergency power source or for heating domestic hot water
• Control of the domestic hot water circulation pump
• Schedule for central heating and domestic hot water
• Control panel with 4.3" touchscreen graphic display
• Graphical display of heat pump operating parameters
  and heating circuits
• Can be connected to an internet module via the MODBUS communication port

Technical data:

• Dimensions (L x W x H): 129 x 351 x 299
• Weight (kg): 3.3
• Electrical connection: 230V / 50Hz**
• Maximum heating element output: 6 kW


** When connecting a 400V heating element, a 400V 3~ 50Hz power supply must be used.

*** The heating element is not part of the Insyg Alfa equipment.
