• One of the most cost-effective ways to heat buildings. The system also works at temperatures of -25°C
• High efficiency and long service life thanks to the use of components from world-renowned manufacturers
• Extensive control ensures optimal system control and protection. Internet control is possible. A wired control panel is standard equipment
• High operating comfort. Intuitive and simple operation of the control
• The compact design of the device enables quick installation

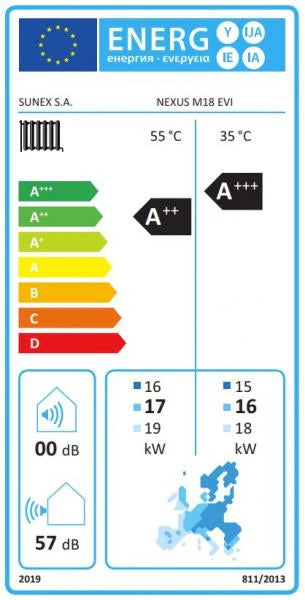

• Energy class A++ at 55°C flow temperature, A+++ at 35°C flow temperature

The highest level of comfort

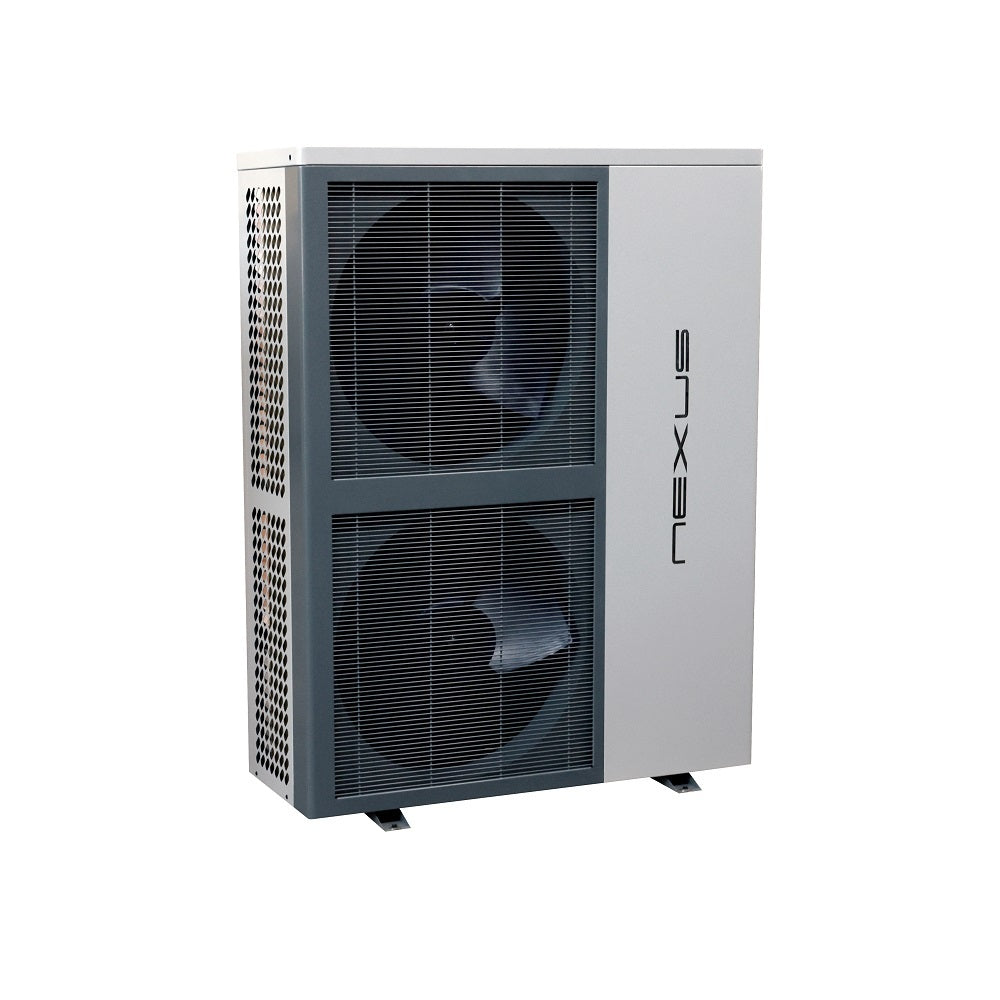

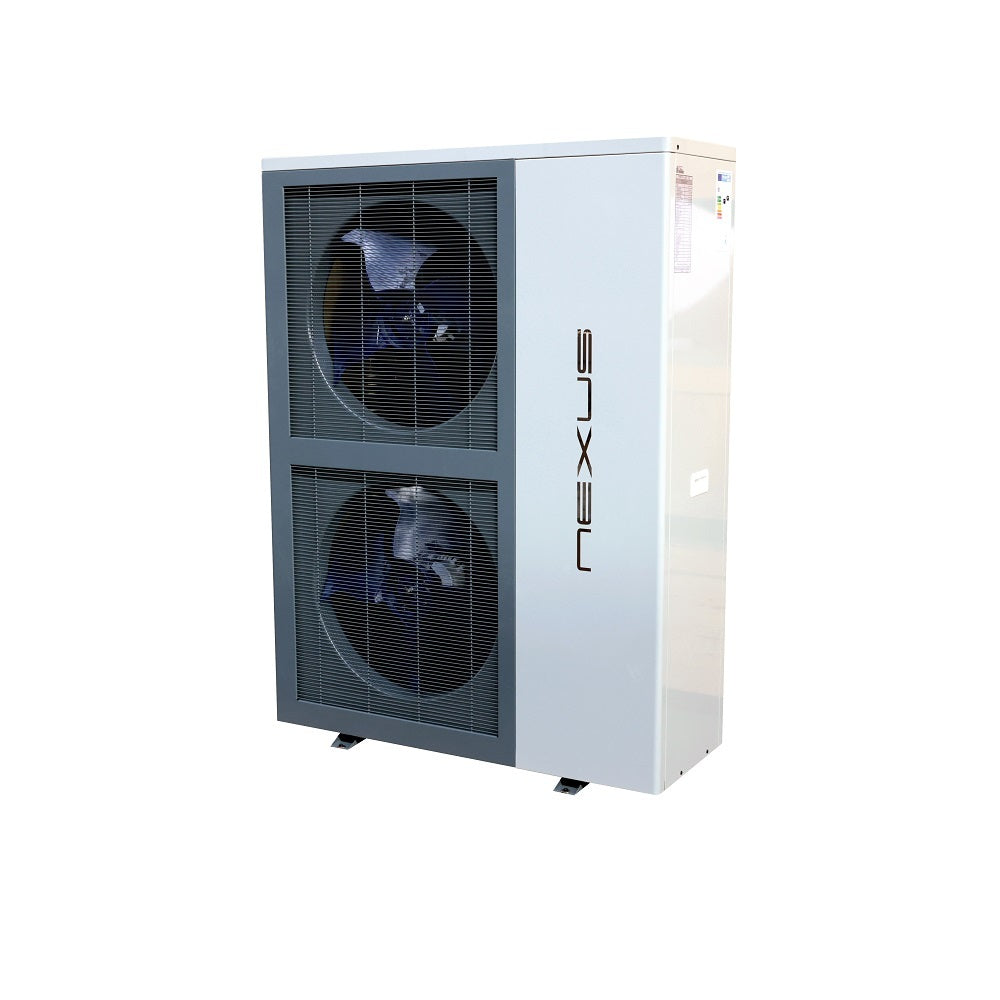

NEXUS M EVI heat pumps enable an optimal room temperature with minimal energy consumption. They make it possible to achieve the right air temperature while providing access to hot water to fully meet the needs of consumers.

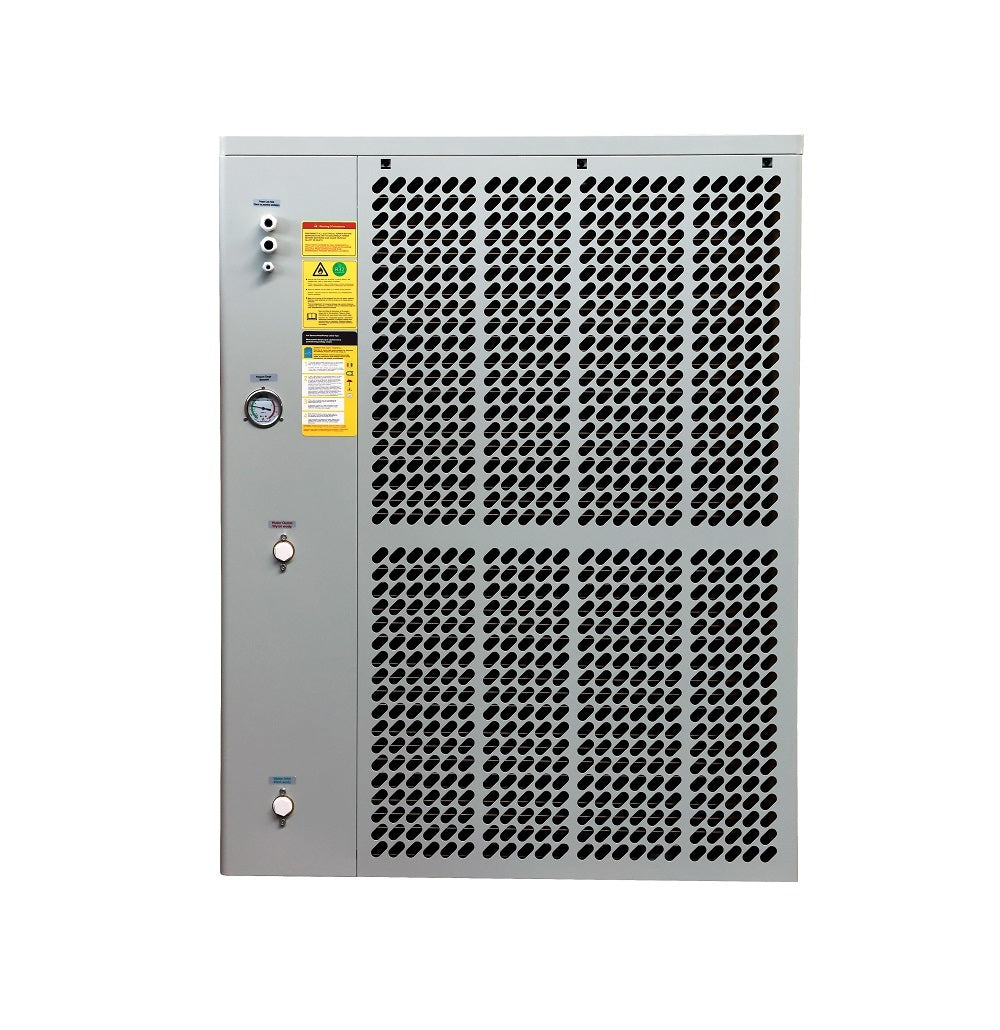

Advantages of monoblock construction

The pump is fully designed for outdoor installation. Characteristic of the pump is the fact that the entire refrigeration system is housed in a single unit and only the pipes that supply the building with heat are led to the outside.

Working in extreme conditions

NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability and cost-effectiveness.

Working in extreme conditions

NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability and cost-effectiveness.

Technical data:

• SCOP (W35) moderate climate: 4.46kWh
•  SCOP (W55) moderate climate: 3.51kWh
• Energy efficiency class (W35): A+++
• Energy efficiency class (W55): A++
• Compressor: Panasonic (rotating, multi-stage vapor injection)
• Expansion valve: electronic
• Number of fans: 2
• Circulation pump: no
• Water side pressure drop: 35kPa
• Control: Standard control module
• Outside temperature: -25 to +45°C
• Flow temperature: 55°C
• Recommended heating water flow: 3.1m3/h
• Refrigerant / GWP: R32 / 675
• Amount of refrigerant R32: 2.7kg
• Defrosting type: Hot gas (reverse cycle)
• Sound power level: 57dB
• Dimensions: 1050x480x1330mm
• Weight (net/gross): 170/180kg
• Power supply: 380-450V 3~ 50Hz
• Max. current (heating/cooling/DHW): 6.37/6.28/7.15A

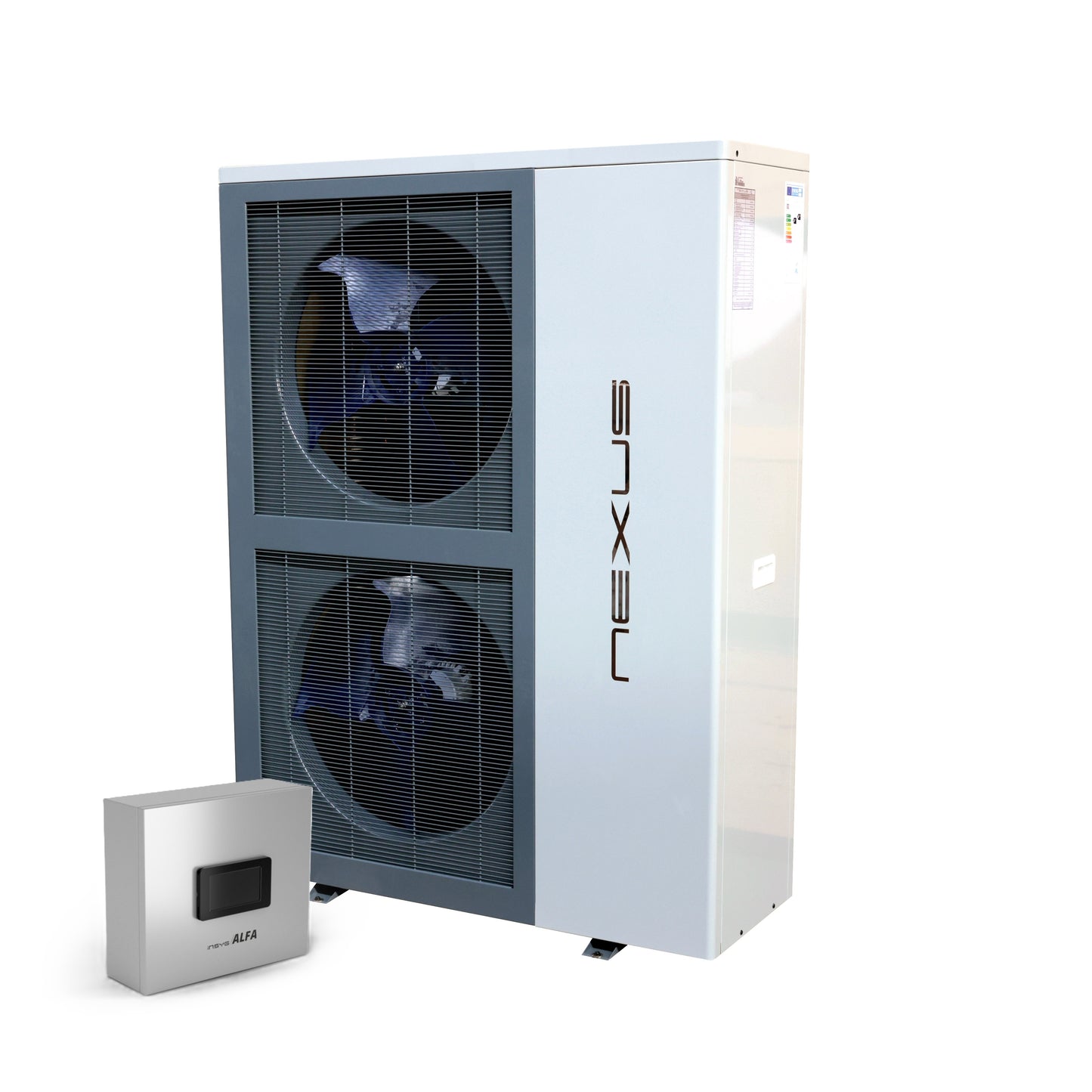

Insyg Cloud + Antenna (Access and control via Internet)

The Insyg Cloud control module allows the manufacturer remote access to your heat pump. Sunex takes care of the complete configuration and support of your heat pump.

The Insyg Cloud is used for the operation of the Sunex M EVI heat pump.

Advantages of Insyg Cloud:

• Access from the Internet
• Fast response time
• It is designed for NEXUS M EVI pumps

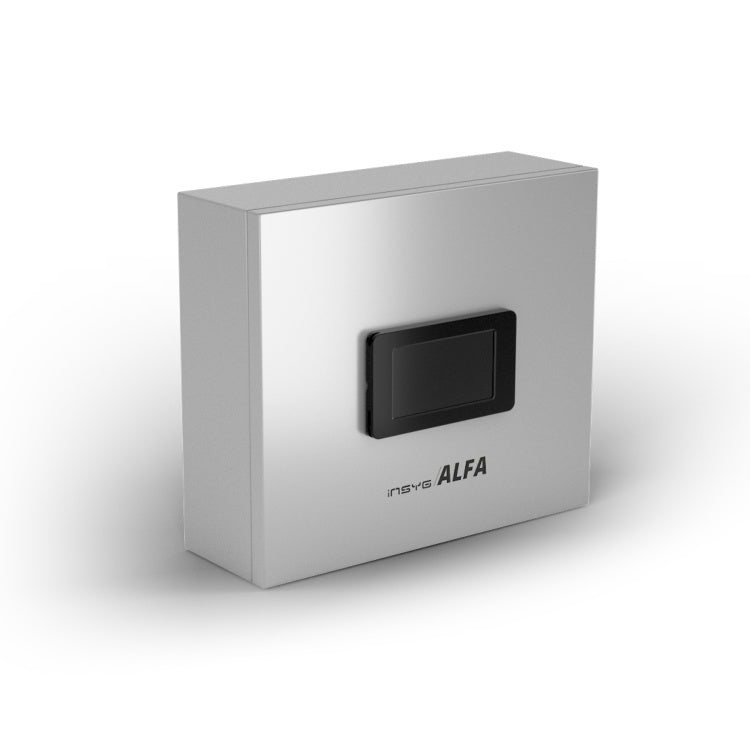

Control module INSYG ALFA + Cloud (Electric box)

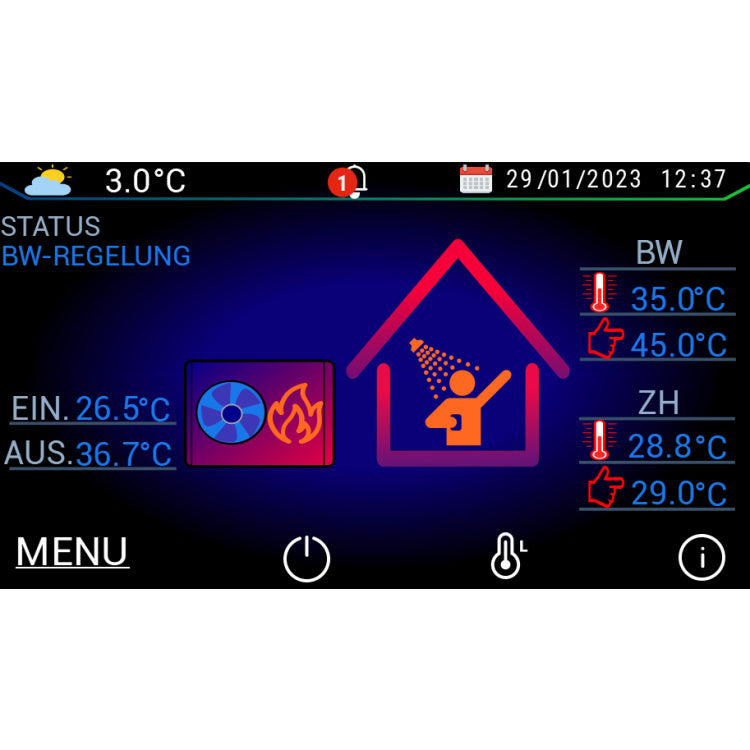

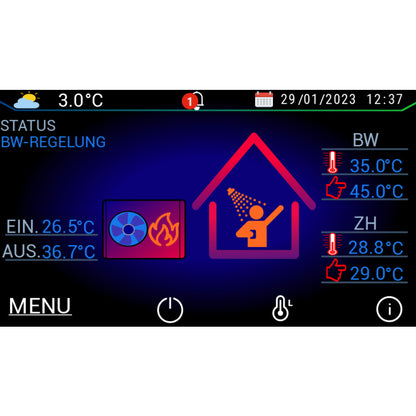

The Insyg Cloud is used for the operation of the Sunex M EVI heat pump. In addition, it controls 2 heating circuits and the hot water circuit. The device is equipped with a 4.3" color touch panel.

The device can be connected to:

• 2 circulation pumps
• 2 mixing valves (open and close)
• Electric heating element
• Diverter valve
• Circulation pump

The heating circuits are regulated based on the setpoint temperature of the heating circuit
(sensors for circuits 1 and 2) and room sensors or room thermostats (on/off type).

Advantages of InsygAlfa + Cloud:

• Access from the Internet
• Fast response time
• Control of heating circuits
• Management of heat generation for the domestic hot water tank and the buffer tank
• Management of cold generation for the buffer tank
• It is designed for NEXUS M EVI pumps


Technical data electric box Insyg Alfa:

• Power supply: 230V ± 10% / 50Hz*
• Maximum power consumption (no load): 30W
• Ambient temperature: 5℃÷40℃
• Maximum load of control outputs: 0.5A
• Maximum load of electric heating element: 6kW
• Fuse: 6.3A fast
• Sensor type: NTC (25℃ 10kΩ)
• Room sensor/room thermostat type: NTC (25℃ 10kΩ) / Thermostat on/off type
• Measuring range of NTC sensor: -50℃÷90℃
• Maximum sensor length: 10m
• Dimensions (L x W x H): 151.5 x 43.9 x 87.7
• Screen diagonal: 4.3”
• Resolution: 480x272
• Display type: Color screen with touch panel

* Without electric heating element. If a three-phase electric heating element is connected, the
power supply should be 400 V ± 10%.
