• One of the most cost-effective ways to heat buildings. The system also works at temperatures of -25°C
• High efficiency and long service life thanks to the use of components from world-renowned manufacturers
• Extensive control ensures optimal system monitoring and protection. Internet control is possible. A wired control panel is standard equipment
• High operating comfort. Intuitive and simple control operation
• The compact design of the device allows for quick installation
• Energy class A++ at 55°C flow temperature, A+++ at 35°C flow temperature

The highest level of comfort

NEXUS M EVI heat pumps enable optimal room temperature with minimal energy consumption. They allow for the right air temperature while providing access to hot water to fully meet consumer needs.

Advantages of monoblock design

The pump is fully designed for outdoor installation. Characteristic of the pump is the fact that the entire cooling system is housed in a single unit and only the pipes that supply the building with heat are led outside.

Work under extreme conditions

NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability, and cost-effectiveness.

Work under extreme conditions

NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability, and cost-effectiveness.

Technical data:

• SCOP (W35) temperate climate: 4.58kWh
• SCOP (W55) temperate climate: 3.51kWh
• Energy efficiency class (W35): A+++
• Energy efficiency class (W55): A++
• Compressor: Panasonic (rotary, multi-stage vapor injection)
• Expansion valve: electronic
• Number of fans: 2
• Circulation pump: no
• Water side pressure loss: 45kPa
• Control: Standard control module
• Outside temperature: -25 to +45°C
• Flow temperature: 55°C
• Recommended heating water flow: 6m3/h
• Refrigerant / GWP: R32 / 675
• Quantity of refrigerant R32: 4kg
• Defrosting type: Hot gas (reverse cycle)
• Sound power level: 57dB
• Dimensions: 1160x500x1580mm
• Weight (net/gross): 230/240kg
• Power supply: 380-450V 3~ 50Hz
• Max. current (heating/cooling/DH): 14.3/15.6/10.6A

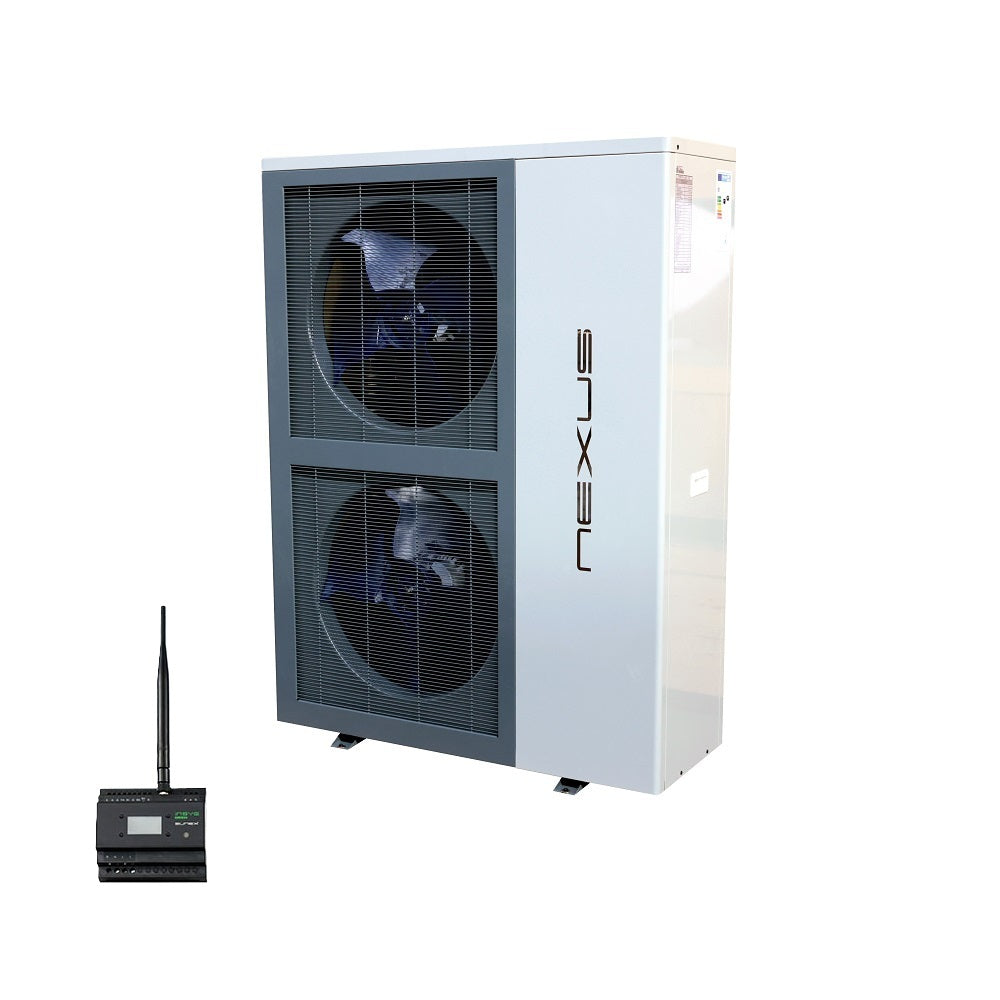

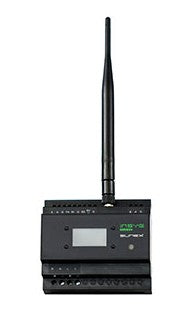

Insyg Cloud + Antenna (Access and control via Internet)

The Insyg Cloud control module allows the manufacturer remote access to your heat pump. Sunex takes care of the complete configuration and support of your heat pump.

The Insyg Cloud is used for the operation of Sunex M EVI heat pumps.

Advantages of Insyg Cloud:

• Internet access
• fast response time
• It is designed for NEXUS M EVI pumps

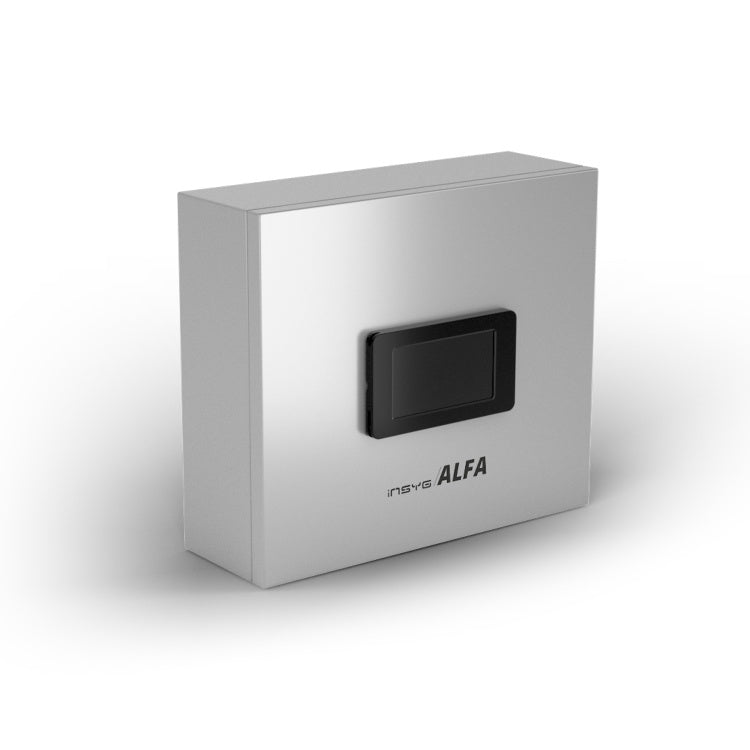

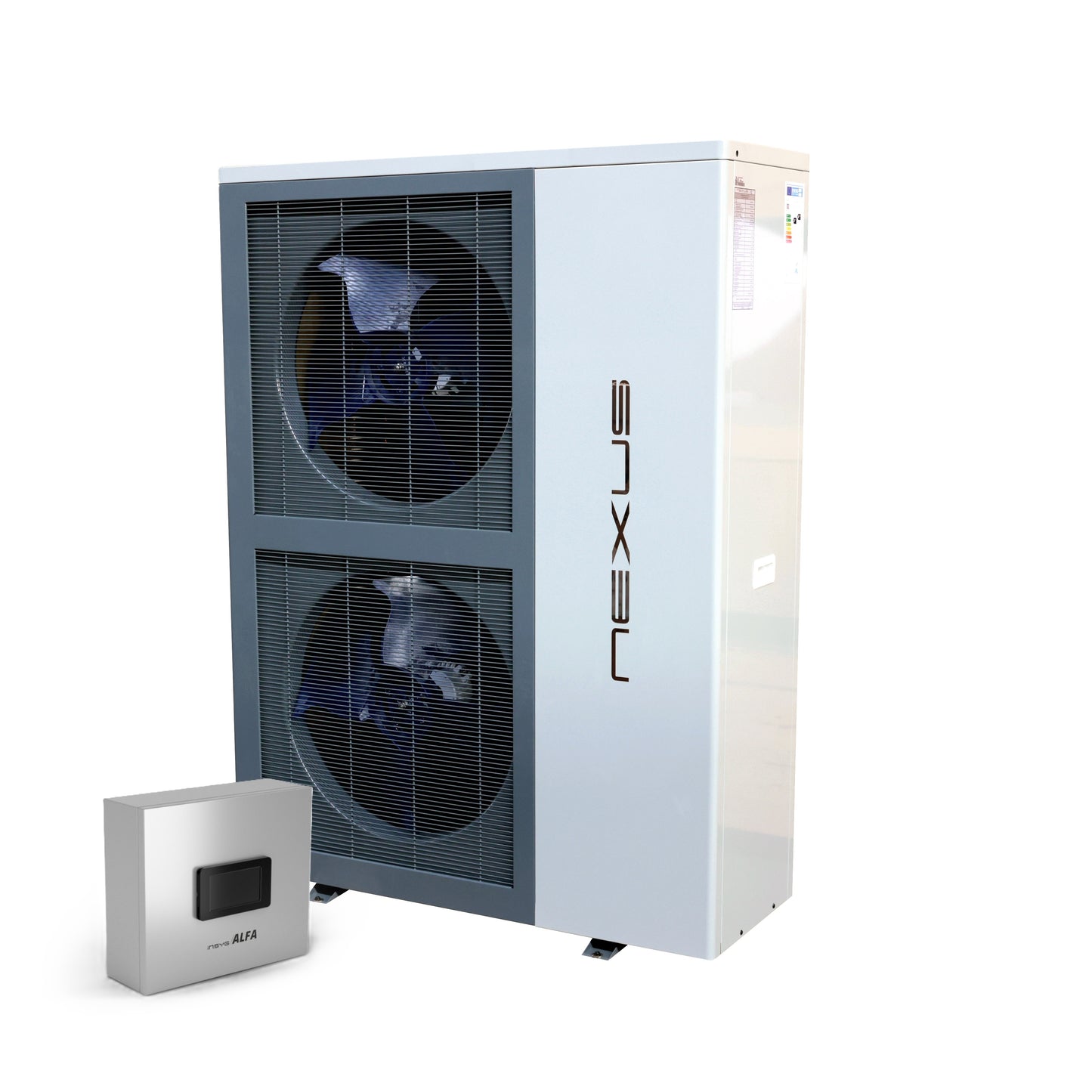

Control module INSYG ALFA + Cloud (Electrical box)

The Insyg Cloud is used for the operation of the Sunex M EVI heat pump. In addition, it controls 2 heating circuits and the domestic hot water circuit. The device is equipped with a 4.3" color touch panel.

The device can be connected to:

• 2 circulation pumps
• 2 mixing valves (open and close)
• Electric heating element
• Diverter valve
• Circulation pump

The heating circuits are controlled based on the setpoint temperature of the heating circuit
(sensors for circuits 1 and 2) and room sensors or room thermostats (on/off type).

Advantages of InsygAlfa + Cloud:

• Internet access
• fast response time
• Control of heating circuits
• Management of heat generation for the domestic hot water tank and buffer tank
• Management of cold generation for the buffer tank
• It is designed for NEXUS M EVI pumps


Technical data for Insyg Alfa electrical box:

• Power supply: 230V ± 10% / 50Hz*
• Maximum power consumption (no load): 30W
• Ambient temperature: 5℃÷40℃
• Maximum load of control outputs: 0.5A
• Maximum load of the electric heating element: 6kW
• Fuse: 6.3A fast acting
• Sensor type: NTC (25℃ 10kΩ)
• Room sensor/room thermostat type: NTC (25℃ 10kΩ) / Thermostat on/off type
• Measuring range of NTC sensor: -50℃÷90℃
• Maximum sensor length: 10m
• Dimensions (L x W x H): 151.5 x 43.9 x 87.7
• Screen diagonal: 4.3”
• Resolution: 480x272
• Display type: Color screen with touch panel

* Without electric heating element. If a three-phase electric heating element is connected, the
power supply should be 400 V ± 10%.
