• One of the most cost-effective ways to heat buildings. The system also operates at temperatures of -25°C
• High efficiency and long service life thanks to the use of components from world-renowned manufacturers
• Extensive control ensures optimal system monitoring and protection. Internet control is possible. A wired control panel is standard equipment
• High operating comfort. Intuitive and simple operation of the control
• The compact design of the unit allows for quick installation

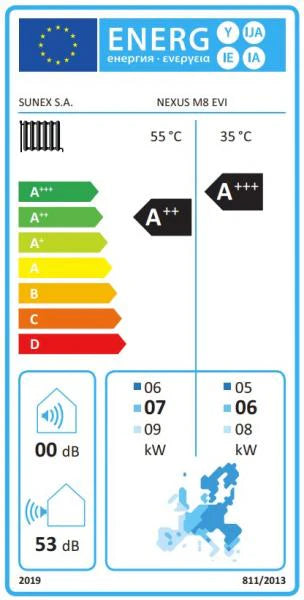

• Energy class A++ at 55°C flow temperature, A+++ at 35°C flow temperature

The highest level of comfort

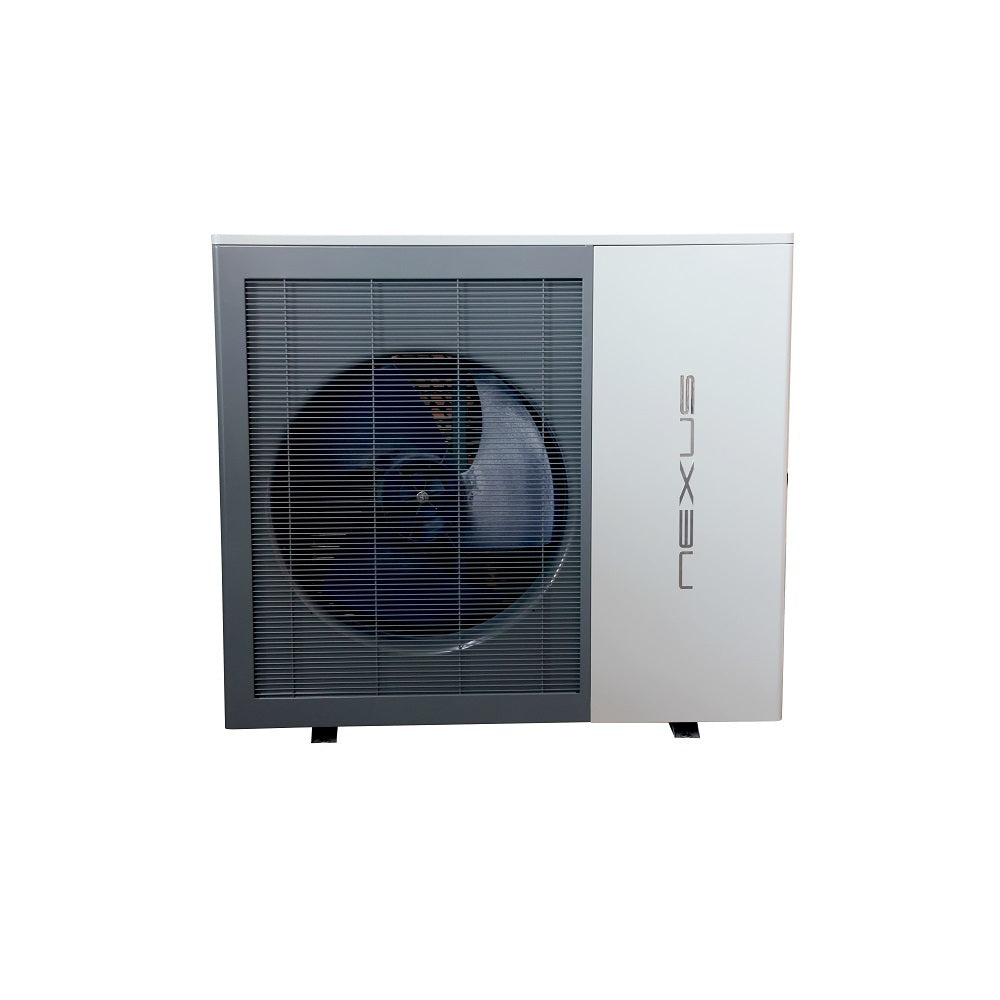

NEXUS M EVI heat pumps enable optimal room temperature with minimal energy consumption. They allow for achieving the right air temperature while providing access to hot water to fully meet the needs of consumers.

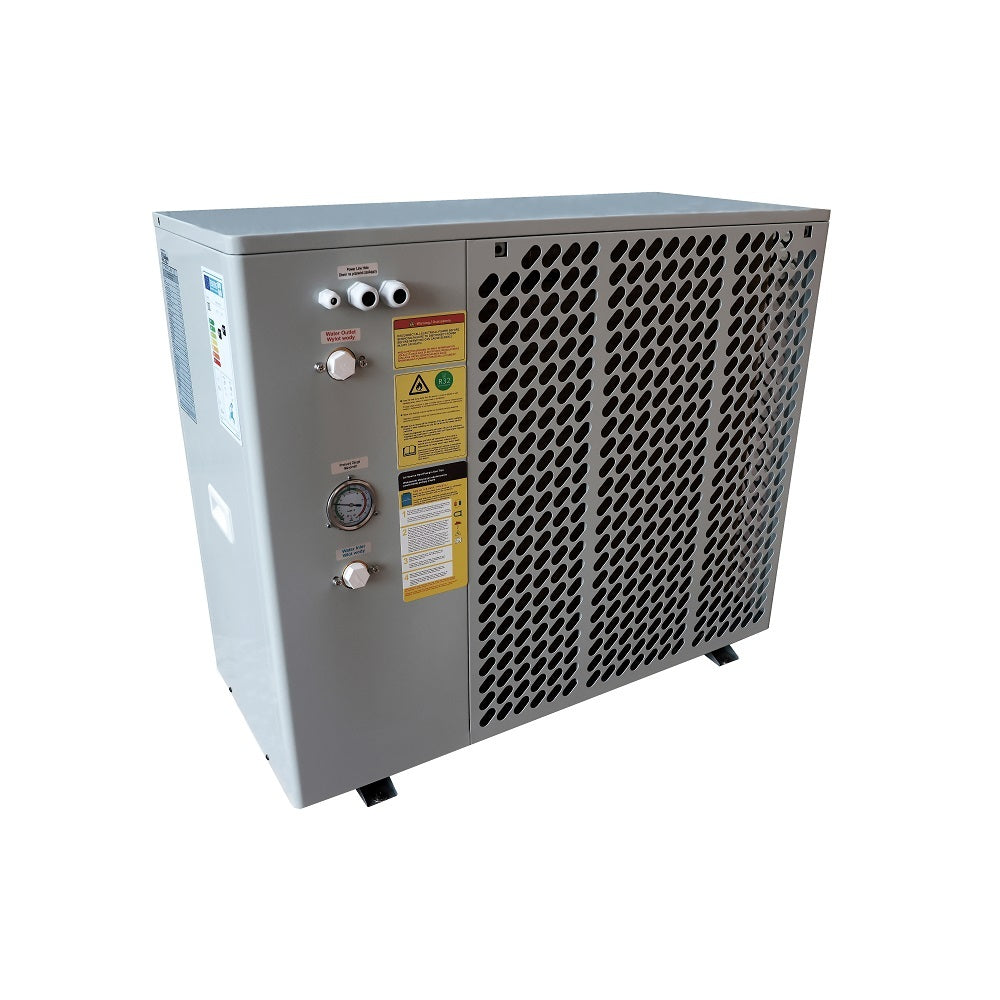

Advantages of monoblock design

The pump is fully designed for outdoor installation. Characteristic of the pump is the fact that the entire refrigeration system is housed in a single unit, and only the pipes supplying heat to the building are led outside.

Operation under extreme conditions

NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability, and cost-effectiveness.

Operation under extreme conditions

NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability, and cost-effectiveness.

Technical data:

• SCOP (W35) moderate climate: 4.59kWh
•  SCOP (W55) moderate climate: 3.47kWh
• Energy efficiency class (W35): A+++
• Energy efficiency class (W55): A++
• Compressor: Panasonic (rotary, multi-stage vapor injection)
• Expansion valve: electronic
• Number of fans: 1
• Circulation pump: no
• Water side pressure drop: 31kPa
• Control: Standard control module
• Outdoor temperature: -25 to +45°C
• Flow temperature: 55°C
• Recommended heating water flow rate: 1.4m3/h
• Refrigerant / GWP: R32 / 675
• Quantity of refrigerant R32: 1.3kg
• Defrosting method: Hot gas (reverse cycle)
• Sound power level: 53dB
• Dimensions: 970x475x835mm
• Weight (net/gross): 110/120kg
• Power supply: 220-240V 50Hz
• Max. current (heating/cooling/DHW): 8.30/9.67/9.45A

Insyg Cloud + Antenna (Access and Control via Internet)

The Insyg Cloud control module allows the manufacturer remote access to your heat pump. Sunex takes care of the complete configuration and support of your heat pump.

The Insyg Cloud is used for the operation of the Sunex M EVI heat pump.

Advantages of Insyg Cloud:

• Access from the internet
• Fast response time
• It is designed for NEXUS M EVI pumps

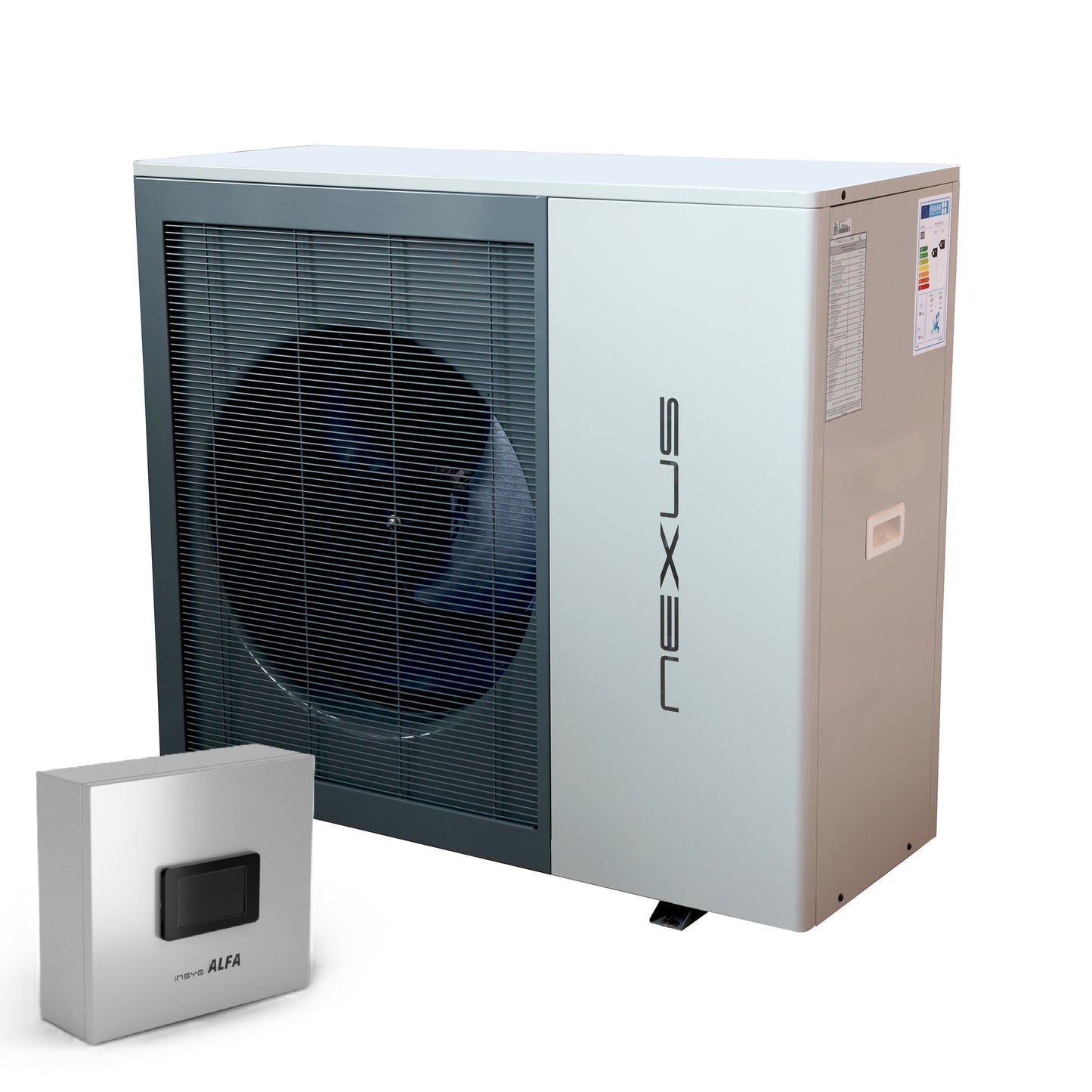

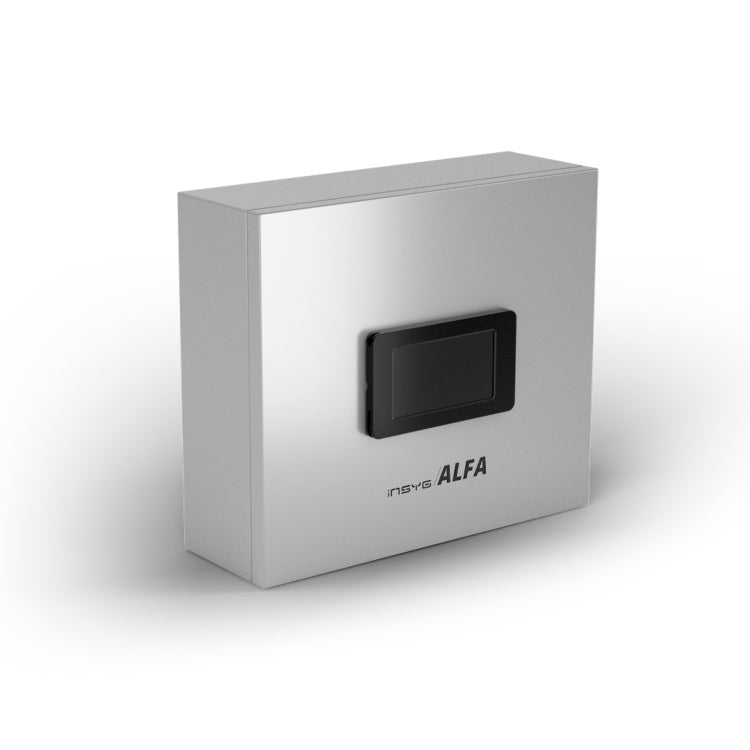

Control Module INSYG ALFA + Cloud (Electrical Box)

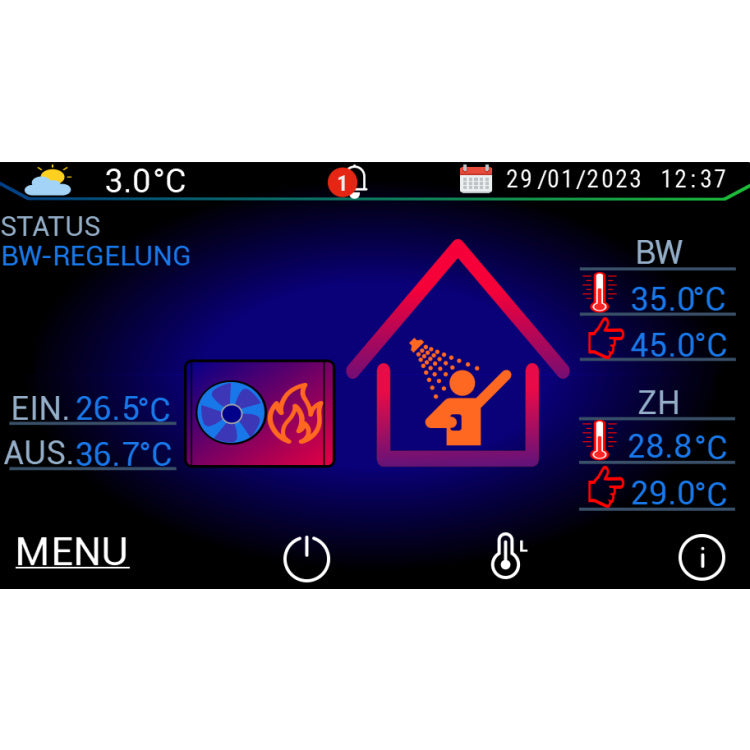

The Insyg Cloud is used for the operation of the Sunex M EVI heat pump. Furthermore, it controls 2 heating circuits and the domestic hot water circuit. The unit is equipped with a 4.3" color touch panel.

The device can be connected to:

• 2 circulation pumps
• 2 mixing valves (open and close)
• Electric heating element
• Diverter valve
• Circulation pump

The heating circuits are controlled based on the setpoint temperature of the heating circuit
(sensor for circuits 1 and 2) and room sensors or room thermostats (on/off type).

Advantages of InsygAlfa + Cloud:

• Access from the internet
• Fast response time
• Control of heating circuits
• Management of heat generation for the domestic hot water tank and buffer tank
• Management of cold generation for the buffer tank
• It is designed for NEXUS M EVI pumps


Technical data Electrical Box Insyg Alfa:

• Power supply: 230V ± 10% / 50Hz*
• Maximum power consumption (no load): 30W
• Ambient temperature: 5℃÷40℃
• Maximum load of control outputs: 0.5A
• Maximum load of electric heating element: 6kW
• Fuse: 6.3A fast acting
• Sensor type: NTC (25℃ 10kΩ)
• Type of room sensor/room thermostat: NTC (25℃ 10kΩ) / Thermostat on/off type
• Measuring range of NTC sensor: -50℃÷90℃
• Maximum sensor length: 10m
• Dimensions (L x W x H): 151.5 x 43.9 x 87.7
• Screen diagonal: 4.3”
• Resolution: 480x272
• Display Type: Color screen with touch panel

* Without electric heating element. If a three-phase electric heating element is connected, the
power supply should be 400 V ± 10%.

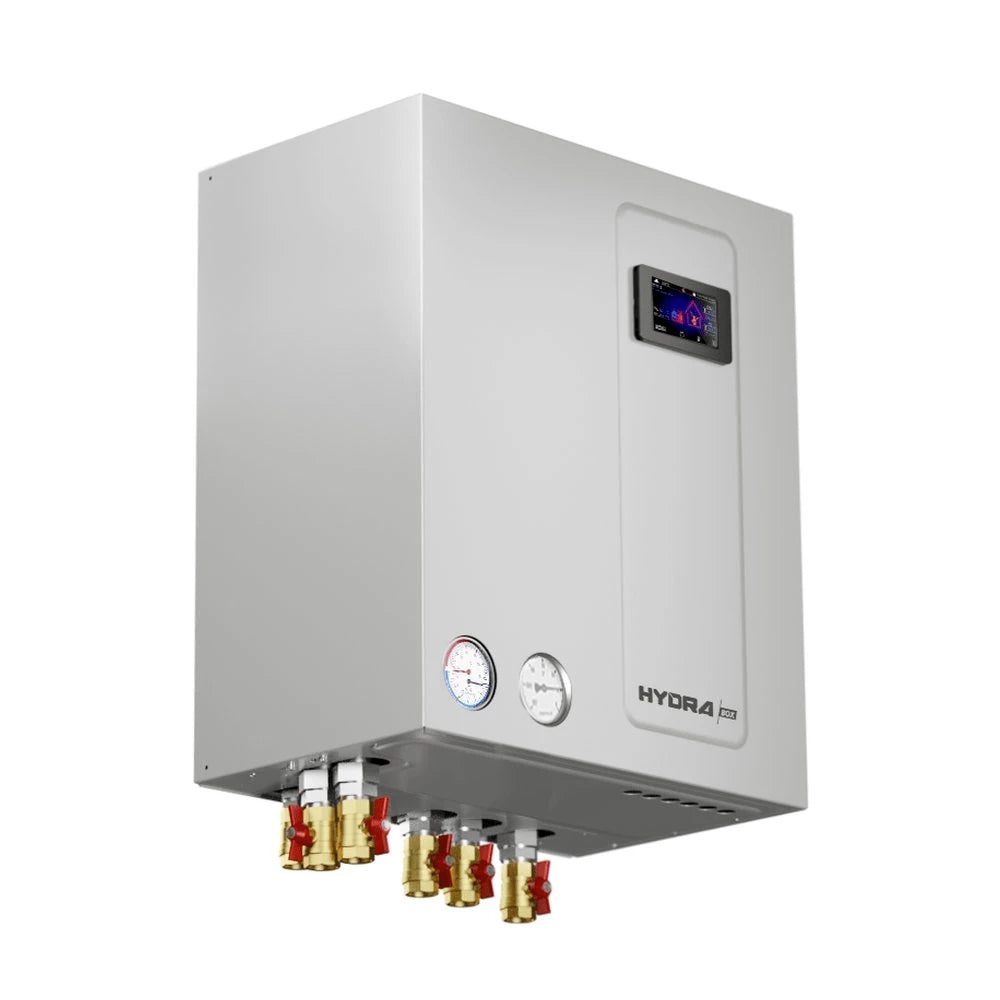

Hydraulic Module Hydra Box:

The Hydra Box M EVI is a compact indoor module for heat pumps, combining all essential hydraulic components for safe, efficient, and quick operation of heating and domestic hot water systems. The pre-assembled system significantly simplifies installation, and the space-saving design allows optimal access for maintenance and service.

Technical Highlights

• Functionality and application of Insyg Alfa (Insyg Cloud module integrated)
• Equipped with:
  Three-way valve for switching between central heating and domestic hot water circuit
• Instantaneous water heater (4kW, 6kW)
• Magnetic filter with dirt separator
• Expansion tank and safety valve, filling connections
• Circulation pump integrated
• It is designed for NEXUS M EVI pumps.
• Dimensions (WxDxH): 375 × 600 × 825 mm
• Weight: only 45 kg – ideal for quick assembly and easy handling
• Installation location: Indoor
• Application area: Heating and hot water support for heat pumps with EVI technology

Features & Functions

• Integrated hydraulic unit: Contains all essential components for operational safety and efficient system integration
• Elegant, compact design: Saves valuable space and subtly blends into modern home utility rooms
• Maintenance-friendly: Well-thought-out design for easy access to all important components
• Intelligent control: Comprehensive system controller for controlling the heat pump, heating, and domestic hot water preparation – also with remote access capability depending on the version

Advantages at a glance

• Quick & easy installation – factory pre-assembled
• Space-saving & maintenance-friendly – ideal for single-family homes

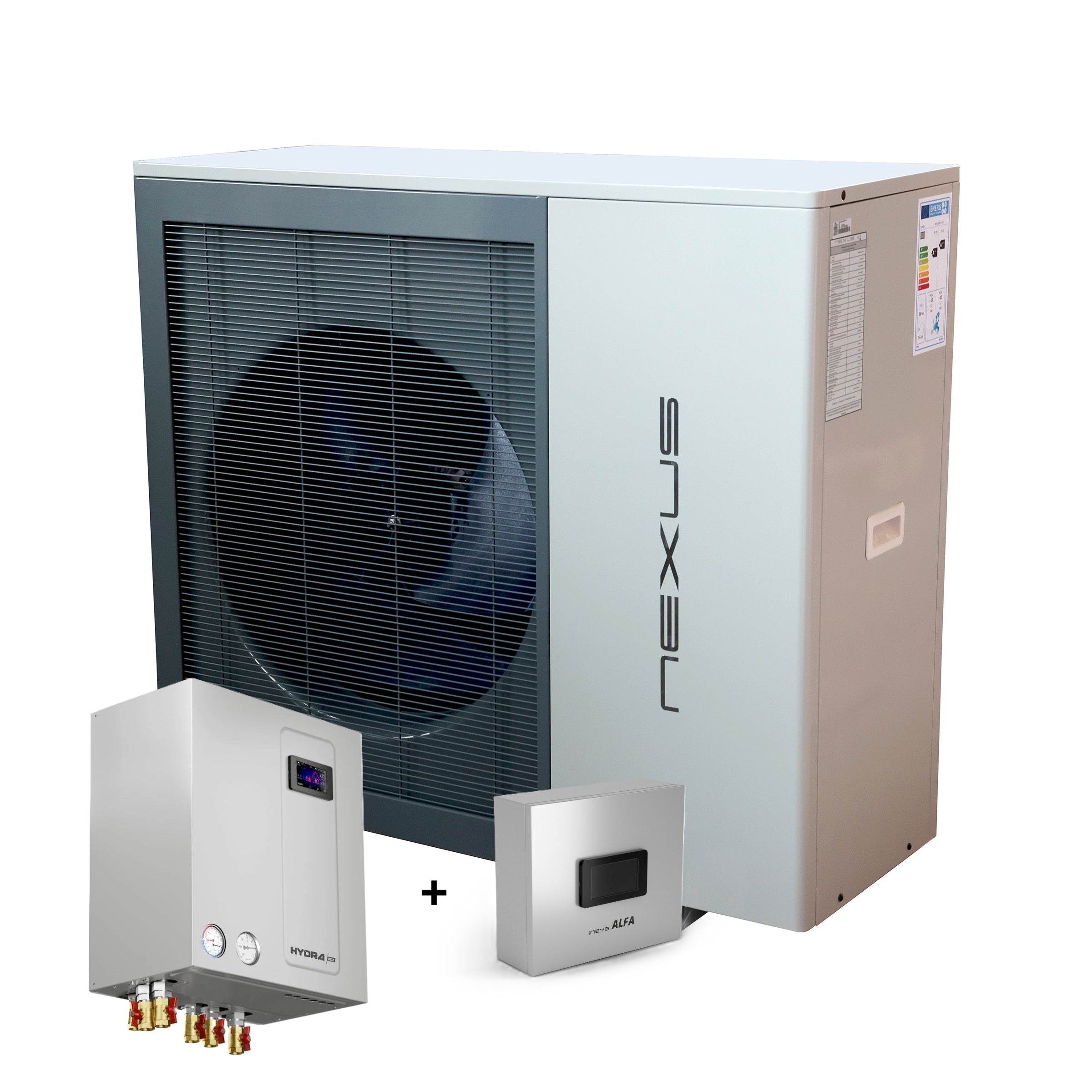

• Combinable with Sunex split heat pumps (e.g., Nexus Split EVI)
• Modern design & low weight – 45 kg

Technical Data

• Application example: Nexus M8 EVI, Nexus M13 EVI
• Circulation pump: Grundfos UPM3L
• Electric heating element: 4kW, 6KW
