Sunex FISH Carbon S4 – compact, durable composite buffer tanks and drinking water storage tanks (Ultra-light fiberglass composite)

Special note as a drinking water storage tank

The Sunex FISH Carbon S4 also functions as a reliable hot and domestic hot water storage tank.
Capacity: 200 liters with minimal space requirements.

Composite buffer tanks are a modern solution for buffering water in heating systems. Their durability and easy installation are impressive. The inner layer is made of high-density polyethylene, reinforced on the outside with fiberglass composite, ensuring a long service life of the tank without corrosion. Compared to steel tanks, they are much lighter, which simplifies transport and installation. In addition, all connections are located on the top of the tank, allowing the unit to be conveniently installed with various heating systems.

General Concept

The FISH CARBON S4 200 impresses with low heat losses, easy installation, and high durability.

Benefits:

Combines heat storage characteristics with a safe drinking water tank, suitable for modern heating and water systems.

Construction:

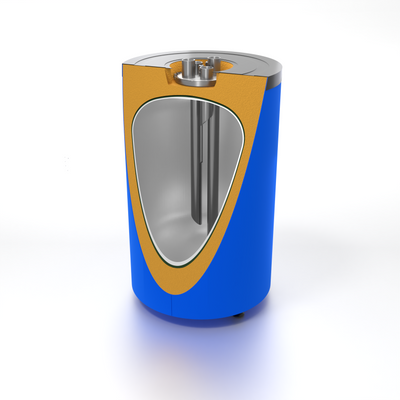

Inner layer of high-density polyethylene (HDPE); outer reinforcement with fiberglass composite.

Advantages of the material structure:

Excellent corrosion resistance, long service life, low weight compared to steel.

Design features:

All connections are located on the top, allowing flexible integration into various heating systems.

Weight:

Very light, typically 33 kg, which facilitates transport and installation.

Connection concept:

All connections centrally located on the top; facilitates integration into various heating systems.

Insulation:

30 mm PU rigid foam insulation minimizes heat losses and increases energy efficiency.

Rust-free:

Compared to steel models, rust formation is eliminated, simplifying maintenance.

Material structure:

HDPE + fiberglass composite ensures stability, corrosion resistance, and long service life.

Versatility:

Suitable as a hot and domestic hot water storage tank in heating and hot water systems.

Areas of application:

Suitable for new construction and modernization projects where compact size and low heat losses are important.

Installation:

Due to the central top connection, flexible integration into central heating circuits, boiler, or solar thermal systems is possible.

Maintenance:

Low maintenance requirements due to rust-free construction; regular inspection of connections is recommended as with other tanks.

Technical Data:

Material: HDPE + fiberglass composite (Ultra-light fiberglass composite)
Maximum operating pressure: 6 bar
Maximum test pressure: 9 bar
Maximum operating temperature: 75 °C
Insulation: PU rigid foam approx. 30 mm
Outer casing: Blue
Weight: 33 kg
Energy efficiency class: B
Storage capacity: 200 l
Standby loss: 58 W
Additional Notes

Important note!

The installation and commissioning of the devices must be carried out exclusively by specialist personnel. In the event of a complaint, professional installation/commissioning by qualified specialist companies (specialist contractor certificate and special qualification) must be demonstrated. If no proof is provided, all warranty and guarantee claims will expire.

Technical changes and errors reserved! Subject to prior sale! Illustration similar!
