Sunex 18 kW NEXUS M18 EVI Monoblock heat pump set with 300 L hot water tank and 100 L buffer tank
Sunex 18 kW NEXUS M18 EVI Monoblock heat pump set with 300 L hot water tank and 100 L buffer tank
Price incl. VAT.
Delivery time on request
In stock
Product informations
"Sunex 18 kW NEXUS M18 EVI Monoblock heat pump set with 300 L hot water tank and 100 L buffer tank "
| Data sheet | Download PDF |
|---|---|
| Installation instructions | Download PDF |
| Investment book | Download PDF |

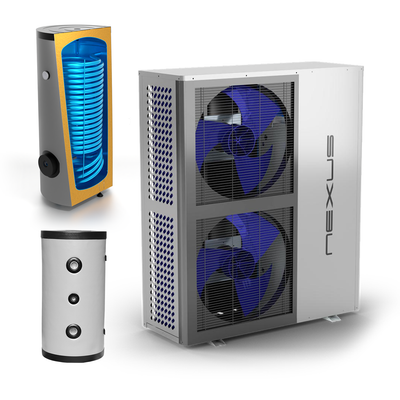

Sunex 18 kW NEXUS M18 EVI Monoblock Heat Pump - Set with 300 L Hot Water Tank and 100 L Buffer Tank R32 A+++/A++
- Nexus M18 heat pump
- FISH S4 100X buffer storage tank (100L)
- Domestic hot water storage tank FISH S15 300X (300L)
Sunex monoblock inverter heat pumps are eligible for subsidies and listed by BAFA.
Circulation pump not integrated into the heat pump!
The heat pumps are equipped with a continuously variable compressor and a brushless fan with variable speed control. This allows the heat pump to adapt to the energy demands of the heating system. The stable operation of the heat pump enables high performance with low compressor noise. The refrigeration system, equipped with EVI (Enhanced Vapor Injection) technology, ensures high efficiency even with conventional radiator systems.
- One of the most cost-effective ways to heat buildings. The system also works at temperatures as low as -25°C.
- High efficiency and long service life thanks to the use of components from world-renowned manufacturers
- A comprehensive control system ensures optimal monitoring and security. Internet control is possible. A wired control panel is included as standard.
- High ease of use. Intuitive and simple operation of the controls.
- The device's compact design allows for quick installation.

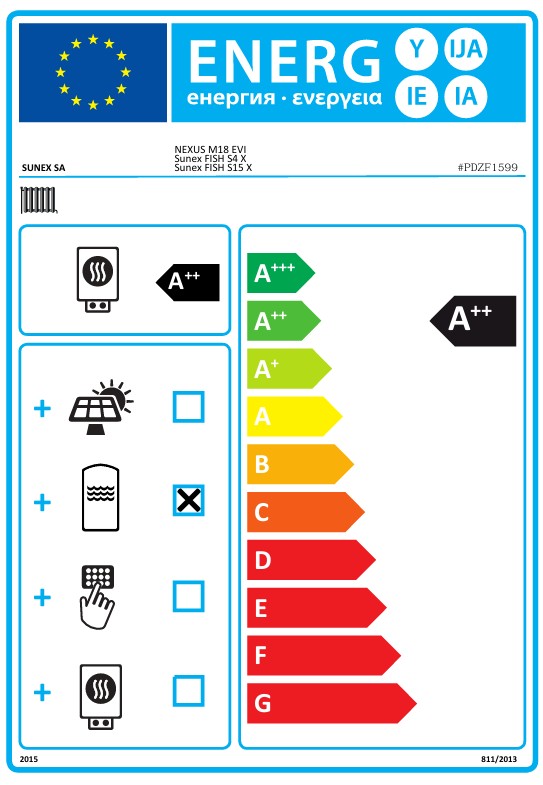

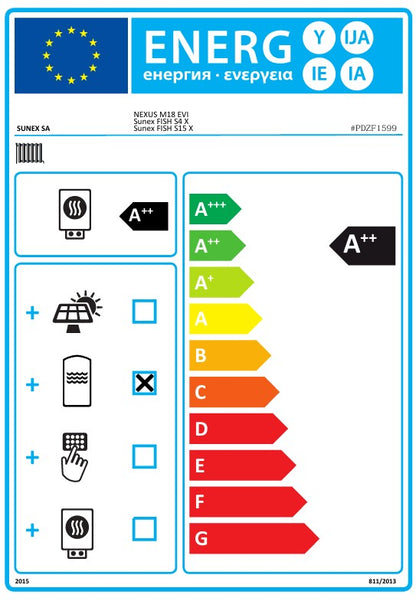

- Energy class A++ at 55°C flow temperature, A+++ at 35°C flow temperature
The ultimate feeling of comfort
NEXUS M EVI heat pumps enable optimal room temperature with minimal energy consumption. They allow the right air temperature to be achieved while simultaneously providing access to hot water to fully meet consumer needs.
Advantages of monoblock construction
The pump is designed entirely for outdoor installation. A key feature of the pump is that the entire cooling system is housed in a single unit, with only the pipes supplying heat to the building extending outside.
Working under extreme conditions
NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability, and cost-effectiveness.
Working under extreme conditions
NEXUS heat pumps are innovative system solutions from SUNEX that keep your home warm even at extremely low temperatures down to -25 degrees Celsius. In operation, they offer exceptional efficiency, reliability, and cost-effectiveness.
Technical data:
- SCOP (W35) temperate climate: 4.46 kWh
- SCOP (W55) temperate climate: 3.51 kWh
- Energy efficiency class (W35): A+++
- Energy efficiency class (W55): A++
- Compressor: Panasonic (rotating, multi-stage vapor injection)
- Expansion valve: electronic
- Number of fans: 2
- Circulation pump: no
- Water-side pressure loss: 35 kPa
- Control: Standard control module
- Outside temperature: -25 to +45°C
- Flow temperature: 55°C
- Recommended heating water flow rate: 3.1 m³/h
- Work equipment / GWP: R32 / 675
- Amount of refrigerant R32: 2.7 kg
- Defrosting method: Hot gas (reverse cycle)
- Sound power level: 57dB
- Dimensions: 1050x480x1330mm
- Weight (net/gross): 170/180 kg
- Power supply: 380-450V 3~ 50Hz
- Max. current (heating/cooling/hot water): 6.37/6.28/7.15A
FISH S4 100X buffer storage tank as wall-mounted or floor-standing version
The buffer tank is designed for vertical installation only. It is ideal for all types of heating systems, especially those using heat pumps. The buffer tank allows for the connection of a heat source circuit and a central heating circuit. It can be wall-mounted or placed on feet. Buffer tanks can be used to store cold water at temperatures between 7 and 12°C.
Technical data buffer storage tank FISH S4 100X:
- Material: S235JR
- Capacity: 100L
- Maximum operating pressure of the storage tank: 3 bar
- Operating temperature range: 7–95°C
- Insulation: 30mm
- Heat source connection: G 1½”
- Water drain connection: G 1½”
- Temperature sensor connection: G ½”
- Weight: 23kg
FISH S15 300X domestic hot water storage tank
Vertical hot water storage tank for domestic hot water preparation. The tank features a large-surface heat exchanger for a heat pump. The contact surface between the hot water and the tank is protected against corrosion by a layer of high-quality enamel and a magnesium anode*. Complies with DIN 4753. This ensures that the domestic hot water only comes into contact with a hygienically clean surface.
Technical data for Fisch S15 300X hot water storage tank:
- Material: S235JR
- Capacity: 300L
- Welding: automatic welding
- Protection: high-quality enamel coating and protective anode
- Maximum operating pressure of the storage tank: 10 bar
- Maximum test pressure: 15 bar
- Maximum operating temperature: 95ºC
- Insulation: 50mm thick polyurethane foam
- Outer shell: grey color
- Heat exchanger: Steel tube S235JR
- Inspection opening: ø125mm/ø180mm
Important NOTE!
The installation and commissioning of the equipment must be carried out exclusively by qualified personnel. In the event of a complaint, proof of proper installation by qualified specialists (certificate of professional qualification and special qualifications) must be provided. If no such proof is provided, all warranties and guarantees will be void.
Technical specifications subject to change without notice. Errors and omissions excepted. Subject to prior sale. Image may differ from actual product.
Refrigerant leaks contribute to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher GWP. A leak of 1 kg of this refrigerant would therefore have a greater impact on global warming, proportional to the refrigerant's GWP value, than 1 kg of CO2, over a period of one hundred years. Do not attempt any work on the refrigeration circuit or disassemble the unit – always consult qualified personnel.
